User Manual for BOSS Waza Craft DM-2W Delay Pedal Click to enlarge the picture
Contents of the user manual for the BOSS Waza Craft DM-2W Delay Pedal
- Product category: Effects Pedals BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Effects Pedals
|
User manual for the BOSS Waza Craft DM-2W Delay Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|

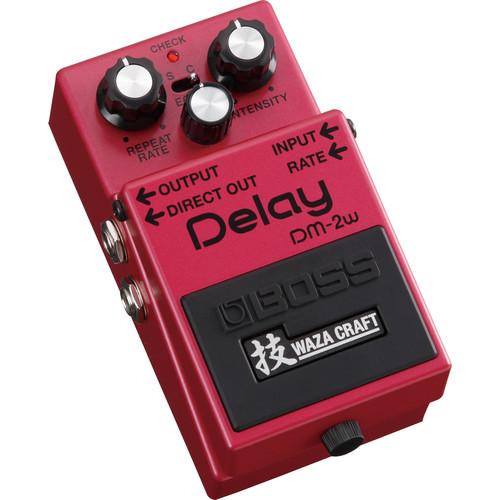

Product description Based on the original vintage design the BOSS Waza Craft DM-2W Delay Pedal offers a completely analog delay circuit for a familiar tone that players of almost any style can enjoy. Since being discontinued in 1984, the original DM-2 analog pedals have been highly sought after for their warm and luscious bucket-brigade delay tone. - Controls
- BOSS kept the styling of the pedal familiar; with the classic magenta-hued chassis with a top panel sporting simple Repeat Rate, Echo, and Intensity controls. Like many classic delays, adjusting the knobs while playing can evoke funky pitch changes and intense self-oscillation for crazy controllable feedback.
- Custom Mode Switch
- With the Waza Craft initiative, BOSS brought back the classic DM-2 design and added a little something extra by way of a tiny S/C toggle switch. The "S" (Standard) mode is a reproduction of the vintage DM-2 circuit in all its analog glory. In this mode, the Repeat Rate knob can select delay times of 20-300 milliseconds. Switch over to the "C" (Custom) mode, and your signal goes through a more modern analog circuit offering longer delay times from 40-800 milliseconds and slightly higher fidelity repeats.
- Dual Outputs
- For complete control of your delay mix, separate outputs are available. The Output jack is the standard output, sending both the dry tone and the delay trails. While the relative loudness of the delay tones can be controlled with the Mix and Intensity knobs, using the Direct Out jack opens up more sonic opportunities. When you plug the DM-2W into a second amplifier, the pedal splits the dry and delay tones to be output separately creating a wide sound-stage not available to conventional single amplifier setups.
- Expression Pedal Control
- Near the instrument input jack is another input jack labeled RATE. Plug in a separately available expression pedal (like the Roland EV-5) and you can control the delay time dynamically without taking your hands off your guitar.
- Classic BOSS Design
- The DM-2W can run off of a single 9V battery or an optional external 9 VDC power supply. The electronics are encased in BOSS's iconic durable metal housing with a non-slip rubber base. The battery compartment can be easily accessed by unscrewing the thumbscrew at the front of the pedal. This pedal utilizes a buffered bypass for silent switching and driving long cable runs even while the pedal is disengaged.
UPC: 761294506547 In the Box BOSS Waza Craft DM-2W Delay Pedal Alkaline Battery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS Waza Craft DM-2W Delay Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS DM-2W Specs | Inputs | 1 x unbalanced 1/4" instrument TS | | Nominal Input Level | -20 dBu | | Input Impedance | 1 mOhm | | Outputs | 2 x unbalanced 1/4" instrument TS | | Nominal Output Level | -20 dBu | | Output Impedance | 1 kOhm | | Recommended Load Impedance | 10 kOhms or greater | | Delay Time | Standard Mode: 20 to 300 ms
Custom Mode: 40 to 800 ms | | Power Supply | 9 VDC:
Dry battery, 9V type (6F22/carbon, 6LR61/alkaline)
Optional AC Adapter (PSA-Series, available separately) | | Current Draw | 35 mA @ 9 VDC | | Dimensions | 2.9 x 5.1 x 2.4" / 73 x 129 x 59 mm | | Weight | 1.1 lb / 460 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 5.906 x 3.701 x 2.52" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to BOSS Waza Craft DM-2W Delay Pedal
| Subject: Delay time | | Date: 20.12.2021 00:31:59 | Name: John Kempt | Hi
Hope all is well
My Waza Delay seems stuck in a tight room slap setting no matter where I turn the repeat time know.
Is there a reset to the pedal?
Wondering if the time setting got lodged while using and expression pedal?
I used the Roland EV 5. Seemed to act a little strangely while using that.
I have never had a fault with a Boss pedal before.
Please advise
Thank you
Regards
John Kempt
| | Post reply |
