User Manual for BOSS Waza Craft VB-2W Vibrato Pedal Click to enlarge the picture
Contents of the user manual for the BOSS Waza Craft VB-2W Vibrato Pedal
- Product category: Effects Pedals BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Effects Pedals
 |
User manual for the BOSS Waza Craft VB-2W Vibrato Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|

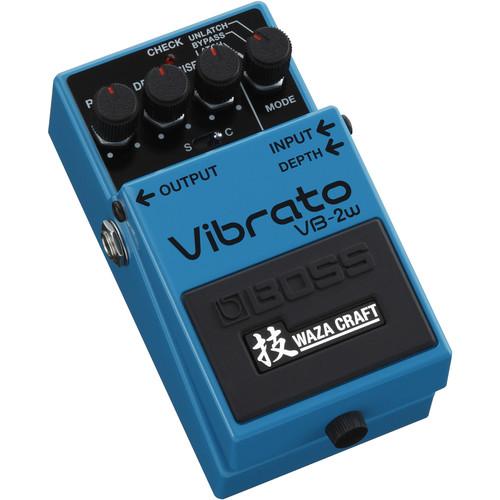

Product description Unveiled: New BOSS Pedals and Switcher, 2016 Read More BOSS brings back the vibes with the Waza Craft VB-2W Vibrato Pedal. Using the same bucket-brigade circuitry as the original highly sought-after VB-2 pedal from 1982, the VB-2W elicits the same expressive pitch-shifted vibrato as the original model—that is, before you engage the Custom mode switch. In Custom mode, the VB-2W generates a completely different vibe which adds an innovative new vibrato sound with a unique filter wave and real-time control function for enhanced expression. It's like having two pedals in one, providing an efficient combination with the best of vintage and modern vibrato effects. - Controls

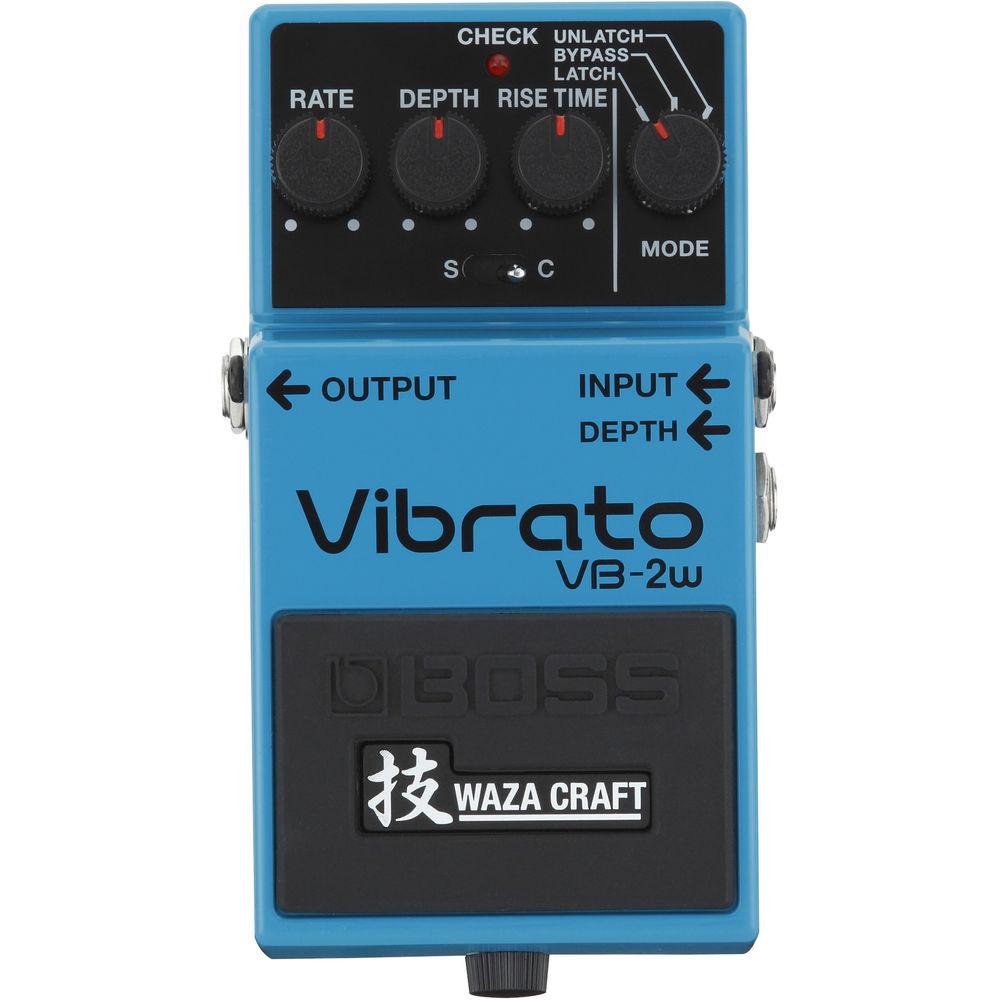

- BOSS kept the styling of the pedal familiar; with the classic blue chassis with a top panel sporting simple Rate, Depth, Rise Time, and Mode controls. While the effect controls are fairly straightforward the Mode control changes the way the footswitch operates. For normal operation, the Latching option turns the pedal on and off with a press of the footswitch. The unlatching option is very popular as the pedal is only active while the footswitch is being pressed—great for momentary use for adding the effect to only specific notes and chords. The Bypass option completely removes the pedal from the signal chain, preventing any unwanted latency from the pedal's electronics
- Custom Mode Switch
- With the Waza Craft initiative, BOSS brought back the classic VB-2 design and added a little something extra by way of a tiny S/C toggle switch. The "S" (Standard) mode is a reproduction of the vintage VB-2 circuit in all its analog vibrato glory. Switch over to the "C" (Custom) mode, and your signal goes through a completely different process for a totally new vibrato sound with a unique filter wave
- Expression Pedal Control

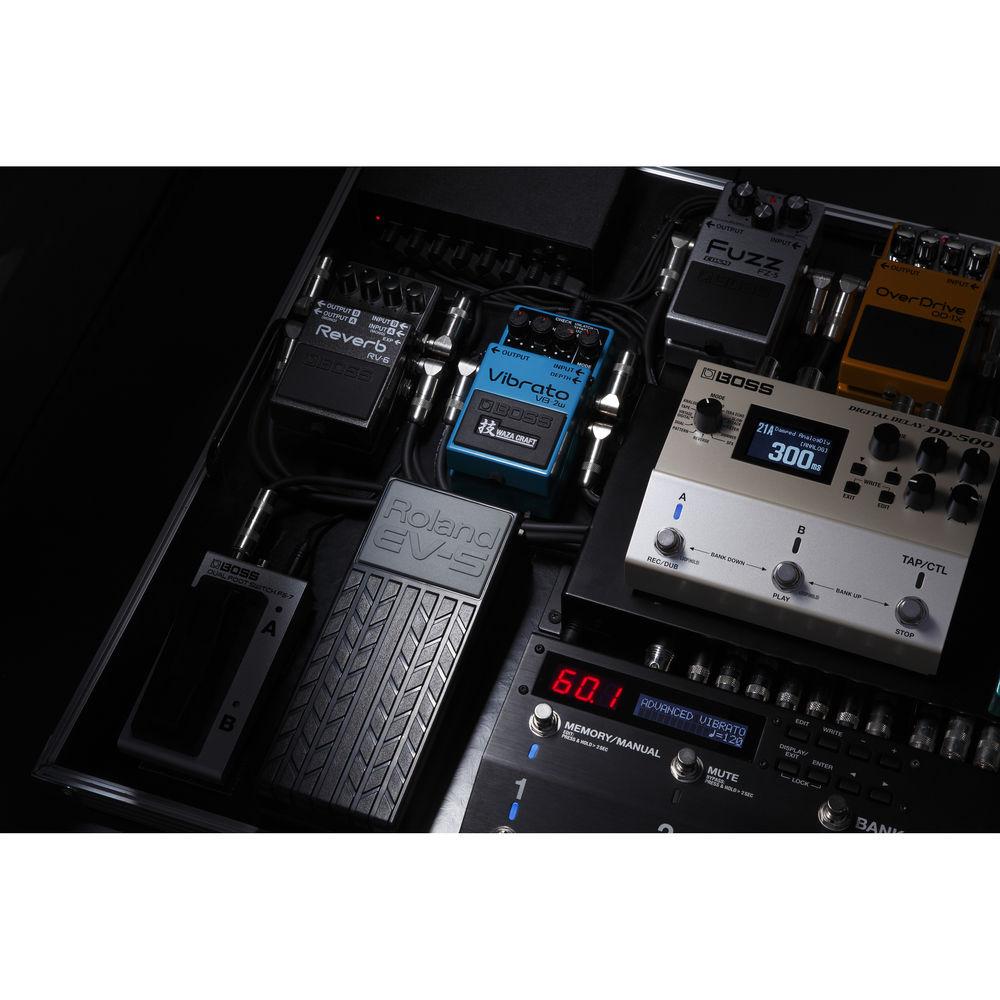

- Near the instrument input jack is another input jack labeled DEPTH. Plug in a separately available expression pedal (like the Roland EV-5) and you can control the vibrato depth dynamically without taking your hands off your guitar
- Classic BOSS Design
- The VB-2W can run off of a single 9V battery or an optional external 9 VDC power supply. The electronics are encased in BOSS's iconic durable metal housing with a non-slip rubber base. The battery compartment can be easily accessed by unscrewing the thumbscrew at the front of the pedal. This pedal utilizes a buffered bypass for silent switching and driving long cable runs, even while the pedal is disengaged
UPC: 761294508657 In the Box BOSS Waza Craft VB-2W Vibrato Pedal 9V Battery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS Waza Craft VB-2W Vibrato Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS VB-2W Specs | Inputs | 1 x unbalanced 1/4" instrument TS
Nominal Input Level: -20 dBu
Input Impedance: 1 MOhm | | Outputs | 1 x unbalanced 1/4" instrument TS
Nominal Output Level: -20 dBu
Output Impedance: 1 kOhm | | Recommended Load Impedance | 10 kOhms or greater | | Power Supply | 9 VDC:
Dry battery, 9 V type (alkaline 6LR61, carbon zinc 6F22)
Optional AC Adapter (PSA series) | | Current Draw | 35 mA @ 9 VDC | | Dimensions | 2.9 x 5.1 x 2.4" / 73 x 129 x 59 mm | | Weight | 1 lb / 450 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 5.9 x 3.7 x 2.6" |
