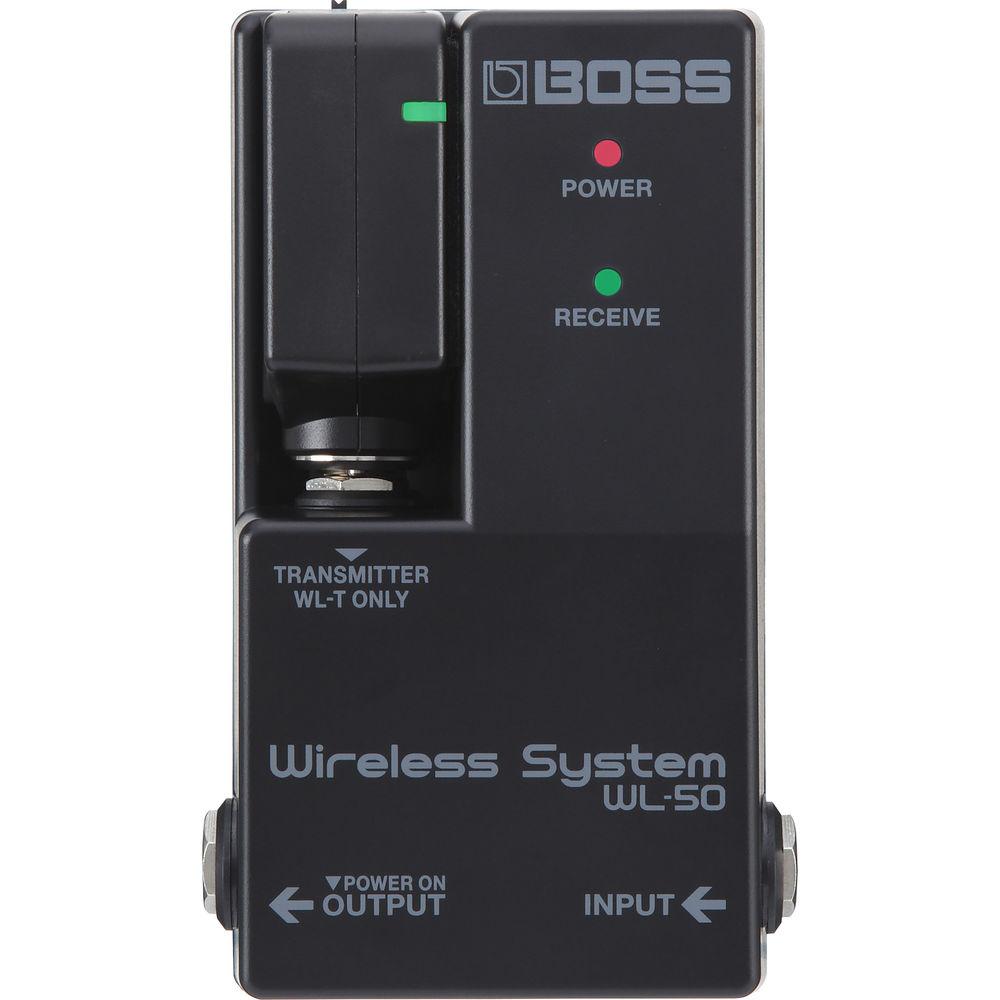

BOSS WL-50 Wireless System for Pedalboards

Search your instruction manual in PDF to download

User Manual for BOSS WL-50 Wireless System for Pedalboards

Click to enlarge the picture
BOSS WL-50 Wireless System for Pedalboards Contents of the user manual for the BOSS WL-50 Wireless System for Pedalboards
  • Product category: Guitar Wireless BOSS
  • Brand: BOSS
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for BOSS Guitar Wireless

BOSS WL-50 Wireless System for Pedalboards BOSS WL-50 Wireless System for Pedalboards BOSS WL-50 Wireless System for Pedalboards BOSS WL-50 Wireless System for Pedalboards BOSS WL-50 Wireless System for Pedalboards BOSS WL-50 Wireless System for Pedalboards BOSS WL-50 Wireless System for Pedalboards BOSS WL-50 Wireless System for Pedalboards BOSS WL-50 Wireless System for Pedalboards
User manual for the BOSS WL-50 Wireless System for Pedalboards contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any BOSS product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!



Product description

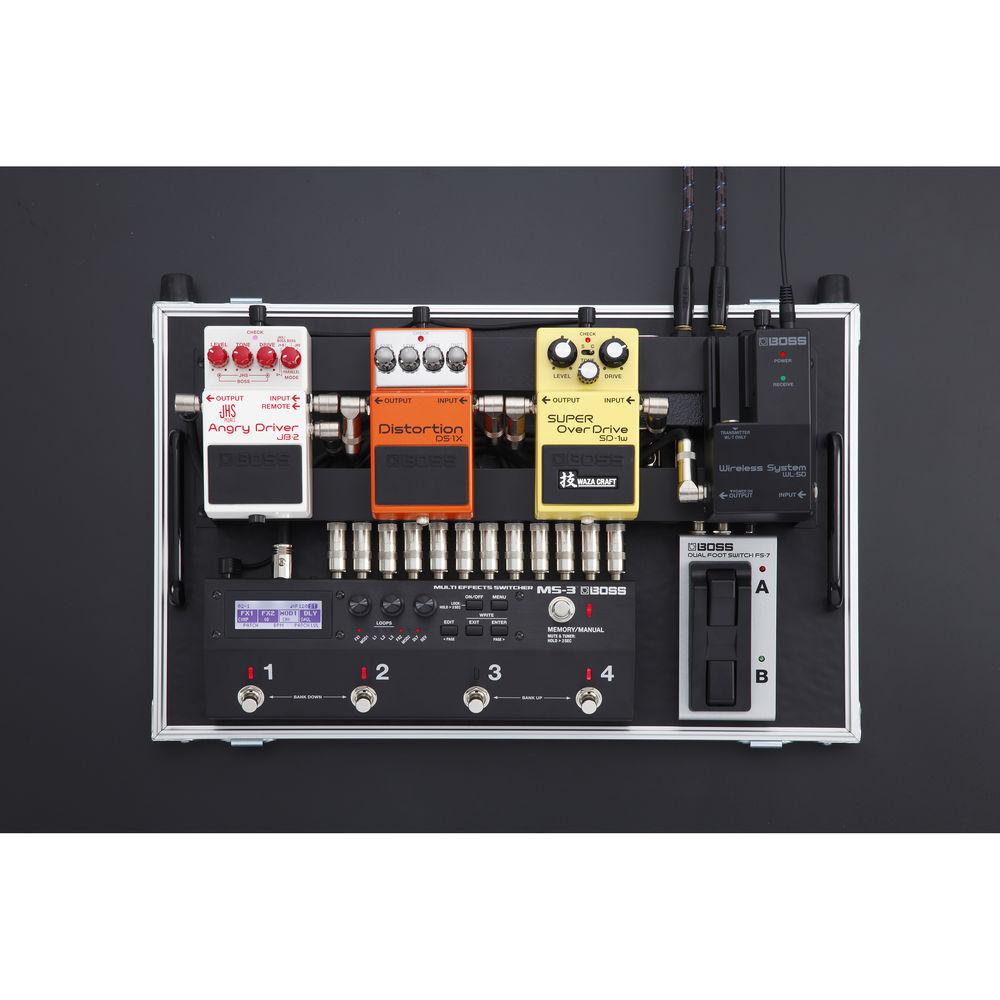

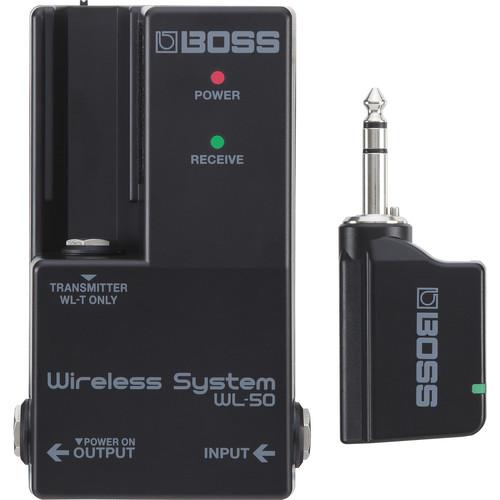

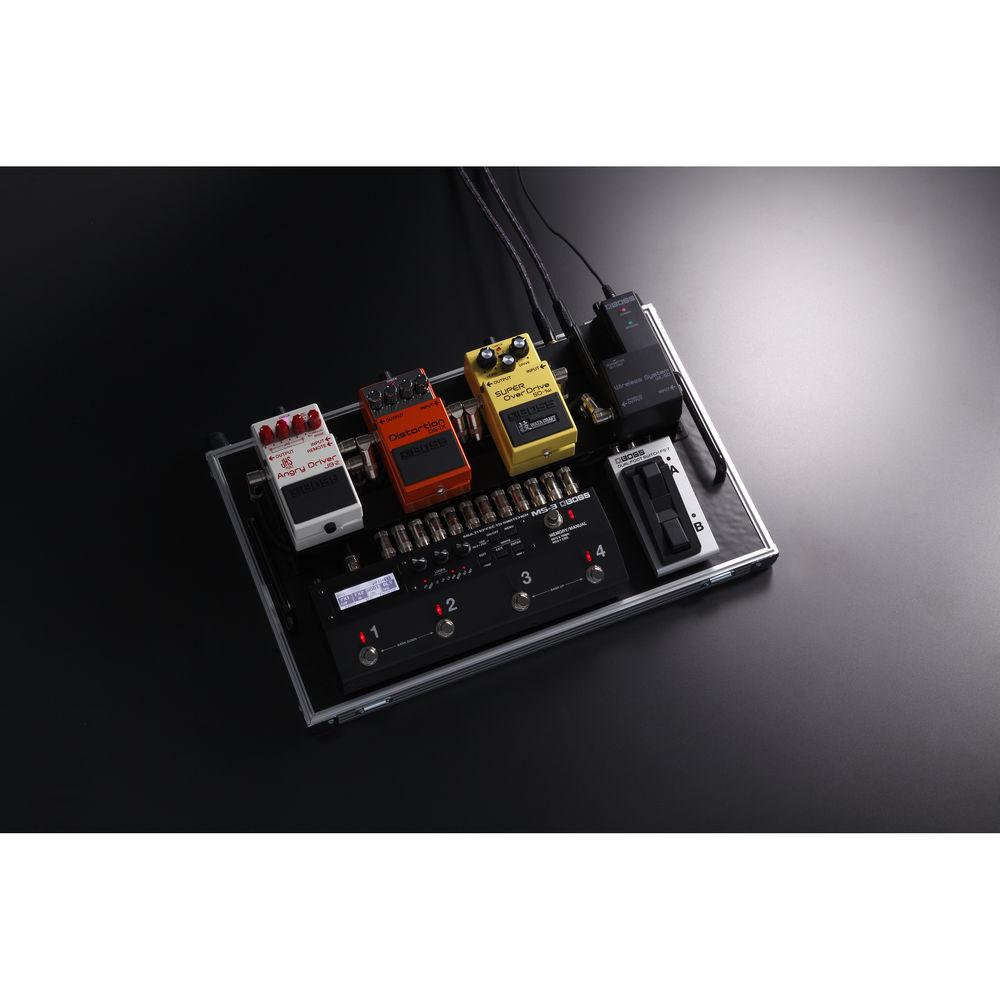

The BOSS WL-50 is a wireless system for the pedalboards of electric guitarists. It provides easy operation through its stompbox-sized receiver and included WL-10. Simply plug the transmitter into your guitar, while the receiver sits first in your pedal chain. Now, you are free to roam up to 65' away from your pedalboard without worrying about dragging gear, tripping up your bandmates, or accidentally unplugging.

The receiver automatically finds and sets the optimal wireless connection with the transmitter, selecting among 14 channels to do so, and operating over the carrier frequency of 2.4 GHz. At 2.3 ms, latency shouldn't be an issue. Moreover, the receiver has a docking port for charging your transmitter, and also sports a DC output for distributing power to other pedals on your board.

With selectable cable-tone simulations, you can add a little more wired-realness back into your signal, if you so choose. You can power the receiver with two AA batteries, or use a separately available power supply.
    Key Features at a Glance
    • Plug-and-play wireless system in a stompbox-size format for pedalboards
    • Wireless connection set automatically, with no complicated setup required
    • BOSS proprietary technology delivers rock-solid stability, ultra-low latency (2.3 ms), and 65' range (line-of-sight propagation)
    • Built-in rechargeable battery in transmitter provides up to 12 hours of continuous playing time

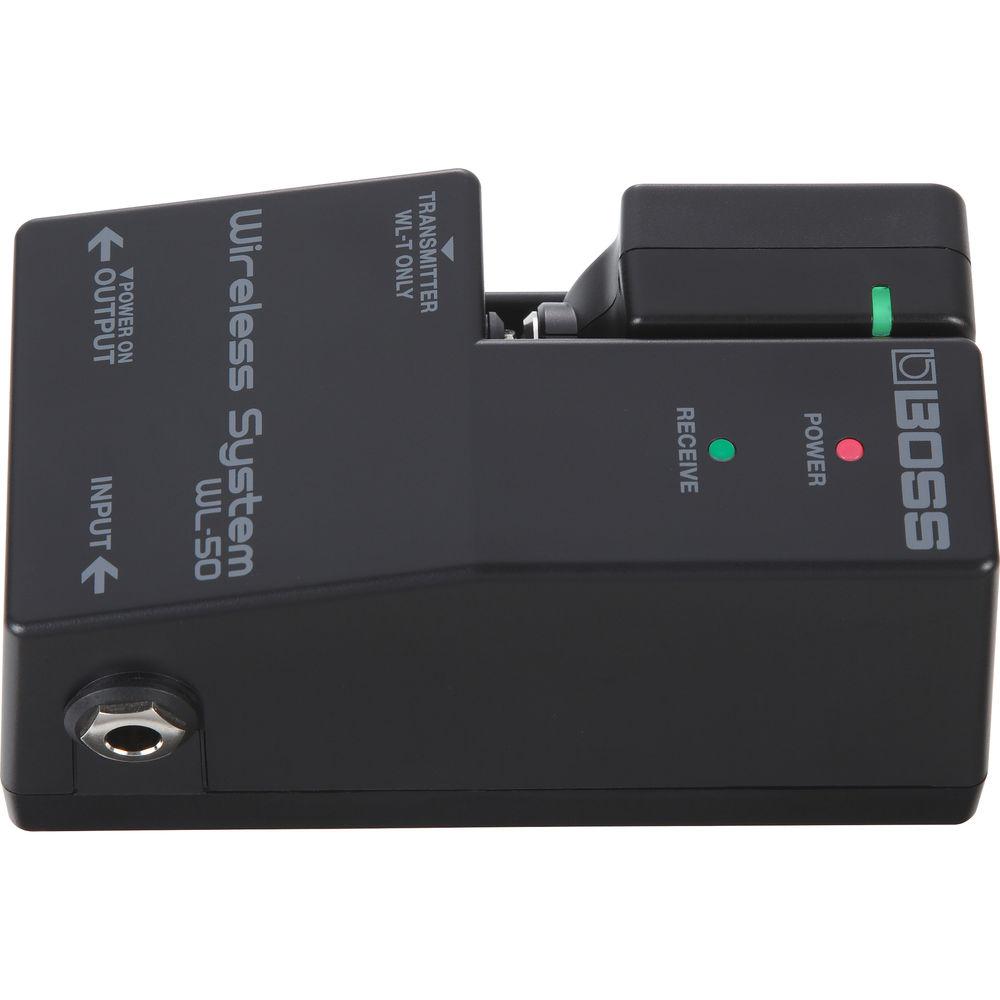

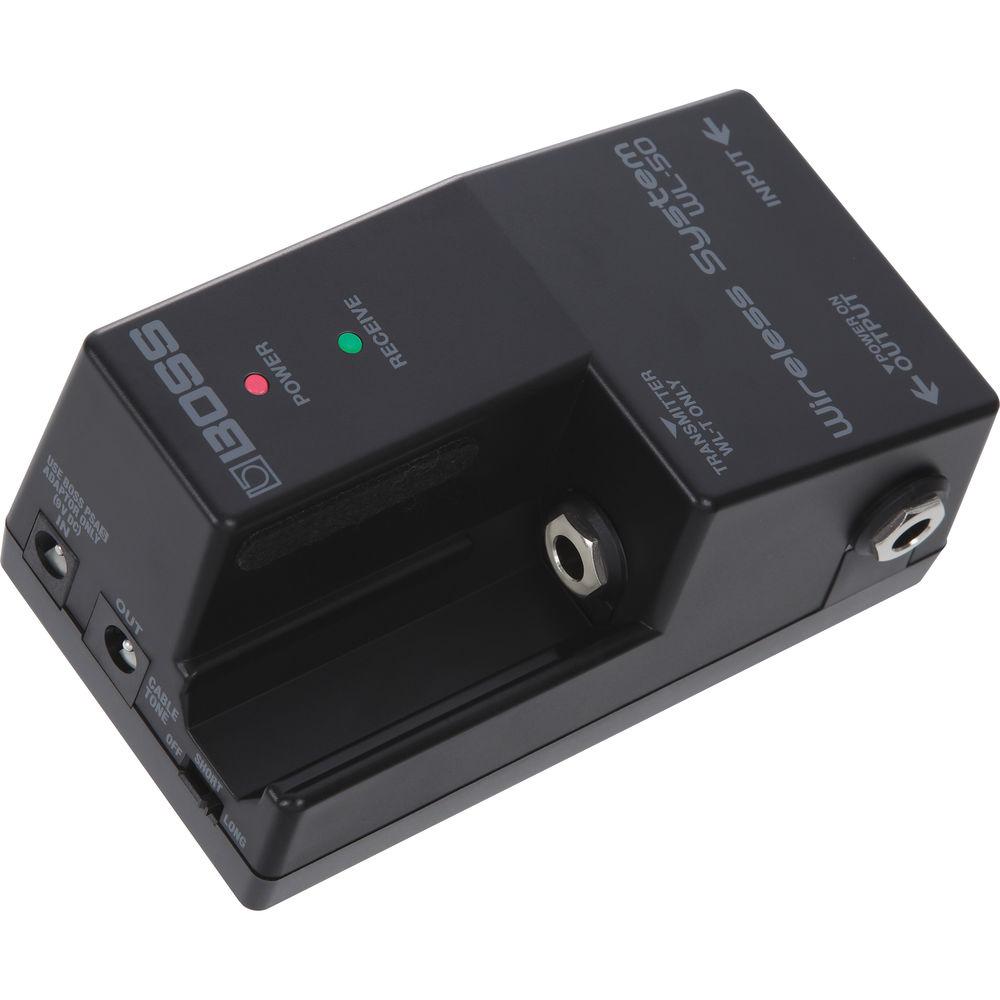

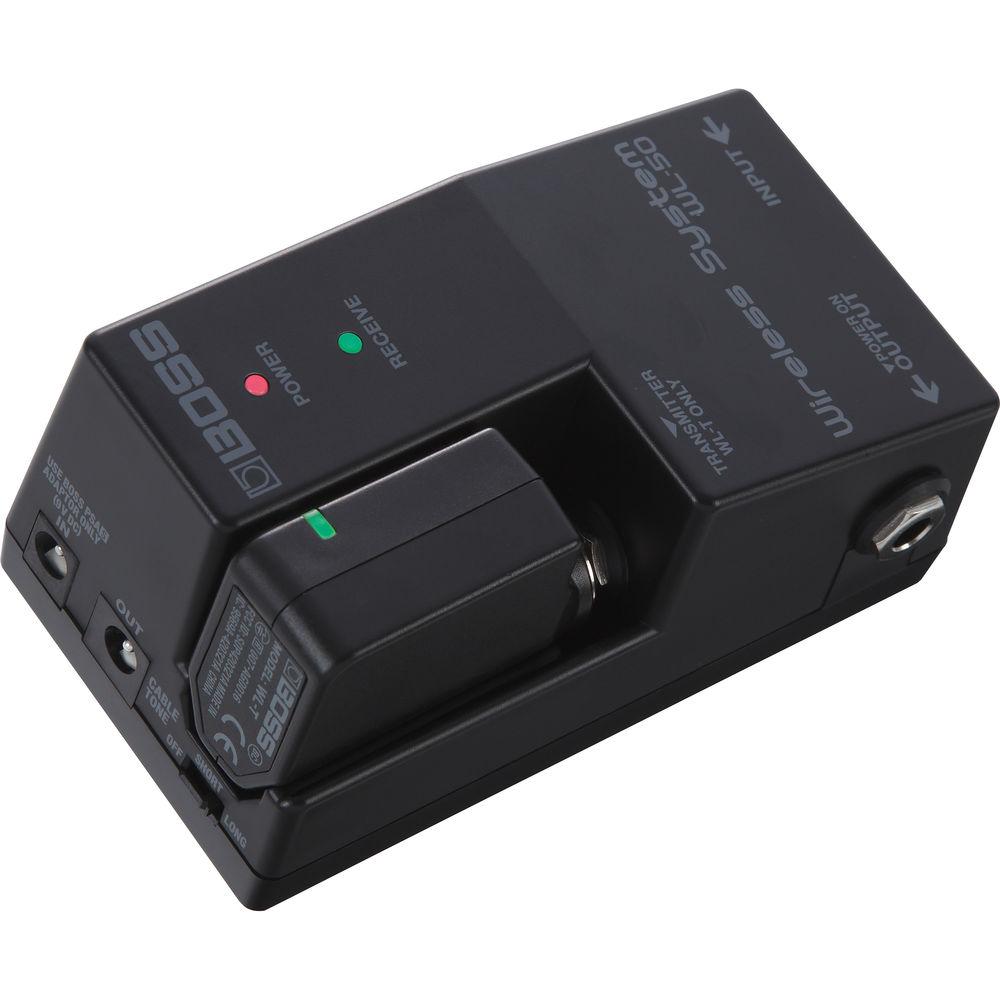

    • Plug the transmitter into the receiver’s docking port for charging and automatic wireless setup
    • Selectable cable tone simulation options: short, long, and bypass
    • Receiver powered by optional PSA-S adapter or two AA batteries

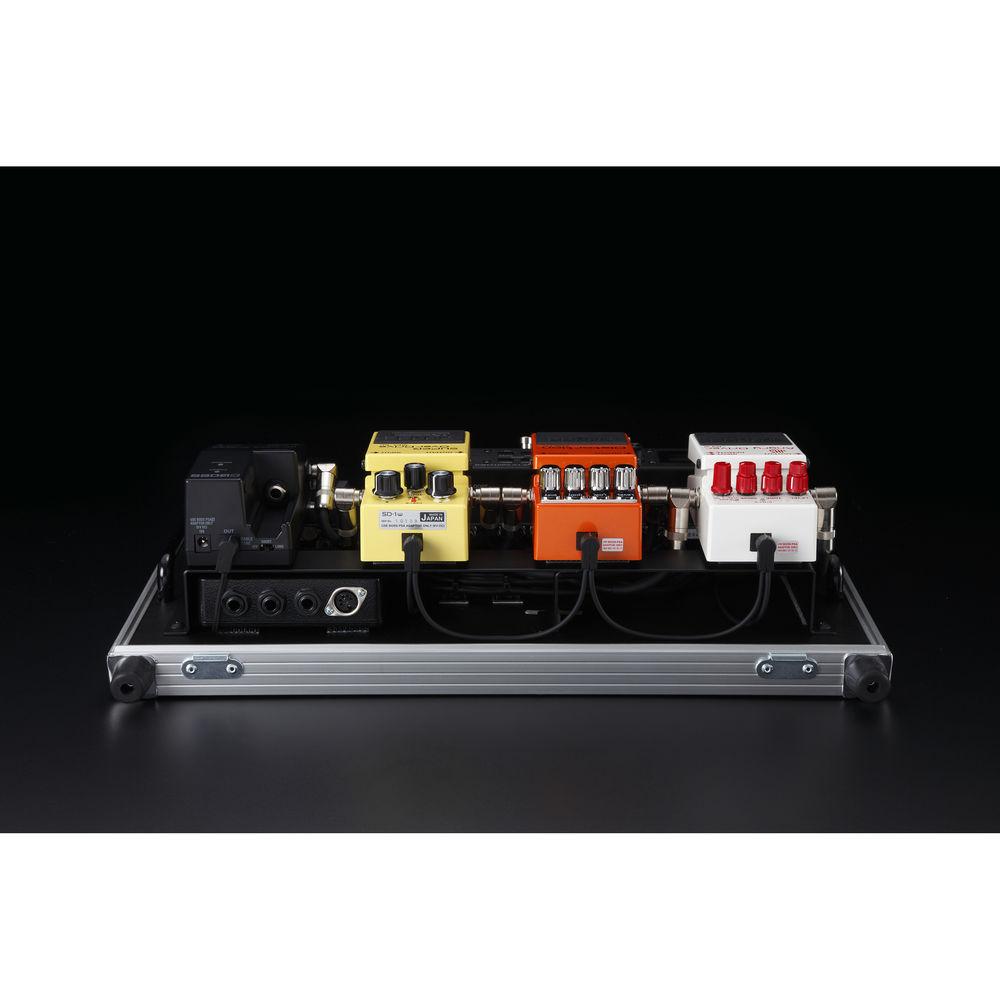

    • With PSA-S adapter power, the receiver’s DC output can distribute power to one or more pedals using an optional PCS-20A daisy-chain cable
    • Spare WL-T transmitter available separately
UPC: 761294512692 In the Box BOSS WL-50 Wireless System for Pedalboards
  • WL-T Wireless Transmitter for BOSS Guitar Receiver Systems
  • Limited 1-Year Warranty on Parts
  • Limited 90-Day Warranty on Labor
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the BOSS WL-50 Wireless System for Pedalboards in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    BOSS WL-50 Specs

    Wireless Type BOSS proprietary digital audio format
    Carrier Frequency 2.4 GHz
    Channel Count 14x, may vary due to local conditions
    Transmission Range 65' / 19.8 m, line-of-sight, may vary due to local conditions
    Latency 2.3 ms
    Dynamic Range 110 dB or greater
    Frequency Response 20 Hz to 20 kHz
    Nominal Input Level -10 dBu
    Input Impedance 1 MOhm
    Nominal Output Level -10 dBu
    Output Impedance 10 kOhms or greater

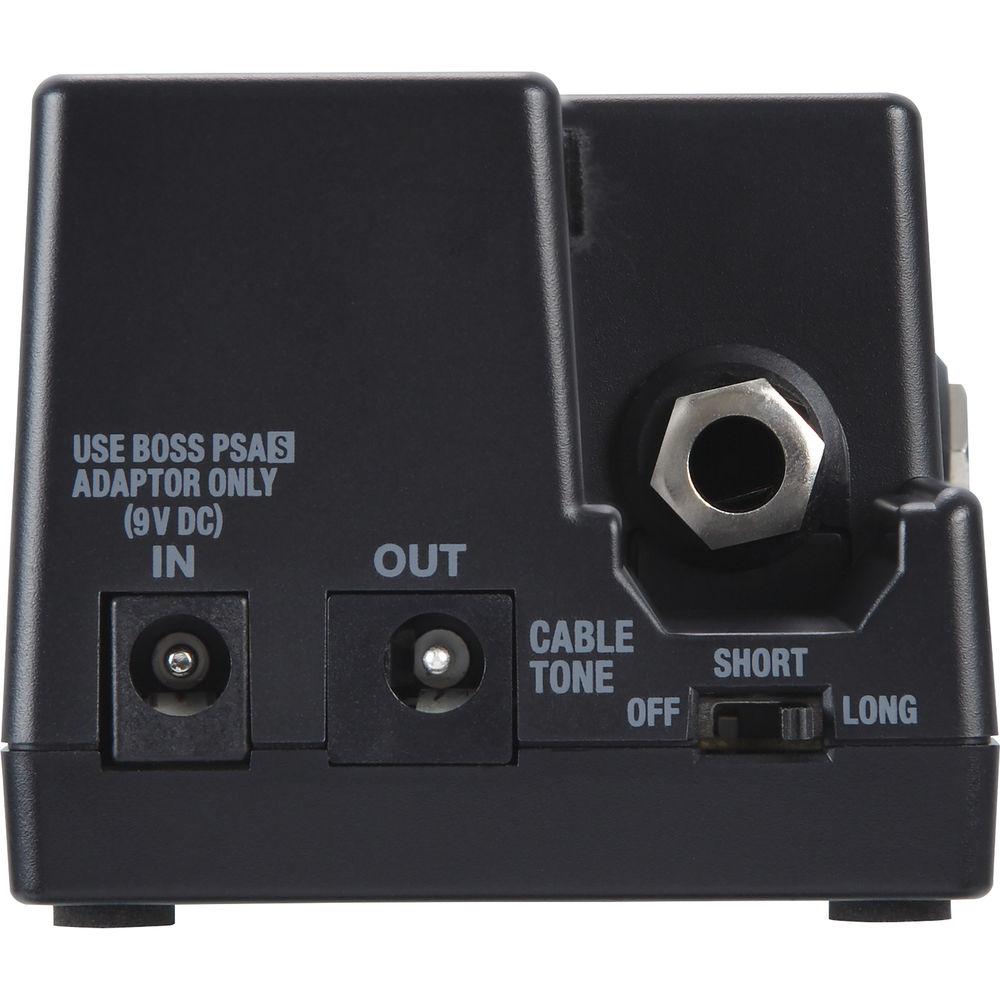

    Controls Cable tone switch (off/short/long)
    Indicators Power, receive
    Connectors 1 x 1/4" input, phone type
    1 x 1/4" output, phone type
    1 x 1/4" TRS transmitter jack, phone type
    1 x DC input jack
    1 x DC output jack
    Power Supply 2 x alkaline battery (AA, LR6)
    AC adapter (available separately)
    Current Draw During Wireless Operation: 60 mA
    While Charging Transmitter: 320 mA
    Expected Battery Life Approximately 10 hours under continuous use
    Optional Accessories PSA-S AC adapter
    Parallel DC Cord (8 x DC plug): PCS-20
    Dimensions 2.8 x 4.8 x 2.2" / 72.0 x 121.0 x 56.0 mm
    Weight 7.8 oz / 220.0 g
    Package Weight 0.5 lb
    Box Dimensions (LxWxH) 6.5 x 6.5 x 3.0"

    Rating

    60% users recommend this product to others. And what about you?
    Rating: 3.0 of 5

    This product has already been rated by 75 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to BOSS WL-50 Wireless System for Pedalboards

    Subject: WL50 Has Lost it's Range
    Date: 28.07.2022 02:51:15Name: Vinnie
    Hello My WL50 has lost all of it's range and only works if I'm standing right over the pedalboard. I tried replacing the power supply with a new Boss PS120 but if I even turn to the right it starts cutting in and out. Any ideas?
    Post reply

    Subject: dead
    Date: 16.05.2022 22:50:05Name: Rocky Jackson
    Did you ever get it working?
    Post reply

    Subject: wl-50
    Date: 12.01.2022 18:40:27Name: terry newcomb
    put fresh batteries in ,it is dead , plug in dead, doesnt want to wake up, is there anything i can do to wake it up
    Post reply

    Subject: I want to obtain a Operator Manual for my Boss WL-50
    Date: 08.04.2021 01:31:25Name: Thomas Couch
    I want a BOSS WL-50 Operators Manual Please help. Thank you. TJC
    Post reply
