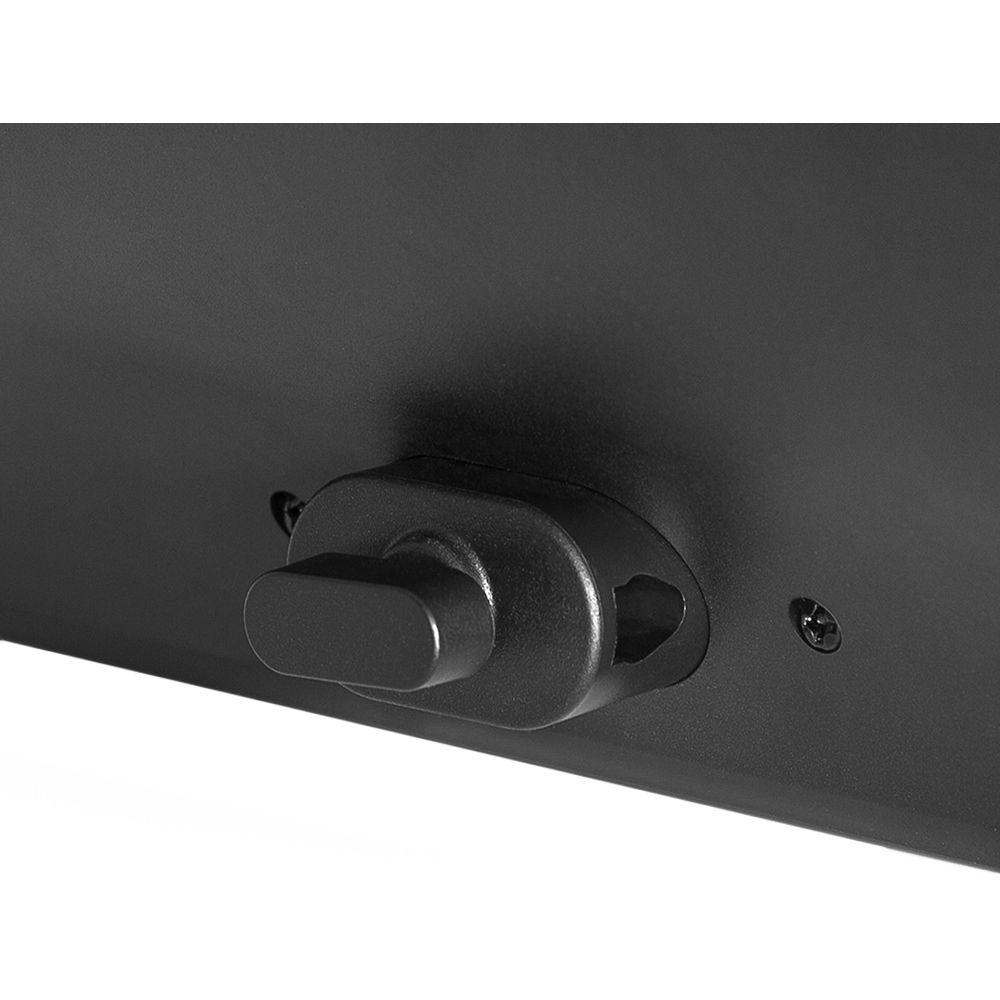

User Manual for Bowens XMS500 2-Light Flash Kit Click to enlarge the picture
Contents of the user manual for the Bowens XMS500 2-Light Flash Kit
- Product category: Monolights Bowens
- Brand: Bowens
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bowens Monolights
 |
User manual for the Bowens XMS500 2-Light Flash Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bowens product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bowens user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bowens product will considerably shorten its lifespan!
|

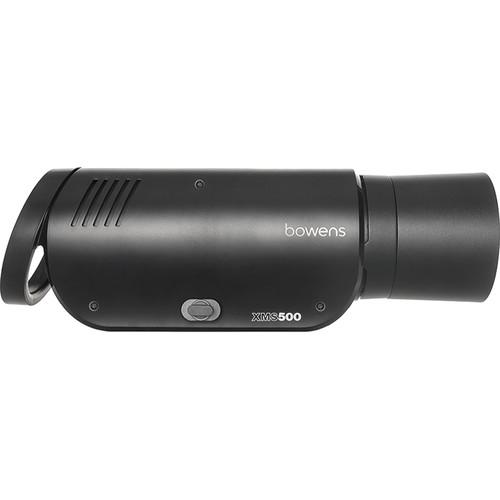

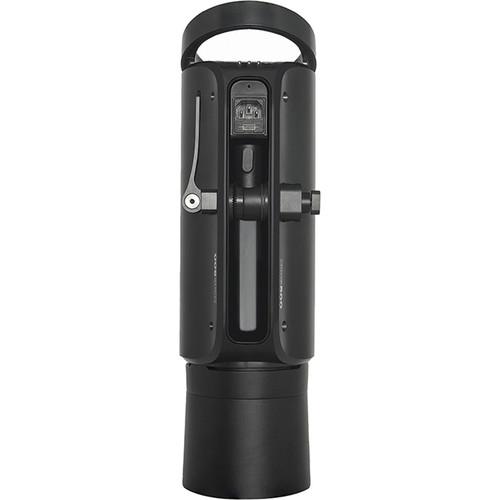

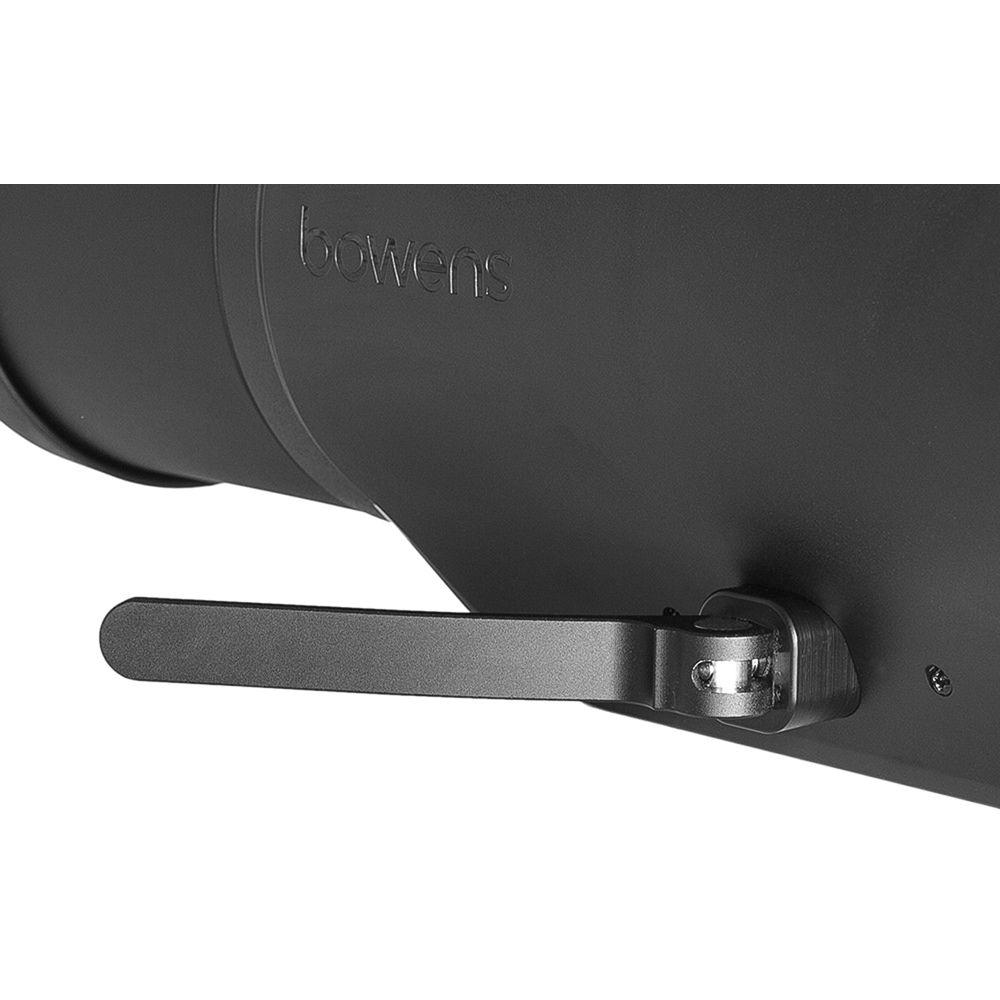

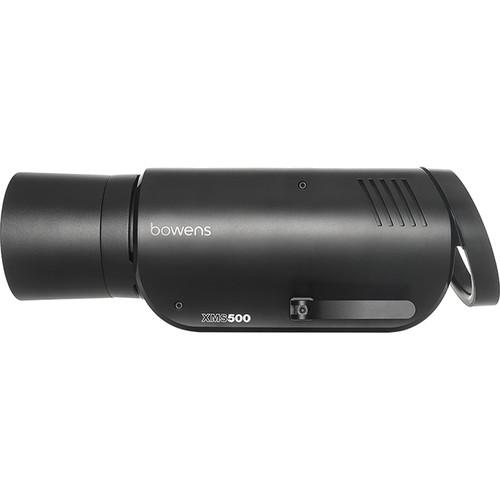

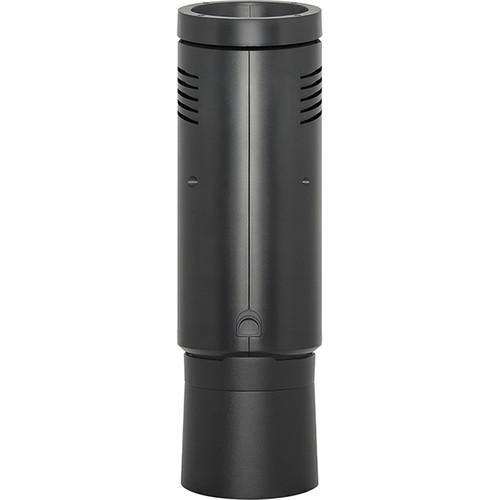

Product description The XMS500 2-Light Flash Kit from Bowens provides photographers with a great core setup for the studio or on the road. The kit includes 2 multi-voltage, 500Ws XMS500 flash heads with built-in radio receivers that can be triggered at distances up to 100' with the included wireless transmitter. Each head comes complete with a power cord, flash tube, reflector, and a compact light stand. A 23.6 x 31.5" Lumiair softbox and a 35.4" umbrella are also included. It all fits in the kit's wheeled bag. - XMS500 Flash Head The XMS500 Flash Head from Bowens is a 500Ws monolight with fast recycling of 0.2 - 1.0 sec and 7-stop power variability in full or 1/10 stops. The flash has Off, Proportional, Free Set, and Full modeling light modes, a safe sync voltage of 5V, and action-stopping flash durations as short as 1/5180 second. The XMS500 has a built-in 16-channel / 8-group receiver that accepts 2.4GHz signals from the optional XMSR transmitter at distances up to 100'. Besides flash triggering, remote controllable functions include power level, modeling light mode, ready indications, and sync including High Speed Sync up to 1/8000 sec. The XMS500 is ready for worldwide use thanks to its 90-250 VAC power supply. UPC: 880939028012
- Lumiair 60-80 Softbox (31.5 x 23.6 x 12.6") This Bowens Lumiair 60-80 Softbox (31.5 x 23.6 x 12.6") is a good choice for softening the output of your flash. Precision tension ensures straight edges delivering clean cut-off of the light beam, while the optimum color calibration of the reflective interior surface together with shallow construction, offers a high degree of light efficiency. Add to this two layers of diffusion and you have an even spread of light - no more than 1/2 stop from center to edge, without distracting hotspots. Each Lumiair softbox comes complete with a simple zip-up carry case to ensure safe and easy transportation to location shoots. Lumiair softboxes also include the main canopy, a rear cowl, front diffuser, internal diffuser and support rods. Lumiair softboxes come with a 2-part speed ring - a basic ring accepts the rods and the included Bowens insert. There are also inserts available for most other flash head brands.
- XMSR Flash Trigger The XMSR Flash Trigger from Bowens is a 16-channel / 8-group transceiver designed to fire Bowens's recently introduced XMS500, XMS750 and XMS1000 flash heads. The full-function trigger will also control the flash heads' power level, modeling light, flash ready indicators and channel selection from distances up to 100'. Because of its transceiver design, the shoe-mount XMSR will also fire a connected camera using a second XMSR. The flash trigger operates on the 2.4GHz frequency and is powered by 2 AAA batteries. UPC: 880939029484
In the Box Bundle Items 2 x XMS500 Flash Head racexbxv Lumiair 60-80 Softbox (31.5 x 23.6 x 12.6") - Replacement Speedring for Bowens Lumiair, Wafer Soft Boxes and Light Banks
- S-type Adapter for Bowens and Wafer Softboxes
XMSR Flash Trigger
Also Includes - 2 x Reflectors
- 2 x Compact Stands
- Umbrella (35.4")

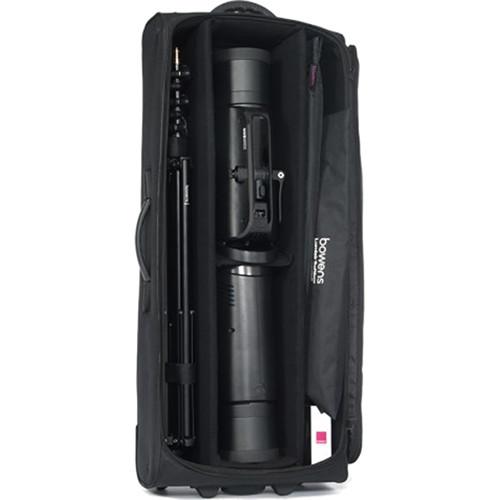

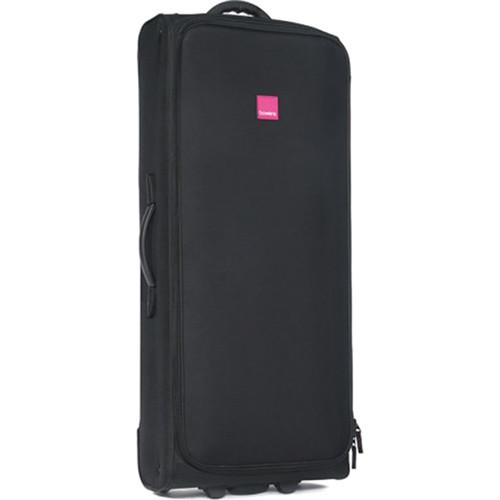

- Wheeled Bag
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bowens XMS500 2-Light Flash Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - XMS500 Flash Head

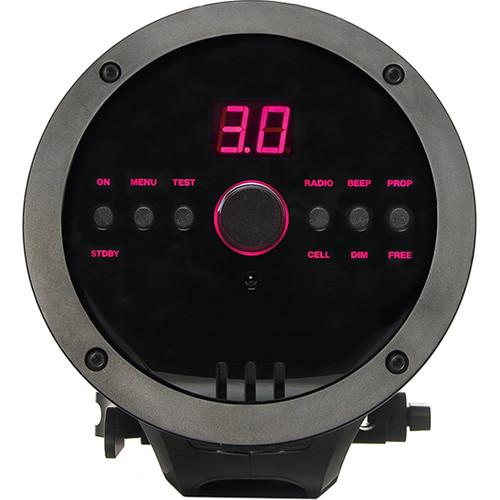

| | | Maximum Power | 500 Ws | | Power Control | 7 Stops in 1/10-Stop Increments | | Flash Duration | 1/5180 to 1/2480 Sec | | Recycle Time | 0.2 to 1.0 Sec () | | Color Temperature | 5600K ± 300K | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Bowens S Type | | | | Type | Tungsten | | Control Modes | Free Set, Full On, Off, Proportional | | | | Sync Type | Optical, Radio | | Wireless Frequency Bands | 2.4 GHz | | Sync Voltage | 5 V | | | | AC Input Voltage | 90to250 VAC, 50 / 60 Hz | | | | Display | LCD | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 7.5 x W: 5.3 x L: 19.0" / H: 192.0 x W: 136.0 x L: 485.0 mm | | Weight | 8.15 lb / 3.7 kg | | | | Box Dimensions (LxWxH) | 25.78 x 15.354 x 7.638" | - Lumiair 60-80 Softbox (31.5 x 23.6 x 12.6")
| Shape | Rectangular | | Compatibility | Most major flash brands | | Removable Front Face | Yes | | Removable Interior Baffle | Yes | | Accepts Grids | Yes | | Requires Speed Ring | Yes | | Dimensions | 31.5 x 23.6 x 12.6" (80 x 60 x 32 cm) | | | | Box Dimensions (LxWxH) | 37.0 x 8.2 x 6.4" | - XMSR Flash Trigger
| | | Channels | 16 | | Groups | 8 | | Wireless Range | 100' / 30.5 m | | Radio Frequency | 2.4 GHz | | | | Sync Speed | 1/8000 Sec (High-Speed) | | | | Dimensions | 2.3 x 3.8 x 0.98" / 58 x 97 x 25 mm (Transmitter) | | | | Box Dimensions (LxWxH) | 6.25 x 3.4 x 2.0" |
