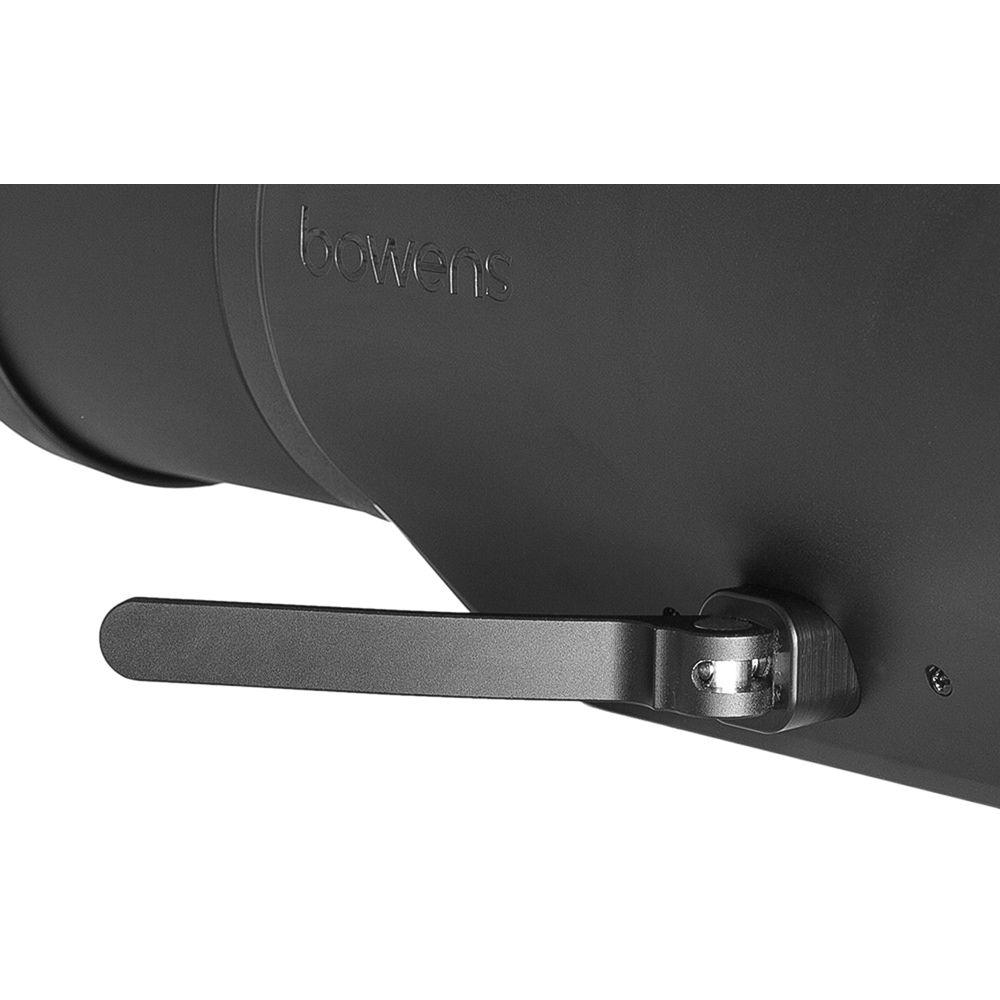

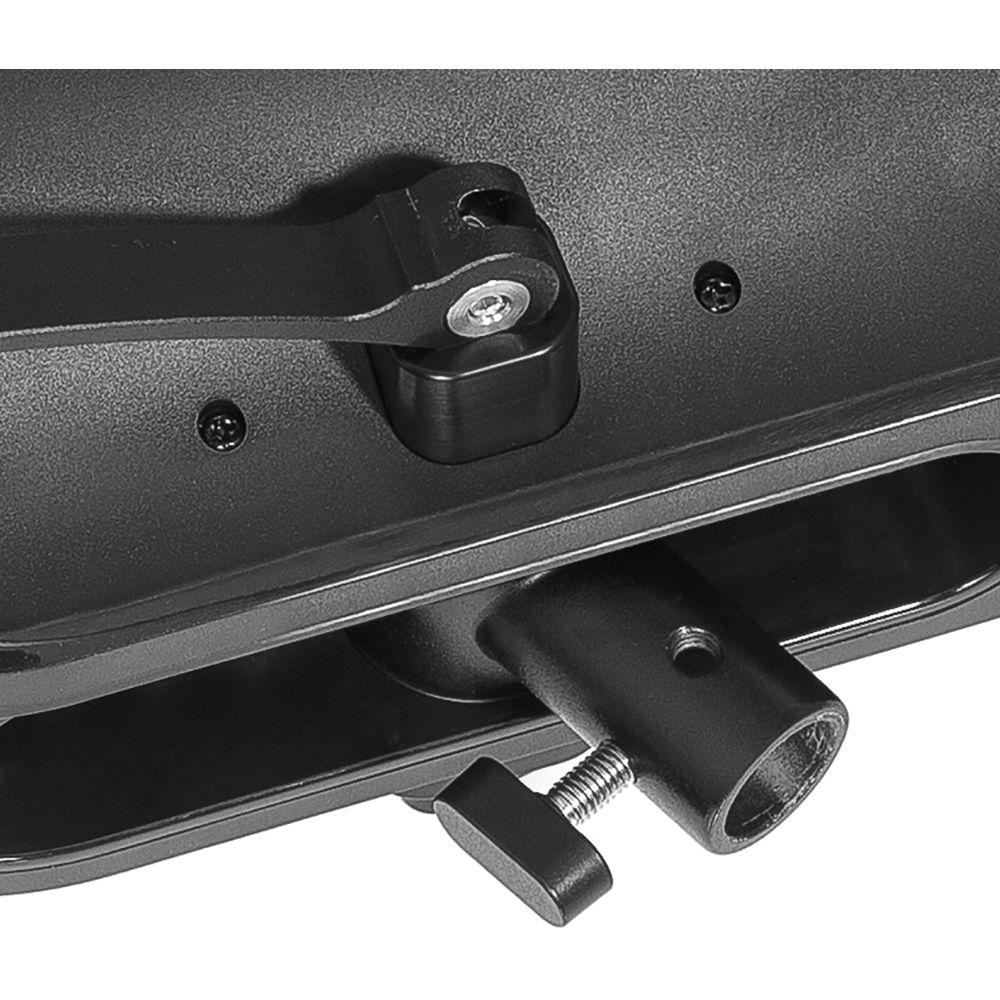

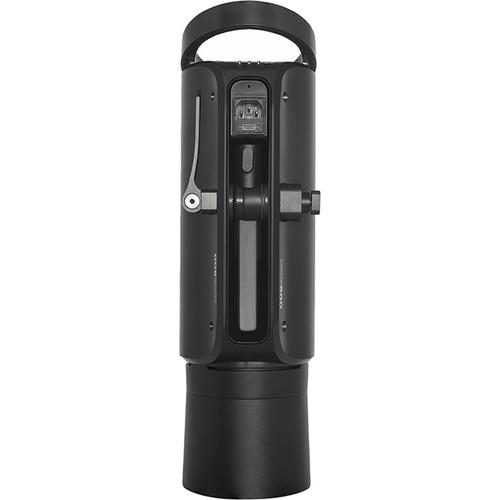

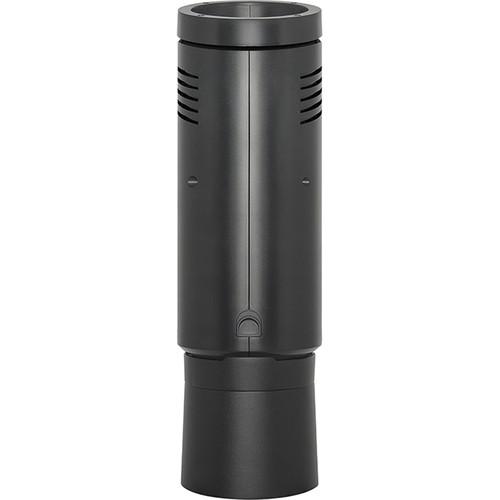

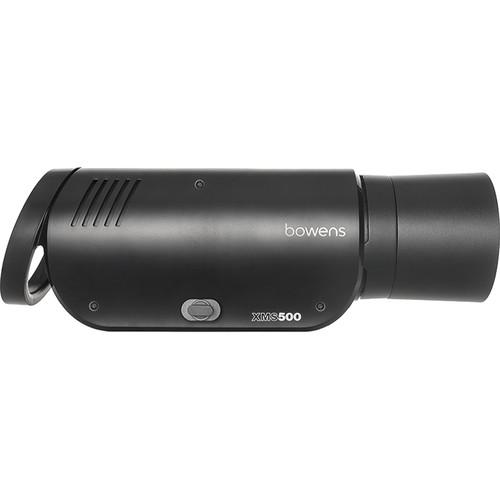

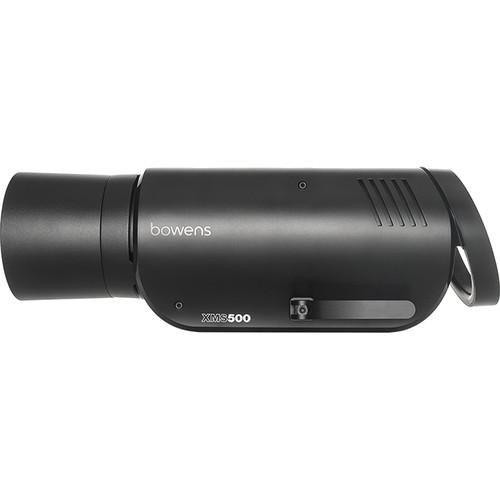

User Manual for Bowens XMS500 Flash Head Click to enlarge the picture
Contents of the user manual for the Bowens XMS500 Flash Head
- Product category: Monolights Bowens
- Brand: Bowens
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bowens Monolights
 |
User manual for the Bowens XMS500 Flash Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bowens product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bowens user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bowens product will considerably shorten its lifespan!
|

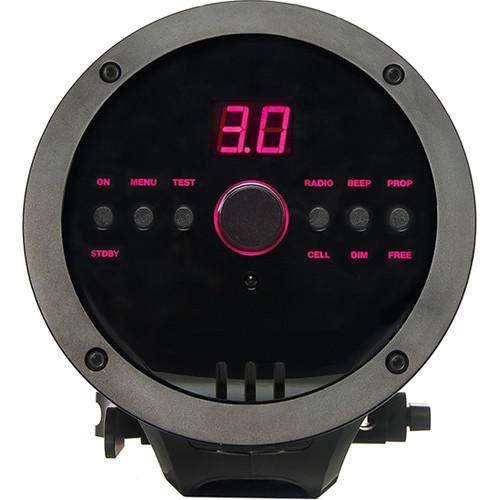

Product description The XMS500 Flash Head from Bowens is a 500Ws monolight with fast recycling of 0.2 - 1.0 sec and 7-stop power variability in full or 1/10 stops. The flash has Off, Proportional, Free Set, and Full modeling light modes, a safe sync voltage of 5V, and action-stopping flash durations as short as 1/5180 second. The XMS500 has a built-in 16-channel / 8-group receiver that accepts 2.4GHz signals from the optional XMSR transmitter at distances up to 100'. Besides flash triggering, remote controllable functions include power level, modeling light mode, ready indications, and sync including High Speed Sync up to 1/8000 sec. The XMS500 is ready for worldwide use thanks to its 90-250 VAC power supply. UPC: 880939028012 In the Box Bowens XMS500 Flash Head Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bowens XMS500 Flash Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBowens XMS500 Specs | | | Maximum Power | 500 Ws | | Power Control | 7 Stops in 1/10-Stop Increments | | Flash Duration | 1/5180 to 1/2480 Sec | | Recycle Time | 0.2 to 1.0 Sec () | | Color Temperature | 5600K ± 300K | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Bowens S Type | | | | Type | Tungsten | | Control Modes | Free Set, Full On, Off, Proportional | | | | Sync Type | Optical, Radio | | Wireless Frequency Bands | 2.4 GHz | | Sync Voltage | 5 V | | | | AC Input Voltage | 90to250 VAC, 50 / 60 Hz | | | | Display | LCD | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 7.5 x W: 5.3 x L: 19.0" / H: 192.0 x W: 136.0 x L: 485.0 mm | | Weight | 8.15 lb / 3.7 kg | | | | Package Weight | 15.65 lb | | Box Dimensions (LxWxH) | 25.78 x 15.354 x 7.638" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
