Bowens XMS750 2-Light Flash Kit

User Manual for Bowens XMS750 2-Light Flash Kit

• Product category: Monolights Bowens
• Brand: Bowens
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Bowens Monolights

Product description

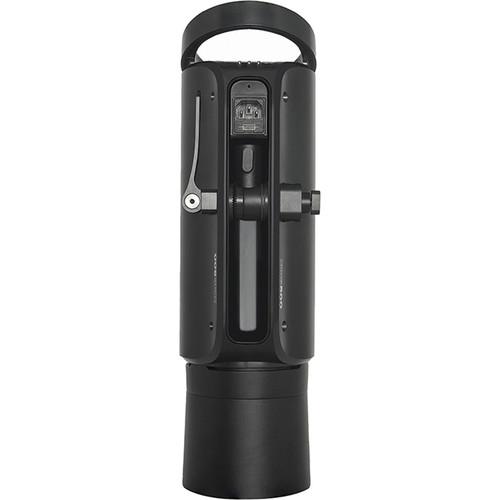

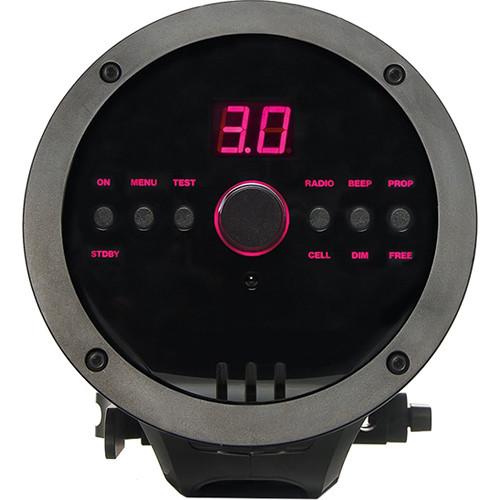

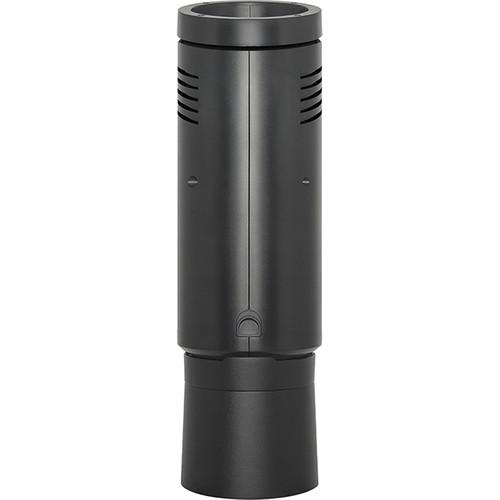

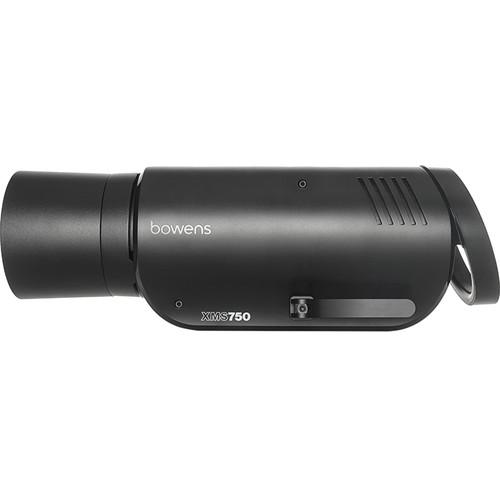

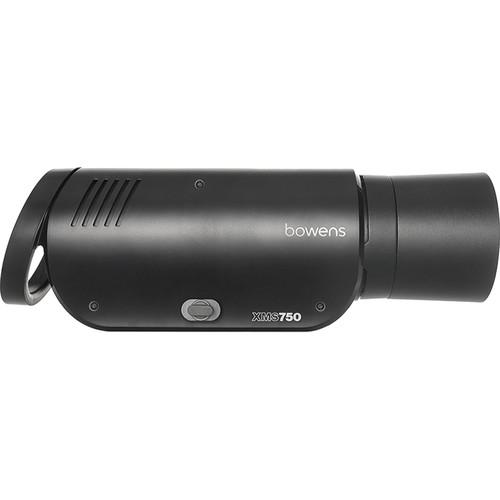

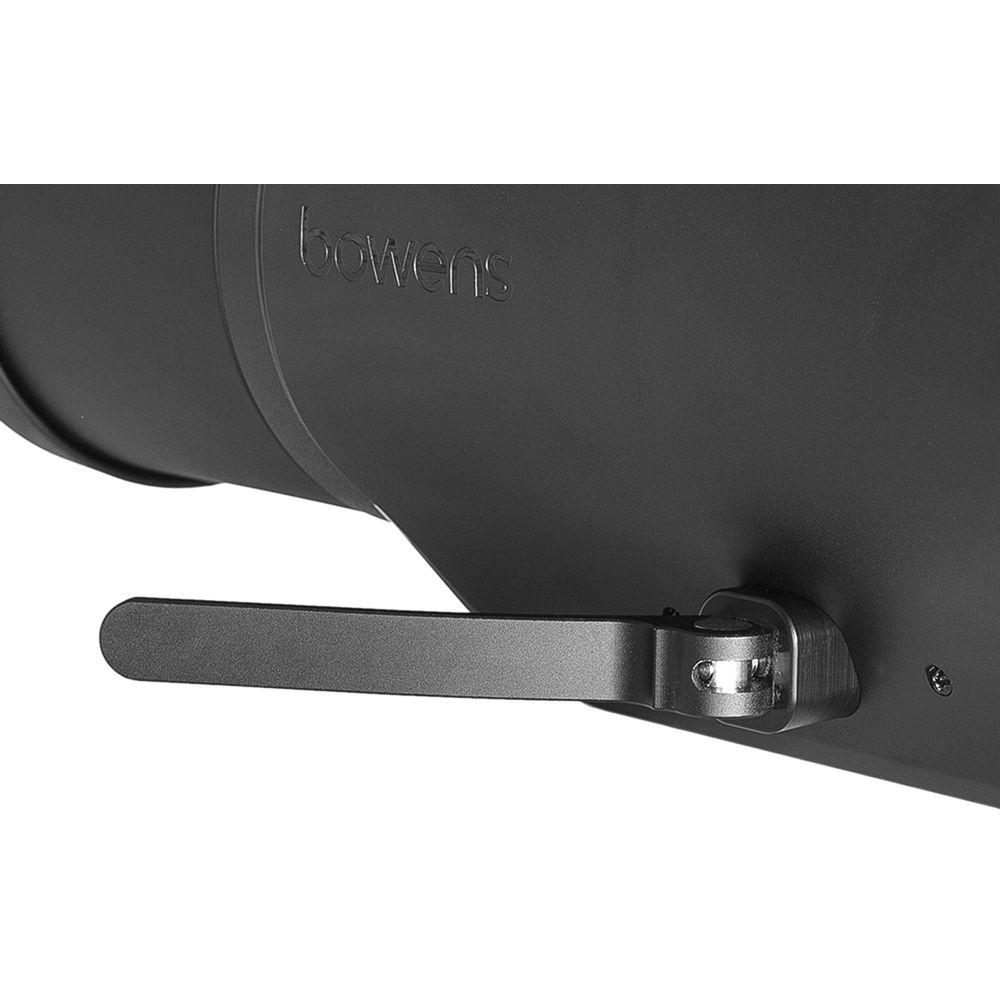

• XMS750 Flash Head The XMS750 Flash Head from Bowens is a 750Ws monolight with fast recycling of 0.2 - 1.3 sec and 8-stop power variability in full or 1/10 stops. The flash has Off, Proportional, Free Set, and Full modeling light modes, a safe sync voltage of 5V, and action-stopping flash durations as short as 1/4800 second. The XMS750 has a built-in 16-channel / 8-group receiver that accepts 2.4GHz signals from the optional XMSR transmitter at distances up to 100'. Besides flash triggering, remote controllable functions include power level, modeling light mode, ready indications, and sync including High Speed Sync up to 1/8000 sec. The XMS750 is ready for worldwide use thanks to its 90-250 VAC power supply. UPC: 880939028098
• Lumiair 60-80 Softbox (31.5 x 23.6 x 12.6") This Bowens Lumiair 60-80 Softbox (31.5 x 23.6 x 12.6") is a good choice for softening the output of your flash. Precision tension ensures straight edges delivering clean cut-off of the light beam, while the optimum color calibration of the reflective interior surface together with shallow construction, offers a high degree of light efficiency. Add to this two layers of diffusion and you have an even spread of light - no more than 1/2 stop from center to edge, without distracting hotspots. Each Lumiair softbox comes complete with a simple zip-up carry case to ensure safe and easy transportation to location shoots. Lumiair softboxes also include the main canopy, a rear cowl, front diffuser, internal diffuser and support rods. Lumiair softboxes come with a 2-part speed ring - a basic ring accepts the rods and the included Bowens insert. There are also inserts available for most other flash head brands.
• XMSR Flash Trigger The XMSR Flash Trigger from Bowens is a 16-channel / 8-group transceiver designed to fire Bowens's recently introduced XMS500, XMS750 and XMS1000 flash heads. The full-function trigger will also control the flash heads' power level, modeling light, flash ready indicators and channel selection from distances up to 100'. Because of its transceiver design, the shoe-mount XMSR will also fire a connected camera using a second XMSR. The flash trigger operates on the 2.4GHz frequency and is powered by 2 AAA batteries. UPC: 880939029484

• Limited 2-Year Warranty

• Replacement Speedring for Bowens Lumiair, Wafer Soft Boxes and Light Banks

• S-type Adapter for Bowens and Wafer Softboxes

• Main Canopy

• Rear Cowl

• Front Diffuser

• Internal Diffuser

• 4 x Support Rods

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Also Includes

• 2 x Reflectors
• 2 x Compact Stands
• Umbrella (35.4")

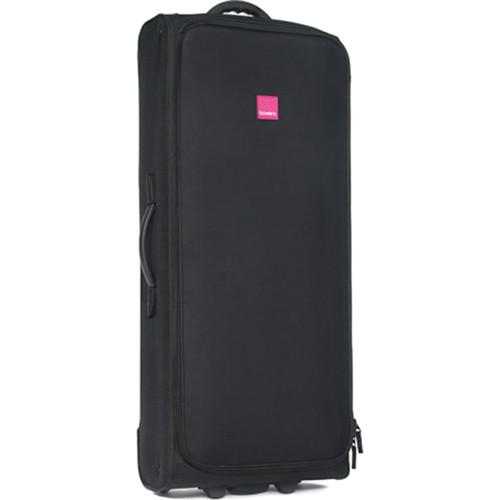

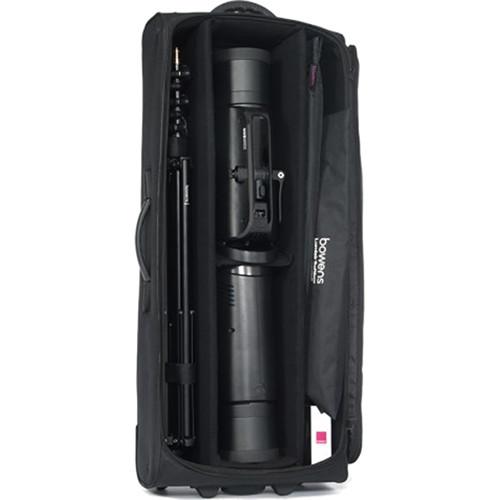

• Wheeled Bag

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• XMS750 Flash Head

  Maximum Power	750 Ws
  Power Control	8 Stops in 1/10-Stop Increments
  Flash Duration	1/4800 to 1/2430 Sec
  Recycle Time	0.2 to 1.3 Sec ()
  Color Temperature	5600K ± 300K
  Flash Ready Indicator	Audio, Visual
  Reflector	Changeable
  Accessory Fitting Type	Bowens S Type

  Type	Tungsten
  Control Modes	Free Set, Full On, Off, Proportional

  Sync Type	Optical, Radio
  Wireless Frequency Bands	2.4 GHz
  Sync Voltage	5 V

  AC Input Voltage	90to250 VAC, 50 / 60 Hz

  Display	LCD
  Auto Dump	Yes
  Fan Cooled	Yes
  Dimensions	H: 7.5 x W: 5.3 x L: 19.0" / H: 192.0 x W: 136.0 x L: 485.0 mm
  Weight	9.0 lb / 4.1 kg

  Box Dimensions (LxWxH)	26.0 x 15.6 x 8.0"

• Lumiair 60-80 Softbox (31.5 x 23.6 x 12.6")

  Shape	Rectangular
  Compatibility	Most major flash brands
  Removable Front Face	Yes
  Removable Interior Baffle	Yes
  Accepts Grids	Yes
  Requires Speed Ring	Yes
  Dimensions	31.5 x 23.6 x 12.6" (80 x 60 x 32 cm)

  Box Dimensions (LxWxH)	37.0 x 8.2 x 6.4"

• XMSR Flash Trigger

  Channels	16
  Groups	8
  Wireless Range	100' / 30.5 m
  Radio Frequency	2.4 GHz

  Sync Speed	1/8000 Sec (High-Speed)

  Battery Type	2 x AAA

  Dimensions	2.3 x 3.8 x 0.98" / 58 x 97 x 25 mm (Transmitter)

  Box Dimensions (LxWxH)	6.25 x 3.4 x 2.0"
