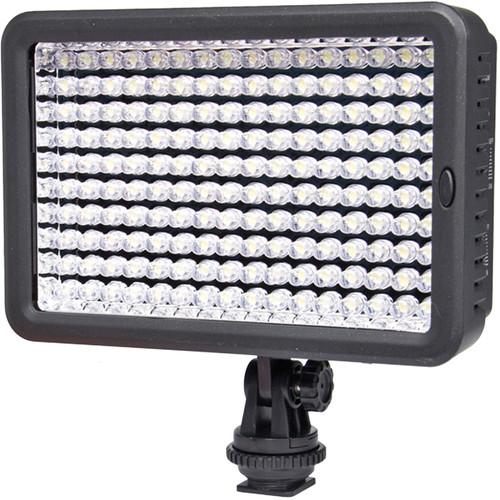

Product description The Bower 160-Bulb Bicolor LED Video Light features 80 daylight- and 80 tungsten-balanced LEDs with a 60° beam spread. It features two on/off/dimming thumbwheels, with one thumbwheel exclusively controlling the tungsten LEDs, and the other controlling the daylight LEDs. An integrated cold shoe mounting foot with 1/4"-20 threaded receiver allows you to mount this onto any cold shoe or 1/4"-20 threaded stud.
The light features a built-in battery plate compatible with Sony H-, P-, V-, L-, and M-series batteries. Unlocking the battery plate allows it to swing away to reveal an inner compartment for six-AA batteries (sold separately). Included with the light are a clear diffusion and an orange diffusion filter. Also included with the light are two NP-FV type batteries and a charger. - This bicolor light features a color temperature output range of 3000 to 6000K.
- The dimmer has one thumbwheel for dimming the tungsten-balanced LEDs, and another thumbwheel for dimming the daylight-balanced LEDs.
- Each thumbwheel dims from 100 to 0% brightness and has a detent for off.
- The removable filters slide into a filter slot, with a latch holding the filter in place.
- The fixture accommodates only one filter at a time.
- Included with the fixture are two 7.2V, 7500mAh lithium-ion batteries.
UPC: 636980770086 In the Box Bower 160-Bulb Bicolor LED Video Light with Two NP-FV Batteries Clear Diffusion Filter Orange Diffusion Filter 2 x NP-FV100 Type Battery Single-Bay Wall Wart Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bower 160-Bulb Bicolor LED Video Light with Two NP-FV Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBower VL20K Specs | | | Beam Angle | 60° | | Color Temperature | 3000 to 6000K | | Color Accuracy Standard | CRI 85 | | Photometrics | 260 fc / 2800 lux at 20" / 0.5 m | | Dimming | Yes Continuous | | Expected Lamp Life | 50000 Hours | | Number of LEDs | 80 (Daylight)
80 (Tungsten) | | | | Battery Plate | 1 x AAA
1 x Sony L-Series (NP-F)
1 x Sony V-Series
1 x Sony P-Series
1 x Sony H-Series
1 x Sony M-Series | | DC Input Power | 9 to 16.8 VDC | | Max Power Consumption | 7.2 W | | Power Input Connector | Barrel | | | | Mount Type | Cold Shoe | | Dimensions | 5.5 x 5.9 x 2.2" / 140 x 149 x 56.4 mm | | Weight | 8.92 oz / 253 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 6.0 x 5.9 x 4.8" |
