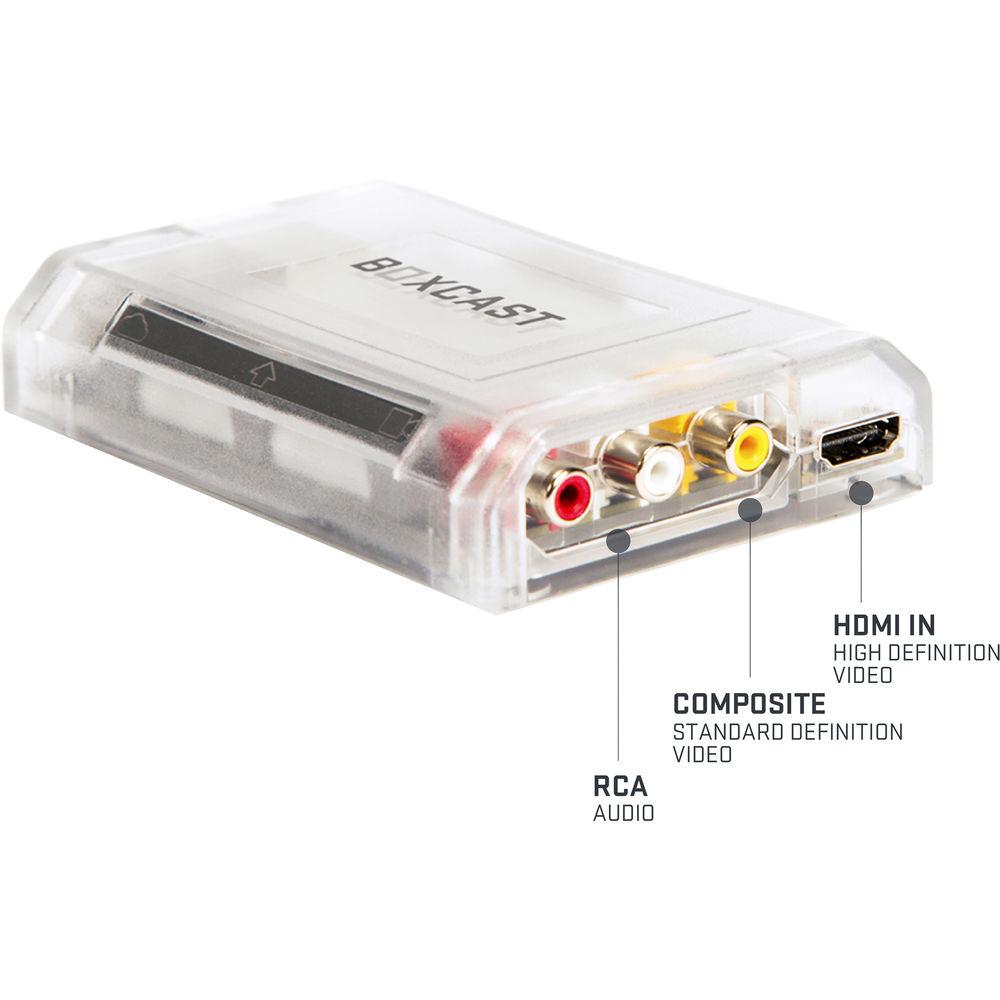

User Manual for BoxCast BoxCaster HD Live Video Streaming Encoder Click to enlarge the picture
Contents of the user manual for the BoxCast BoxCaster HD Live Video Streaming
- Product category: Streaming Media Solutions BoxCast
- Brand: BoxCast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BoxCast Streaming Media Solutions
 |
User manual for the BoxCast BoxCaster HD Live Video Streaming contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BoxCast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BoxCast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BoxCast product will considerably shorten its lifespan!
|
Product description The BoxCast Platform in Review Read More wusewydcuvvbattacbtqzayysbyf The BoxCast BoxCaster HD Live Video Streaming Encoder is designed to work exclusively with BoxCast's streaming platform and requires any of four BoxCast streaming plans, sold separately: BoxCast Live, Standard, Advanced, or Advanced Plus. The BoxCast streaming platform offers acquisition, compression, cloud transcoding, archiving, video on demand, pay-per-view settings, and a scalable delivery infrastructure.

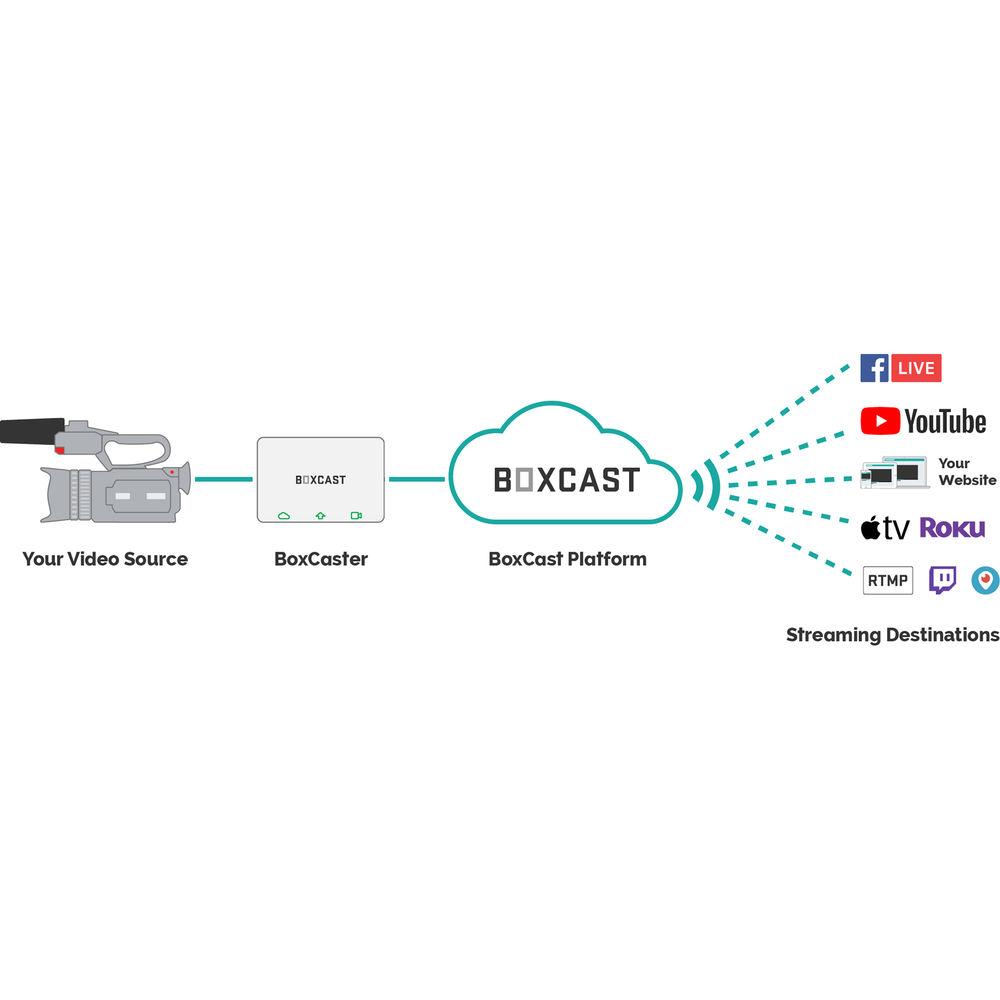

The BoxCaster can be connected to the Internet over Wi-Fi or via an Ethernet connection. It supports up to 1080p60 resolution sources via an HDMI input and streams to the BoxCast platform in up to 1080p27 resolution. The stream can be automated to begin on a designated schedule if you'd like. From the BoxCast platform you can stream further to another destination, including your website, Facebook Live, YouTube, Periscope, or other RTMP platform. Additionally, you can incorporate external audio via an RCA audio input.
You can a schedule, set up, and manage all of your broadcasts from the web-based, responsive BoxCast Dashboard or BoxCast's Broadcaster App for iOS mobile devices (available as a free download). Note: The BoxCaster requires any of four BoxCast streaming plans, sold separately: BoxCast Live, Standard, Advanced, or Advanced Plus. - Stream with the BoxCast Platform
- The BoxCaster works exclusively with BoxCast's scalable streaming platform. The BoxCast Platform offers acquisition, compression, cloud transcoding, archiving, video on demand, pay-per-view settings, and a scalable delivery infrastructure, and BoxCast offers various plans to fit the needs of your organization: Live, Standard, Advanced, Advanced Plus.
- Broadcast to Various Destinations
- From the BoxCast platform you can stream further to another destination, including your website, Facebook Live, YouTube, Periscope, or other RTMP platform.
- High Definition
- The BoxCaster will accept video in up to 1080p at 60 fps via HDMI and stream it in up to 1080p at 27 fps.
- Automate Your Live Stream
- The BoxCaster starts automatically at the time you schedule it to—you won't need to press anything to go live.
- Bring in External Audio
- Bring an audio feed from your sound board or other sources into your broadcast with the RCA stereo inputs.
- Wired or Wireless Internet
- Connect the BoxCaster to the Internet over built-in Wi-Fi or via a wired connection (recommended).

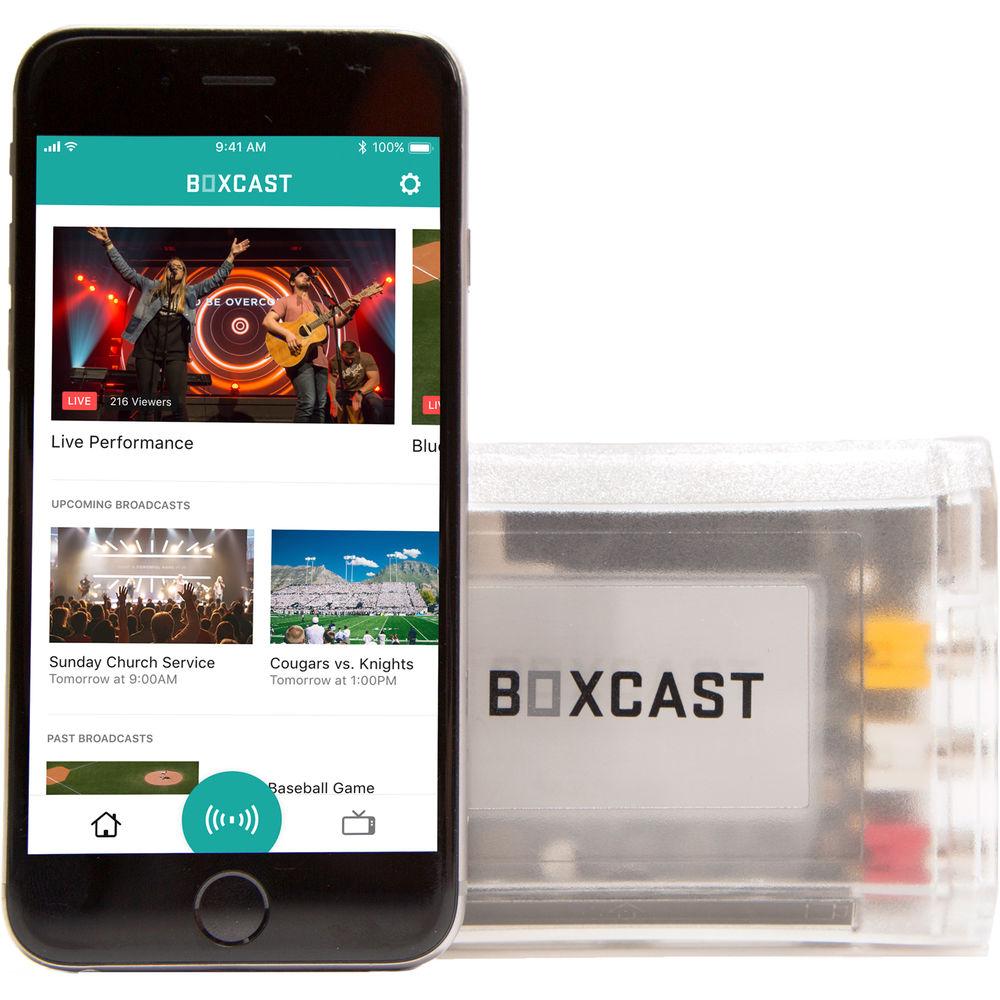

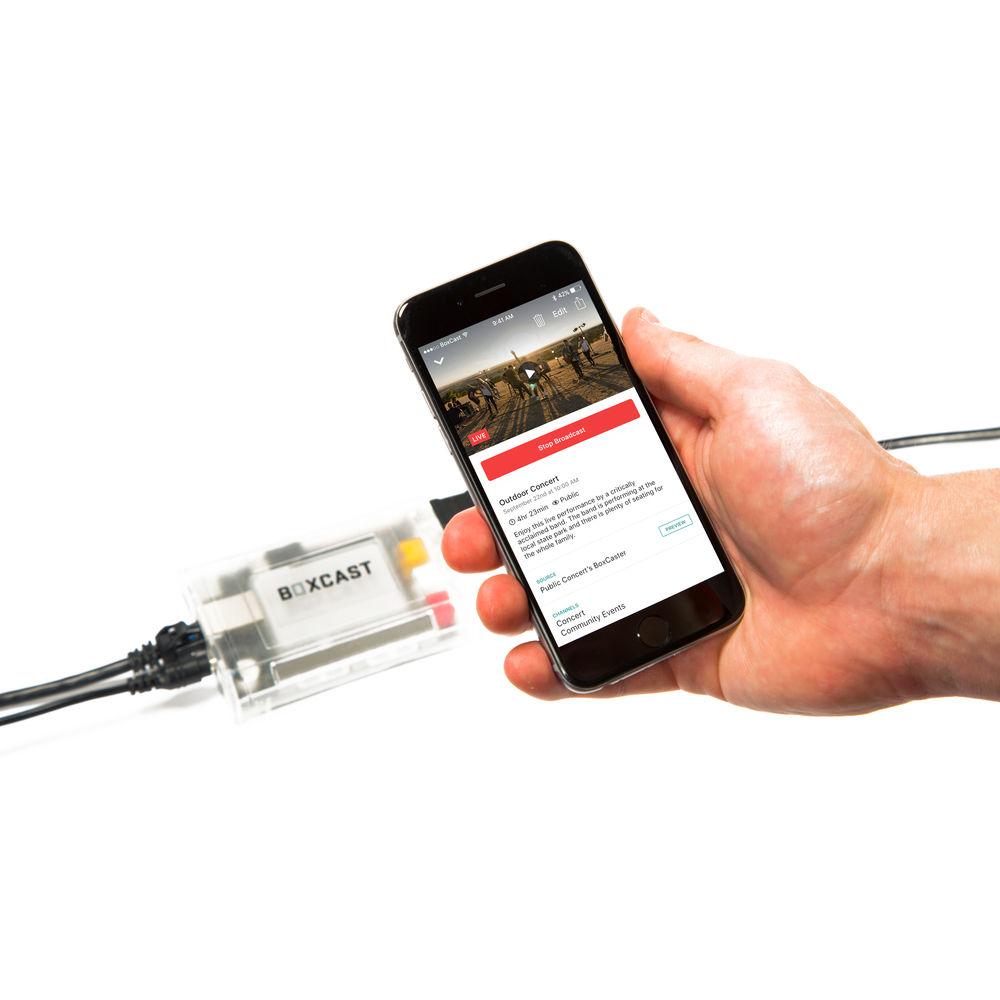

- Control from Dashboard or Broadcaster App
- Schedule, set up, and manage all of your broadcasts from the web-based, responsive BoxCast Dashboard or BoxCast's Broadcaster App for iOS.
- Streaming Plan Activation
- A BoxCast Streaming Plan (Live, Standard, Advanced, or Advanced Plus), sold separately, is required for using your BoxCaster.
In the Box BoxCast BoxCaster HD Live Video Streaming Encoder 12 VDC Power Supply Limited 1-Year Warranty BoxCast Encoder Options PDF 127.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the BoxCast BoxCaster HD Live Video Streaming Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

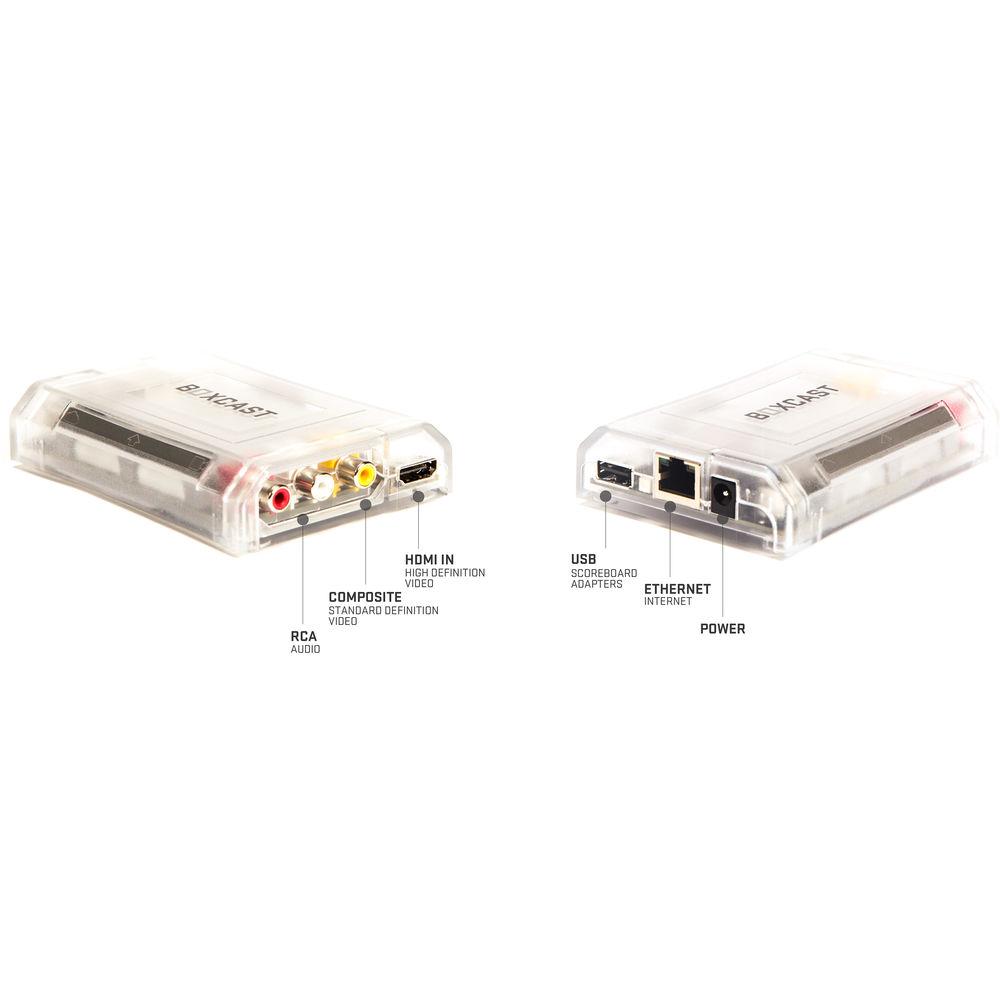

Technical parametersBoxCast Boxcaster Specs | Video Input | 1 x HDMI (480i to 1080p60)
1 x Composite RCA (NTSC/PAL) | | Audio Input | 2 x RCA stereo audio (48 kHz)
Supports embedded audio | | Video Encoding | H.264 high profile level 4.2 | | Backhaul Protocols | BoxCast Flow: Backhaul protocol providing adaptive recovery, content-aware forward error correction, encryption, link quality adjustment, and TCP/UDP diversity. | | Audio Encoding | AAC-LC audio compression | | Supported Input Resolutions | 1080p at 25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 25/29.97/30/50/59.94/60 fps
576p at 25/50 fps
525p at 60 fps
480p at 29.97/30/59.94/60 | | Streaming Resolutions | 1080p30 input encodes 1080p at 27 fps
1080i60 input encodes 1080p at 23 fps
1080p60 input encodes 720p at 30 fps
720p60 input encodes 720p at 30 fps
Up to 720p30 inputs encode at same resolution | | Streaming Destinations | BoxCast Platform, including native players for Web, mobile, AppleTV, and Roku
Facebook Live
YouTube
Periscope
Twitch

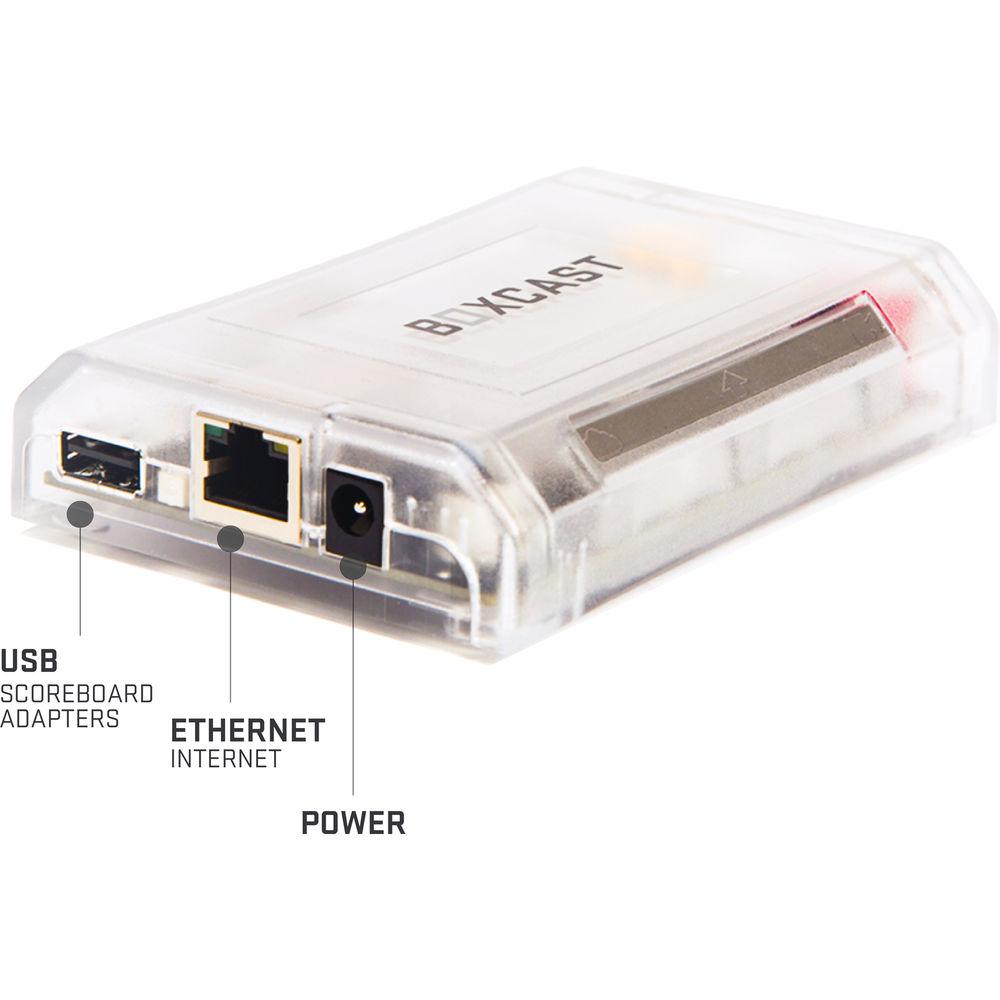

Other RTMP destinations | | Additional Connections | USB input for BoxCast wireless scoreboard adapters
10/100BASE-T Ethernet input | | Network | Ethernet: 10/100BASE-T port
Wi-Fi: 802.11agn Wi-Fi with beam forming MIMO
IP address assignment via DHCP
Automatic firmware updates | | Minimum Upload Speed to Stream | 480p30: 1.5 Mbps
720p30: 3 Mbps
1080p30: 6 Mbps | | Enclosure | Rugged, plastic housing; slip-free, dampening rubber feet | | Power | 12 VDC power supply included
5-10 W nominal power consumption with USB accessories | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Humidity | 0 to 90% non-condensing | | Dimensions | 4.3 x 3 x 0.9" (11 x 7.8 x 2.4 cm) | | Weight | 0.5 lb (0.23 kg) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.3 x 4.8 x 2.4" |
