User Manual for Boxx TV Ltd. Atom Lite System Click to enlarge the picture
Contents of the user manual for the Boxx TV Ltd. Atom Lite System
- Product category: Wireless Transmission Systems Boxx TV Ltd.
- Brand: Boxx TV Ltd.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Boxx TV Ltd. Wireless Transmission Systems
 |
User manual for the Boxx TV Ltd. Atom Lite System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Boxx TV Ltd. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Boxx TV Ltd. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Boxx TV Ltd. product will considerably shorten its lifespan!
|

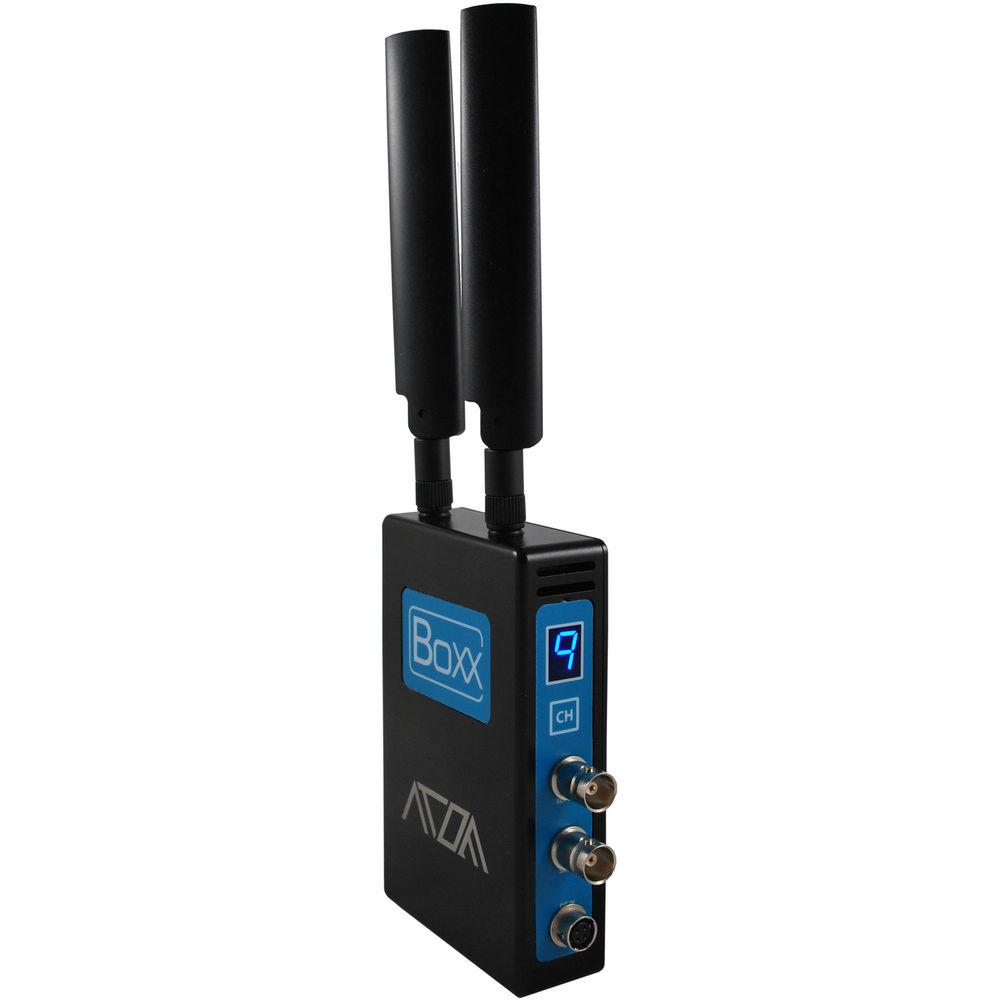

Product description The Boxx TV Ltd. Atom Lite System includes both an Atom Lite Transmitter and Receiver for wireless video transmission over 492'. Both the transmitter and receiver require very little setup, and will work with each other right out of the box. This setup can be expanded to include more receivers so you can transmit the same signal to multiple destinations. See below for more information on the transmitter and receiver included in this kit. - Atom Lite Transmitter The Boxx TV Ltd. Atom Lite Transmitter works alongside the Atom Lite receiver to transmit SD or HD signals up to 1080p60 up to 492'. SDI and HDMI inputs ensure compatibility with both consumer and professional video sources. Use the included D-Tap cable to power the transmitter from a battery or other power source. One transmitter can broadcast to many receivers, so you can send video signals to a director, assistant director, focus puller, and more, without latency penalties or cables. Aside from setting the channel, the transmitter requires little setup and is ready to work out of the box.
- Atom Lite Receiver The Boxx TV Ltd. Atom Lite Receiver works alongside the Atom Lite Transmitter to receive SD or HD signals up to 1080p60 from up to 492' away. SDI and HDMI outputs ensure that the Atom Lite Receiver can connect to nearly any monitor, professional or consumer. The simple design is easy-to-use, just plug it in using the included power supply or D-Tap cable, and with minimal configuration, you'll be able to receive incoming video signals.
In the Box Bundle Items Atom Lite Transmitter rffdzqxserszyxueavvzrdevxr - 2 x 5dBi 5GHz Rubber Duck Omni RP-SMA Antennas
- Hirose to D-Tap Power Cable
Atom Lite Receiver - Hirose to D-Tap Power Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the Boxx TV Ltd. Atom Lite System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Atom Lite Transmitter
| Inputs | SDI: 1 x BNC, HD-SDI
HDMI: 1 x HDMI | | Outputs | SDI: 1 x BNC, loop output | | RF Power Output | Up to 100 mW | | Modulation | OFDM | | Bandwidth | 40 MHz | | Operating Frequency | 5.1-5.9 GHz | | Maximum Operating Range | 492' / 150 m | | Power Input | 1 x 4-pin Hirose, 9-36 VDC | | Mounting Threads | 1 x 1/4"-20 | | Operating Temperature | 23 to 122°F / -5 to 50°C | | Dimensions | 4.4 x 2.8 x 1" / 11.1 x 7.1 x 2.5 cm | | Weight | 8.9 oz / 253 g | - Atom Lite Receiver
| Outputs | SDI: 1 x BNC, HD-SDI
HDMI: 1 x HDMI | | Modulation | OFDM | | Bandwidth | 40 MHz | | Operating Frequency | 5.1-5.9 GHz | | Maximum Operating Range | 492' / 150 m | | Power Input | 1 x 4-pin Hirose, 9-36 VDC | | Mounting Threads | 1 x 1/4"-20 | | Operating Temperature | 23 to 122°F / -5 to 50°C | | Dimensions | 5.7 x 3.5 x 1" / 14.6 x 9 x 2.6 cm | | Weight | 9.2 oz / 262 g |
