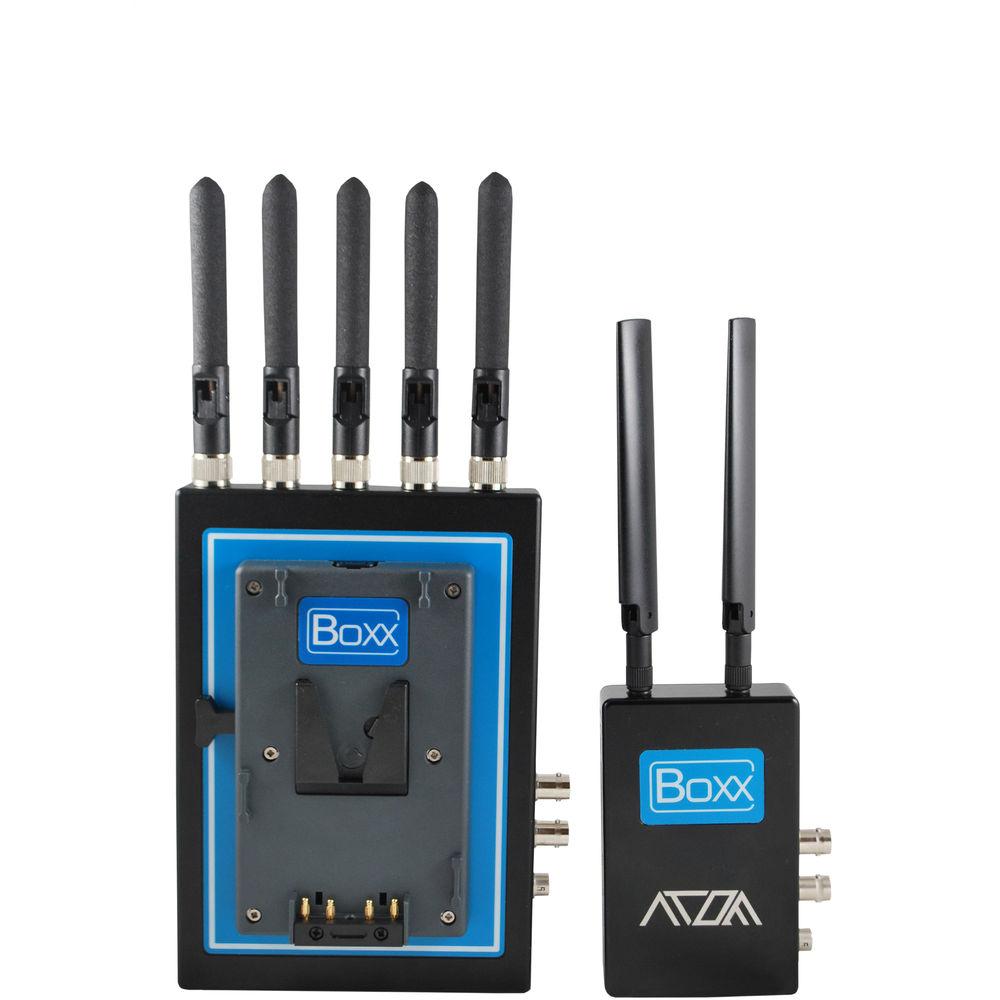

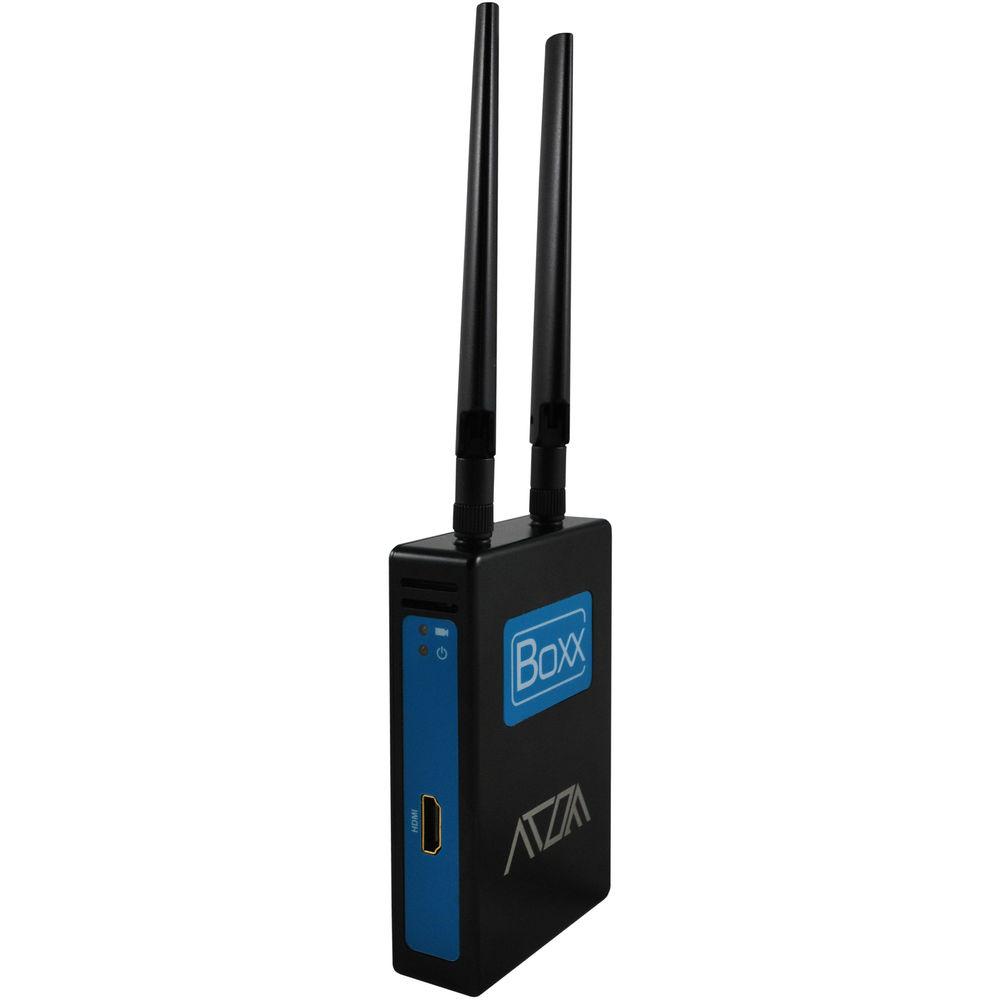

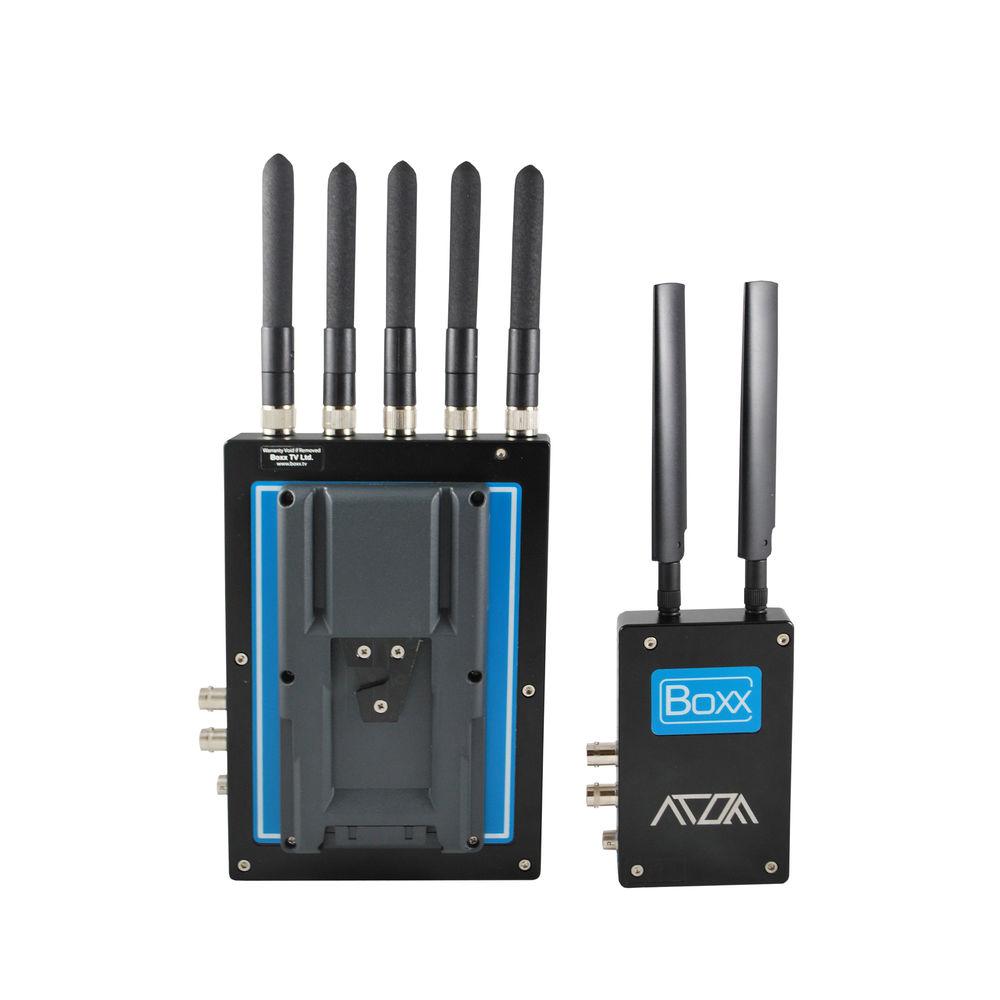

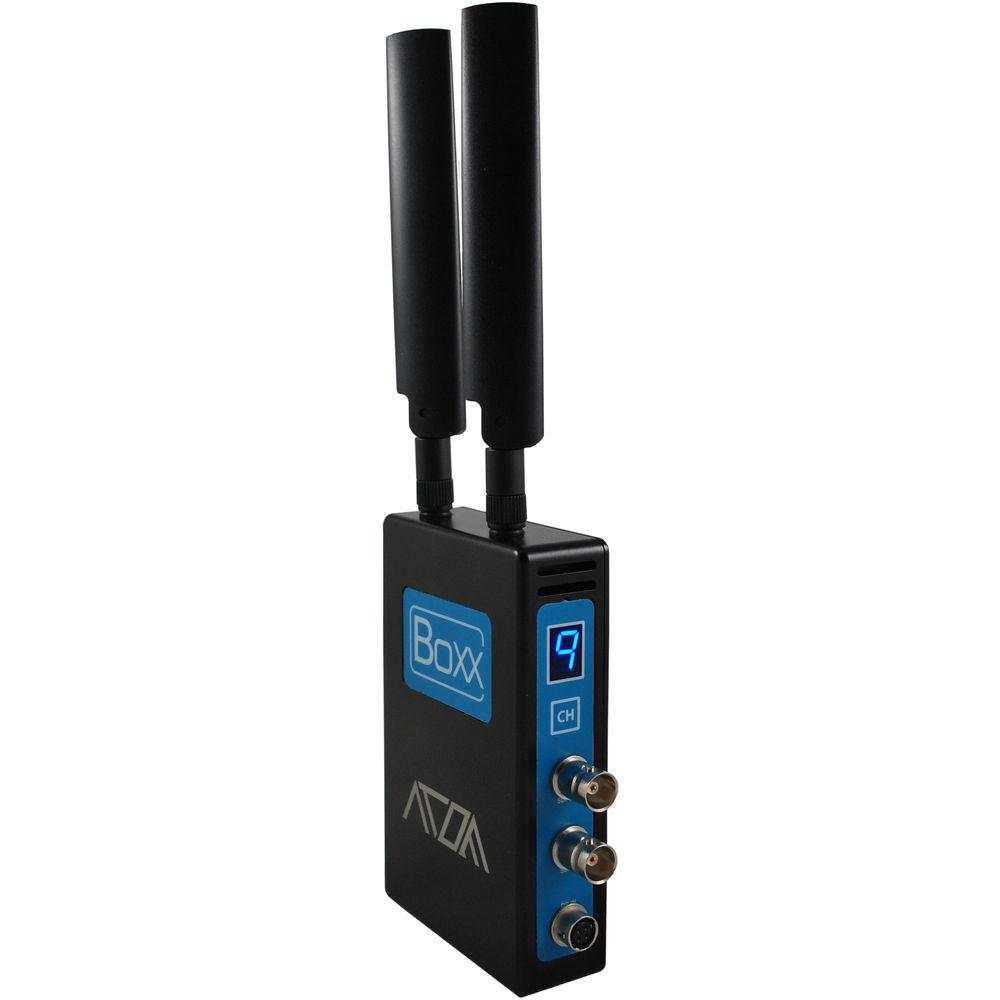

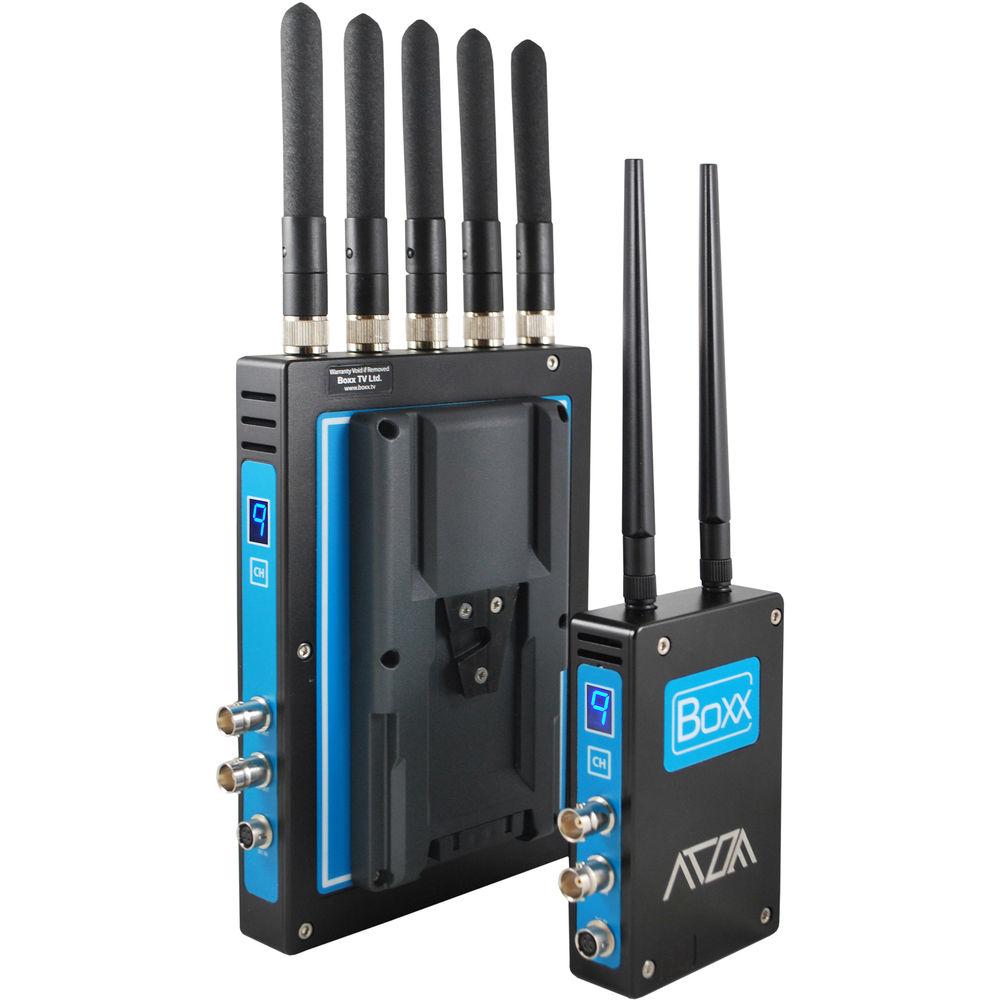

Product description The Atom System is comprised of an Atom Transmitter and an Atom Receiver. This system operates on the license-free 5 GHz frequency band while providing a working distance of 1968' in the field. Both the transmitter and receiver have HDMI and SDI connections so either consumer or professional gear can be used at either end of the transmission at up to 1080p60 resolution. For expansion, additional receivers can be added to receive a signal from a single transmitter. See below for more information on the transmitter and receiver in this system. - Atom Transmitter The Boxx TV Ltd. Atom Transmitter works alongside the Atom receiver to transmit SD or HD signals up to 1080p60 up to 1968'. SDI and HDMI inputs ensure compatibility with both consumer and professional video sources. Use the included D-Tap cable to power the transmitter from a battery or other power source. One transmitter can broadcast to many receivers, so you can send video signals to a director, assistant director, focus puller, and more, without latency penalties or cables. Aside from setting the channel, the transmitter requires little setup and is ready to work out of the box.

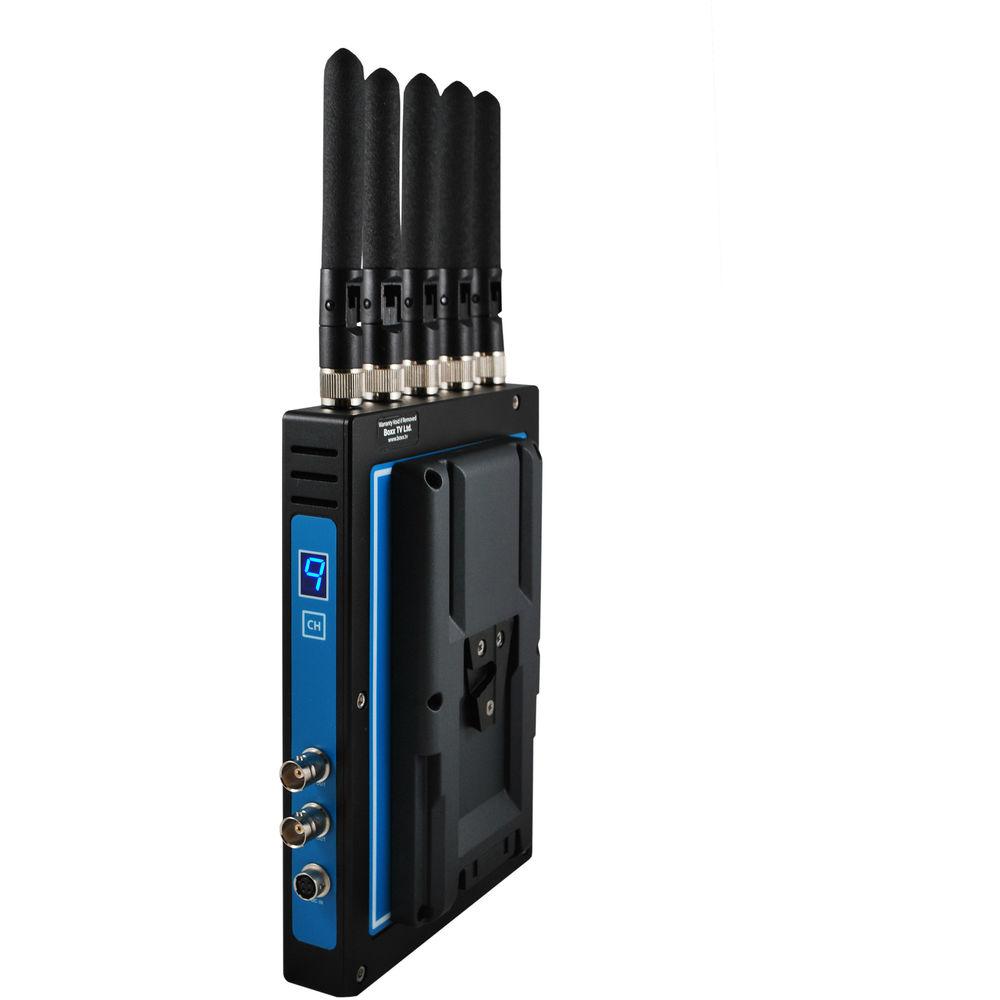

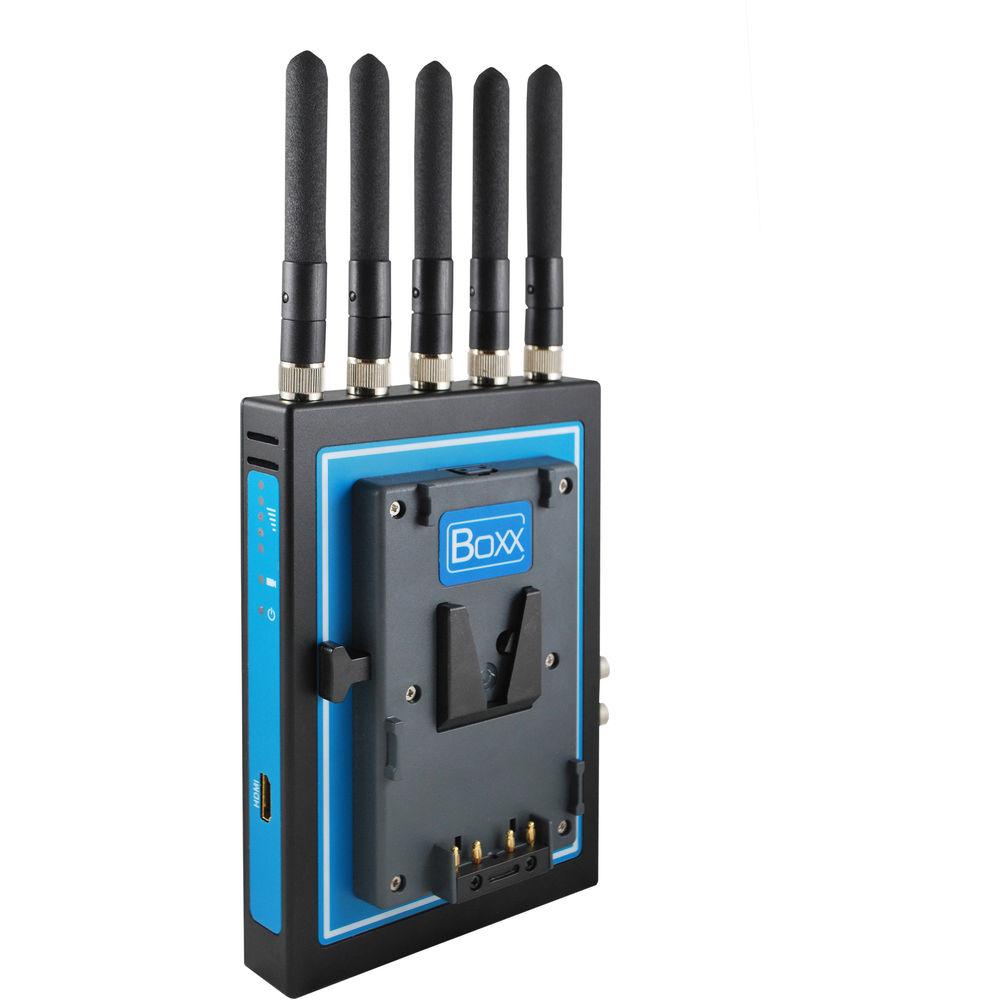

- Atom Receiver (V-Mount) The Boxx TV Inc. Atom Receiver works with an Atom transmitter to receive a video signal from up to 1968' away. HDMI and dual SDI outputs provide options for using consumer or professional video monitors, respectively. A separately available V-mount battery can power the receiver via the battery plate, and power can be passed through to a monitor with a V-mount plate while the receiver is sandwiched between the battery and the monitor. The Atom system utilizes the license-free 5 GHz band with manually selectable channels to sync up transmitters and receivers. Only minimal configuration is required to set up a transmitter/receiver pair. A power cable, BNC SDI cable, antennas, and a power supply are included.
In the Box Bundle Items Atom Transmitter - 2 x 5dBi 5GHz Rubber Duck Omni RP-SMA Antennas
- Hirose to D-Tap Power Cable
Atom Receiver (V-Mount) - 5 x 5dBi 5GHz Rubber Duck Omni RP-SMA Antennas
- 4-Pin XLR to Hirose Power Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the Boxx TV Ltd. Atom System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Atom Transmitter
Inputs | SDI: 1 x BNC, HD-SDI HDMI: 1 x HDMI | Outputs | SDI: 1 x BNC, loop output | RF Power Output | Up to 200 mW | Modulation | OFDM | Bandwidth | 40 MHz | Operating Frequency | 5.1-5.9 GHz | Maximum Operating Range | 1968' / 600 m | Power Input | 1 x 4-pin Hirose, 9-36 VDC | Mounting Threads | 1 x 1/4"-20 | Operating Temperature | 23 to 122°F / -5 to 50°C | Dimensions | 4.4 x 2.8 x 1" / 11.1 x 7.1 x 2.5 cm | Weight | 8.9 oz / 253 g | - Atom Receiver (V-Mount)
Outputs | SDI: 2 x BNC, HD-SDI HDMI: 1 x HDMI | Modulation | OFDM | Bandwidth | 40 MHz | Operating Frequency | 5.1-5.9 GHz | Maximum Operating Range | 1968' / 600 m | Power Input | 1 x 4-pin Hirose, 9-36 VDC | Mounting Threads | 1 x 1/4"-20 1 x 3/8"-16 | Operating Temperature | 23 to 122°F / -5 to 50°C | Dimensions | 7.4 x 5.2 x 1" / 18.8 x 13.2 x 2.6 cm | Weight | 1.3 lb / 580 g (without battery plate) |
