User Manual for Boxx TV Ltd. Atom System Click to enlarge the picture
Contents of the user manual for the Boxx TV Ltd. Atom System
- Product category: Wireless Transmission Systems Boxx TV Ltd.
- Brand: Boxx TV Ltd.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Boxx TV Ltd. Wireless Transmission Systems
 |
User manual for the Boxx TV Ltd. Atom System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Boxx TV Ltd. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Boxx TV Ltd. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Boxx TV Ltd. product will considerably shorten its lifespan!
|

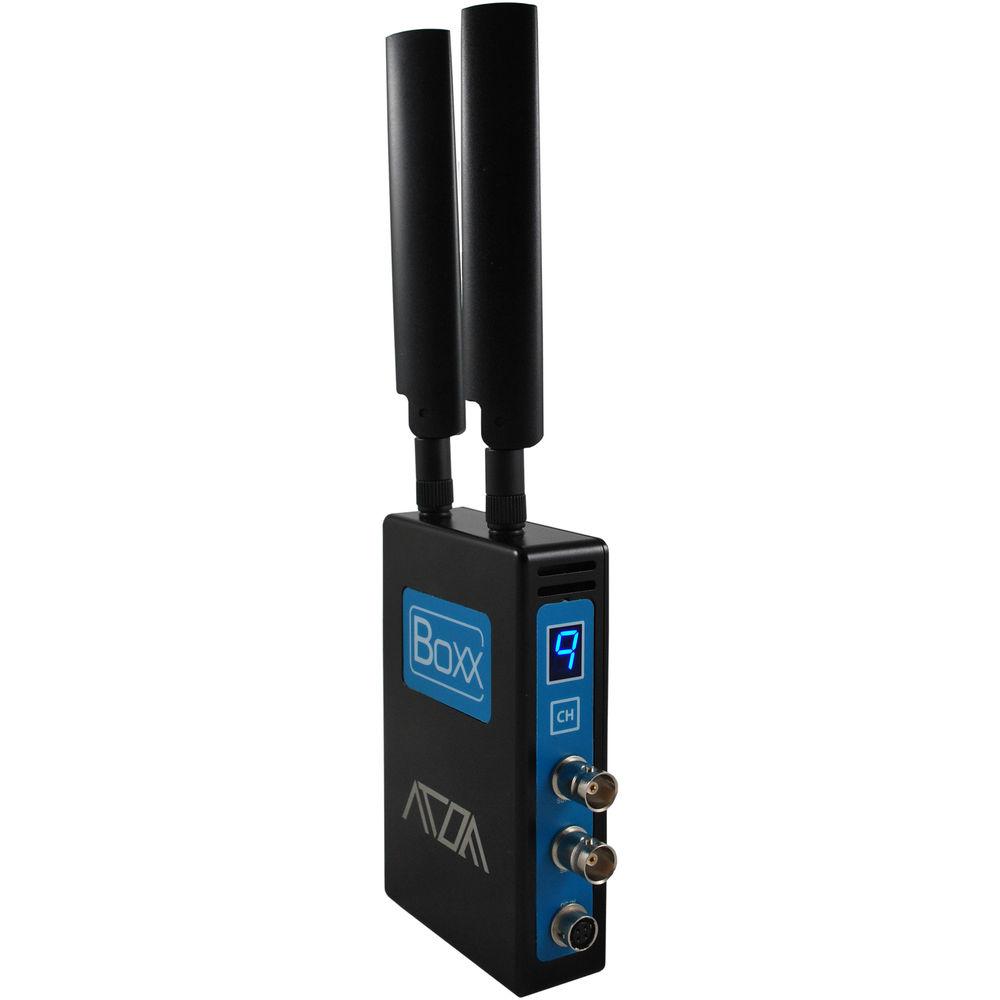

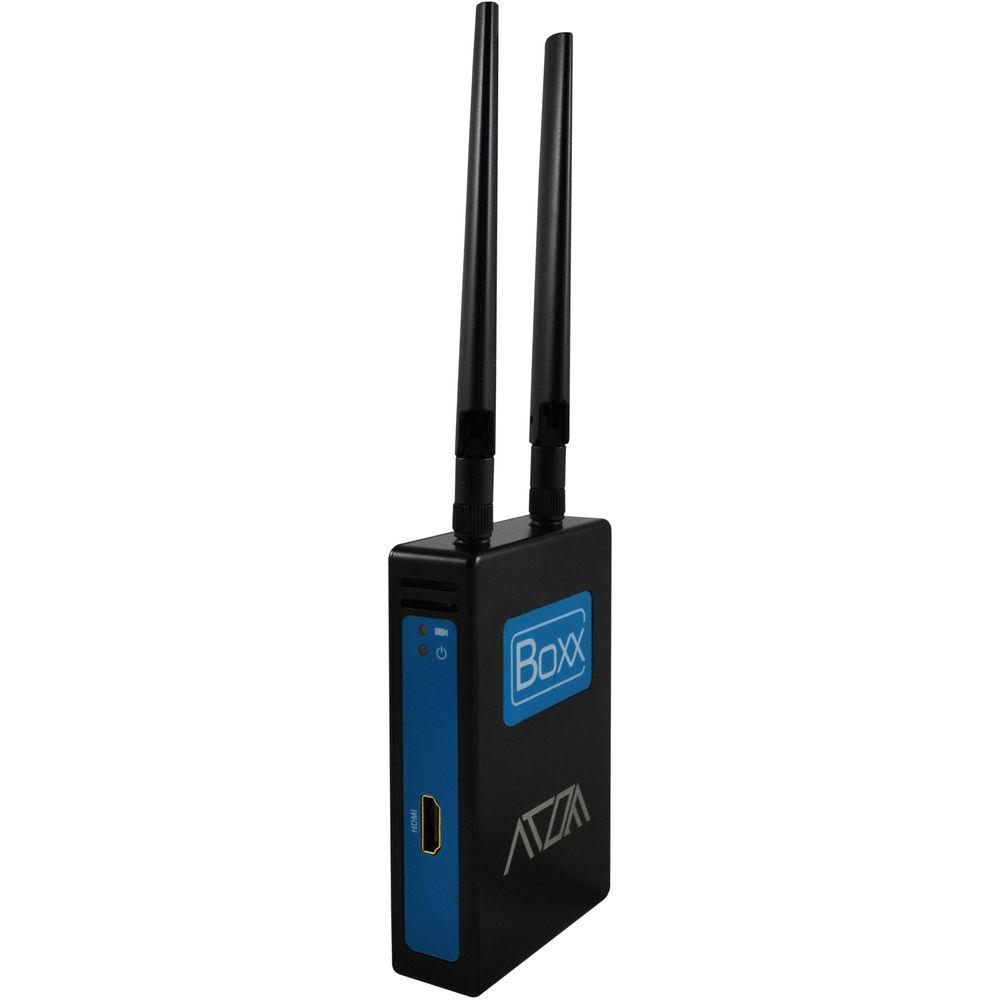

Product description The Atom System is comprised of an Atom Transmitter and an Atom Receiver. This system operates on the license-free 5 GHz frequency band while providing a working distance of 1968' in the field. Both the transmitter and receiver have HDMI and SDI connections so either consumer or professional gear can be used at either end of the transmission at up to 1080p60 resolution. For expansion, additional receivers can be added to receive a signal from a single transmitter. See below for more information on the transmitter and receiver in this system. - Atom Transmitter The Boxx TV Ltd. Atom Transmitter works alongside the Atom receiver to transmit SD or HD signals up to 1080p60 up to 1968'. SDI and HDMI inputs ensure compatibility with both consumer and professional video sources. Use the included D-Tap cable to power the transmitter from a battery or other power source. One transmitter can broadcast to many receivers, so you can send video signals to a director, assistant director, focus puller, and more, without latency penalties or cables. Aside from setting the channel, the transmitter requires little setup and is ready to work out of the box.

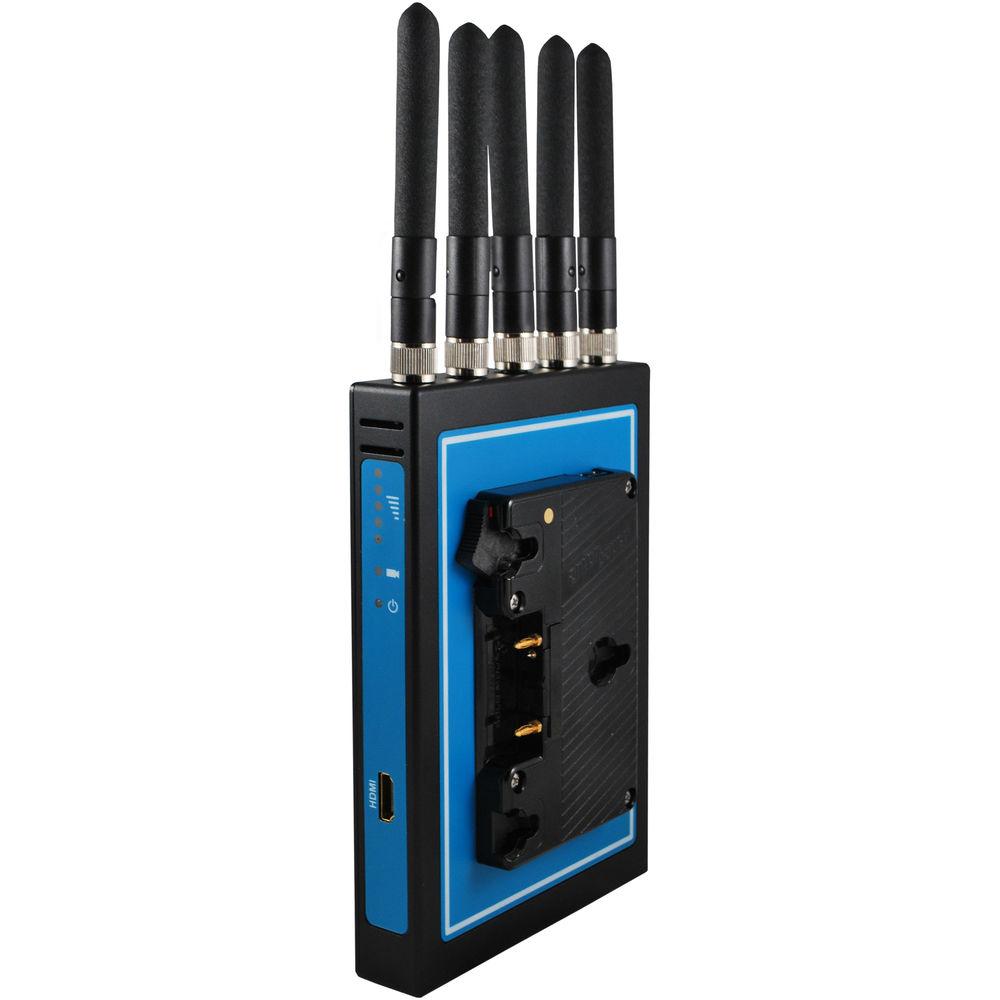

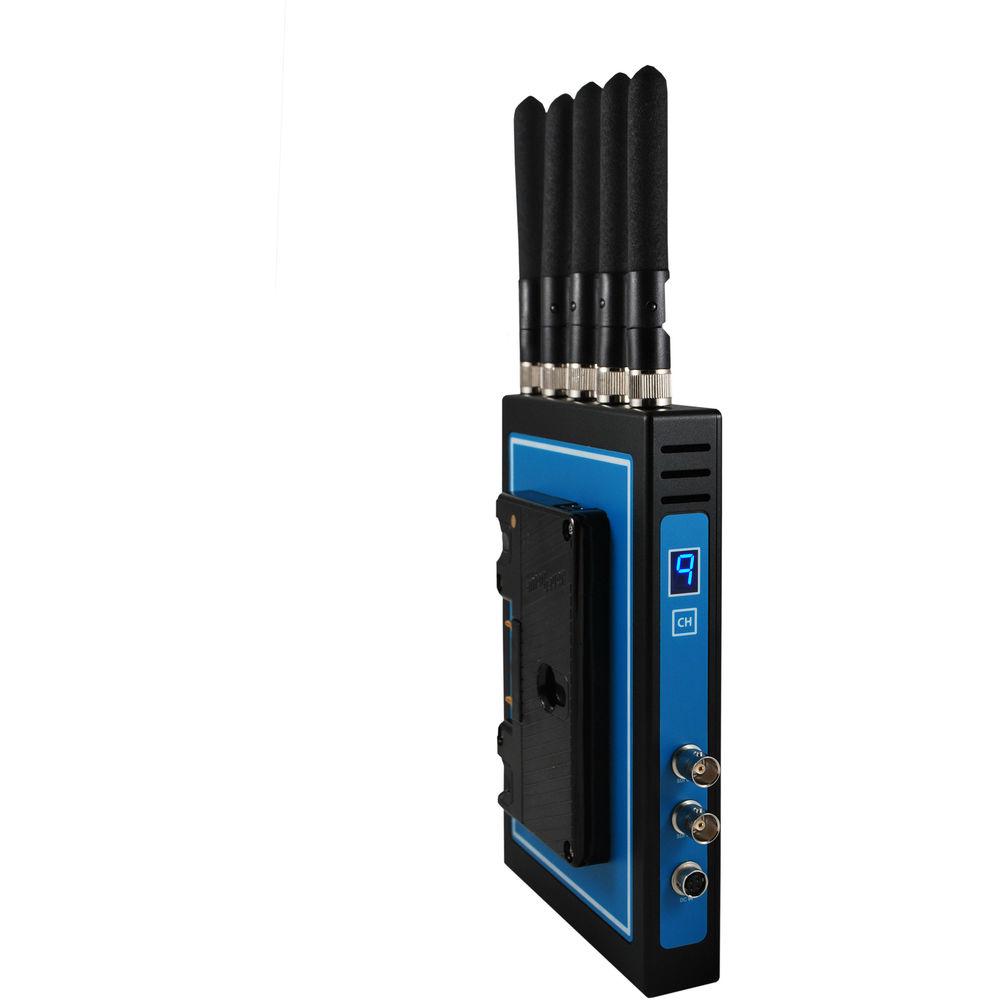

- Atom Receiver (Gold Mount) The Boxx TV Inc. Atom Receiver works with an Atom transmitter to receive a video signal from up to 1968' away. HDMI and dual SDI outputs provide options for using consumer or professional video monitors, respectively. A separately available Gold mount battery can power the receiver via the battery plate, and power can be passed through to a monitor with a Gold mount plate while the receiver is sandwiched between the battery and the monitor. The Atom system utilizes the license-free 5 GHz band with manually selectable channels to sync up transmitters and receivers. Only minimal configuration is required to set up a transmitter/receiver pair. A power cable, BNC SDI cable, antennas, and a power supply are included.

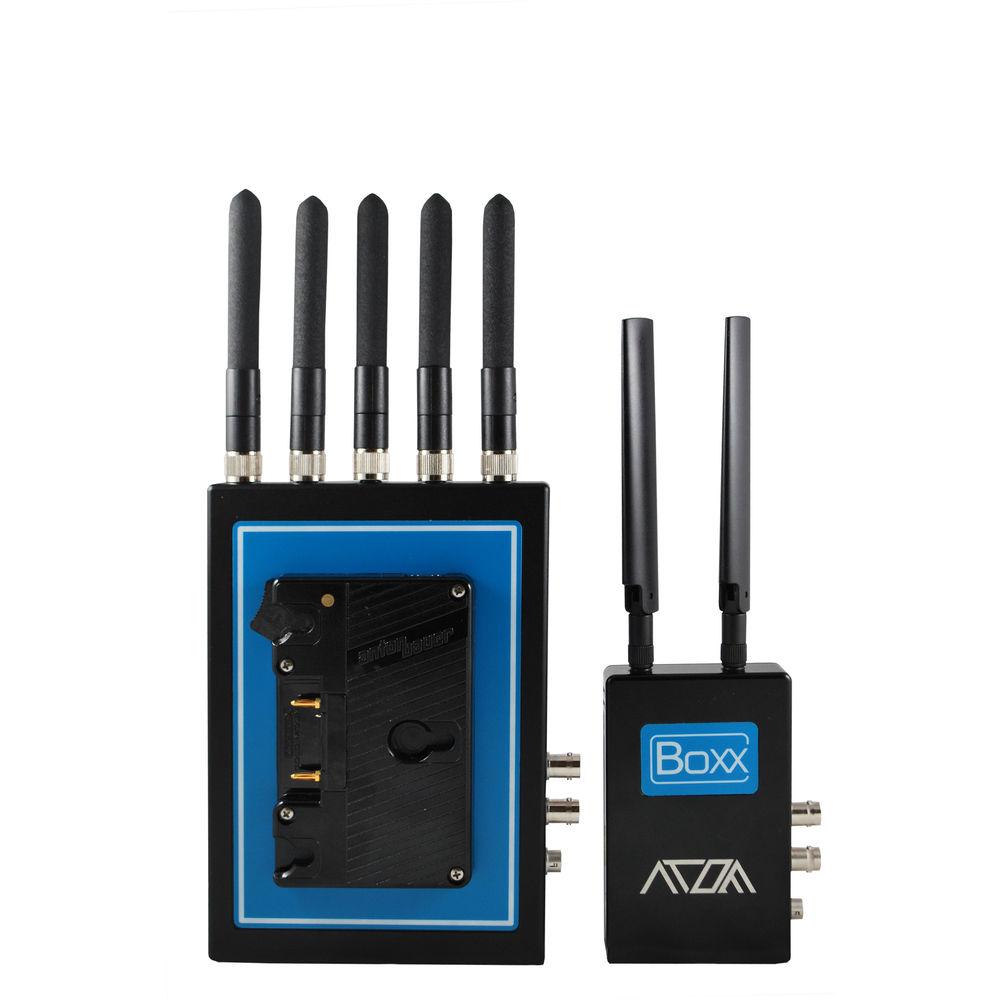

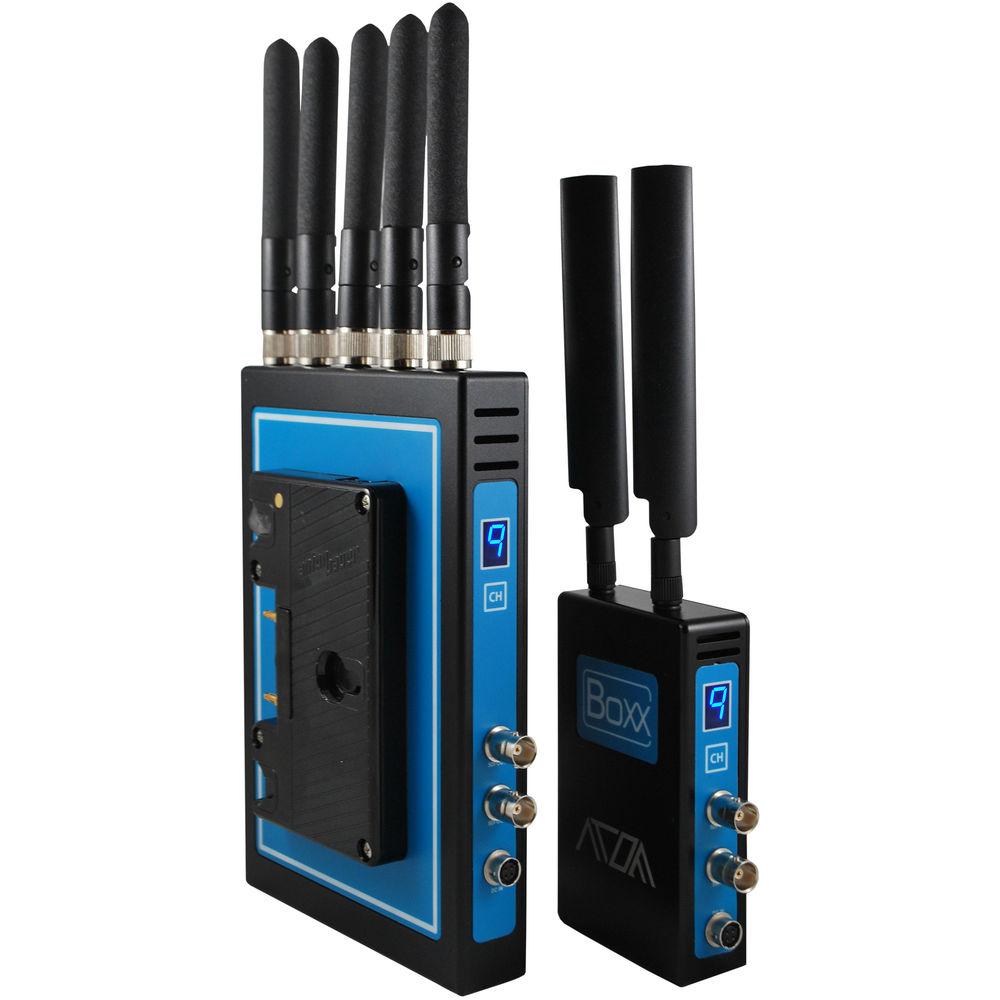

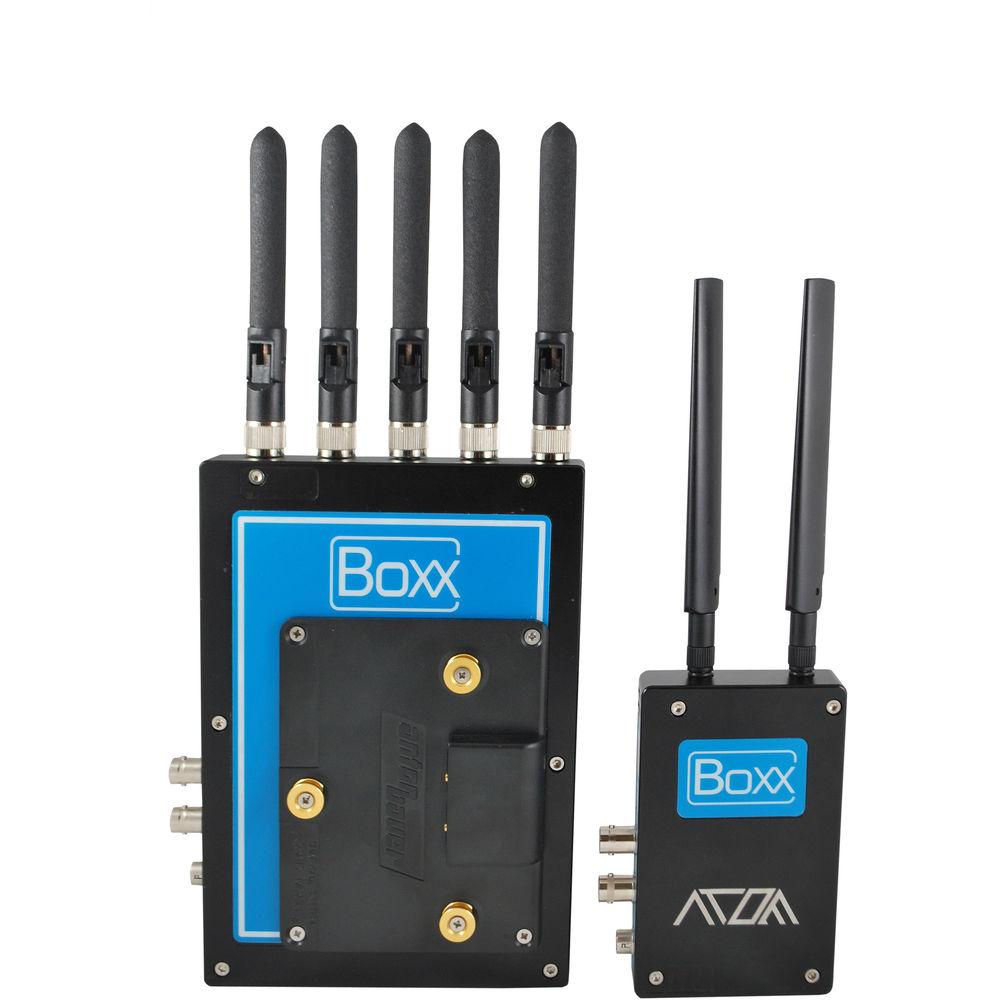

In the Box Bundle Items Atom Transmitter - 2 x 5dBi 5GHz Rubber Duck Omni RP-SMA Antennas
- Hirose to D-Tap Power Cable
Atom Receiver (Gold Mount) - 5 x 5dBi 5GHz Rubber Duck Omni RP-SMA Antennas
- 4-Pin XLR to Hirose Power Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the Boxx TV Ltd. Atom System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Atom Transmitter
| Inputs | SDI: 1 x BNC, HD-SDI
HDMI: 1 x HDMI | | Outputs | SDI: 1 x BNC, loop output | | RF Power Output | Up to 200 mW | | Modulation | OFDM | | Bandwidth | 40 MHz | | Operating Frequency | 5.1-5.9 GHz | | Maximum Operating Range | 1968' / 600 m | | Power Input | 1 x 4-pin Hirose, 9-36 VDC | | Mounting Threads | 1 x 1/4"-20 | | Operating Temperature | 23 to 122°F / -5 to 50°C | | Dimensions | 4.4 x 2.8 x 1" / 11.1 x 7.1 x 2.5 cm | | Weight | 8.9 oz / 253 g | - Atom Receiver (Gold Mount)
| Outputs | SDI: 2 x BNC, HD-SDI
HDMI: 1 x HDMI | | Modulation | OFDM | | Bandwidth | 40 MHz | | Operating Frequency | 5.1-5.9 GHz | | Maximum Operating Range | 1968' / 600 m | | Power Input | 1 x 4-pin Hirose, 9-36 VDC | | Mounting Threads | 1 x 1/4"-20
1 x 3/8"-16 | | Operating Temperature | 23 to 122°F / -5 to 50°C | | Dimensions | 7.4 x 5.2 x 1" / 18.8 x 13.2 x 2.6 cm | | Weight | 1.3 lb / 580 g (without battery plate) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
The discussion is empty - enter the first post
Post a new topic / query / comment:
|
|
|
| Request for user manual |
You can’t find the operation manual you are looking for? Let us know and we will try to add the missing manual:
I’m looking for a manual / Request for manual
Current requests for instruction manuals:
Expert intel sixcore i5-8400 4GHZ turbo...
Color LaserJet Pro MFP M281fdw...
call of duty world war II...
Audio Technica AUDIO-AT8631
data sheet ...
Sunpak Ultra 7000TM 2-1 tripod/monopod...
|
