User Manual for BOYA BY-PVM1000 Professional Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the BOYA BY-PVM1000 Professional Shotgun Microphone
- Product category: Shotgun Microphones BOYA
- Brand: BOYA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOYA Shotgun Microphones
 |
User manual for the BOYA BY-PVM1000 Professional Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOYA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOYA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOYA product will considerably shorten its lifespan!
|

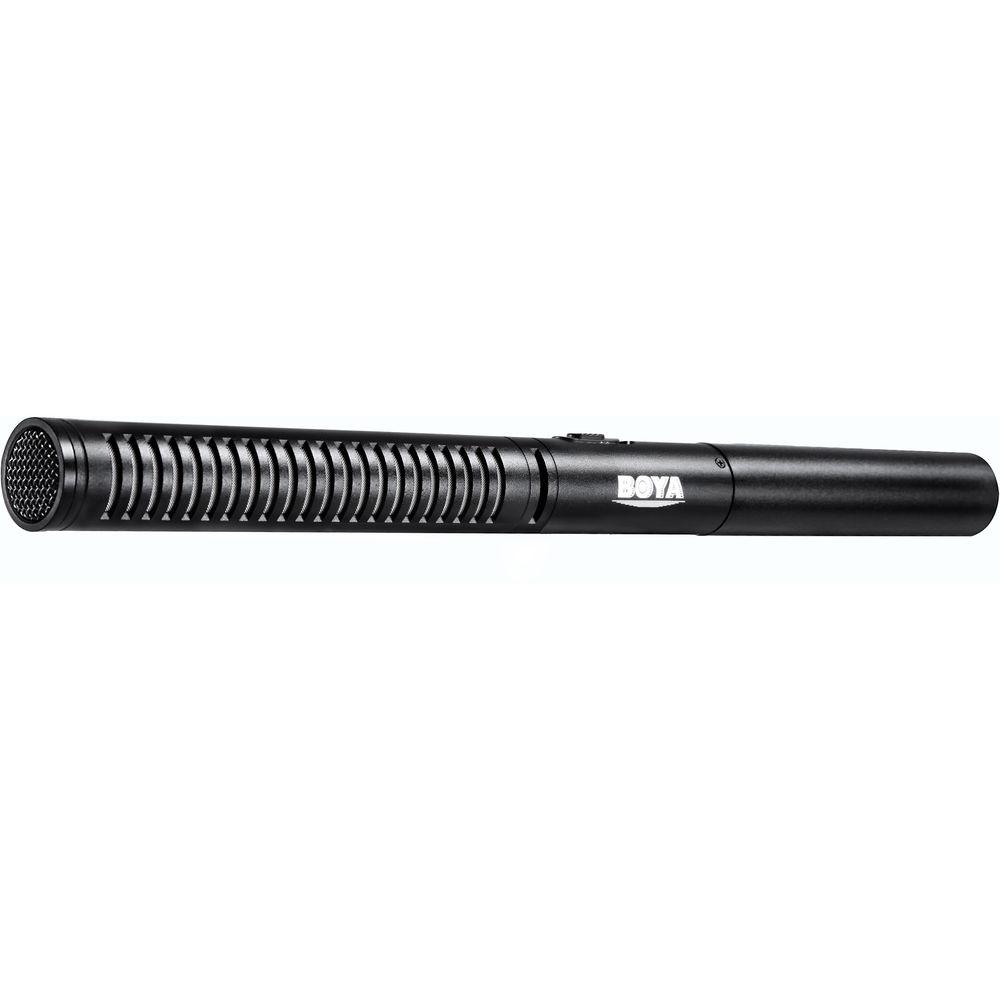

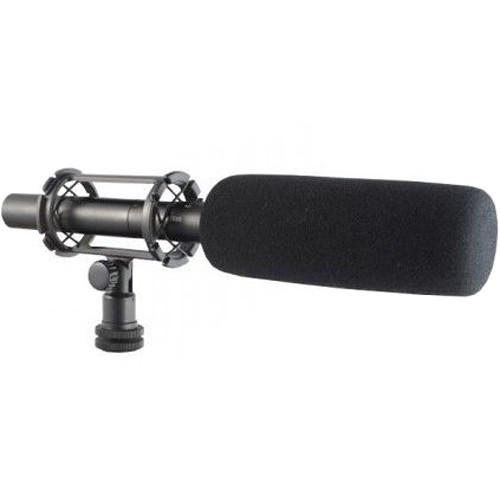

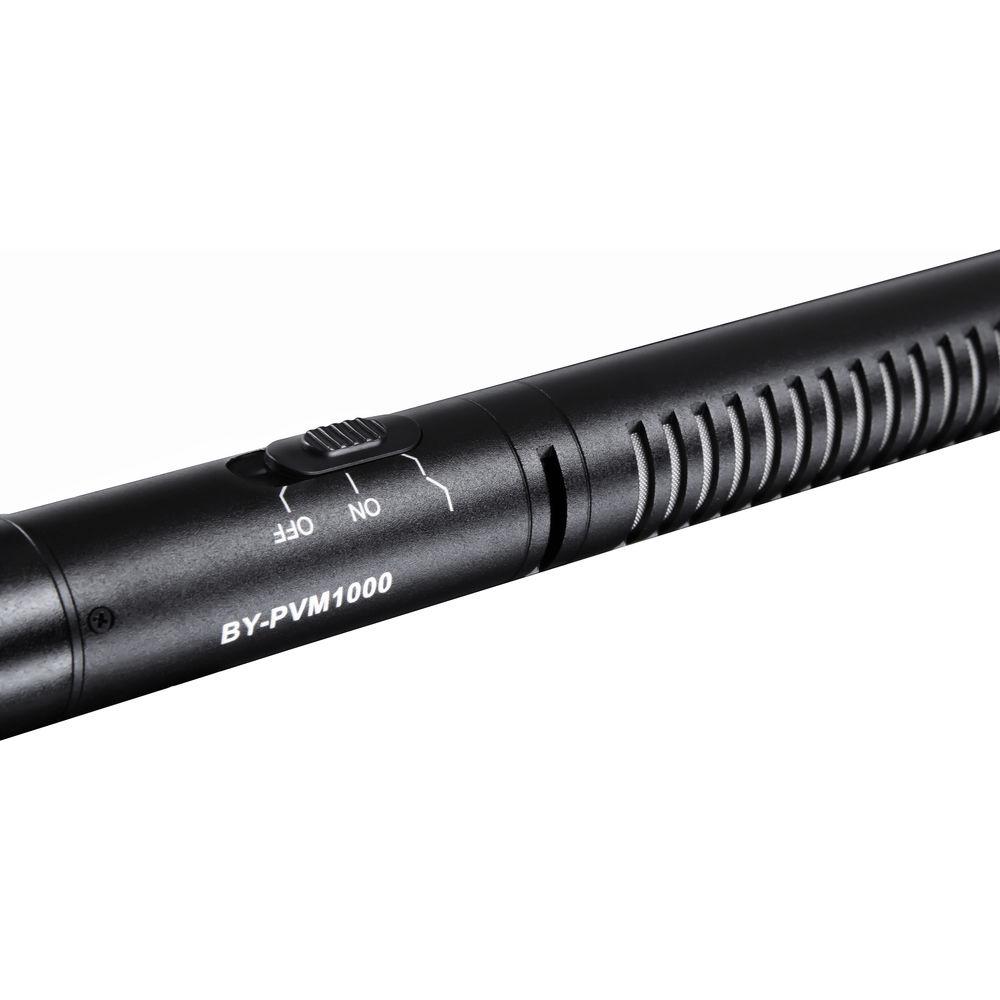

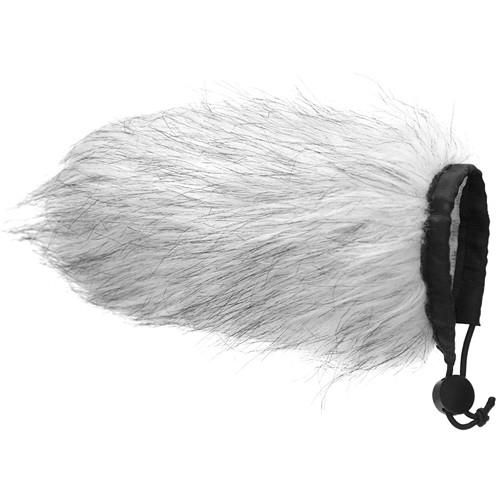

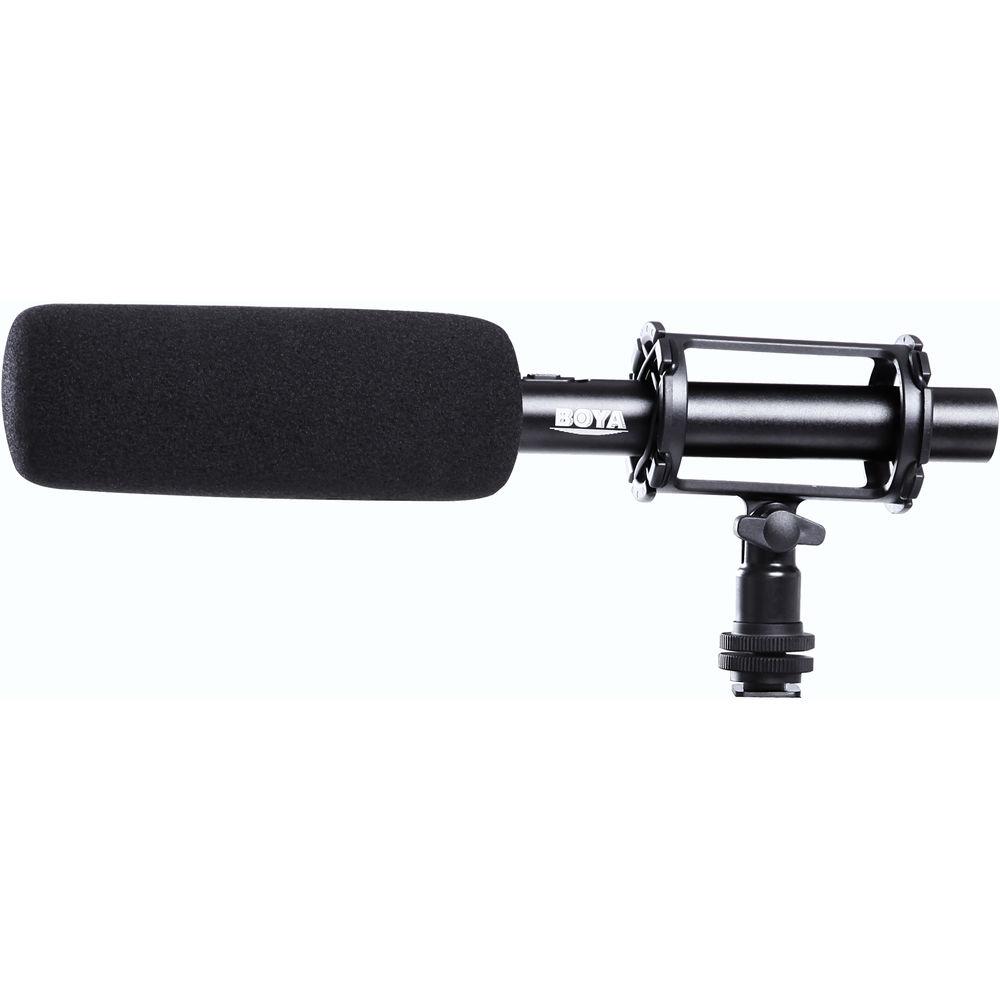

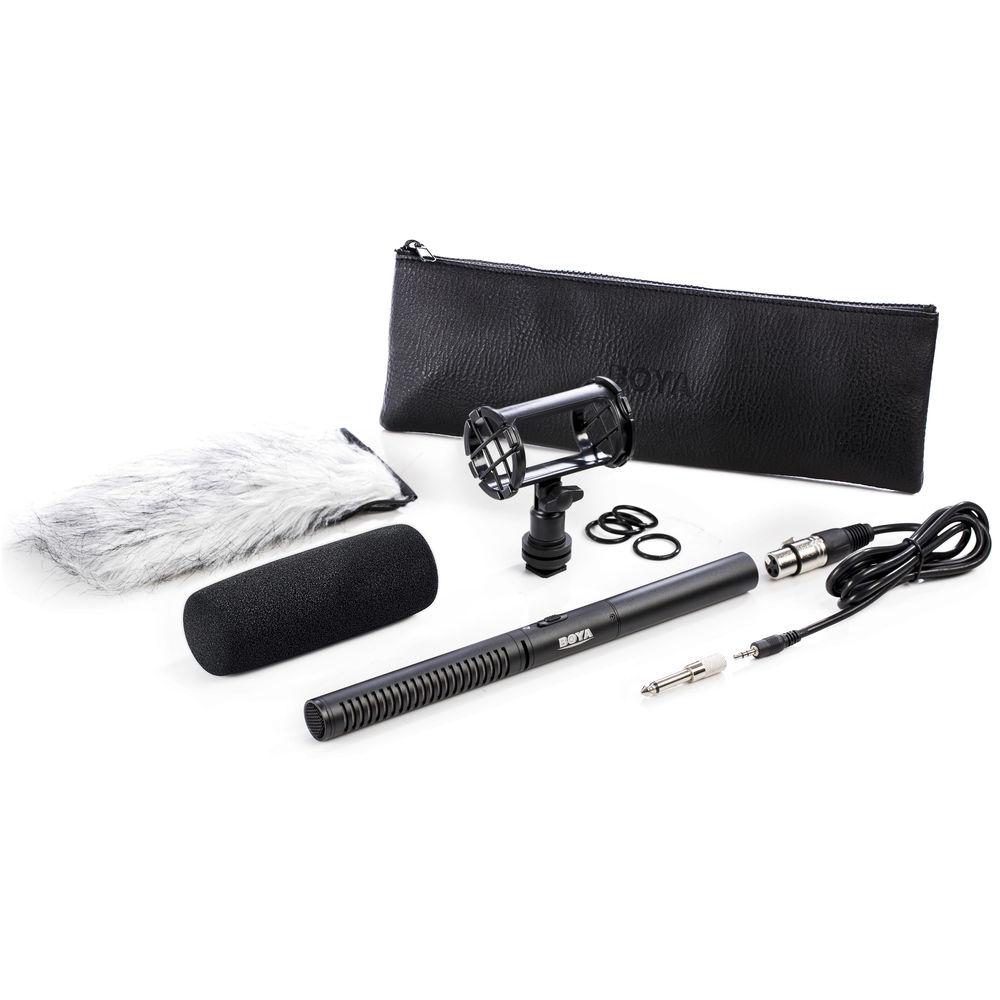

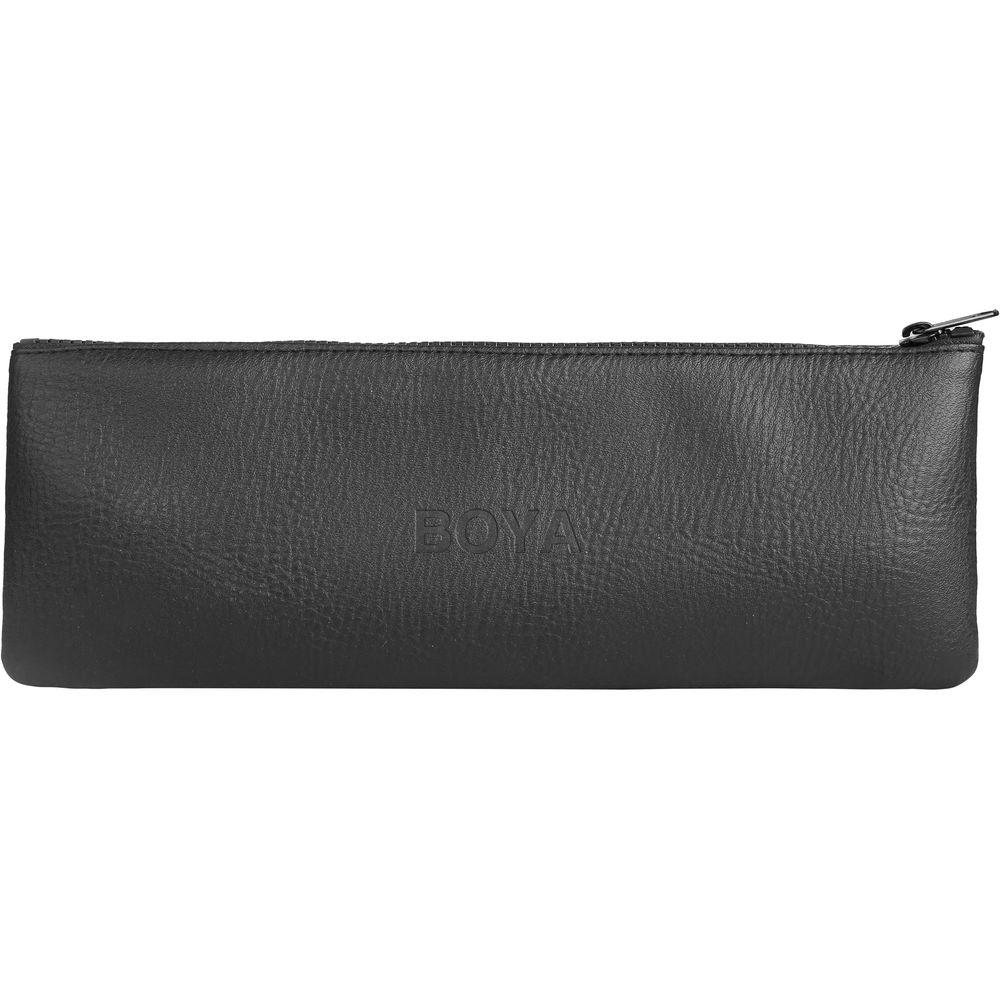

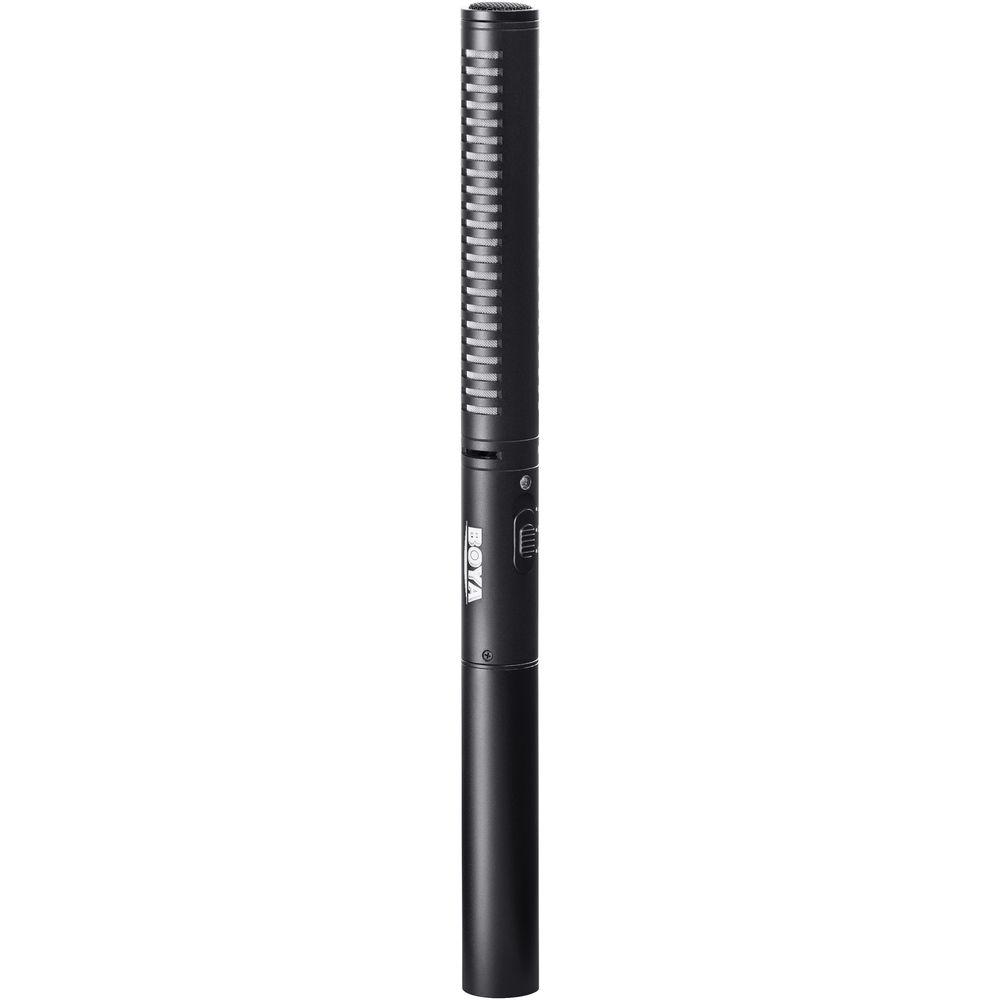

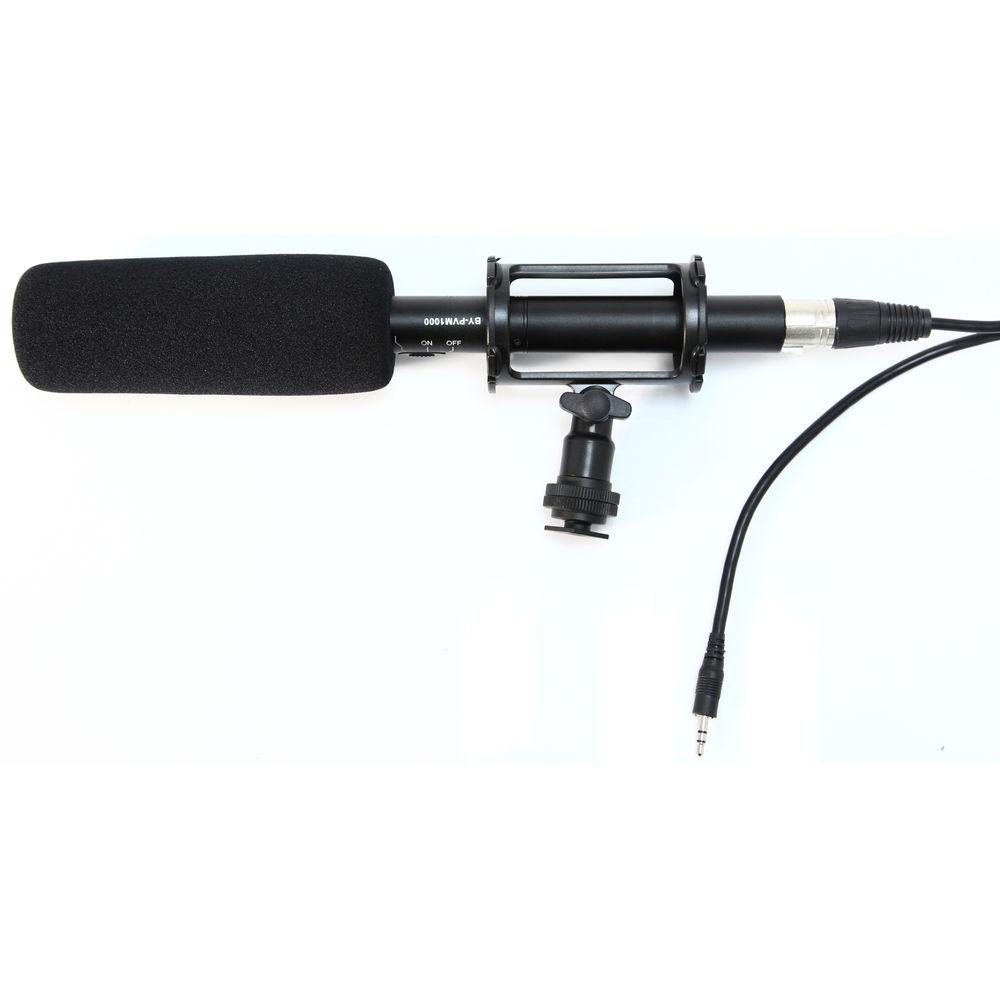

Product description The BY-PVM1000 Professional Shotgun Microphone from BOYA is a supercardioid shotgun microphone that delivers broadcast-quality sound in the studio or on location. It maximizes the rejection of sound coming from the sides and rear of the mic and can be used as a directional microphone to capture natural-sounding audio for speech and dialog.The shotgun microphone is built with a 3-pin XLR connector and includes a shockmount, a 4.9' XLR to 3.5mm cable, 3.5mm to 1/4" adapter, fur windscreen, and carrying pouch. It is powered by a 48V phantom power or an AA battery. In addition, it is equipped with a switchable 80 Hz high-pass filter. This mic offers low-noise and transparent audio reproduction that ensures a clean signal even in high-output conditions. In the Box BOYA BY-PVM1000 Professional Shotgun Microphone Shockmount Fur Windscreen 4.9' 3-pin XLR to 3.5mm TRS Cable 3.5mm to 1/4" TRS Adapter Carrying Pouch Limited 1-Year Warranty User Manual PDF 826.3kbdwffuycz Table of Contents
|
Upload User Manual
Have you got an user manual for the BOYA BY-PVM1000 Professional Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOYA BY-PVM1000 Specs | | | Sound Field | Mono | | Operating Principle | Line Gradient | | Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Range | 25 Hz to 20 kHz | | Signal to Noise Ratio | 80 dB | | Impedance | 300 Ohms
600 Ohms 300 Ohms with phantom, 600 Ohms with battery | | Sensitivity | 33 dB at 1 kHz | | | | Output Connectors | 1 x 3-Pin XLR | | Cable Length | 4.92' / 1.5 m | | Battery Type | 1 x AA | | Operating Voltage | 48 V | | Length | 10.94" / 27.8 cm | | Weight | 3.88 oz / 110 g | | | | Package Weight | 1.385 lb | | Box Dimensions (LxWxH) | 13.3 x 4.6 x 2.95" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
