Product description

  • Bracket 1 BaseA System

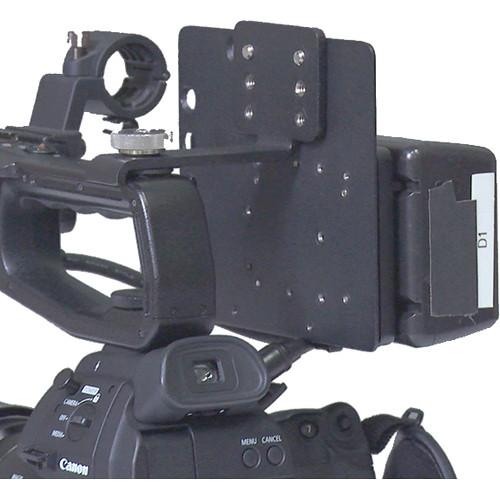

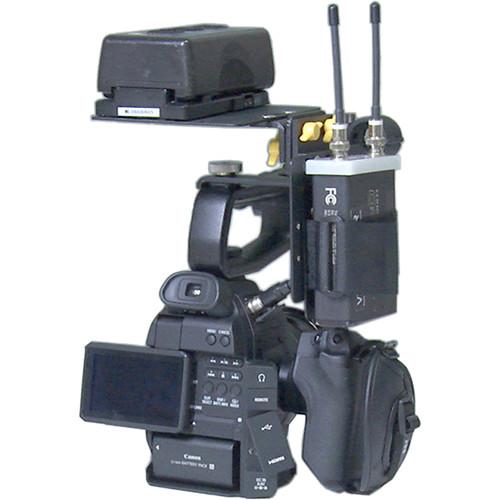

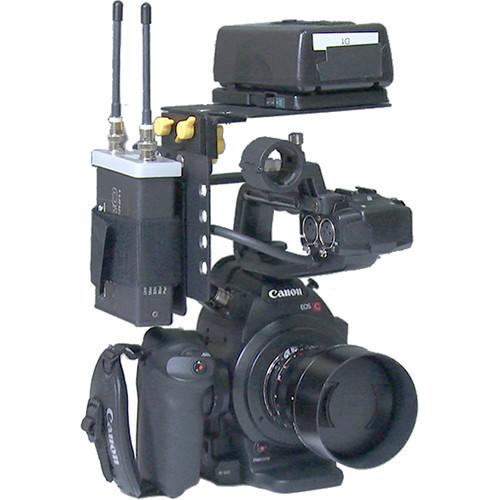

The Base A-Handle Mount 1 with Wireless Receiver and Battery Mount Kit-B by Bracket 1 consists of a Threaded Handle Mount 1, Battery Mounting Plate, Quick Release Plate, 90° Short Adapter, a Quick Plate and a touch-tab fastener in a kit. It works as a camera mounting system for attaching wireless microphone receivers, Anton Bauer or IDX batteries and additional accessories in different configurations on your camcorder's threaded handle. This mounting kit will fit select models of cameras as well as those with a dual 1/4"-20 threaded pattern spaced 1.5" apart front to back. The items in the kit are built with aluminum and stainless-steel hardware. Mounting surfaces include horizontal and vertical offset 8-32 threaded bolt patterns on each side of the Accessory Mounting Plate and a number of 1/4"-20 threaded holes. Add a second Quick Plate or wireless receiver box to mount a second receiver or accessory. Add a Battery Mounting Plate to attach Anton Bauer or IDX Battery kits or a second plate to further diversify your mounting surface options.
    Fits These Cameras
  • Panasonic -AF100, AG-AC130, AG-AC160, AG-HPX250, AG-HPX255, and most cameras with dual 1/4"-20 threaded pattern spaced 1.5" apart front to back
    Battery Mounting Plate
  • Mount your gear and accessories on one or both sides of this plate in a wide array of positions. It features industry standard 4-hole mounting patterns in horizontal and vertical positions.
    Quick Release Adapter
  • Add this Quick Release Adapter to your Accessory Mounting Plate or Battery Mounting Plate for quick and easy removal and reconfiguration of your Base A bracket system.
    Short 90° Adapter
  • Short 90° angle quick release adapter for customizing the configuration of your "Base A" system. Attaches to the Base A Handle Mount 1, 2 or 3, giving you an additional mounting position for an Accessory Plate, Battery Plate, Recorder Cradle or any other accessory.
    Quick Plate
  • This universal accessory mounting adapter can attach your wireless receiver, Audio/Video recorder or other accessories to the Bracket 1 bracket system or any camera with the industry standard mounting pattern. A touch-tab fastener cinches tight around the accessory, firmly holding the receiver against two rubber pads. Two Quick Plates can be mounted back to back on any Bracket 1 to hold 2 wireless receivers or accessories.

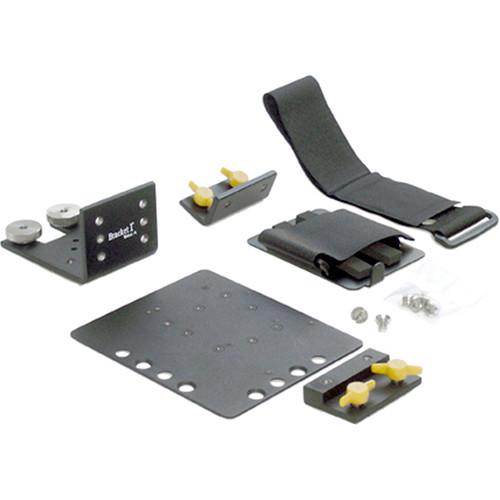

In the Box Bracket 1 Base A - Handle Mount 1 Wireless Receiver and Battery Mount Kit B
  • Base A Threaded Handle Mount 1
  • Base A Battery Mounting Plate
  • Base A Quick Release
  • Base A 90 Degree Short Adapter
  • Quick Plate
  • Long Touch-Tab Fastener
  • Limited Lifetime Warranty
  • Table of Contents

    Upload User Manual

    Have you got an user manual for the Bracket 1 Base A - Handle Mount 1 Wireless Receiver and Battery Mount Kit B in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)


    Technical parameters

    Bracket 1 VISLBA1KB Specs

    Dimensions and Weight Mount 1: 3.75 x 2.50 x 2.25" (9.50 x 6.30 x 5.70 cm)
    Weight: 6 oz ( 0.17 kg) Battery Mounting Plate: 4.25 x 5 x 0.1" (11 x 13 x 0.25 cm)
    Weight: 4 oz (0.11kg) Quick Release Adapter: 2.5 x 1.5 x 0.5" (6.3 x 3.8 x 1.3 cm)
    Weight: 2.5 oz (0.07 kg) Short 90° Adapter: 2.5 x 1.25 x 1.25 (6.3 x 3.2 x 3.2 cm)
    Weight: 2 oz (0.06 kg) Universal Mounting Plate: 4.5 x 3.0 x 0.3" (11 x 7.6 x 0.8 cm)
    Weight: 3 oz (0.9 kg) Touch-Tab Fastener: Not specified by manufacturer
    Package Weight 2.0 lb
    Box Dimensions (LxWxH) 11.0 x 8.0 x 3.0"
