Product description

  • Bracket 1 BaseA System

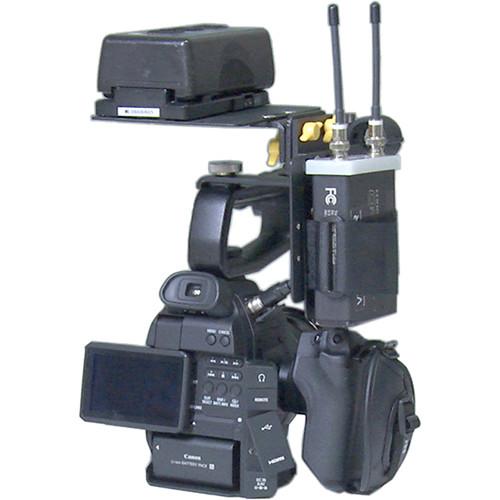

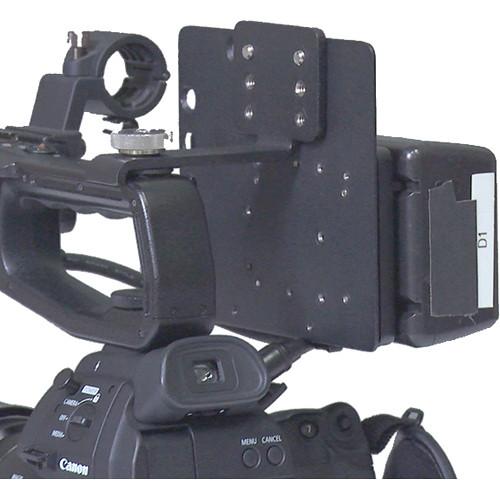

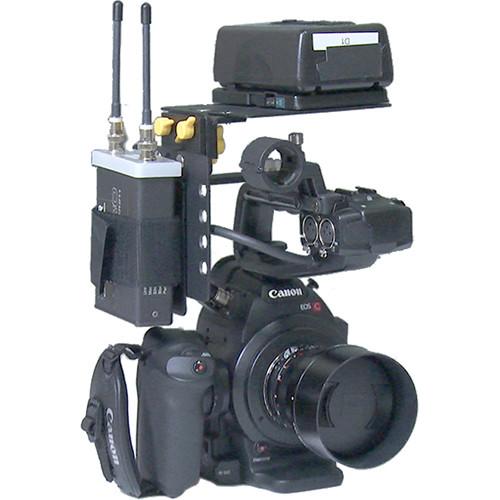

The Base A-Handle Mount 3 with Wireless Receiver and Battery Mount Kit-B by Bracket 1 consists of a Threaded Handle Mount 3, Battery Mounting Plate, Quick Release Plate, 90° Short Adapter, a Quick Plate and a touch-tab fastener in a kit. It works as a camera mounting system for attaching wireless microphone receivers, Anton Bauer or IDX batteries and additional accessories in different configurations on your camcorder's threaded handle. This mounting kit will fit select models of cameras as well as those with at least one 1/4"-20 threaded hole on top of the camera handle. The items in the kit are built with aluminum and stainless-steel hardware. Mounting surfaces include horizontal and vertical offset 8-32 threaded bolt patterns on each side of the Accessory Mounting Plate and a number of 1/4"-20 threaded holes. Add a second Quick Plate or wireless receiver box to mount a second receiver or accessory. Add a Battery Mounting Plate to attach Anton Bauer or IDX Battery kits or a second plate to further diversify your mounting surface options.
    Fits These Cameras
  • Sony F5, PMW-F55, PMW-TD300, PXW-FS7, PXW-X70, PXW-X180, PXW-X200, PXW-X500, PXW-Z100, SRWDCR-VX2200E, DVW-970, F65, HDC-2400, HDC-2500, HDR-FX1, HDW650F, HDW-790, HDW-F900R, HSC-100, HSC-300, HVR-S270, HVR-Z5U, HVR-Z5P, HVR-Z7P, HVR-Z7U, HXR-NX3, HXR-NX5P, HXR-NX5U, NEX-EA50, PDW-530, PDW-700, PDW-800, PDW-850, PMW-100, PMW-150, PMW-160, PMW-200, PMW-300, PMW-320, PMW-400, PMW-500, PMW-EX1R, PMW-F3, PMW-9000, PXW-X400, PXW-Z150
    Canon C100, C300, C500, XF100, XF105, XF200, XF205, XF300, XF305
    JVC GY-HD200, GY-HD250, GY-HM150U, GY-HM600, GY-HM650, GY-HM700, GY-HM710U
    Panasonic GY-HD200, GY-HD250, GY-HM150U, GY-HM200, GY-HM600, GY-HM620, GY-HM650, GY-HM660, GY-HM70, GY-HM700, GY-HM710U, GY-HM750, GY-HM790, GY-HM850, GY-HM890, GY-HMQ10, GY-LS300
    Blackmagic URSA, URSA mini, Pocket Cam
    AJA CION
    Ikegami HDS-V10
    ForA FT-ONE
    Other Cameras fits most cameras with at least one 1/4"-20 threaded hole on top of the camera handle
    Battery Mounting Plate
  • Mount your gear and accessories on one or both sides of this plate in a wide array of positions. It features industry standard 4-hole mounting patterns in horizontal and vertical positions.
    Quick Release Adapter
  • Add this Quick Release Adapter to your Accessory Mounting Plate or Battery Mounting Plate for quick and easy removal and reconfiguration of your Base A bracket system.
    Short 90° Adapter
  • Short 90° angle quick release adapter for customizing the configuration of your "Base A" system. Attaches to the Base A Handle Mount 1, 2 or 3, giving you an additional mounting position for an Accessory Plate, Battery Plate, Recorder Cradle or any other accessory.
    Quick Plate
  • This universal accessory mounting adapter can attach your wireless receiver, Audio/Video recorder or other accessories to the Bracket 1 bracket system or any camera with the industry standard mounting pattern. A touch-tab fastener cinches tight around the accessory, firmly holding the receiver against two rubber pads. Two Quick Plates can be mounted back to back on any Bracket 1 to hold 2 wireless receivers or accessories.

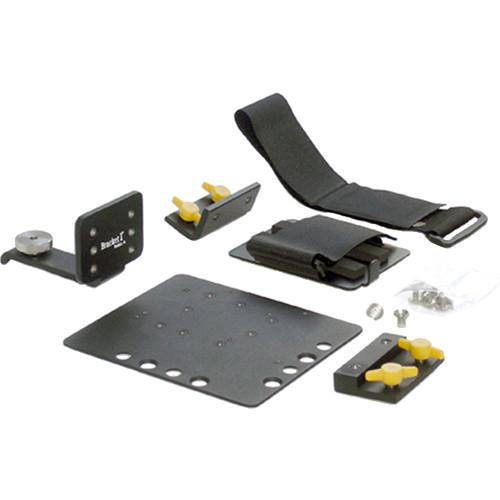

In the Box Bracket 1 Base A - Handle Mount 3 Wireless Receiver and Battery Mount Kit B
  • Base A Threaded Handle Mount 3
  • Base A Battery Mounting Plate
  • Base A Quick Release
  • Base A 90 Degree Short Adapter
  • Quick Plate
  • Long Touch-Tab Fastener
  • Limited Lifetime Warranty
