User Manual for Braun FS120 Medium Format Film Scanner Click to enlarge the picture
Contents of the user manual for the Braun FS120 Medium Format Film Scanner
- Product category: Film Scanners Braun
- Brand: Braun
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Braun Film Scanners
 |
User manual for the Braun FS120 Medium Format Film Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Braun product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Braun user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Braun product will considerably shorten its lifespan!
|

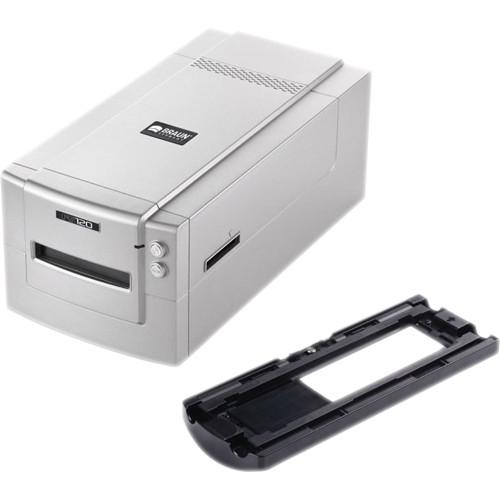

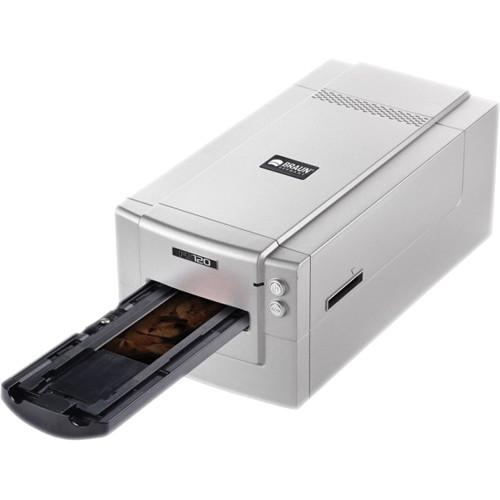

Product description Digitize your 35mm slides and negatives all the way up to 6x12 cm shots with the FS120 Medium Format Film Scanner from Braun. It features a 3-line CCD sensor that works with an optical resolution of 3200 dpi and a color depth of 48-bit for creating highly detailed images. Also, it has a good Dmax rating of >3.6 as well as a scanning area of 1.0 x 1.4" to 2.2 x 5.5" for versatility. Additionally, it has a scan speed of about 200 seconds at 3200 dpi and 24-bit settings.
Built into the scanner is MAGIC TOUCH technology which utilizes an infrared LED for automatic dust and scratch removal. Also, included with the unit is Cyberview and image editing software in order to get the optimal quality out of your film. It features a USB 2.0 interface for connecting to a computer. - Scans 35mm slides and strips, 120/220, 6x4.5, 6x6, 6x7, 6x8, 6x9, and 6x12 positive and negative film
- Comes with holder for 4 framed slides up to 0.12" thick, a holder for filmstrips with 6 images, a medium format holder for one or two 6x4.5, one or two 6x6, one 6x7, one 6x8, one 6x9, or one 6x12 piece of film
In the Box Braun FS120 Medium Format Film Scanner Medium Format Film Holder 135 Film Holder 135 Slide Holder USB 2.0 Cable AC Power Adapter Software CD-ROM Limited 2-Year Warranty User Manual PDF 8.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Braun FS120 Medium Format Film Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBraun FS 120 Specs | Film Types | 35mm slides or strips, 120/220, 6 x 4.5 cm, 6 x 6 cm, 6 x 7 cm, 6 x 8 cm, 6 x 9 cm, 6 x 12 cm | | | | Scan Sensor | 3-line CCD sensor | | Optical Resolution | 3200 dpi | | Color Depth | 48-bit | | Dmax | >3.6 Dmax | | Scan Speed | 200 seconds at 3200 dpi & 24-bit | | Scan Area | 1.0 x 1.4" to 2.2 x 5.5" (24.3 x 36.5 mm to 55.0 x 140.0 mm) | | | | Computer Interface | USB 2.0 | | Windows System Requirements | Windows XP (32-bit), Vista (32/64-bit), 7 (32/64-bit), 8 (32/64-bit)
Intel P4 2 GHz processor or higher
1 GB RAM minimum
10 GB free hard disk space | | Mac System Requirements | Mac OS X 10.5 or later
Inter Core 2 Duo 1.8 GHz or higher
1 GB 667 MHz DDR2 SDRAM | | | | Light Source | White LEDs and infrared LEDs | | Power Requirements | Input: 100-240 VAC, 50-60 Hz, 1.2 A
Output: 12 VDC, 3.0 A (36 W maximum) | | Operating Conditions | Temperature: 50 to 104°F (10 to 40°C)
Humidity: 15-76%, relative non-condensing | | Dimensions | 15.7 x 8.1 x 6.7" (40.0 x 20.5 x 17.0 cm) | | Weight | 11.7 lb (5.3 kg) | | | | Package Weight | 16.2 lb | | Box Dimensions (LxWxH) | 20.1 x 12.5 x 11.4" |
Rating40% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Braun FS120 Medium Format Film Scanner
| Subject: Braun FS-120 won’t sense the first frame of 35mm film & slide | | Date: 02.12.2021 05:28:32 | Name: Michael | | For a new scanner, after installation on. Windows 10 pc, it scans with a 35mm negative & slide ok. However it won’t sense the first frame of the negative & slide no matter how I insert the holders. Not sure how to get this fixed. Any suggestions would be great. | | Post reply |
