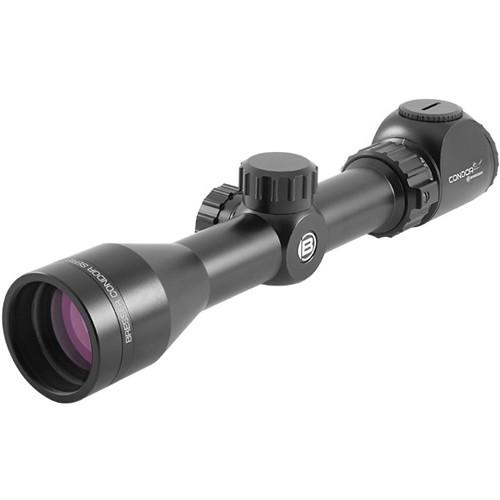

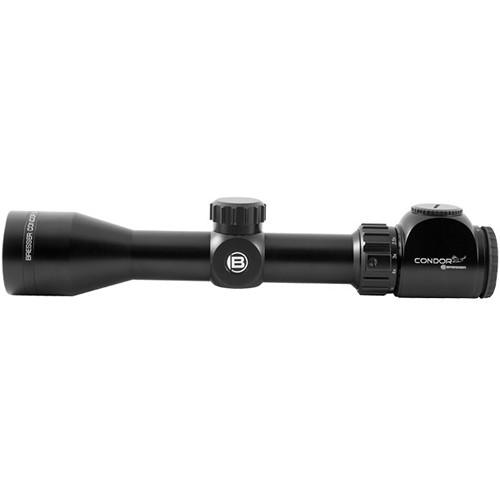

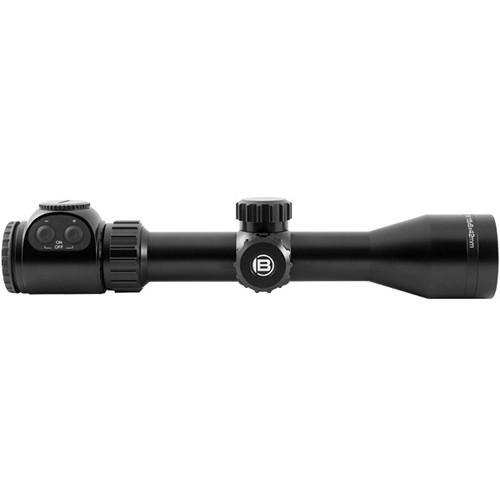

User Manual for BRESSER Condor 1.5-6x42 Riflescope Click to enlarge the picture
Contents of the user manual for the BRESSER Condor 1.5-6x42 Riflescope
- Product category: Riflescopes BRESSER
- Brand: BRESSER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BRESSER Riflescopes
 |
User manual for the BRESSER Condor 1.5-6x42 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BRESSER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BRESSER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BRESSER product will considerably shorten its lifespan!
|
Product description Optimized for tactical applications, the Condor 1.5-6x42 Riflescope from BRESSER offers a 42mm objective for adequate image brightness in most lighting conditions, high-transmission fully multicoated optics, and an illuminated Target Dot Reticle. The reticle is located in the second focal plane and features a thin black crosshair and a red center dot with variable brightness. It is powered by the included CR2032 battery and has an automatic power-off function that extends battery life. The single-piece O-ring-sealed aluminum housing can be mounted to your firearm via optional 30mm rings and offers waterproof, fogproof, and impact-resistant performance. To aid in correcting for ballistic drop and wind drift, the capped windage and elevation turrets offer 1/4 MOA impact point correction. The fast-focus eyepiece also features a low-profile lever for one-finger operation. Also included is a bikini lens cover. Illuminated Red Target Dot Reticle -
- Second focal plane
- Thin crosshair
- Illuminated red center dot
- Variable brightness
Optical Performance -
- Fully multicoated
- Magnification: 1.5-6x
- Objective lens: 42mm
- FOV: 58-15.3' @ 100 yd
- Eye relief: 3.9"
Use and Handling -
- 1/4 MOA impact point correction
- Windage and elevation adjustments
Construction Details -
- 30mm aluminum maintube
- Matte black finish
- Fast-focus eyepiece with zoom lever
- Fogproof, waterproof, shock resistant
In the Box BRESSER Condor 1.5-6x42 Riflescope (Red Target Dot Illuminated Reticle) - Bikini Lens Cover
- CR2032 Battery
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the BRESSER Condor 1.5-6x42 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBRESSER 90-31642C Specs | | | Magnification | 1.5 to 6x | | Objective Lens Diameter | 42 mm | | Field of View | 1.5x: 58' @ 100 yd / 19.3 m @ 100 m
6x: 15.3' @ 100 yd / 5.1 m @ 100 m | | Exit Pupil Diameter | 1.5x: 26 mm
6x: 5 mm | | Eye Relief | 3.9" / 100 mm | | | | Reticle Type | Target Dot Reticle (Second Focal Plane) | | Illumination | Illuminated | | Illuminated Color | Red | | | | Impact Point Correction | 1/4 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 11.7" / 29.7 cm | | Weight | 18 oz / 510 g |
