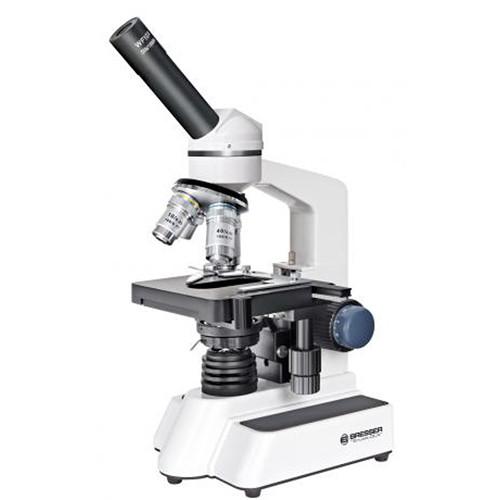

User Manual for BRESSER Erudit DLX 40-600x Monocular Cordless Microscope Click to enlarge the picture
Contents of the user manual for the BRESSER Erudit DLX 40-600x Monocular Cordless
- Product category: Microscopes BRESSER
- Brand: BRESSER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BRESSER Microscopes
 |
User manual for the BRESSER Erudit DLX 40-600x Monocular Cordless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BRESSER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BRESSER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BRESSER product will considerably shorten its lifespan!
|
Product description Explore microscopic worlds with the Erudit DLX 40-600x Monocular Cordless Microscope from Bresser. This angle-viewing microscope can be used as a lab microscope or as a field microscope using its internal rechargeable battery. The optics feature a head that allows a 360° rotation of the eyepiece, four DIN achromatic objectives on a ball bearing nosepiece, and a 10x wide-field eyepiece. The objectives feature achromatic design that corrects for color distortions and delivers clear and high-resolution images with fine detail of microscopic structures. To help you with your study, the square metal precision stage offers two-dimensional motion of your sample with a single coaxial control. It also has a metal bracket with locking thumbscrew to secure and move your samples and slides. With fine and coarse focusing adjustments, you can be sure to get sharp images with high contrast. For your convenience, the two knurled focusing knobs are located on both sides of the microscope and can be tuned using either hand. The scope also provides bottom LED illumination with a height-adjustable 1.25 Abbe condenser. To enable you to control the cone of light and to insert filters, located underneath a mechanical state are an iris diaphragm and a filter holder. The body is made of aluminum to ensure stability and repeatable focusing. Also included are a dust cover, blue filter, and 230V power adapter. - Optical System
-
- 10x wide-field eyepiece

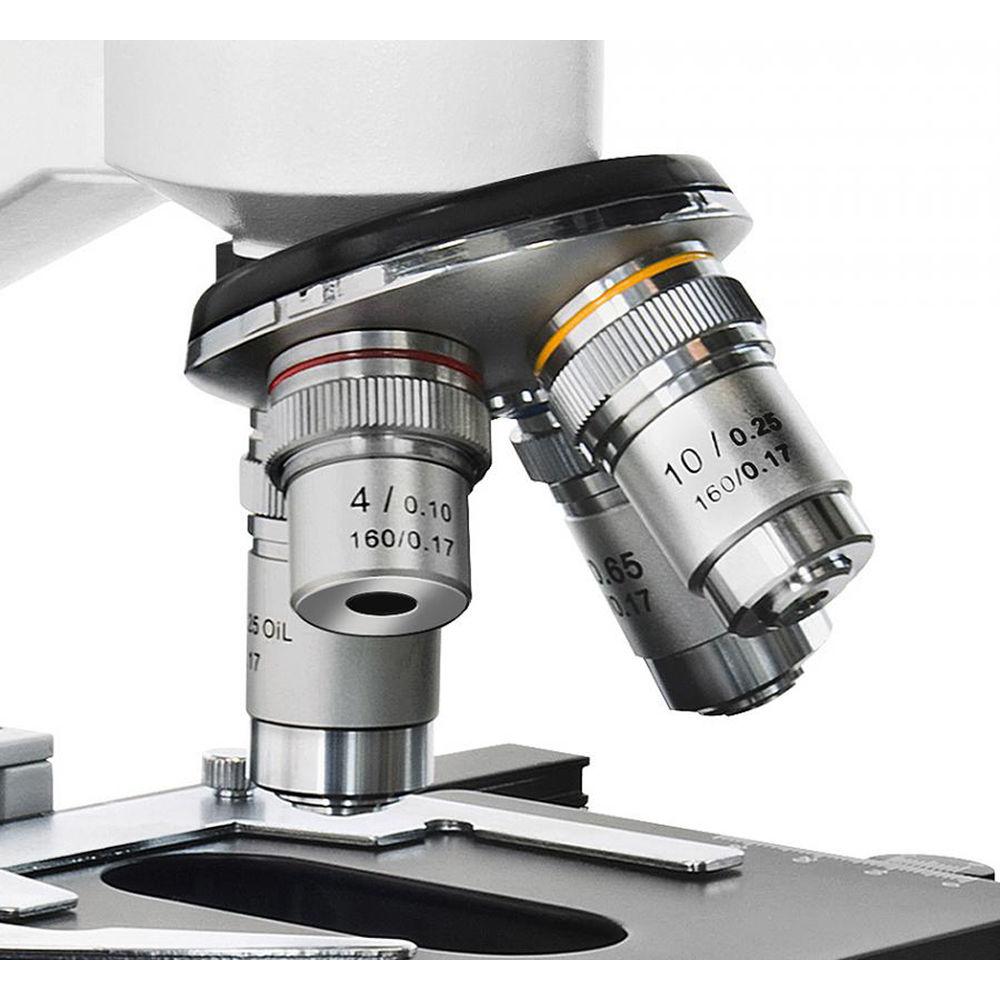

- 4x, 10x, 40x, 60x achromatic DIN objectives
- 40x, 100x, 400x, 600x magnification
- Inclined viewing head with 360° rotation
- Focusing, Illumination, and Power
-

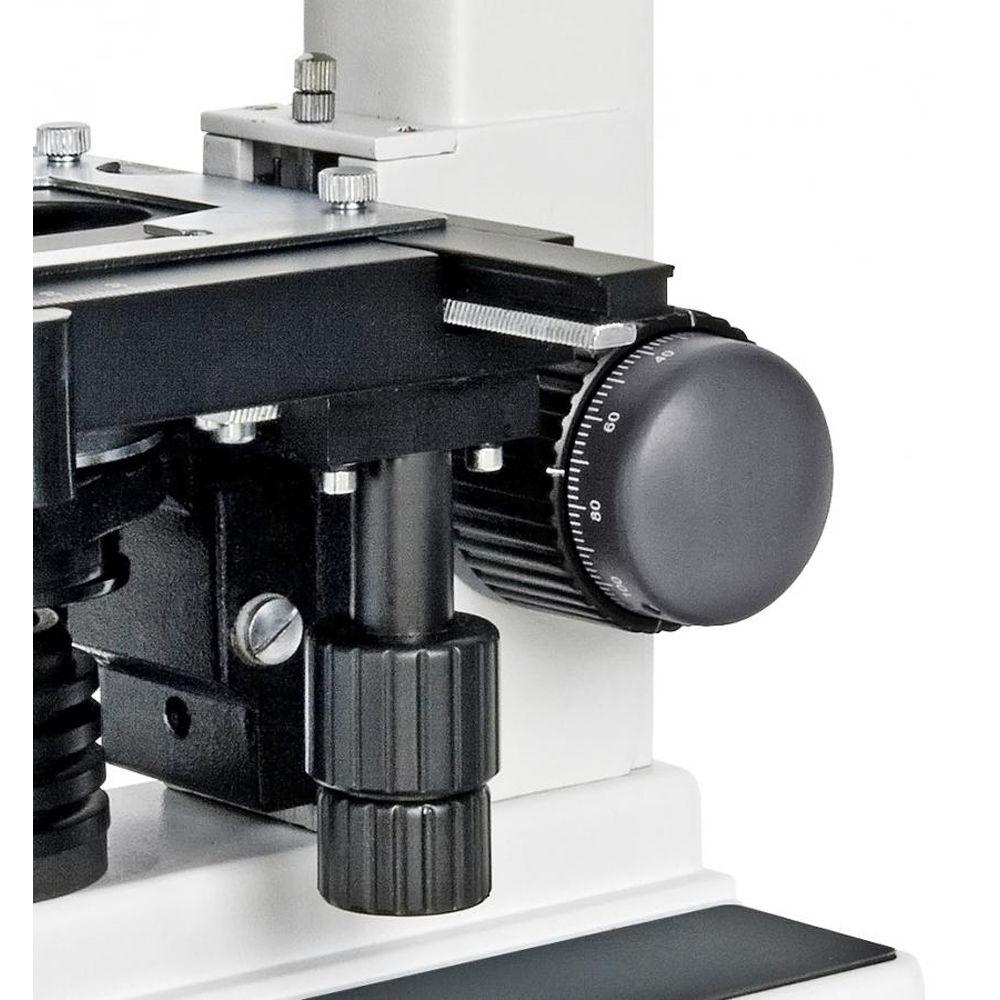

- Coaxial fine and coarse focusing
- Two focus control knobs with scale
- Bottom LED illumination with dimmer

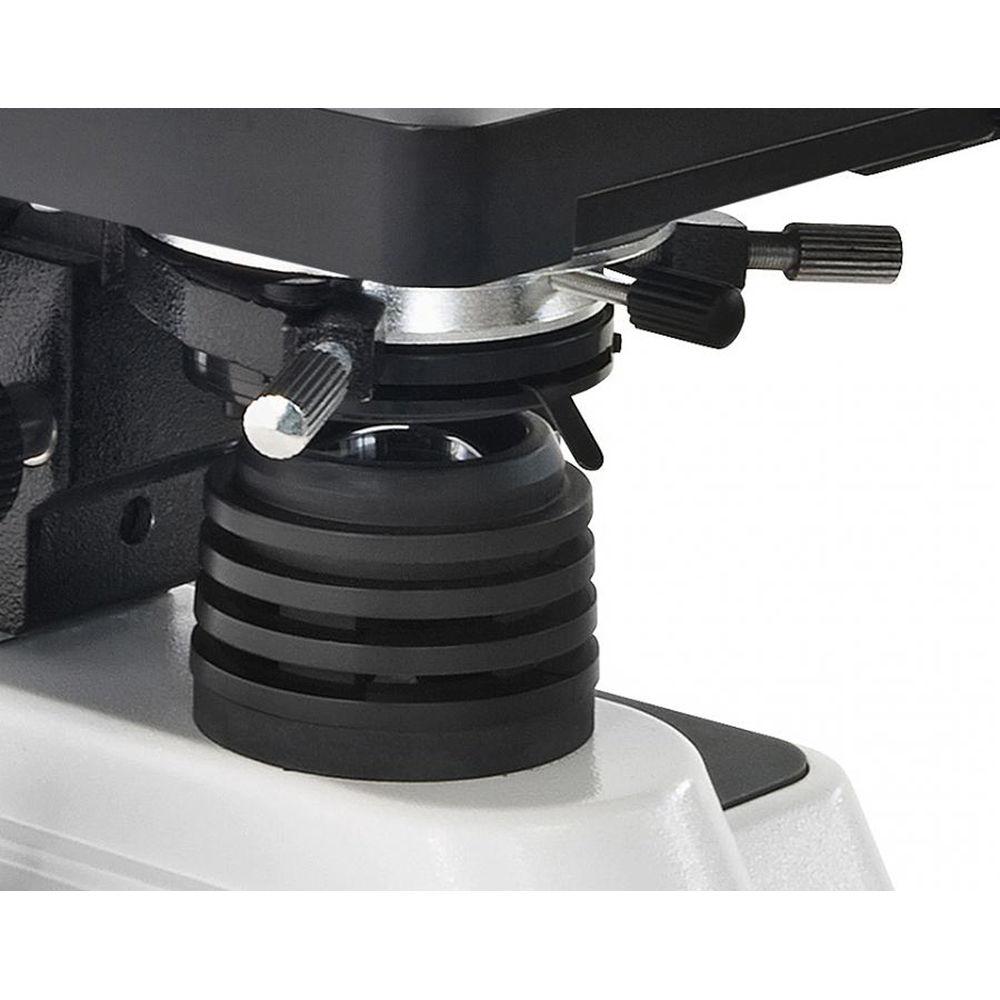

- Adjustable 1.25 Abbe condenser
- Rheostat adjusts brightness
- Built-in rechargeable battery
- Stage
-
- Metal precision mechanical stage
- Specimen bracket with locking thumbscrews
- Single coaxial motion control knob for two-dimensional sample movement
- Construction Details
-
- Aluminum and polycarbonate construction
- Knurled focus and stage motion control knobs
- Built-in iris diaphragm
- Built-in filter holder
UPC: 812257017751 In the Box BRESSER Erudit DLX 40-600x Monocular Cordless Microscope (230V, Black/White) - Dust Cover
- Blue Filter
- 230V Adapter
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the BRESSER Erudit DLX 40-600x Monocular Cordless Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBRESSER 5102060 Specs | Microscope Type | Compound, Stereo | | Head | Inclined Monocular | | Nosepiece | 4-Position Nosepiece | | | | Optical Magnification | 40x, 100x, 400x, 600x | | Objective | 4x, 10x, 40x, 60x | | Eyepiece | 10x | | Focusing | Coarse, Fine | | | | Illumination Type | LED | | Dimmer | Yes | | | | Dimensions | L: 8.9 x W: 6.9 x H: 13.6" / L: 225.0 x W: 175.0 x H: 345.0 mm | | Weight | 6 lb / 2.7 kg |
