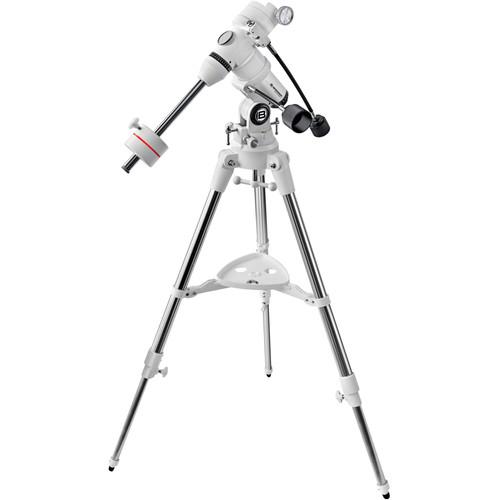

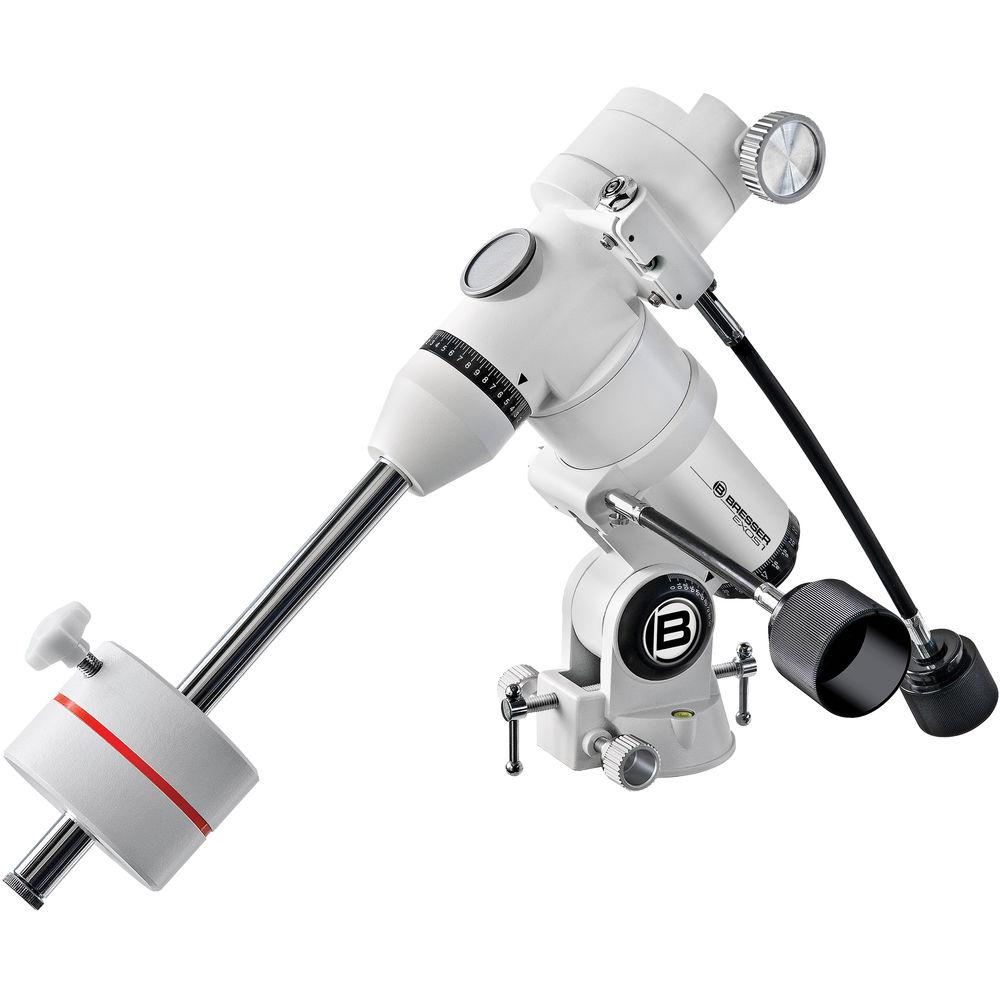

Product description Designed for smaller optical tube assemblies (OTAs), Bresser's Exos-1 German Equatorial Mount with Tripod combines a manual equatorial (EQ) mount with a sturdy stainless steel tripod to provide users with a stable and reliable observational platform. The mount can hold OTAs and accessories up to 15 pounds, and it features a GP-level dovetail saddle for compatible OTAs, dual-axis slow-motion cables to more easily track objects, and an integrated bubble level to assist in setup. Built into the mount is an access port for an optional polar alignment scope to aid in faster and more precise setup.The tripod, a step up from typical "starter" tripods, is adjustable from 25 to 42" to accommodate a wide range of users. Its 1.5" leg diameter has three sections with large thumbscrews for tool-free adjustment in the field. An adjustable plastic tray is also included with the tripod to keep eyepieces, flashlights, and other accessories safe and at the ready. - Mount
-
- Cast aluminum with white powder coat
- GP-level dovetail saddle to mount compatible OTAs
- Flexible dual-axis slow-motion cables reduce vibrations while tracking objects

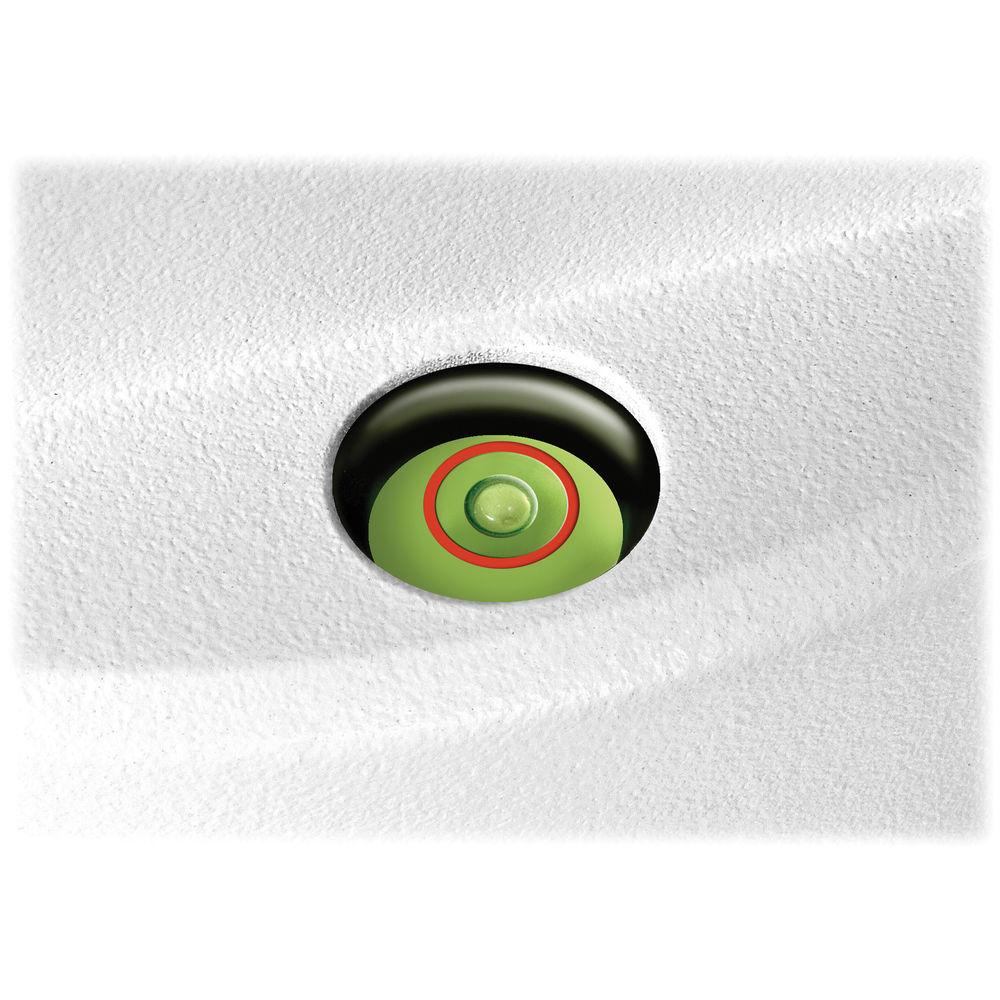

- Integrated bubble level on mount base
- 4.4 lb (2kg) counterweight with 20mm-diameter bar
- Latitude, right ascension, and declination scales
- Polar finderscope access port for optional accessory

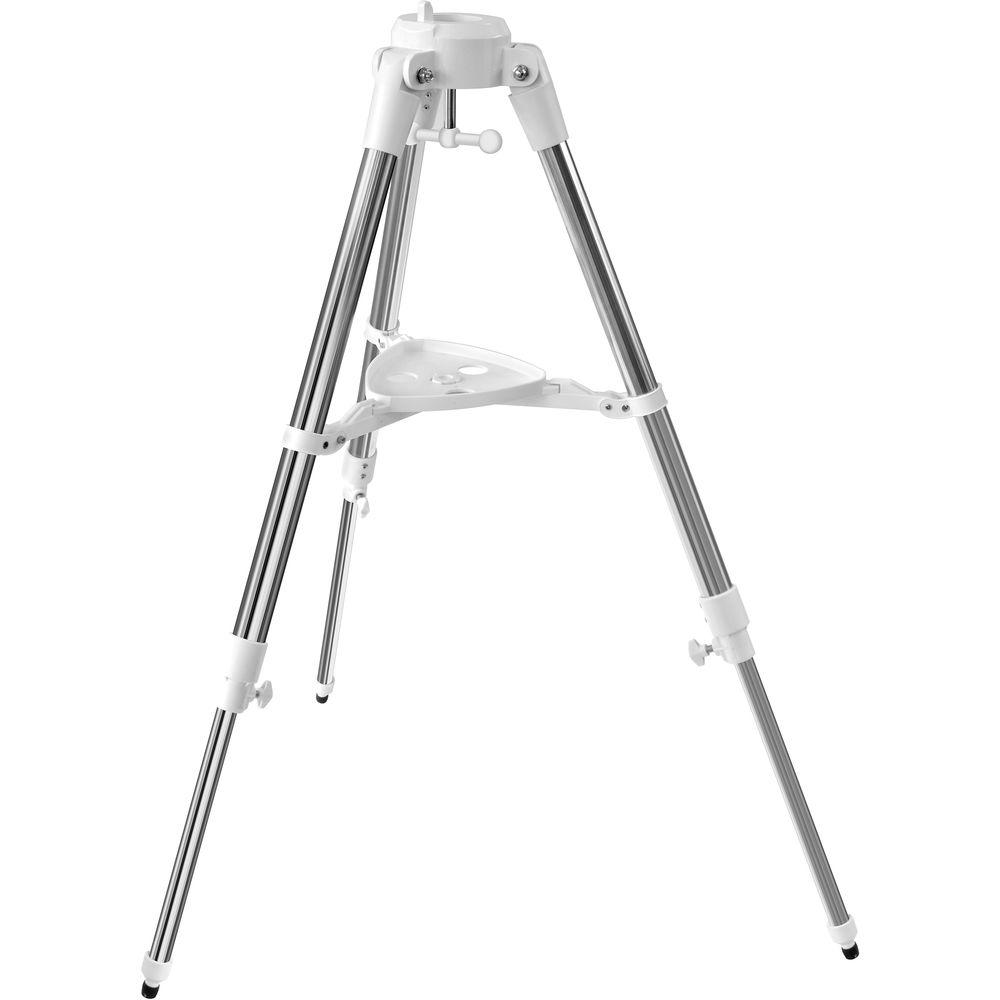

- Tripod
-
- Three-section adjustable height
- 15 lb payload capacity
- 1.5" stainless steel legs
- 25-to-42" height range
- Accessory tray with holes for 1.25" eyepieces
UPC: 812257016525 In the Box BRESSER Exos-1 German Equatorial Mount with Tripod 4.4 lb Counterweight 20mm Counterweight Bar 2 x Slow-Motion Cables Stainless Steel Tripod with Accessory Tray Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BRESSER Exos-1 German Equatorial Mount with Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBRESSER BR-EXOS1 Specs | Mount Type | German equatorial | | Load Capacity | 15.4 lb / 7.0 kg | | Motor | None | | GoTo Capability | None | | Altitude / Latitude Adjustment | Slow-motion cables, right ascension and declination | | Polar Axis Scope | Optional | | Includes Tripod/Pier | Steel adjustable-height tripod
1.5" / 3.8 cm diameter legs
Height, collapsed: 24.8" / 63.0 cm
Height, extended: 41.7" / 106.0 cm | | Power Source | None | | Weight | Mount: 8.4 lb / 3.8 kg | | | | Package Weight | 41.0 lb | | Box Dimensions (LxWxH) | 34.5 x 21.3 x 10.3" |
