User Manual for BRESSER Exos-2 German Equatorial Mount with Tripod Click to enlarge the picture
Contents of the user manual for the BRESSER Exos-2 German Equatorial Mount with
- Product category: Mounts BRESSER
- Brand: BRESSER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BRESSER Mounts
 |
User manual for the BRESSER Exos-2 German Equatorial Mount with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BRESSER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BRESSER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BRESSER product will considerably shorten its lifespan!
|

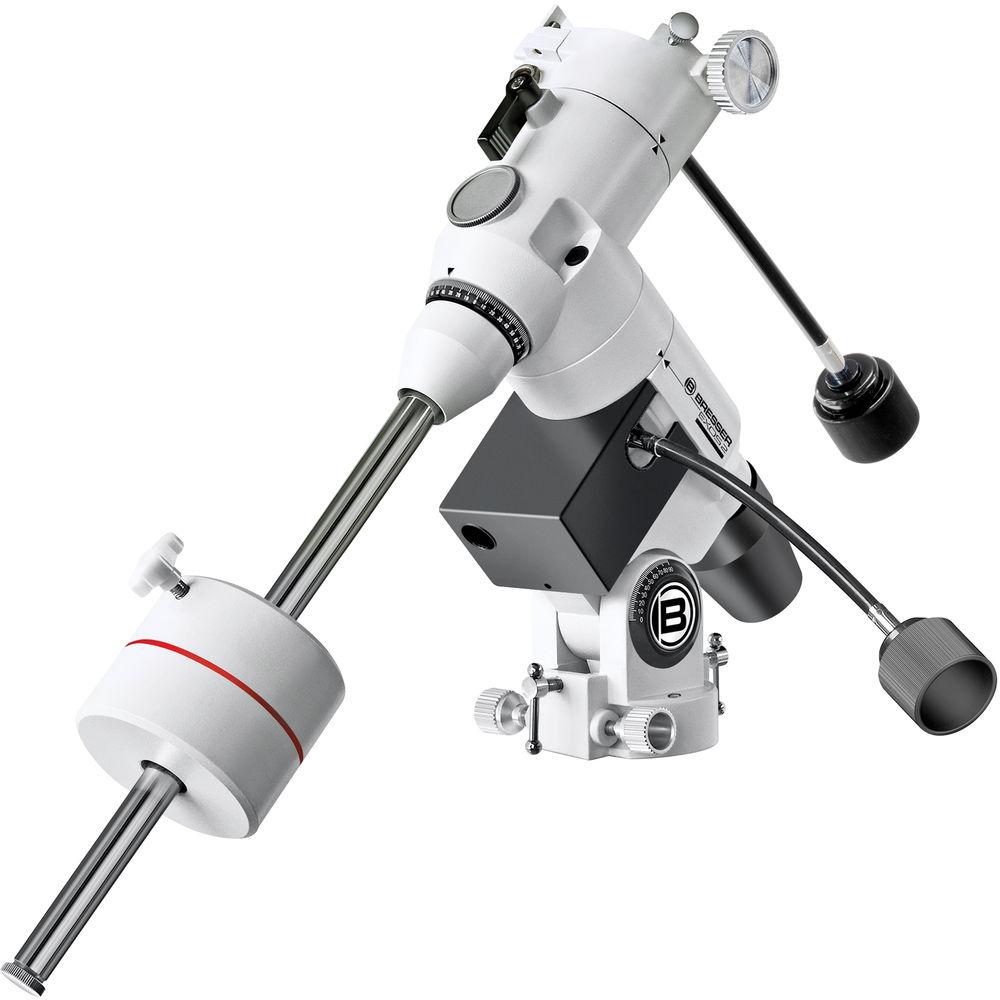

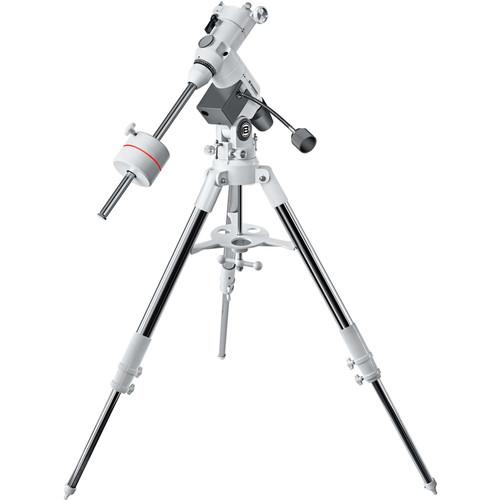

Product description Designed for refractors of up to 152mm aperture and reflectors of up to 203mm, Bresser's Exos-2 German Equatorial Mount with Tripod combines a manual equatorial (EQ) mount with a sturdy stainless steel tripod to provide users with a stable and reliable observational platform. The mount can hold optical tube assemblies (OTAs) and accessories up to 28 pounds, and it features a GP-level dovetail saddle for compatible OTAs, dual-axis slow-motion cables to more easily track objects, and an integrated bubble level to assist in setup.The tripod is built with 1.5"-diameter stainless steel legs and tight tolerances to reduce vibration for clearer viewing. A center stabilizer bar pulls the accessory tray up to lock the legs in place, adding further rigidity and vibration reduction. It is adjustable from 27 to 42.5" to accommodate a wide range of users and features large thumbscrews for tool-free adjustment in the field. An adjustable plastic tray is also included with the tripod to keep eyepieces, flashlights, and other accessories safe and at the ready. Optional accessories are available for this mount, including dual-axis motors and a GoTo kit. - Mount
-
- Cast aluminum with white powder coat
- GP-level dovetail saddle to mount compatible OTAs
- Flexible dual-axis slow-motion cables reduce vibrations while tracking objects
- Integrated bubble level on mount base

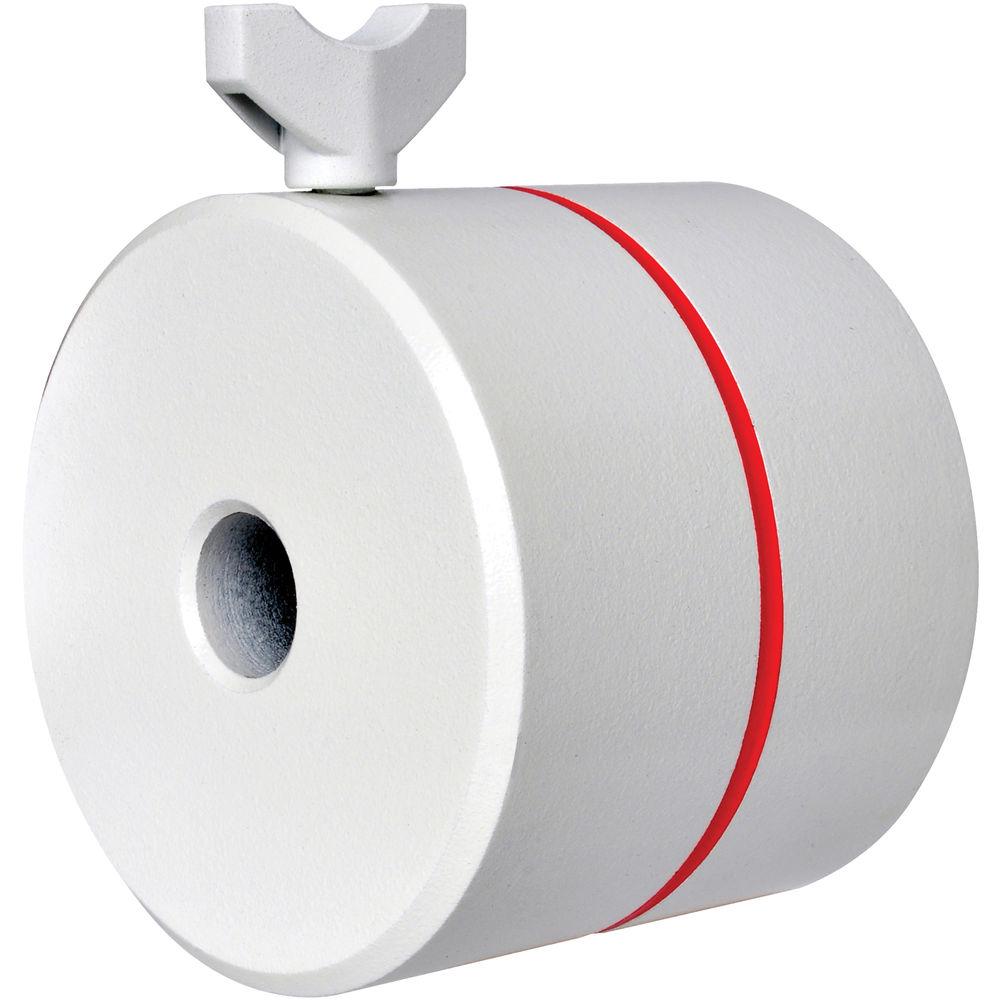

- 9.9 lb (4.5kg) counterweight with 20mm-diameter bar
- Latitude, right ascension, and declination scales
- Right ascension axis release lever allows for fast adjustment
- Tripod
-
- Three-section adjustable height
- 28 lb payload capacity
- 1.5" stainless steel legs
- 29-to-49" height range
- Center stabilizer bar locks legs in place to reduce vibrations
- Accessory tray with holes for 1.25" eyepieces
- Spiked feet for use on ground and grass for increased stability, especially on rough or uneven areas
UPC: 812257016518 In the Box BRESSER Exos-2 German Equatorial Mount with Tripod 9.9 lb Counterweight for Exos-2 vuetatcdsfycxf 20mm Counterweight Bar 2 x Slow-Motion Cables Stainless Steel Tripod with Accessory Tray Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BRESSER Exos-2 German Equatorial Mount with Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBRESSER BR-EXOS2 Specs | Mount Type | German equatorial | | Load Capacity | 28.7 lb / 13.0 kg | | Motor | None | | GoTo Capability | Optional accessory | | Altitude / Latitude Adjustment | Slow-motion cables, right ascension and declination | | Polar Axis Scope | Optional | | Includes Tripod/Pier | Steel adjustable-height tripod
1.5" / 3.8 cm diameter legs
Adjustment range: 26.8 - 42.5" / 68.1 - 108.0 cm | | Power Source | None | | Weight | Not specified by manufacturer | | | | Package Weight | 46.6 lb | | Box Dimensions (LxWxH) | 34.5 x 21.0 x 9.5" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
