User Manual for BRESSER Science ADL 601 P 40-600x Trinocular Microscope Click to enlarge the picture
Contents of the user manual for the BRESSER Science ADL 601 P 40-600x
- Product category: Microscopes BRESSER
- Brand: BRESSER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BRESSER Microscopes
 |
User manual for the BRESSER Science ADL 601 P 40-600x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BRESSER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BRESSER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BRESSER product will considerably shorten its lifespan!
|

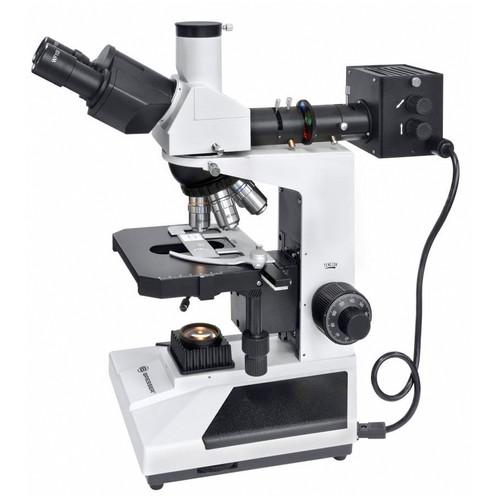

Product description Harness the advantages of contrast-enhancing polarized light microscopy using Bresser's Science ADL 601 P 40-600x Trinocular Microscope. This scientific instrument features polarized illumination from both top and bottom and allows you to contrast crystalline and anisotropic structures using reflective and transmitted techniques. To achieve this, it has powerful 20W halogen lamps with polarizers as top and bottom illuminators and an analyzer incorporated into the head of the scope. For emphasizing (or de-emphasizing) certain spectrally sensitive details of your specimen, the optical tube (for the top lamp) also incorporates a field diaphragm and a wheel with frosted glass, red, blue, and green filters. The microscope's four plan achromatic objectives (5x, 10x, 40x, and 60x) deliver crisp and clear images with high edge-to-edge sharpness, and its precision mechanical stage, with two coaxial Vernier controls, enables accurate positioning of the area of interest in a horizontal plane. Other highlights of this tool are its coarse and fine focusing with 2µm minimum increments, a focus tension adjustment ring, and a Siedentopf interpupillary adjustment. For documenting your discoveries without interrupting observation, the microscope also has a third vertical photo tube for connecting a camera. - Optical Performance
-
- Head contains a built-in polarizing analyzer
- Plan achromatic DIN objectives: 5x 10x, 40x, and 60x
- Optional 100x objective should be used with immersion oil and a cover glass
- Two WF 10x eyepieces included
- 50x, 10x, 400x, and 600x total magnification
- Coarse and fine focusing with a tension adjustment ring
- Fine focusing has 2µm accuracy
- Diopter correction on one eyepiece
- Compatible with other optional DIN objectives
- Compatible with optional compatible eyepieces
- Use and Handling
-
- For polarized light microscopy
- For crystallography, engineering, manufacturing, materials science, and life sciences
- 30° inclined binocular viewing with a Siedentopf interpupillary adjustment of 53-75mm
- Third optical tube for attaching cameras
- Reflected Halogen Illumination Module
-
- 20W top halogen lamp
- Optical tube houses a condenser, a filter wheel, and a field diaphragm
- Filter wheel: frosted glass, green, blue, and red filters
- Adjustable brightness
- Transmitted Halogen Bottom Illumination
-
- 20W bottom halogen lamp
- Condenser, polarizer, aperture diaphragm, and filter holder
- Adjustable brightness
- Precision Mechanical Stage
-
- Precision mechanical stage
- Coaxial Vernier motion controls
- Range of horizontal motion: 3.0 x 2.0"
- Bracket for holding slides
- Two metric printed measurement scales
- Construction Details
-
- Durable metal and plastic frame
- Head and viewing module are resistant to growth of fungi
- Wide stable base with rubber feet
- Knurled adjustment rings and levers
- Knob for focus tension adjustments

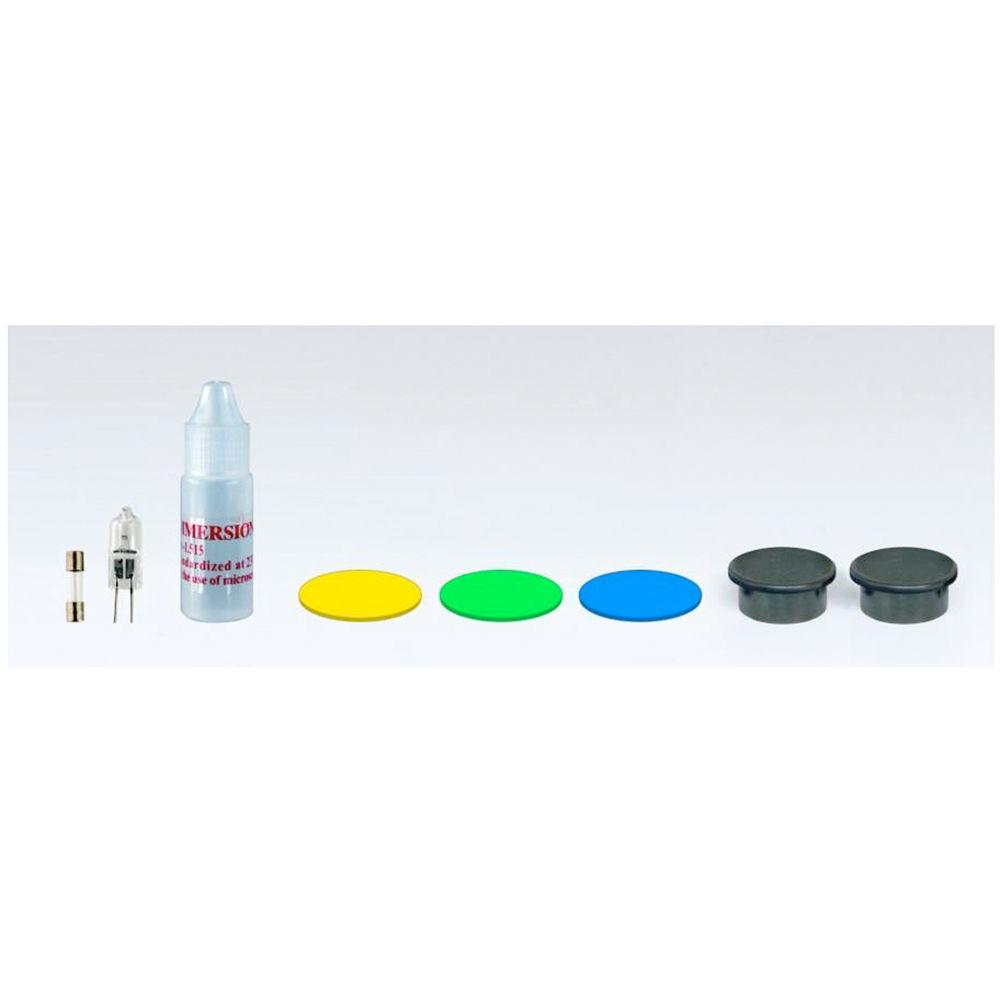

In the Box BRESSER Science ADL 601 P 40-600x Trinocular Microscope (110V, White) - 5x Plan Objective
- 10x Plan Objective
- 40x Plan Objective
- 60x Objective
- 2 x WF 10x Eyepieces
- Reflected Illumination Module
- Photo Tube Cap
- Wall Plug for USA (110V)
- Limited 2-Year Warranty without Registration
- Limited 10-Year Warranty with Registration
Table of Contents
|
Upload User Manual
Have you got an user manual for the BRESSER Science ADL 601 P 40-600x Trinocular Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBRESSER Science ADL 601 P Specs | Microscope Type | Compound | | Head | Inclined Trinocular | | Nosepiece | 4-Position Nosepiece | | | | Optical Magnification | 50x, 100x, 400x, 600x | | Objective | 5x, 10x, 40x, 60x | | Eyepiece | 10x Wide Field | | Eyepiece Tube Diameter | 0.9" / 23.2 mm | | Focusing | Coarse, Fine | | | | Illumination Type | 2 x Halogen (20 W) | | Condenser | 1.25 Numerical Aperture (NA) Abbe | | | | Power | 110 VAC, 60 Hz | | Interpupillary Adjustment | 55 to 75 mm / 2.1 to 3" | | Dimensions | L: 16.6 x W: 8.0 x H: 16.9" / L: 42.2 x W: 20.5 x H: 43.0 cm | | Weight | 18.7 lb / 8.5 kg |
