User Manual for BRESSER Science ETD-201 8-50x Trino Stereo Microscope Click to enlarge the picture
Contents of the user manual for the BRESSER Science ETD-201 8-50x Trino Stereo
- Product category: Microscopes BRESSER
- Brand: BRESSER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BRESSER Microscopes
|
User manual for the BRESSER Science ETD-201 8-50x Trino Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BRESSER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BRESSER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BRESSER product will considerably shorten its lifespan!
|

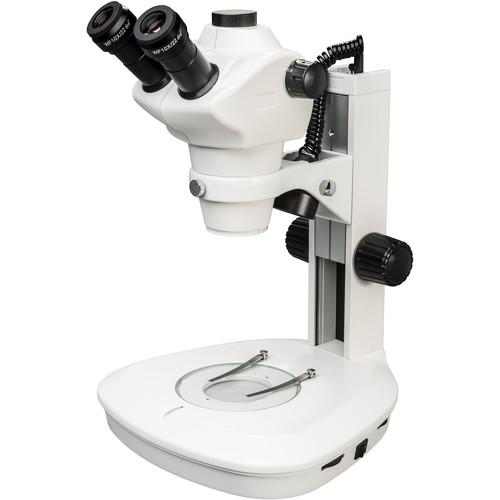

Product description Bresser's Science ETD-201 8-50x Trino Stereo Microscope is a trinocular microscope with inclined stereo viewing and a third optical path for attaching C-mount cameras. It is designed to be a versatile multi-disciplinary professional tool that can be useful in academia, agriculture, industry, and forensics. Its optical system offers adjustable 8-50x magnification, top/bottom adjustable LED illumination, 4.1" working distance, and coarse focusing. The aluminum frame with a wide base ensures stability on your workbench or desk, while the tall back allows you to change the working distance for viewing larger samples. To deliver bright images to your eyes, this tool is equipped with incidental and transmitted dimmable LED illuminators, powered by a USB power adapter. Additionally, to emphasize or reemphasize certain features of your slides and to enable the transmitted illumination, the scope comes with two base plates: a glass and a black/white polymer plate. - Optical Performance
-
- Trinocular configuration
- Stereo viewing
- Dedicated tube for optional C-mount cameras or microcam
- Head rotates 360°
- 0.8-5x objective
- 10x WF eyepieces are inclined 45°
- 8-50x total magnification
- Individual diopter corrections
- 55-75mm interpupillary range
- Coarse focusing
- Illumination
-
- Independently dimmable top and bottom LED illuminators
- Top LED illuminator has adjustable angle of incidence
- Powered via a USB port
- USB power adapter included
- Base
-
- 5"-diameter round stage
- Two metal slide clips
- Working distance up to 4.1"
- One glass and one black/white plate included
- Takes samples up to 4" high
- Construction Details
-
- Aluminum frame
- Wide stable base
- Lockable head bracket
- Removable head
- Top LED illuminator has adjustable angle of incidence
- Knurled focusing and height knobs
In the Box BRESSER Science ETD-201 8-50x Trino Stereo Microscope (110V, White) - 2 x 10x WF Eyepieces
- 110V Wall Adapter
- USB Power Cable
- Black/White Plastic Plate
- Glass Plate
- Dust Cover
- Limited 10-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the BRESSER Science ETD-201 8-50x Trino Stereo Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBRESSER Science ETD-201 Specs | Microscope Type | Stereo | | Head | Inclined Trinocular | | Diopter Correction | Yes | | | | Optical Magnification | 8x to 50x | | Objective | 0.8x to 5x | | Eyepiece | 10x Wide Field | | Focusing | Coarse | | Working Distance | 4.1" / 10.5 cm | | | | Illumination Type | LED | | Dimmer | Yes | | | | Power | USB Power | | Interpupillary Adjustment | 55 to 75 mm / 2.1 to 3" | | Dimensions | L: 11.8 x W: 11.6 x H: 14.9" / L: 30.0 x W: 29.5 x H: 38.0 cm (Microscope)
