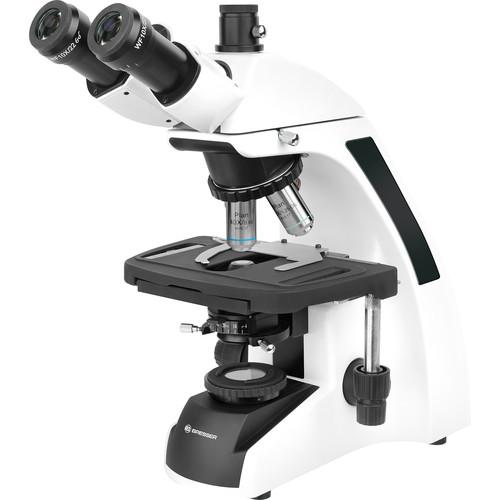

User Manual for BRESSER Science Infinity Microscope Click to enlarge the picture
Contents of the user manual for the BRESSER Science Infinity Microscope
- Product category: Microscopes BRESSER
- Brand: BRESSER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BRESSER Microscopes
 |
User manual for the BRESSER Science Infinity Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BRESSER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BRESSER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BRESSER product will considerably shorten its lifespan!
|
Product description Advance your research, career goals, or hobby pursuits using the Bresser Science Infinity Microscope. This trinocular microscope with an inclined rotating head offers users a comprehensive set of features that are more than enough for most scientific and lab activities. The Siedentopf-type head allows each user to obtain a comfortable interpupillary distance quickly and easily by twisting oculars up or down and does not require refocusing the microscope. Outfitted with semi-plan objectives and high-quality oculars, the scope generates images with low color distortion and high sharpness in 80% of the viewable field. Furthermore, the color-coded objectives comply with the DIN standard so they can be interchanged with other such objectives to give you extra options. The infinity-corrected optical design will provide you with sharp, clear, and high-resolution images at different magnifications and allow you to place filters, polarizers, beam splitters, and other optical elements into the beam path without introducing much distortion or defocusing. For easy capturing of images and videos of your discoveries without disrupting your viewing, the scope has a third optical tube for attaching a C-mount camera.
Many advanced modern microscopes provide users with precision motion stages for accurately positioning samples under the objective, and this Science Infinity is no exception. You can place your slides on a rectangular stage and use a metal bracket to secure them. To move your slides under the objective, it offers a coaxial precision rack-and-pinion Vernier motion control on the right side that can be operated with one hand. The stage also has two rulers, one for each axis, to enable you to note positions and make measurements.
For continual precision and durability during the lifetime of this scientific tool, it is outfitted with a durable aluminum frame. The frame features a gray finish and rubberized and polymer parts and coverings for better tactile contact and comfort. It also has knurled knobs and adjustment rings for a secure grip. To ensure stability on your workbench or lab table, it has rubberized feet. - Optical Performance
-
- Trinocular rotating head
- Infinity-corrected optics ensure high resolution and allow use of filters and beam splitters
- DIN 4x, 10x, 40x, and 100x semi-plan achromatic objectives
- 100x objective needs to be used with immersion oil to prevent crashing into slides
- Two 10x WF eyepieces
- Fine and coarse focusing
- Diopter correction
- Siedentopf interpupillary adjustment
- Interpupillary range from 55mm to 75mm
- Third optical tube is compatible with C-mount cameras
- 22mm eye relief
- Kohler Illumination
-
- Transmitted illumination type
- 3.0W LED bottom lamp
- Integrated luminous field diaphragm
- 1.25 NA Abbe condenser with an iris diaphragm
- Adjustable brightness via a rheostat
- Mechanical Stage
-
- Two-axis coaxial motion control
- Metal position rulers, one for each axis
- Construction Details
-
- Durable aluminum frame
- Polymer coverings for tactile contact
- Arched back can be used as a handle
- Rubberized feet for stability on tables
In the Box BRESSER Science Infinity Microscope - 4x Objective
- 10x Objective
- 40x Objective
- 100x Objective
- Dust Cover
- Mains Adapter
- Immersion Oil
- USB Power Cable
- Limited 10-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the BRESSER Science Infinity Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBRESSER Science Infinity Specs | Microscope Type | Compound | | Head | Inclined Trinocular | | Diopter Correction | Yes | | Nosepiece | 4-Position Nosepiece | | | | Optical Magnification | 40x, 100x, 400x, 1000x | | Objective | 4x, 10x, 40x, 100x | | Eyepiece | 10x Wide Field | | Eyepiece Tube Diameter | 1.2" / 30 mm | | Focusing | Coarse, Fine | | | | Illumination Type | LED (3 W) | | Condenser | 1.25 Numerical Aperture (NA) Abbe | | Dimmer | Yes | | | | Interpupillary Adjustment | 55 to 75 mm / 2.1 to 3" | | Dimensions | L: 15.4 x W: 8.1 x H: 15.6" / L: 39.0 x W: 20.5 x H: 39.5 cm | | Weight | 15.3 lb / 6.9 kg |
