User Manual for BRESSER Science IVM 401 Microscope Click to enlarge the picture
Contents of the user manual for the BRESSER Science IVM 401 Microscope
- Product category: Microscopes BRESSER
- Brand: BRESSER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BRESSER Microscopes
 |
User manual for the BRESSER Science IVM 401 Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BRESSER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BRESSER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BRESSER product will considerably shorten its lifespan!
|

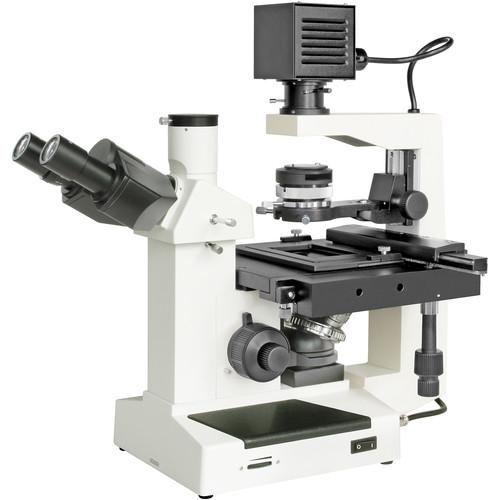

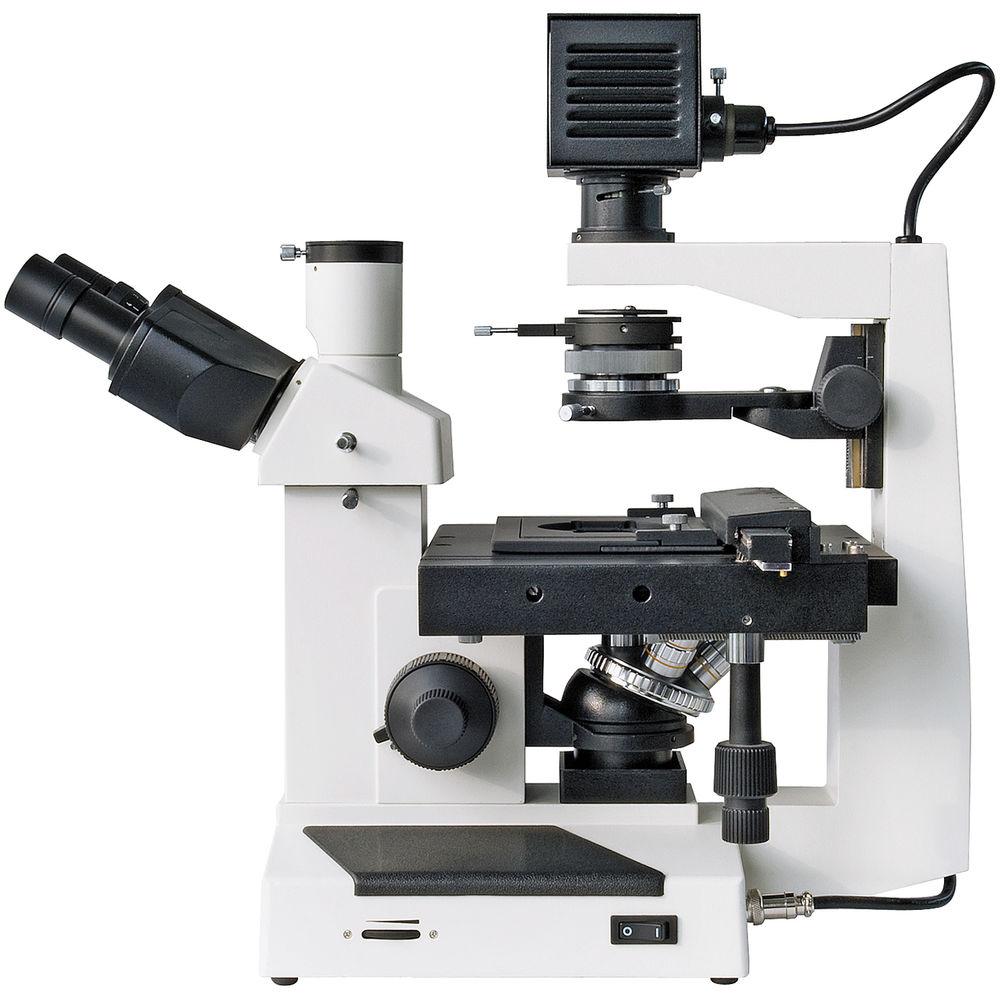

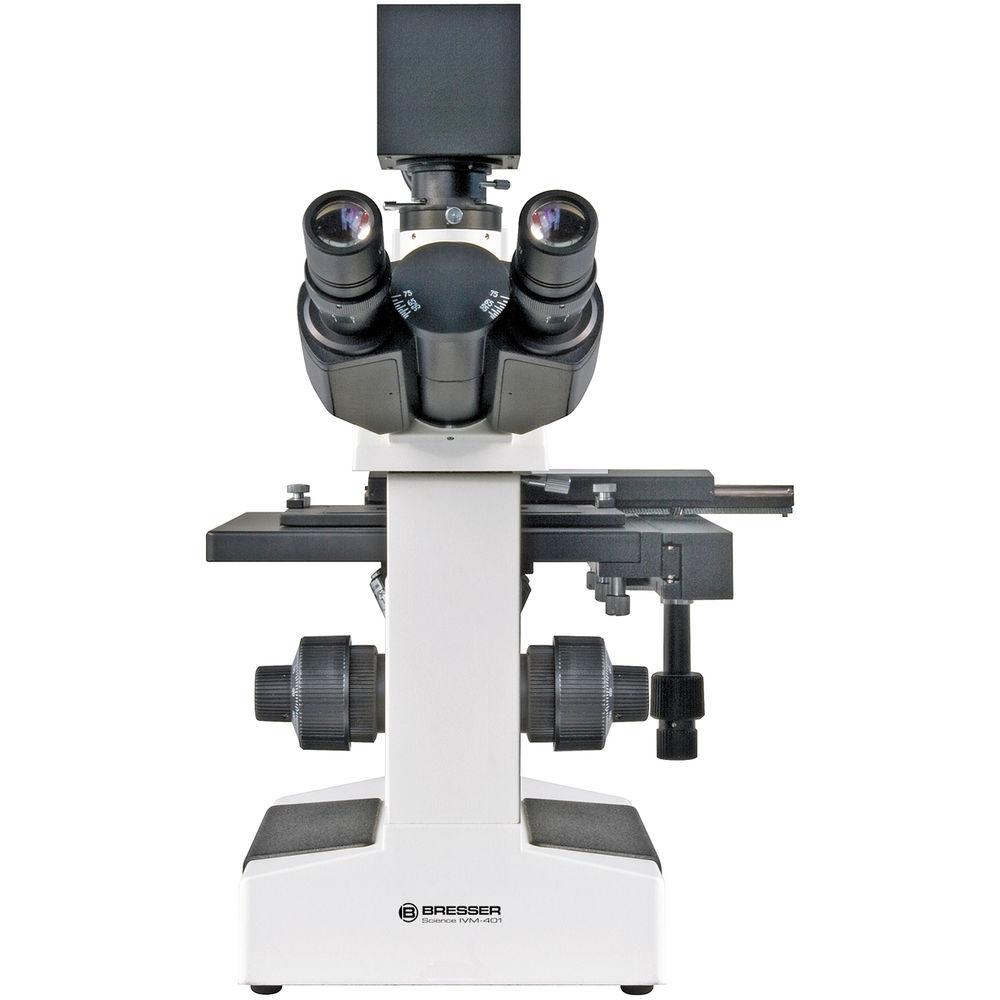

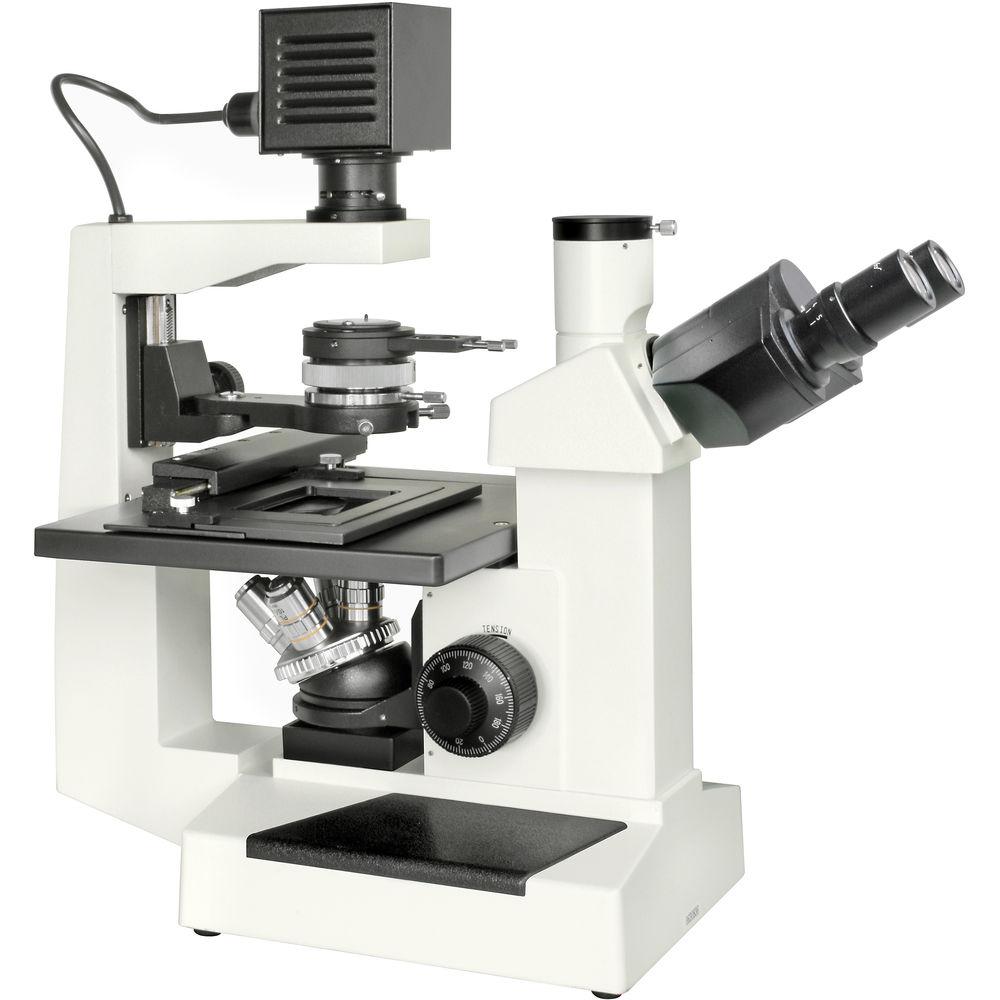

Product description Employ the power of phase contrast microscopy using Bresser's Science IVM 401 Microscope. This fine and highly specialized instrument incorporates a phase contrast unit to allow you to reveal fine structure and detail of live transparent samples that are difficult to capture via conventional methods. Its inverted illumination configuration and long working distances of the objectives permit placing entire petri dishes into the tray of the precision stage for making observations. For phase contrast studies, this scope has a DIN 25x phase contrast (plan achromatic) objective and can be used with other optional phase contrast objectives of different powers. Also included are three plan achromatic objectives: 10x, 40x, and 25x. To ensure good visibility and image brightness, its illuminator features a 30W halogen lamp with adjustable brightness, a 1.25 NA Abbe condenser, an iris diaphragm, and a filter holder.Another important aspect is a wide precision mechanical stage that can accommodate 2.6" (65mm) petri dishes and has a 4.4 x 3.1" range of motion in the horizontal plane. The focusing system highlights coarse and fine controls with 2µm minimum increments, a tension ring, and a stop knob. In order to take photos or videos of your discoveries, you will need to connect a camera to a third optical tube and switch from a viewing mode to a photo mode. - Optical Design
-
- For phase contrast microscopy of live and transparent samples
- Integrated phase contrast unit
- DIN, plan achromatic 10x, 25x, and 40x objectives
- DIN, phase contrast (plan achromatic) 25x objective

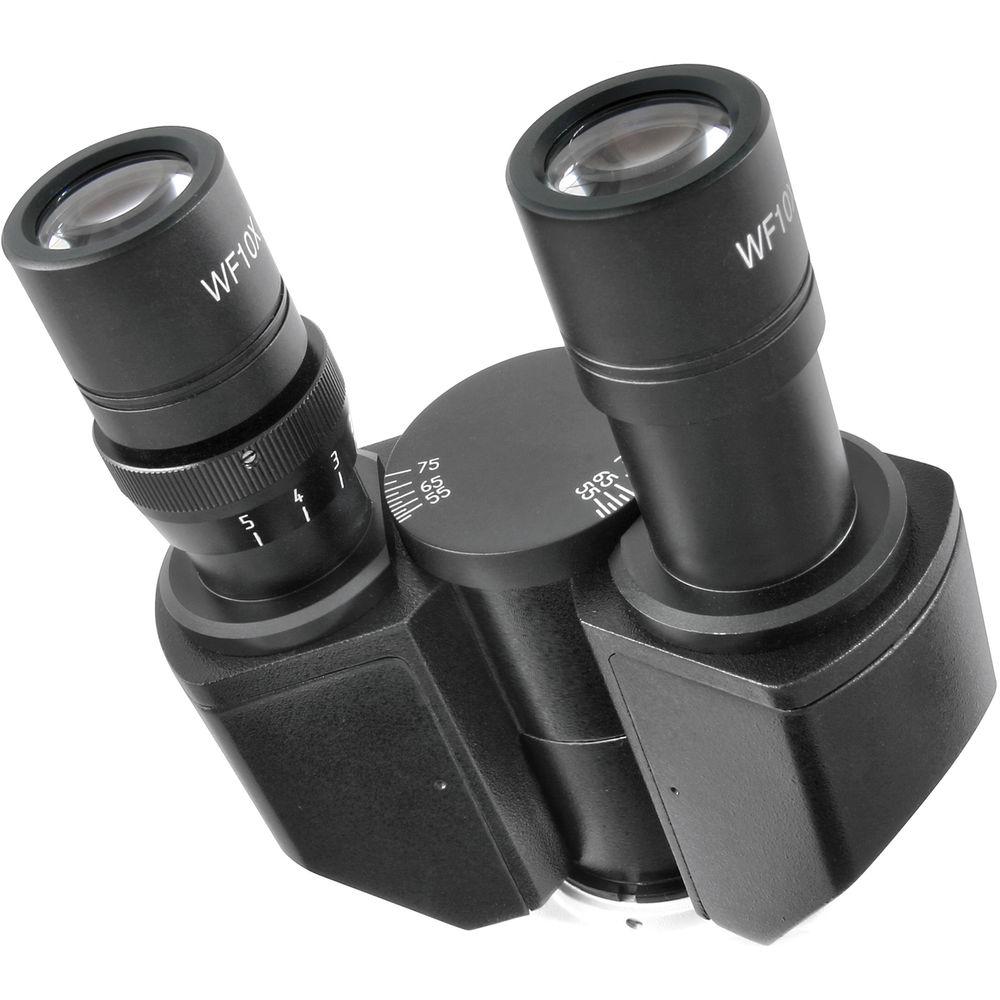

- Two widefield 10x eyepieces with 23.5mm tube diameters
- Objectives have long working distances
- Inverted Transmitted Illumination
-
- 30W halogen lamp
- Adjustable brightness
- 1.25 NA Abbe condenser
- Iris diaphragm
- Filter holder
- Use and Handling
-
- 30° inclined viewing
- Head offers some rotation
- Siedentopf interpupillary adjustment: 52.5-75mm
- Coarse and fine focusing
- Focus tension ring and stop knob
- Selectable viewing or photo modes
- Diopter adjustment

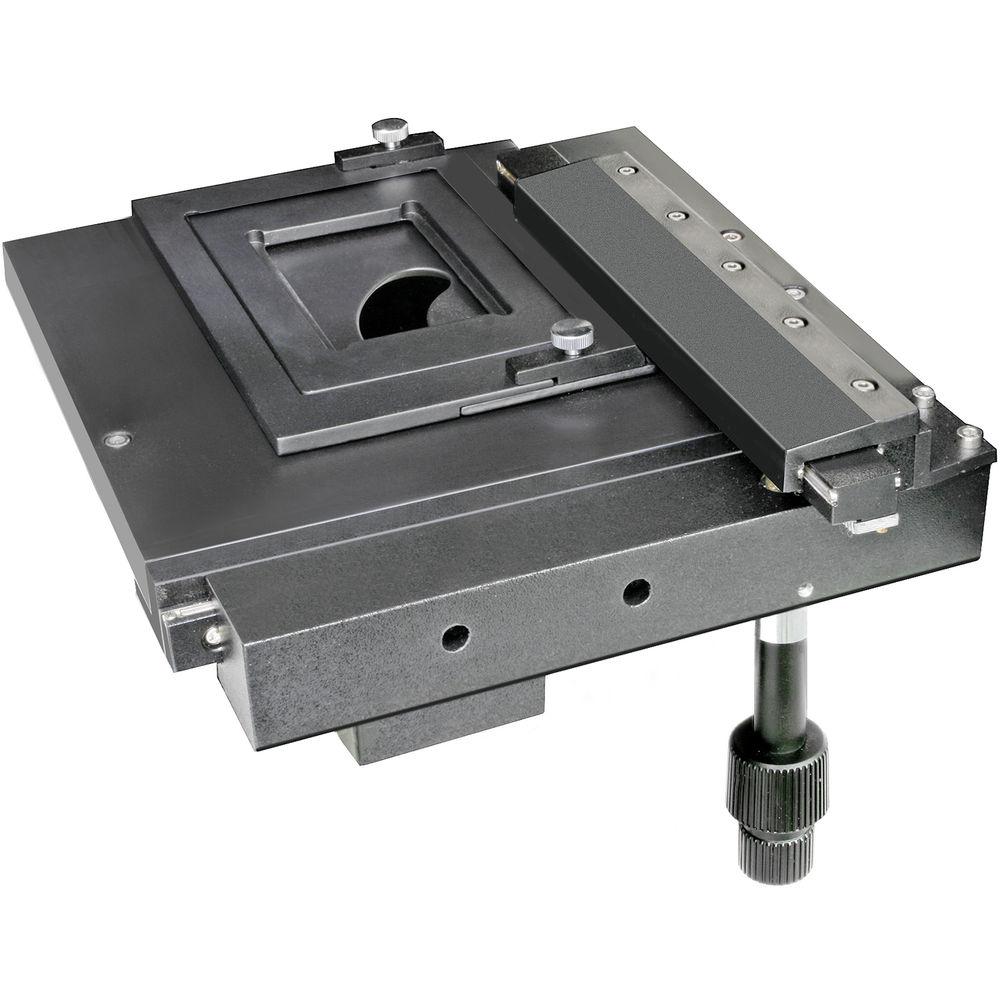

- Stage
-
- Wide stage with a moving tray for 2.56" (65mm) petri dishes
- Two-axis coaxial Vernier motion control
- 4.4 x 3.1" motion range
- Two culture trays included
- Construction Details
-
- Durable metal and plastic frame
- Wide stable base with rubber feet
- Ball-bearing nosepiece
- Knurled adjustment rings and levers
In the Box BRESSER Science IVM 401 Microscope (White) - 10x Plan Objective
- 25x Plan Objective
- 40x Plan Objective
- 25x Plan Phase Objective
- Abbe Condenser
- 2 x 10x WF Eyepieces
- Immersion Oil
- Dust Cover
- Power Cable
- Limited 10-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the BRESSER Science IVM 401 Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBRESSER Science IVM 401 Specs | Microscope Type | Compound | | Head | 30
