User Manual for BRESSER Science MPO 401 Trinocular Microscope Click to enlarge the picture
Contents of the user manual for the BRESSER Science MPO 401 Trinocular Microscope
- Product category: Microscopes BRESSER
- Brand: BRESSER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BRESSER Microscopes
 |
User manual for the BRESSER Science MPO 401 Trinocular Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BRESSER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BRESSER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BRESSER product will considerably shorten its lifespan!
|

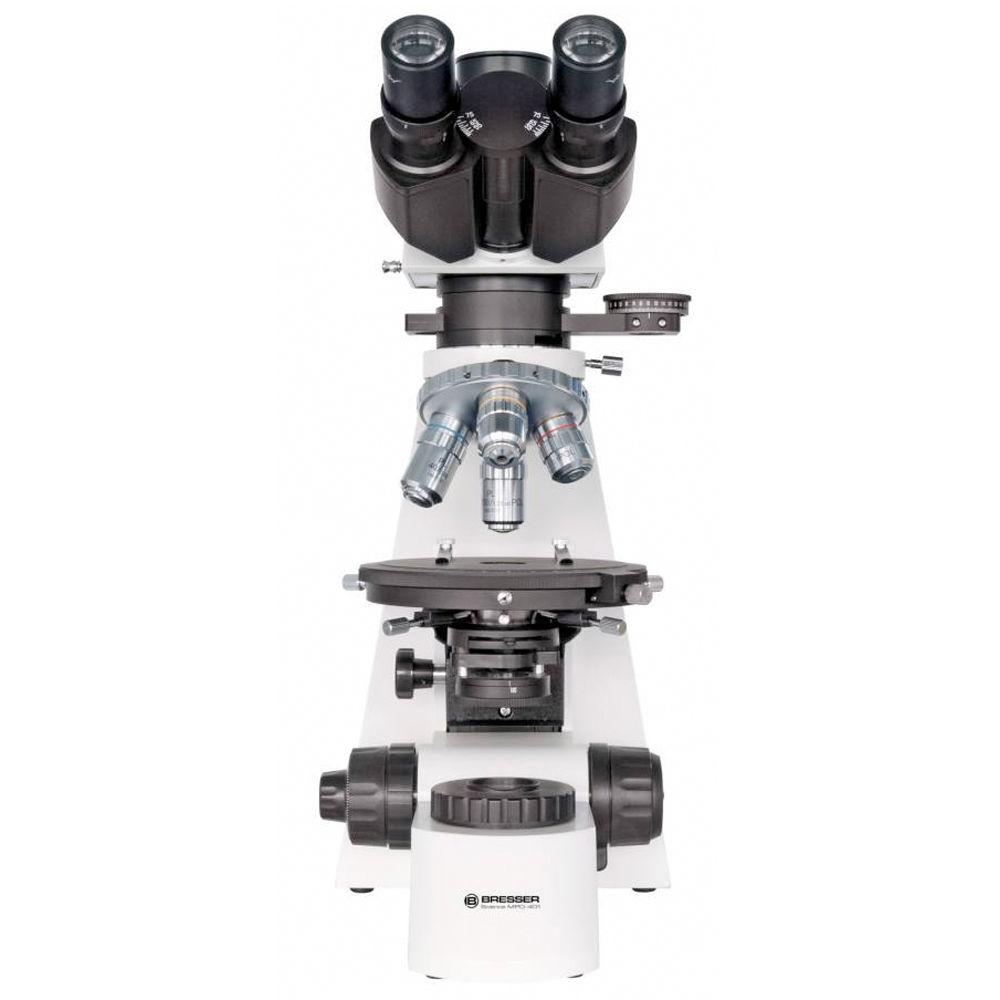

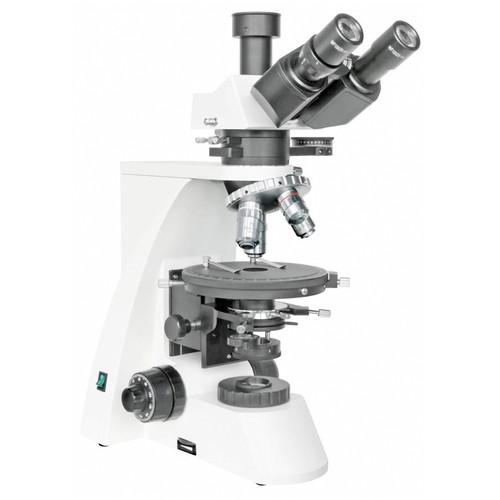

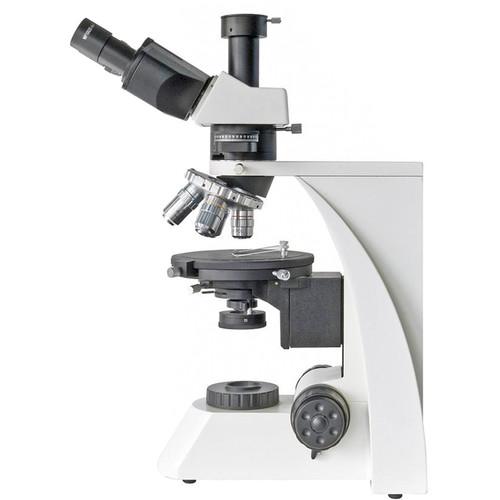

Product description Harness the power of contrast-enhancing polarization microscopy and conoscopy using the Bresser Science MPO 401 Microscope. This fine instrument incorporates polarization and conoscopy techniques to generate brilliant images of crystalline and anisotropic structures. To achieve this, the optical configuration gives you a set of four polarization-optimized (low-strain) plan achromatic DIN objectives, a bottom (transmitted) 20W halogen Kohler illumination, a polarizer/analyzer assembly (for polarization studies), an in-and-out Bertrand lens (for conoscopy), and a 360° rotating stage.An integral part of the illumination system are an Abbe condenser with an in-and-out auxiliary lens, an iris diaphragm, a polarizer, and a filter holder. The entire condenser assembly has a height adjustment, while the auxiliary condenser lens can be centered to regain alignment by way of external screws. To meet the requirements of polarization microscopy, the round metal stage rotates 360° and has a degree scale along the circumference that permits accurate positioning and achieving a proper orientation of a sample. It can be raised or lowered with the height-adjustment knob and centered via centering screws to ensure an on-axis rotation of your sample. For implementation of polarized light microscopy, the head contains a swinging in-and-out analyzer with graduations, and for conoscopy, it has a removable Bertrand lens and a slot for phase components like phase retarders, wave plates, and wedges.Other highlights of this tool are its coarse and fine focusing with 2µm minimum increments, a tension ring, and a stop knob. In order to take photos or videos of your discoveries, you will need to connect a camera to a third optical tube and switch from a viewing mode to a photo mode. Should you decide to upgrade this microscope to conduct phase contrast studies as well, it can be achieved with the optional Bresser Phase Contrast Set 5942750. - Optical Design
-
- For polarization microscopy and conoscopy
- Convertible to a phase contrast microscope with the optional Bresser Phase Contrast Set 5942750
- Polarizer and analyzer for polarization studies

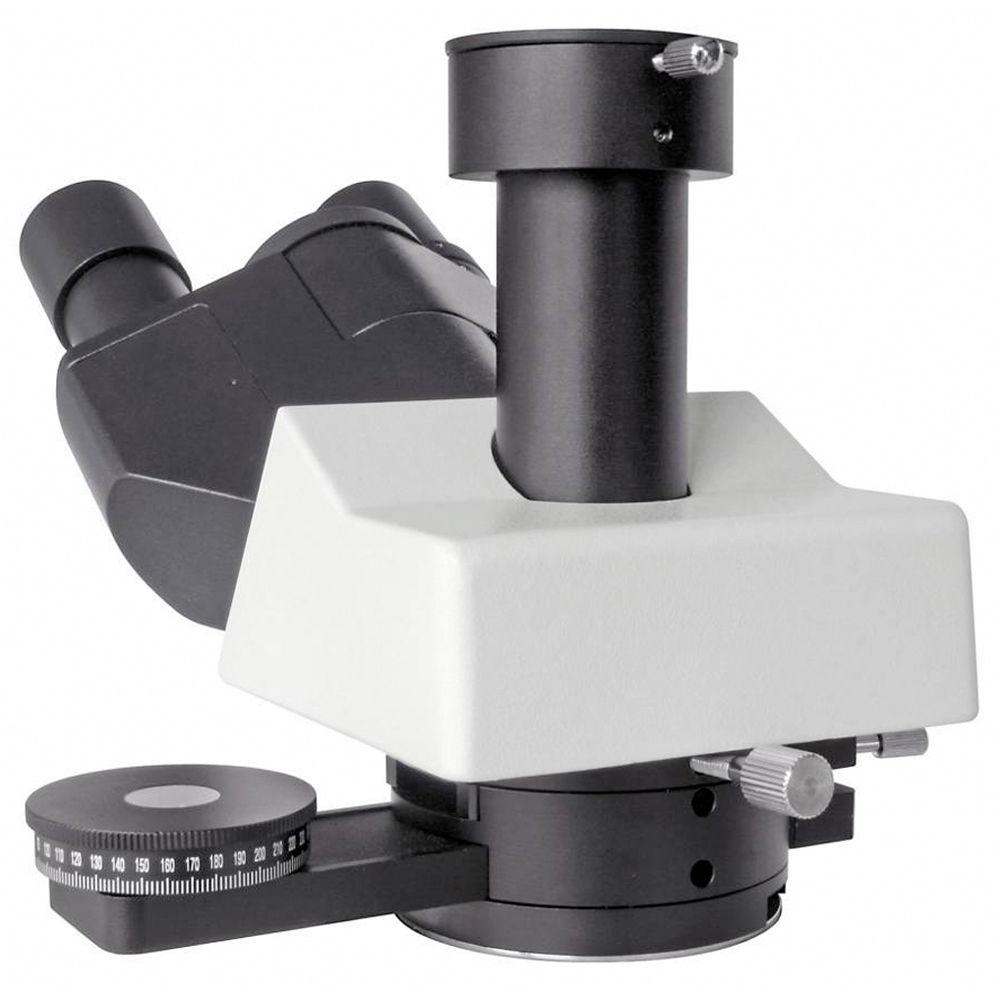

- Center-adjustable in-and-out Bertrand lens for conoscopy
- DIN, plan achromatic 4x, 10x, 40x, and 100x objectives are optimized for polarization microscopy (low strain)
- 40x and 100x objectives are retractable
- 100x objective requires immersion oil
- Two widefield 10x eyepieces with 23.5mm tube diameters
- Phase shifter for generating phase difference
- Transmitted Kohler Illumination
-
- 20W halogen lamp with adjustable brightness
- 360° rotating polarizer for polarization microscopy
- Height- and center-adjustable Abbe condenser
- Auxiliary condenser lens can swing in and out
- Iris diaphragm with variable aperture
- Bottom filter holder
- Use and Handling
-

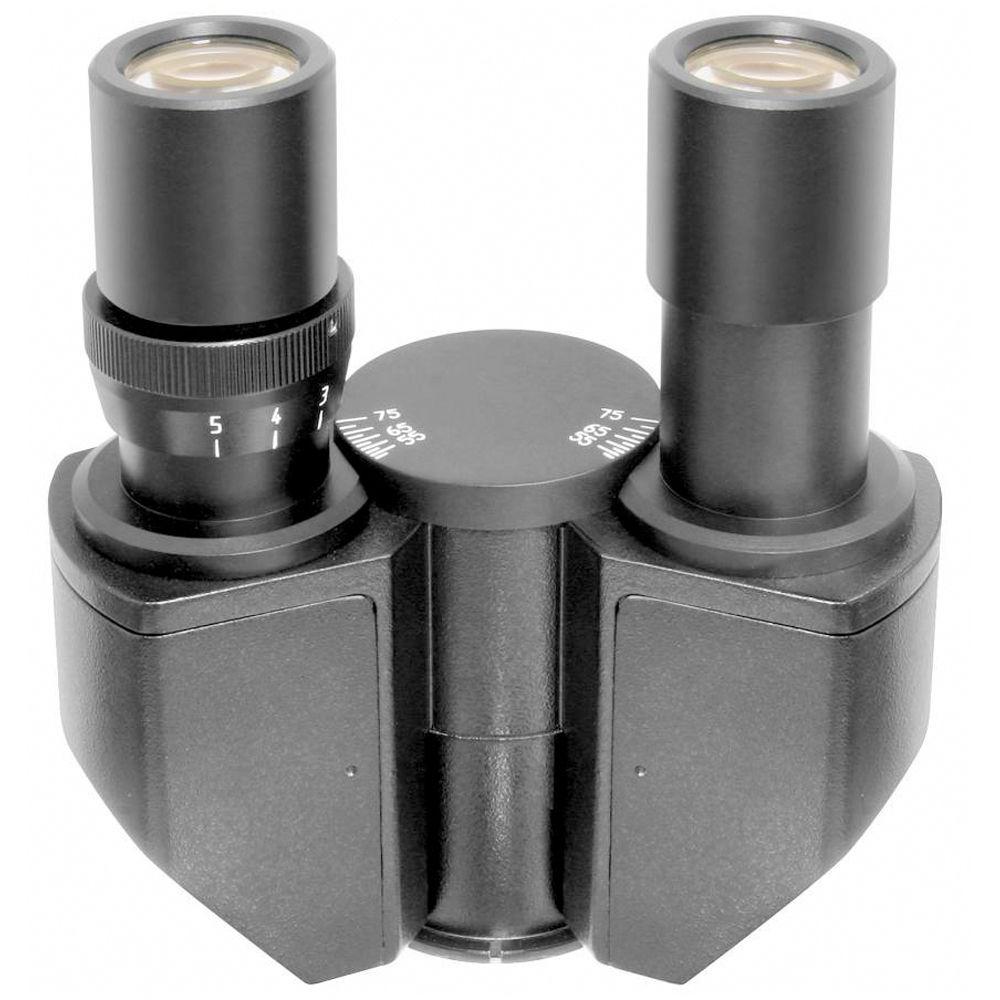

- 30° inclined viewing
- Head rotates 360°
- Siedentopf interpupillary adjustment: 52.5-75mm
- Coarse and fine focusing
- Focus tension ring and stop knob
- Selectable viewing or photo modes
- Diopter adjustment

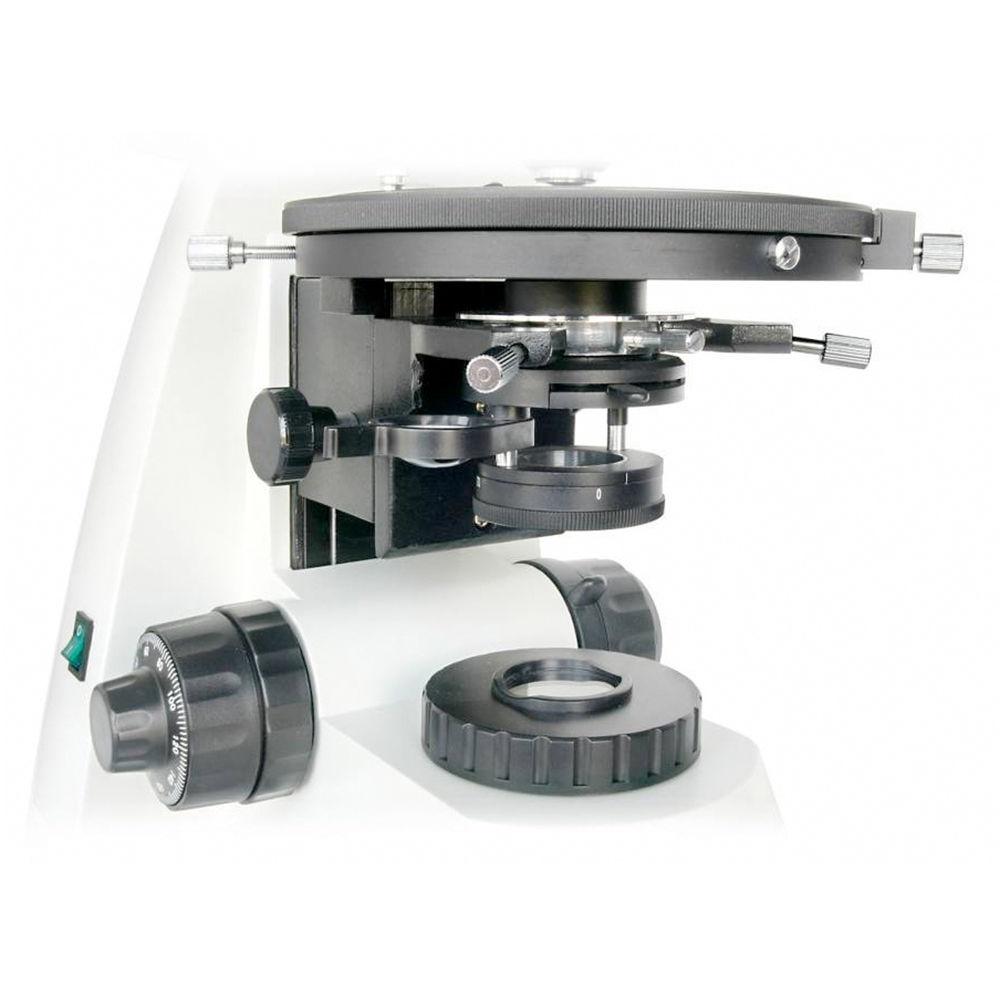

- Round Rotating Stage
-
- Center adjustable
- 360° rotation
- Degree ruler along perimeter
- Two metal slide clips
- Construction Details
-
- Durable metal and plastic frame
- Wide stable base with rubber feet
- Ball-bearing nosepiece
- Knurled adjustment rings and levers
In the Box BRESSER Science MPO 401 Trinocular Microscope (110V, White) - 4x Objective
- 10x Objective
- 40x Objective
- 100x Objective
- 2 x 10x WF Eyepieces
- Polarizer
- Analyzer
- Power Cable (for USA)
- Bertrand Lens
- Phase Shifter
- Blue Filter
- Diffusing Filter
- Immersion Oil
- Dust Cover
- Limited 10-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the BRESSER Science MPO 401 Trinocular Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBRESSER Science MPO 401 Specs | Microscope Type | Compound | | Head | 30
