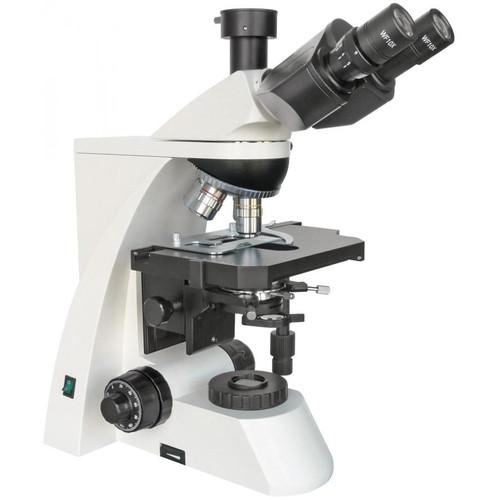

User Manual for BRESSER Science TRM-301 Microscope Click to enlarge the picture
Contents of the user manual for the BRESSER Science TRM-301 Microscope
- Product category: Microscopes BRESSER
- Brand: BRESSER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BRESSER Microscopes
|
User manual for the BRESSER Science TRM-301 Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BRESSER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BRESSER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BRESSER product will considerably shorten its lifespan!
|
Product description Created with high-end components for demanding users, the Science TRM-301 Microscope from Bresser offers excellent optics and precise tactile control as well as a trinocular design that allows for users to view their subjects optically while simultaneously using a camera or computer-connected eyepiece. For maximum clarity, the microscope features four DIN planachromatic objectives, including 4x, 10x, 40x, and 100x, that combine with 10x wide field eyepieces to provide magnifications of 40x, 100x, 400x, and 1000x. Additionally, the 100x objective is designed for oil immersion for maximum resolution.
Operation is precise with both fine and coarse focusing as well as a diopter that can adjust the eyepiece to your eye. Also, it is designed for transmissive illumination with a Kohler illuminator equipped with a halogen lamp and dimmer. It has a 1.25 NA Abbe condenser with iris as well to help control the light. Finally, a mechanical stage is available with the ability to adjust slide position as needed. And, it has a durable aluminum construction. - Optical System
-
- Two 10x wide field eyepieces with 30° incline
- 4x, 10x, 40x, and 100x DIN planachromatic objectives
- 100x objective requires immersion oil for maximum resolution
- Dual eyepieces preserve stereoscopic vision which renders images in three dimensions
- Trinocular design allows for binocular viewing while simultaneously using a camera or computer-connected eyepiece
- Four-position click-stop turret
- 40x, 100x, 400x, and 1000x magnification with 10x eyepieces
- Lighting
-
- Kohler illuminator
- Halogen lamp with dimmer
- Standard 1.25 NA Abbe condenser
- Manual mechanical iris adjustment
- Transparent and blue filters
- Focusing
-
- Coaxial coarse and fine focus knobs
- Left and right focus knobs for left and right-handed use
- Interpupillary adjustment range of 2.1-3.0" to accommodate a wide range of users
- Stage
-
- Mechanical stage with XY cross movement
- Nonius scale
- Precise adjustments
UPC: 812257017805 In the Box BRESSER Science TRM-301 Microscope - 2 x 10x Wide-Field Eyepieces
- 4 x DIN Objectives (4x, 10x, 40x, 100x)
- Spare Halogen Lamp (20W/6V)
- Spare Fuse (250V, 0.5A)
- Dust Cover
- Power Cord
- Limited 10-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the BRESSER Science TRM-301 Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBRESSER TRM-301 Specs | Microscope Type | Stereo | | Head | Inclined Trinocular | | | | Optical Magnification | 40x, 100x, 400x, 1000x | | Objective | 4x, 10x, 40x, 100x | | Eyepiece | 10x Wide Field | | Focusing | Coarse, Fine | | | | Illumination Type | Halogen (6 V, 20 W) | | Dimmer | Yes | | | | Power | 110 VAC, 60 Hz | | Dimensions | L: 14.2 x W: 8.3 x H: 16.9" / L: 36.0 x W: 21.0 x H: 43.0 cm | | Weight | 19.4 lb / 8.8 kg | | | | Package Weight | 22.325 lb | | Box Dimensions (LxWxH) | 19.1 x 13.3 x 10.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
