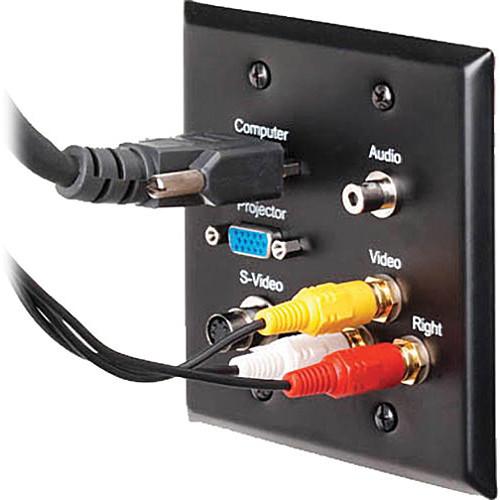

Product description The Dual Gang Data Pass Through Plate (Black) from Bretford makes it easy to plug in a laptop, DVD player, or other device. The plate fits in a standard dual-gang plate cutout and features VGA, Audio, RCA, and VHS ports. The plate is designed so that cables can be attached on both ends, no wiring is required. - Allows for easy access to projectors, DVD players, and other electronics by providing a single plate to plug into with a laptop. No more digging around behind components to find plugs
- Pass through jacks use standard cables to plug into both sides of the plate so no wiring is required
- Includes two VGA/HD-15 plugs for a projector or document camera, 3.5mm stereo jack, S Video, and three RCA adapters, yellow video and red/white audio
- Mounts to a standard dual-gang plate cut out using screws and hex nuts
- Durable stainless steel plate finished in black
- All materials are RoHS compliant and the TCDPT is certified to GREENGUARD Children & Schools Indoor Air Quality standards
UPC: 096633317493 Table of Contents
|
Upload User Manual
Have you got an user manual for the Bretford Dual Gang Data Pass Through Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBretford TCDPT Specs | Connections | 2 VGA F/F
1 3.5 mm stereo F/F
1 S-VHS
1 RCA F/F (Yellow/White/Red) | | Color | Black powder paint with white silkscreen print | | Dimensions (WxDxH) | Overall: 4.53 x 1.48 x 4.53" (11.51 x 3.76 x 11.51 cm)
Cover Plate: 4.53 x 0.03 x 4.53" (11.51 x 0.08 x 11.51 cm)
Between Mounting Holes: 16.75" (42.55 cm) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 13.2 x 5.7 x 2.6" |
