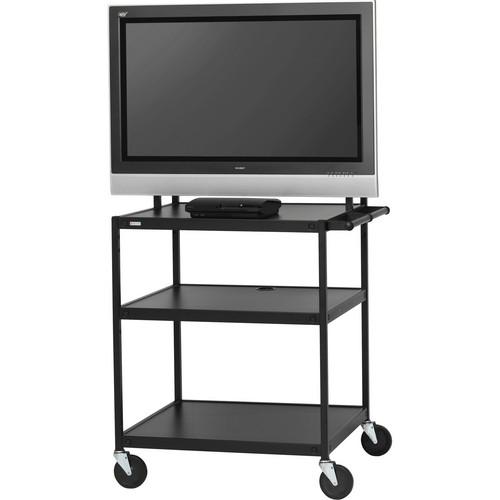

User Manual for Bretford FP42UL-E5BK Flat Panel Cabinet Cart Click to enlarge the picture
Contents of the user manual for the Bretford FP42UL-E5BK Flat Panel Cabinet Cart
- Product category: Flat Panel Carts Bretford
- Brand: Bretford
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bretford Flat Panel Carts
|
User manual for the Bretford FP42UL-E5BK Flat Panel Cabinet Cart contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bretford product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bretford user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bretford product will considerably shorten its lifespan!
|
Product description The Bretford FP42UL-E5BK Flat Panel Cabinet Cart is stability- and load-tested to hold flat panel monitors weighing up to 75 lb (34 kg), and is designed for 26 to 42” (66.04 to 106.68 cm) flat panels. It comes with 6 grounded outlets with surge/overload protection, a 3-wire power cord (20’ / 6.1 m), a cord winder, and an on/off switch.
Speculation about which monitors you could use is negated thanks to the cart’s adjustable, universal mounting bracket that fits VESA mounting hole patterns up to 700 mm wide by 400 mm tall. Mar resistant 5” (12.7 cm) black rubber swivel casters and a top shelf handle make transporting the cart from room to room or across campus effortless.
Additionally, the cabinet features shelves that can be used to place extra equipment like projectors or DVD players. Each shelf is 32” (81.28 cm) wide and 27" (68.58 cm) deep and come with a 3" (7.62 cm) diameter grommet hole at the rear of the top and middle shelves to reduce the risk of cable snagging during transport. The upper shelves have two 3⁄16" diameter holes on either side for routing the electrical cables. All shelves are rated to support 50 lb (22.68 kg) of equipment each.
The cart is Underwrite Laboratories (UL) certified to 1667 standards, making it ideal for environments where children play, work, and learn like classrooms, meeting rooms, and libraries. Each cart features stable footprint and is composed of 25% to 35% post-consumer recycled steel. - Use
-
- Load capacity up to 75 lb / 34 kg
- Designed to hold flat panels ranging from 26 to 42” (66.04 to 106.68 cm)
- Monitor Mounting
-
- Two arms that secure to the mounting holes of the monitor and hang on a horizontal plate that secures between the rear leg assemblies
- Adjustable mounting bracket supports up to 700 x 400 mm (W x H) VESA mounting hole pattern
- Shelf Assembly
-
- Three 18-gauge steel shelves measuring 32 x 27" (81.28 x 68.58 cm )
- Shelves for storing extra equipment like projectors or DVD players
- 3" (7.62 cm) diameter grommet hole at the rear of the top and middle shelves to reduce cable snagging during transport
- Upper shelves have two 3⁄16" diameter holes for routing the electrical cables
- 1⁄8" lip bordering the top surface on all 4 sides to prevent materials from sliding off
- Each shelf is rated to support 50 lb (22.68 kg) of equipment
- Comes with 6 grounded outlets with surge/overload protection, a 3-wire power cord (20’ / 6.1 m ), a cord winder, and an on/off switch
- Portable
-
- Mar resistant 5” (12.7 cm) black rubber swivel casters
- Top shelf handle for easy maneuvering from room to room or across campus effortless
- Shelves for additional equipment
- Environment friendly
-
- UL listed to 1667 standards for schools
- Stable footprint
- Ideal for environments where children play, work, and learn like classrooms, meeting rooms, and libraries
UPC: 096633343690 In the Box Bretford FP42UL-E5BK Flat Panel Cabinet Cart 3 x Shelves 2 x Front Leg Assemblies 2 x Rear Leg Assemblies Top Shelf Handle 2 x Monitor Mounting Arms Monitor Arm Mounting Plate 4 x 5" (12.7 cm) Swivel Stem Casters Red Plastic Bag with Hardware Monitor Mounting Hardware Kit (M4, M5 and M6 screws) 6 x Grounded Outlets 3-Wire Power Cord (20' / 6.1 m) Cord Winder On/Off Switch 12-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bretford FP42UL-E5BK Flat Panel Cabinet Cart in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBretford FP42UL-E5BK Specs | Load Capacity | Up to 75 lb (34 kg) | | Designed for | 26 to 42" (66.04 to 106.68 cm) | | Casters | 5" (12.7 cm) black rubber swivel casters | | VESA Compatibility | Up to 700 x 400 mm | | Number of Outlets | 6 grounded outlets | | Shelves | 32 x 27" (81.28 x 68.58 cm)Middle to top shelf: 12" (30.48 cm)Pull out shelf: Supports up to 50 lb (22.68 kg) weight | | Hole Diameter | 3" (7.62 cm) diameter grommet hole | | Lip Bordering | 1/8" (0.32 cm) | | Door Opening | (W x H) | | Mounting Arm Plate | 32" (81.28 cm) | | Mount Arm Adjustability | 100 - 700 mm (3.94 - 27.56") wide100 - 400 mm (3.94 - 15.75") high | | legs | Front legs: 34" (86.36 cm)Rear legs: 60" (152.4 cm) | | Material | 25% to 35% post-consumer recycled steel | | Color | Black | | Finish | Pumice powder paint | | UL Listed | 1667 standards for schools | | Dimensions (W x H x D) | 32 x 27 x 60" (81.28 x 68.58 x 152.4 cm) | | Weight | 62 lb (28.12 kg) | | | | Package Weight | 62.0 lb | | Box Dimensions (LxWxH) | 63.0 x 34.0 x 10.0" |
