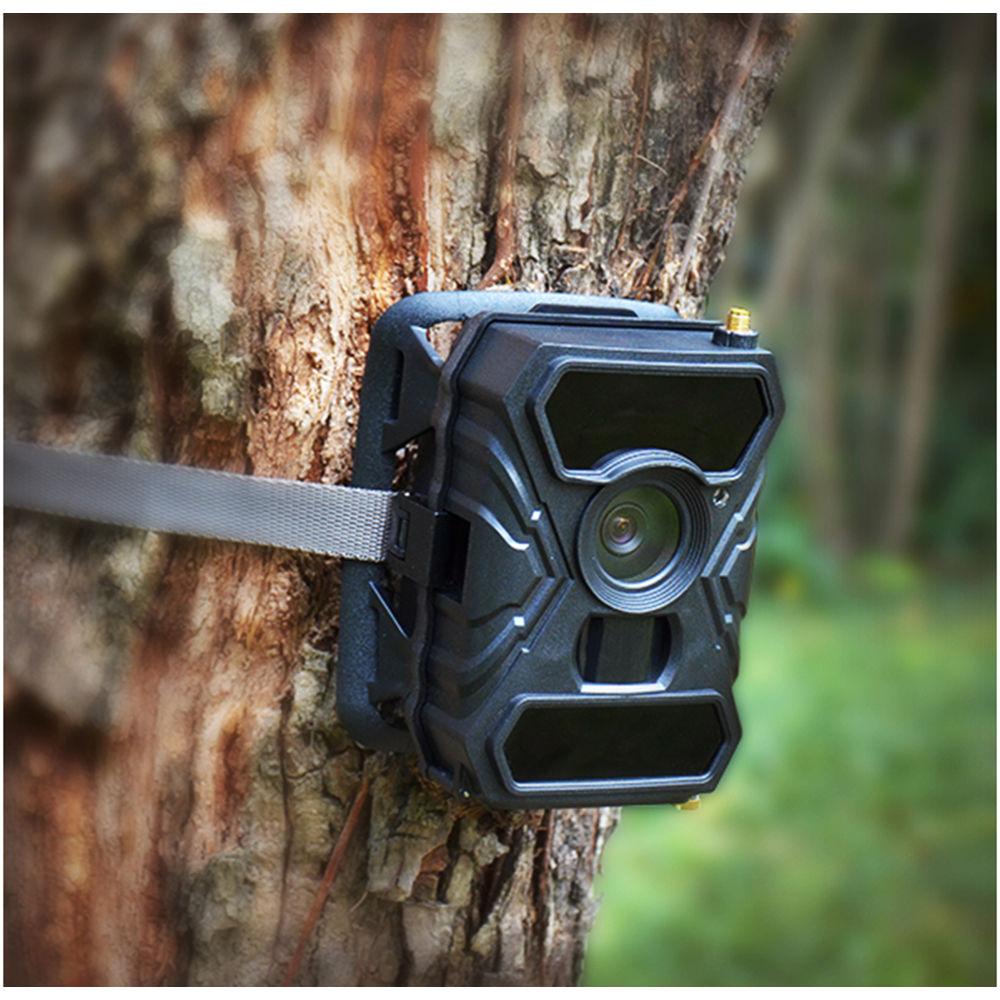

Product description The B-Link Secure Cellular Outdoor Camera from BrickHouse Security captures 1920 x 1080 resolution video at 30 fps and sends still images for remote viewing via cellular network. This rugged camera has a total of 56 IR LEDs provide up to 65' of night vision. It is equipped with a 2" TFT LCD screen. Additionally, it has a 100° field of view and can capture still images at up to 12MP. A PIR sensor detects motion from up to 65' away. Wi-Fi or electric power are not required since this device can operate on 8 AA batteries. NiMH batteries are recommended for optimal performance. The Trail Camera app enables remote viewing and control via iOS and Android devices. Additionally, you will be able to send images to your email from the app over the cellular network. This device supports microSD cards up to 32GB for local storage of video. microSD cards are available separately.
This camera is IP54-rated for dust and water protection. A service plan is required to use this device. - $19.99 billed monthly for 1GB data service
- Built-in cellular transmitter
- Suitable for wooded areas to watch wildlife, parking lots, or unmanned construction sites
- Wi-Fi or electric power not required thanks to battery operation
- 4-6 months of standby power
- Video can be stored on microSD card for local storage
Video cannot be sent over cellular network - PIR sensor detects motion from up to 65' away

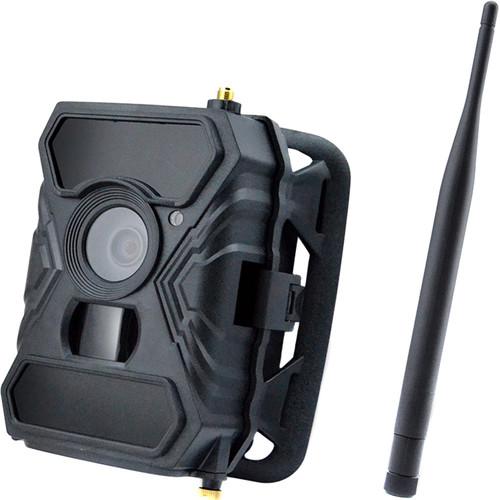

UPC: 609613887703 In the Box BrickHouse Security B-Link Secure Cellular Outdoor Camera Antenna Camera Strap USB Cable RCA Cable Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BrickHouse Security B-Link Secure Cellular Outdoor Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrickHouse Security B-L3G Specs | Image Sensor | 5MP color CMOS | | Effective Pixels | 2560 x 1920 | | Video Resolutions | 1920 x 1080, 1280 x 720, 640 x 480 | | Video | Format: AVI
Length: 5-59 seconds, programmable | | Time Lapse | Yes | | Day/Night Mode | Yes | | IR Range | 65' / 20 m | | Number of IR LEDs | Top: 25
Foot: 31 | | Mechanical IR Cut Filter | Yes | | Lens | f/3.0 aperture | | Field of View | 100° | | Storage | Supports microSD cards up to 32 GB

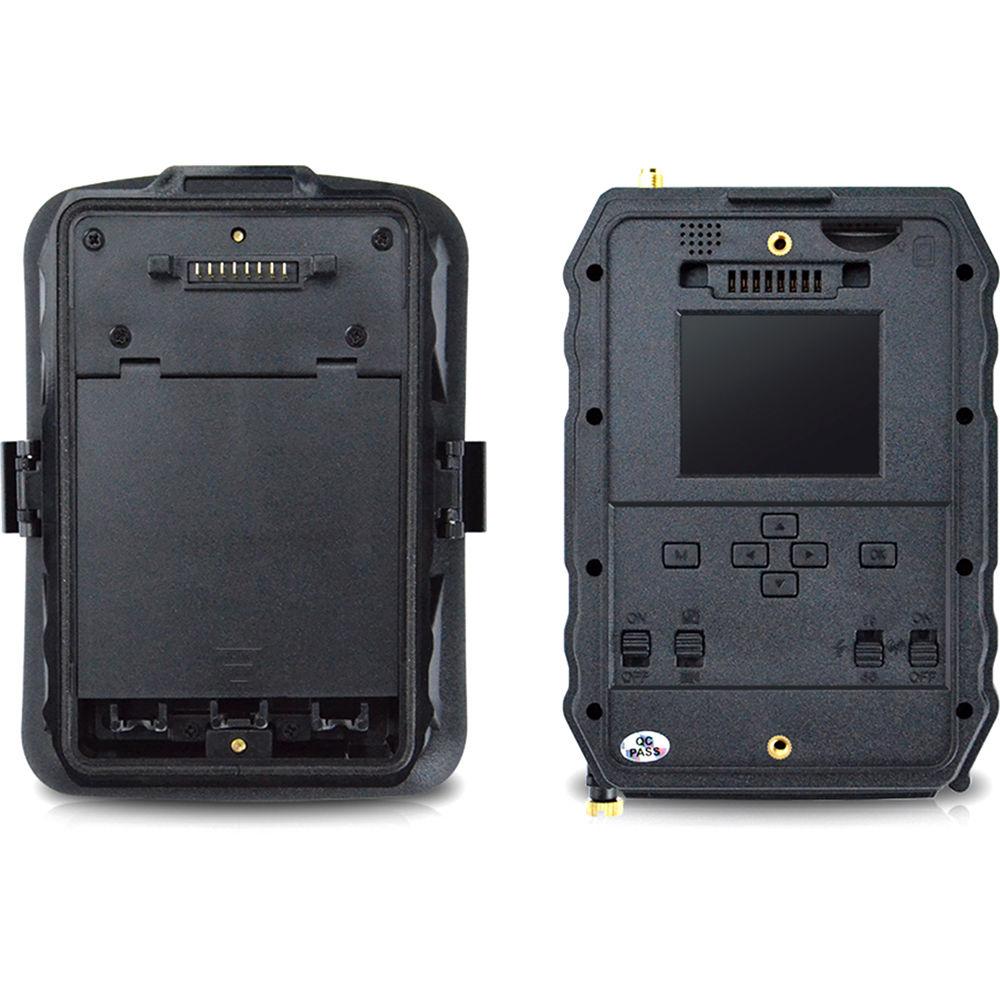

microSD card cycle on/off | | LCD Screen | 2" TFT, RGB, 262k colors | | Function Keys | 10 | | PIR Sensor | Sensitivity Levels: High, Normal, Low
PIR Angle: 110° | | PIR Range | 65' / 20 m | | Still Image Capture | Format: JPEG
Resolutions: 5 MP (2592 x 1944), 8 MP (3264 x 2448), 12 MP (4032 x 3024)
Shooting Numbers: 1-5
Trigger Time: 0.35-0.45 seconds
Trigger Interval: 4-7 seconds | | Date & Time Stamp | Yes | | Supported Mobile Devices | iOS, Android | | Battery Type | 8x AA batteries | | External DC Source | 12 VDC | | Standby Current | 0.173 mA | | Standby Time | 4-6 months | | Power Operation | Auto power off auto switch to on mode in 60 seconds without any operation | | Power Consumption | IR LEDs Off:
Photo: 120 mA
Video: 110 mA
IR LEDs On:
Max Range: 670 mA
Balanced: 850 mA | | Operating Temperature | -22 to 140°F/ -30 to 60°C | | Storage Temperature | -22 to 158°F/ -30 to 70°C | | Operating Humidity | 5-90% | | IP Rating | IP54 | | Dimensions | 5.2 x 3.9 x 3" / 13.14 x 9.8 x 7.7 cm | | Weight | 0.9 lb / 404 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 6.4 x 5.3 x 5.1" |
