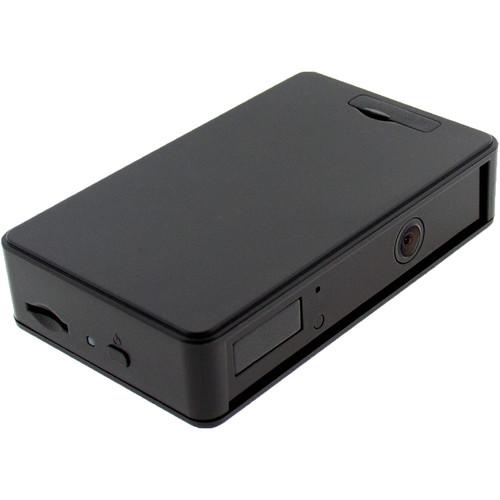

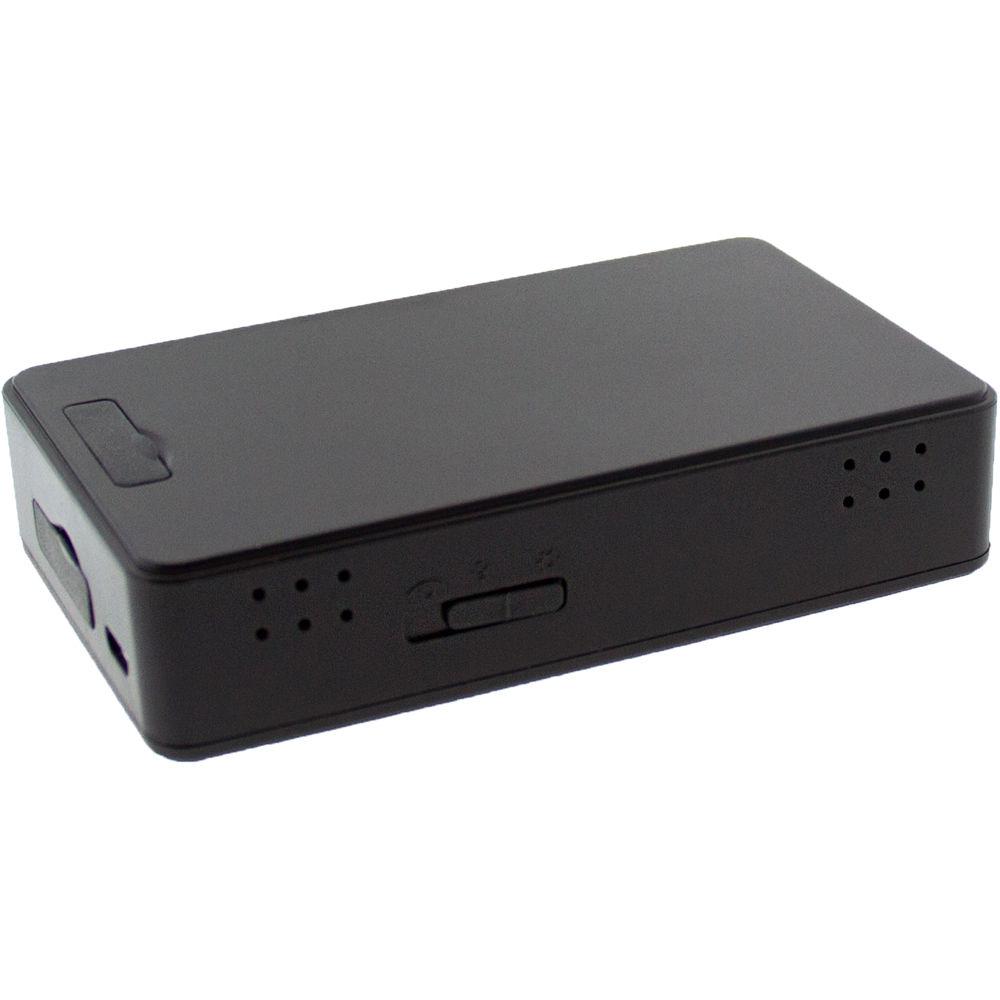

User Manual for BrickHouse Security Camscura Lux 720p Box Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the BrickHouse Security Camscura Lux 720p Box
- Product category: Hidden Cameras BrickHouse Security
- Brand: BrickHouse Security
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BrickHouse Security Hidden Cameras
 |
User manual for the BrickHouse Security Camscura Lux 720p Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BrickHouse Security product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BrickHouse Security user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BrickHouse Security product will considerably shorten its lifespan!
|
Product description Capture 1280 x 720 video covertly with the Camscura Lux 720p Box Camera with Night Vision from BrickHouse Security. Housed in a simple rectangular design, this camera can be easily hidden within household items to monitor rooms during the day or at night, thanks to its IR LED. Able to capture clear video at night from up to 6.5' away, this camera can monitor an entire room with its 160° wide-angle field of view.
You can set the camera to record upon detection of motion, sound, body heat, or vibration and can record on a schedule or continuously. Video is recorded onto a microSD card up to 64GB (available separately). - Captures video in high-definition 720p resolution
- IR LED for night vision up to 6.5'
- Designed to be hidden in home or office items
- 24-hour battery life and recording time
- Supports microSD cards up to 64GB (available separately)
- Recording activated by motion, sound, heat, or vibration
- Upload recordings to your computer via an included USB cable
UPC: 609613886959 In the Box BrickHouse Security Camscura Lux 720p Box Camera with Night Vision USB Cable AC Power Adapter Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BrickHouse Security Camscura Lux 720p Box Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrickHouse Security 255-BBPPIR Specs | Sensor Resolution | 1280 x 960 | | Minimum Illumination | 0 lux | | Recording Resolution | 1280 x 720, 640 x 360 | | Field of View | 160° | | Number of IR LEDs and Range | 1 x IR LED, up to 6.56' | | Battery | 3.7 V, 2400 mAh lithium-ion | | Recording Time | Up to 24 hours on a full charge | | Standby Time | Up to 180 days | | Compression Format | AVI, JPEG, PCM | | Inputs/Outputs | Pin 1: 2.8 V, 100 mA power out
Pin 2: Ground
Pin 3: ZIR32 trigger in +
Pin 4: ZIR32 trigger in
Pin 5: ZIR32 trigger out +
Pin 6: ZIR32 trigger out (ground) | | microSD Support | microSD card up to 64 GB (available separately) | | Memory Usage | Up to 15 minutes/GB at high frame rate
Up to 1 hour/GB at low frame rate | | Power | 5 V adapter, 1000 mA adapter with micro USB port | | Current Consumption | Day Mode: 100 mA

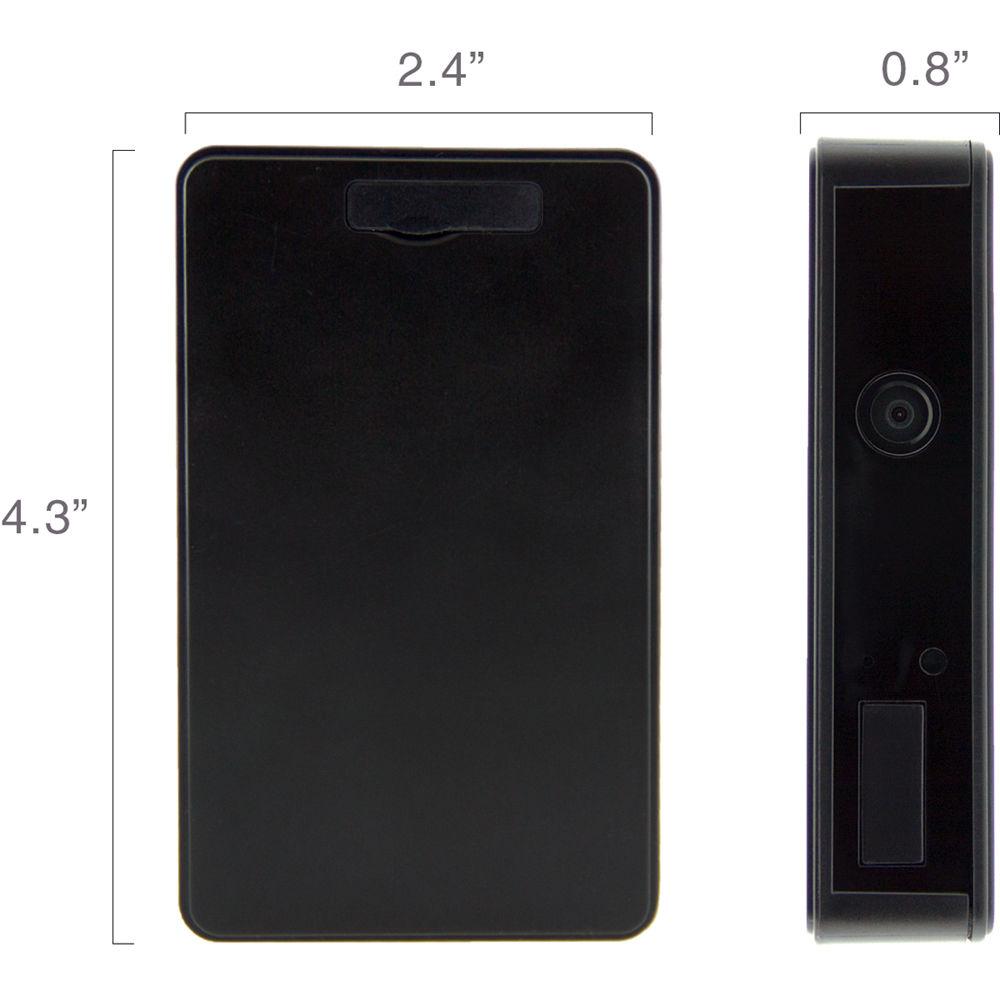

Night Mode: 400 mA | | USB | Micro USB port | | Storage Temperature | 32 to 113°F (0 to 45°C) | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Dimensions | 4.3 x 2.4 x 0.8" (11 x 6 x 2.1 cm) | | | | Package Weight | 0.595 lb | | Box Dimensions (LxWxH) | 4.5 x 3.65 x 2.8" |
