User Manual for BrickHouse Security Camscura Micro Hidden Camera Click to enlarge the picture
Contents of the user manual for the BrickHouse Security Camscura Micro Hidden Camera
- Product category: Hidden Cameras BrickHouse Security
- Brand: BrickHouse Security
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BrickHouse Security Hidden Cameras
|
User manual for the BrickHouse Security Camscura Micro Hidden Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BrickHouse Security product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BrickHouse Security user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BrickHouse Security product will considerably shorten its lifespan!
|

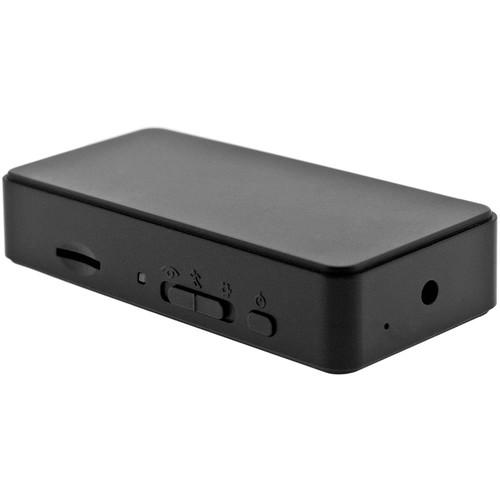

Product description The BrickHouse Security Camscura Micro Hidden Camera is designed to be easily hidden in common home or office items, such as cereal boxes and tissue boxes. The Camscura Micro captures video in high definition 720p resolution and has a 10-hour battery life and recording time. It also provides the benefit of discreet size, measuring only 3.5" long.
You can set the camera to record upon detection of motion, vibration, or sound, as well as continuously or at a specific time. It has a built-in microphone for detecting sound to trigger video recording, but due to federal regulations it does not record audio. All videos are time-stamped for better record keeping.
The Camscura Micro records to microSD cards up to 64GB in capacity, and you can offload your recordings to your computer via an included USB cable. MicroSD cards are sold separately.
A USB power adapter is included for charging the camera battery, and alternatively, for providing continuous power to the camera. It can also be used to allow the camera to record for much more than 10 hours. The Camscura Micro is capable of recording one hour of video per 1GB of storage space if you select the lowest recording frame rate. If the power adapter is used to provide constant power, then the camera can record for as long as there's space on your microSD card — 64 hours if you use a 64GB card. So if you can find a way to conceal the wires of the power adapter, you can keep it plugged in at all times.
The recording frame rate, recording resolution, day and night recording modes, and several other settings are all selectable via free-download software available to you on BrickHouse's website. - Key Features
-
- Designed to be hidden in common home or office items, such as cereal and tissue boxes
- Captures video in high definition 720p resolution
- Discreet size measuring only 3.5" long
- 10-hour battery life and recording time
- Supports microSD cards up to 64GB in capacity
- Up to 64 hours of recording at a lower frame rate if using an included power adapter
- Records upon detection of motion, vibration, or sound, continuously, or at a specific time
- All videos are time-stamped for better record keeping
- Offload recordings to your computer via an included USB cable
UPC: 609613886607 In the Box BrickHouse Security Camscura Micro Hidden Camera USB Power Adapter USB Cable Quick Start Guide Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BrickHouse Security Camscura Micro Hidden Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrickHouse Security 255-BBMHD Specs | Recording Resolution | 1280 x 720p HD or 640 x 360p | | Sensor Sensitivity | 1.25 V / lux-sec | | Viewing Angle | 62° | | Supported Media | MicroSD card up to 64 GB | | Memory Usage | 15 minute/GB (at high frame rate)
1 hour/GB (at low frame rate) | | Recording Time | 10 hours max because the battery lasts 10 hours | | Video Compression | JPEG | | File Format | AVI | | Supported OS | Windows 2000, XP, Vista, 7, 8
Mac OS X | | Audio | None | | Microphone | Built-in speech-grade microphone detects sound in order to trigger video recording, but no sound is recorded | | Power | 1200 mAh, 3.7 V Li-ion battery
5 V, 600 mA DC adapter with mini USB out | | Current Consumption | 100 mA | | Standby Time | 90 days max (when set to vibration activated power save mode with fully charged battery) | | Operating Temperature | 32 to 113degF (0 to 45°C) | | Storage Temperature | 32 to 113°F (0 to 45°C) | | Dimensions | 3.5 x 0.7 x 1.7" (8.9 x 1.8 x 4.3 cm) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 5.2 x 3.9 x 2.5" |
