User Manual for BrickHouse Security Dual View Car Camera System Click to enlarge the picture
Contents of the user manual for the BrickHouse Security Dual View Car Camera
- Product category: Dashcams BrickHouse Security
- Brand: BrickHouse Security
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BrickHouse Security Dashcams
 |
User manual for the BrickHouse Security Dual View Car Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BrickHouse Security product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BrickHouse Security user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BrickHouse Security product will considerably shorten its lifespan!
|

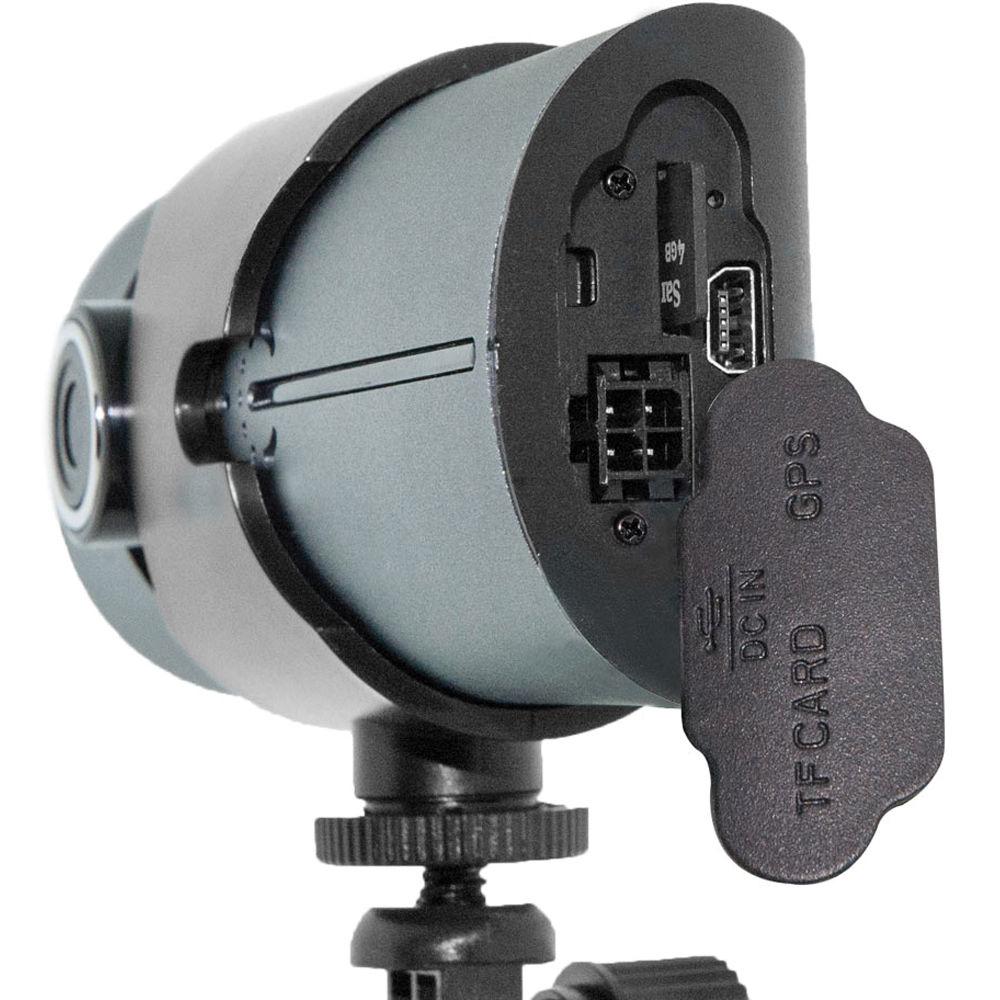

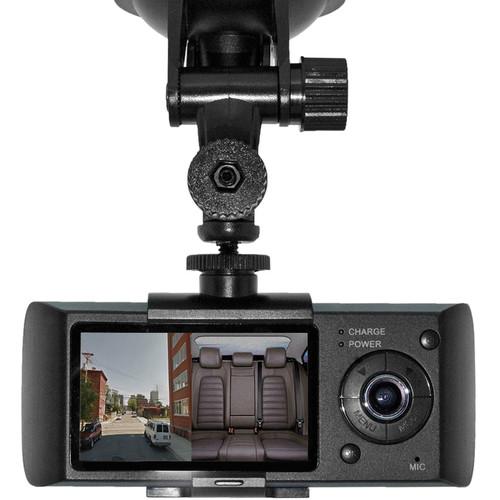

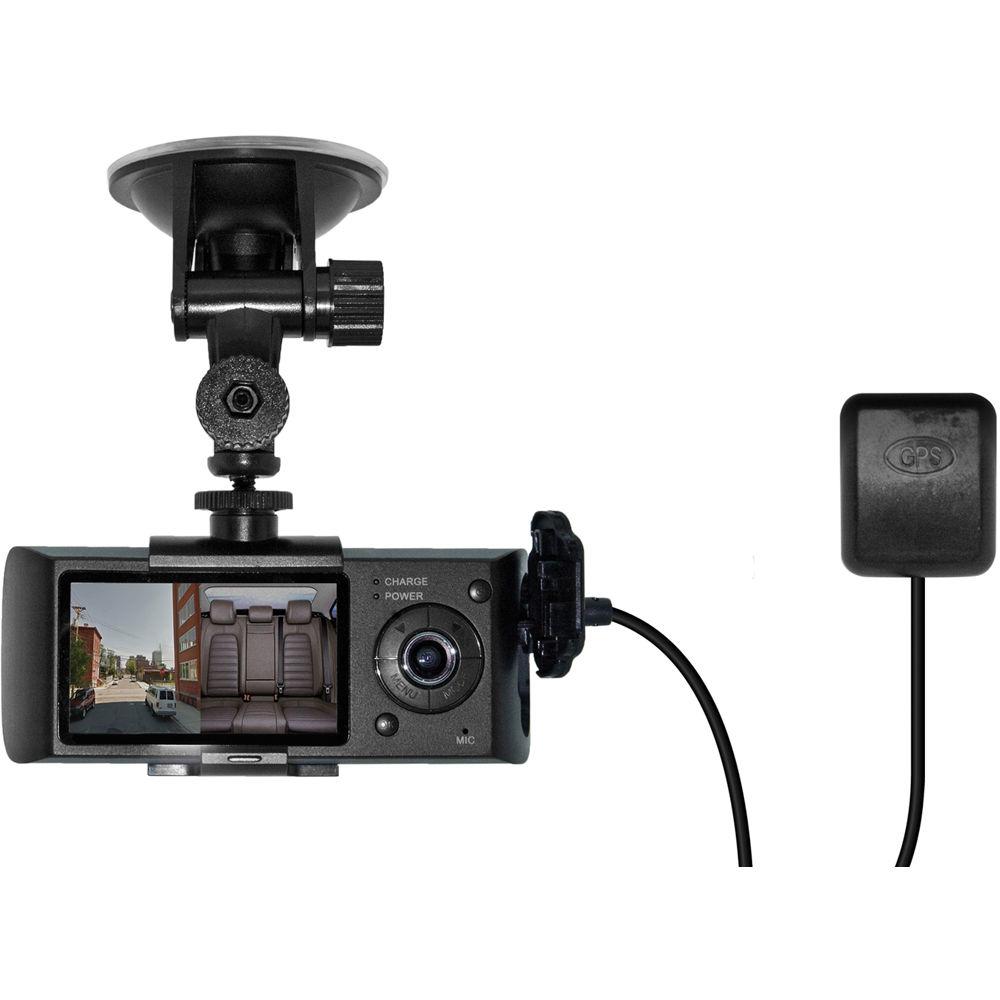

Product description Whether you're taking a scenic drive or want documentation in case of an accident, you can record what happens inside and outside your vehicle right from your dashboard with BrickHouse Security's Dual View Car Camera System. This single-unit windshield-mountable audio, video, and location-mapping vehicle system consists of a front-facing camera and a rear-facing camera, a color 2.7" display screen, a built-in DVR, an internal microphone and speaker, and built-in G-sensor. It also supports GPS tracking via an included antenna-like GPS receiver that plugs in on the side.
The Dual View is designed to capture 1.3MP images and high-quality video in either 1280 x 480 or 640 x 480 resolution at a frame rate of 30 fps. In addition to this, the Dual View has a built-in color 2.7" display screen and a microphone and speaker that allow you to instantly playback video and audio. The front-facing camera captures video in a 140° angle to give you an ultra-wide view of what is transpiring in front of your vehicle. Video from the front-facing camera will be displayed on the left side of the built-in display screen, while the rear-facing camera captures video in a 120° angle and will be displayed on the right of the screen. Video can be captured simultaneously from both cameras and recorded to a single microSD card (not included) with a capacity up to 32GB.
Beyond this, the Dual View's GPS logs a vehicle's location and travel routes. These logs can be downloaded to Google Maps and can help users save money by being mindful of mileage, record family vacations, as well as provide more detailed and geographical insights into the events leading to an accident that may help settle insurance claims and legal disputes more quickly.
In terms of powering, the Dual View has two options: it can be used as a portable, wire-free camera with 2-3 hours of internal battery life or it can be connected to your vehicle's cigarette lighter with the supplied car adapter for a source of continuous power. Along with the Dual View, a vehicle power supply, and suction mount are also included. - General Overview
-
- A front-facing camera with a 140° wide-angle view captures what happens in front of your vehicle
- A rear-facing camera with a 120° wide-angle view captures what happens inside and at the back of your vehicle
- Video resolutions supported: 1280 x 480 at 30 fps / 640 x 480 at 30 fps
- Records video in AVI format and JPEG images
- Built-in 2.7" color display with instant playback, DVR, microphone/speaker, GPS, and G-sensor
- Supports a microSD card up to 32GB in capacity
- GPS/G-sensor logs a vehicle's travel data
- Capture 1, 2, and 3MP image stills
- Battery life up to 2-3 hours; plugs into a vehicle's cigarette lighter for a source of continuous power
- FIFO technology: the Dual View automatically records over the oldest media stored on the microSD card when it is full; press the SOS button to prevent recordings from being overwritten and protect a current recording and previous video files
UPC: 609613886775 In the Box BrickHouse Security Dual View Car Camera System GPS Receiver Cable Vehicle Power Adapter Vehicle Suction Mount Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BrickHouse Security Dual View Car Camera System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrickHouse Security 363-CD114 Specs | Functions Supported | Audio and video recording / GPS / vehicle traveling data recording / G-sensor | | Display Screen | 2.7" TFT Color | | Image Resolution | 1.3 MP | | Video Resolution | 1280 x 480 at 30 fps / 640 x 480 at 30 fps | | Video Format | AVI | | Image Format | JPEG | | Viewing Angle | 120° / 140° | | Memory | Supports a microSD card up to 32 GB | | USB | 1 x USB 2.0 | | Battery Type | Internal polymer, 500 mAh | | Supported Operating Systems | Windows: 2000 / XP / Vista / Windows 7
Mac OS X: above 10.3.6 | | Battery Life (Recording) | Approx. 2 to 3 hours | | Battery Charge Time | Approx. 5 to 6 hours | | Supported Languages | English / Simplified Chinese / Traditional Chinese / Japanese
German / French / Italian / Spanish /Portuguese | | Operating Temperature | 14 to 104°F (-10 to 40°C) | | Storage Temperature | 14 to 104°F (-10 to 40°C) | | Operating Humidity Range | 40 to 90% | | Dimensions | 5.0 x 1.5 x 1.9" (127 x 37 x 49 mm) | | Weight | 3.67 oz (104 g) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 6.95 x 5.45 x 3.0" |
