User Manual for Bright Tangerine Left Field Baseplate for RED DSMC2 Cameras Click to enlarge the picture
Contents of the user manual for the Bright Tangerine Left Field Baseplate for
- Product category: Baseplate Components Bright Tangerine
- Brand: Bright Tangerine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bright Tangerine Baseplate Components
 |
User manual for the Bright Tangerine Left Field Baseplate for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bright Tangerine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bright Tangerine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bright Tangerine product will considerably shorten its lifespan!
|

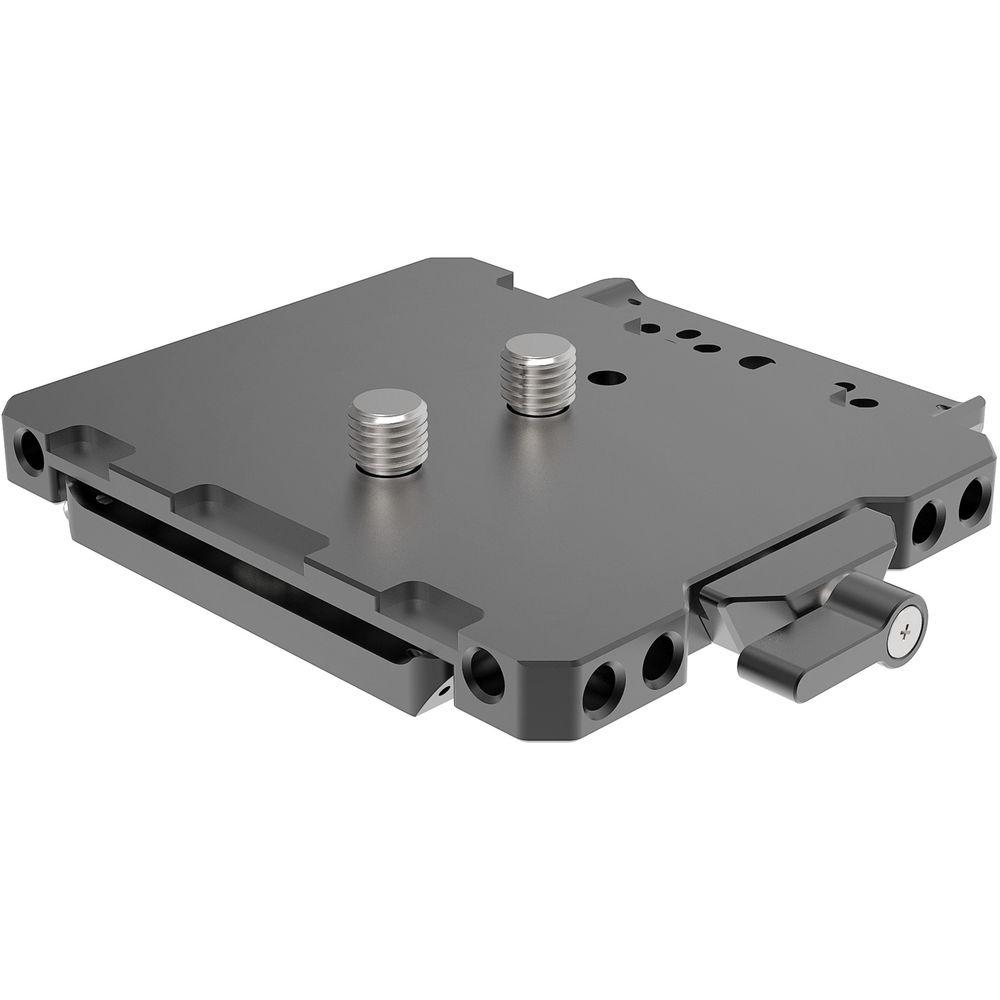

Product description The Left Field Baseplate from Bright Tangerine is comprised of an ARRI-standard dovetail with multiple 1/4"-20 accessory mounts and a baseplate core for RED DSMC2 cameras.

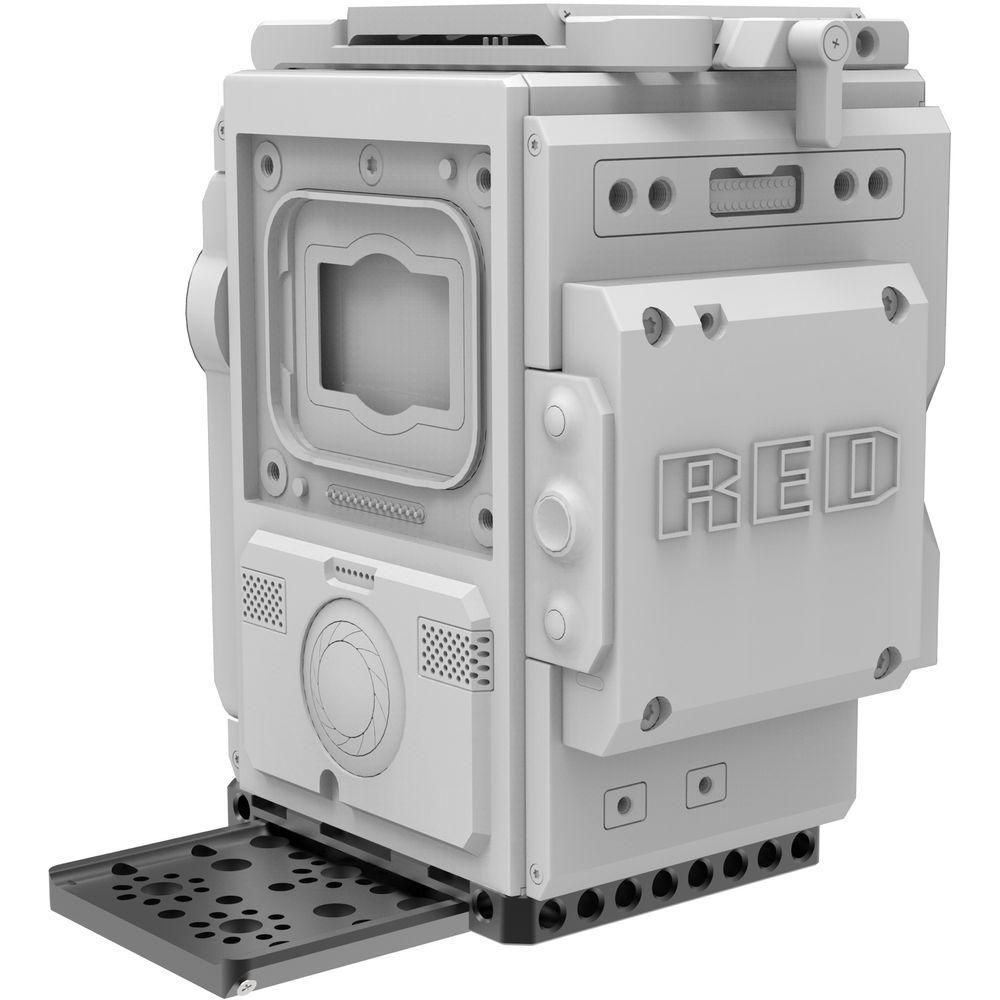

When secured in the baseplate core with the locking lever, the dovetail plate functions as a quick release plate and features safety screws to prevent sliding. The baseplate connects to the base of your DSMC2 camera with two 3/8"-16 screws and the dovetail plate connects to a tripod, gimbal, or shoulder rig. - Baseplate Core for RED DSMC2 Cameras Securely mount your RED DSMC2 camera onto a tripod, shoulder rig, or gimbal with this Baseplate Core from Bright Tangerine. The baseplate core is compatible with ARRI standard dovetail plates; a separately available dovetail plate locks into place with a locking lever and allows sliding for balance, which is especially important when mounted on a gimbal or shoulder rig.
The baseplate features numerous 1/4"-20 threads on the sides for mounting, and the base mounts onto your camera with two included 3/8"-16 screws. The side threads can be used to mount accessories or side plates to create a full cage. The plate has two 1/4"-20 threaded holes on the front and back to connect a separately available 15mm LWS adapter for additional stability. UPC: 755899010295 - Left Field ARRI-Style Dovetail Plate The 4" Left Field ARRI-Style Dovetail Plate from Bright Tangerine is an ARRI-standard dovetail with multiple accessory mounts. When used with a separately available Left Field 15mm LWS Baseplate, the Dovetail Plate functions as a quick release plate.This cheese plate can mount onto the top or bottom of your camera and incorporates multiple 1/4"-20, 3/8"-16, and ARRI anti-twist accessory mounts. The two removable safety screws can also be used to fix the plate onto your camera.
- Features
-
- Functions as a quick release plate when used with an optional Left Field 15mm LWS Baseplate
- Multiple 1/4"-20, 3/8"-16, and ARRI anti-twist accessory mounts
- ARRI-standard dovetail
- Removable safety screws
UPC: 755899009381 In the Box Bundle Items Baseplate Core for RED DSMC2 Cameras Left Field ARRI-Style Dovetail Plate
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Bright Tangerine Left Field Baseplate for RED DSMC2 Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Baseplate Core for RED DSMC2 Cameras
| Compatibility | RED DSMC2 Cameras | | Material of Construction | Aluminum | | Dimensions | 3.1 x 4.4 x 0.7" / 8 x 11.2 x 1.8 cm | | Weight | 4.5 oz / 128 g | | | | Box Dimensions (LxWxH) | 7.0 x 6.0 x 1.0" | - Left Field ARRI-Style Dovetail Plate
| Mount Types | Multiple:
1/4"-20
3/8"-16:
ARRI accessory mounts | | Dimensions | 3.9 x 2.6 x 0.3" / 10 x 6.7 x 0.8 cm | | Weight | 2.6 oz / 75 g | | | | Box Dimensions (LxWxH) | 7.2 x 6.85 x 0.25" |
