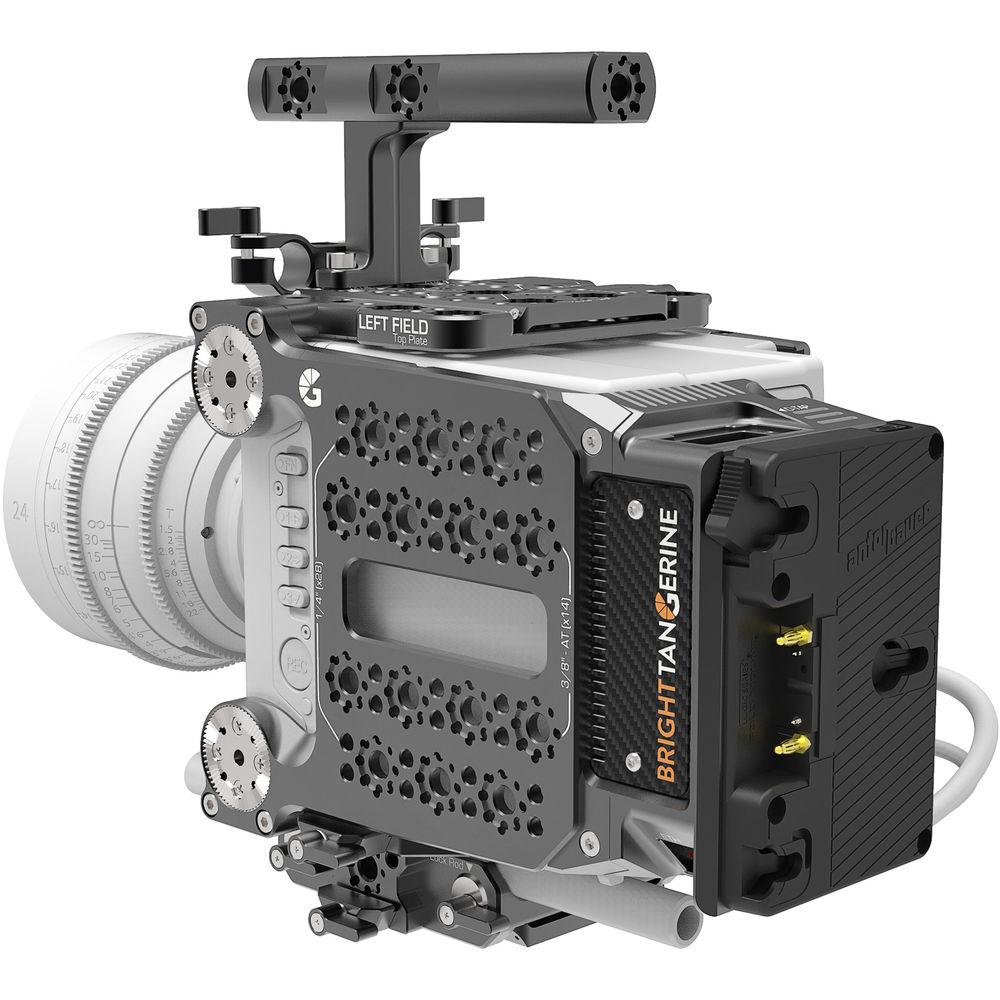

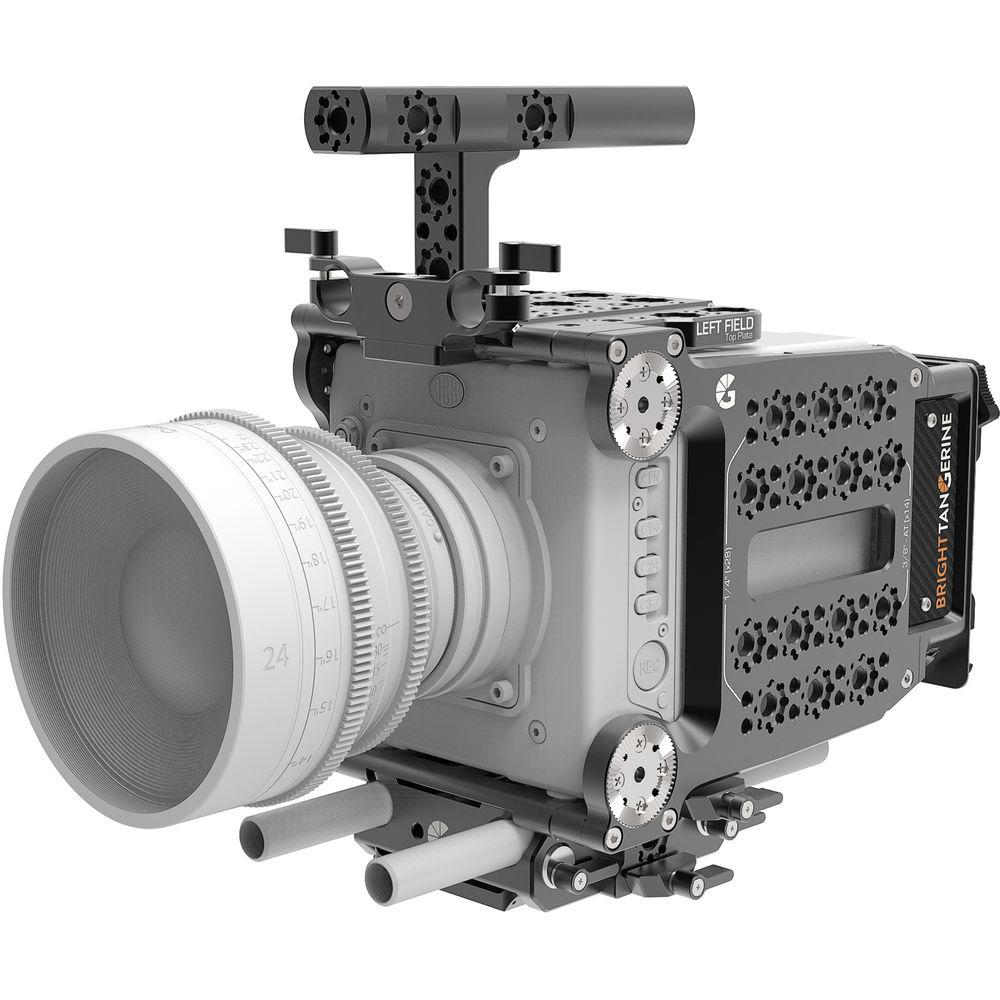

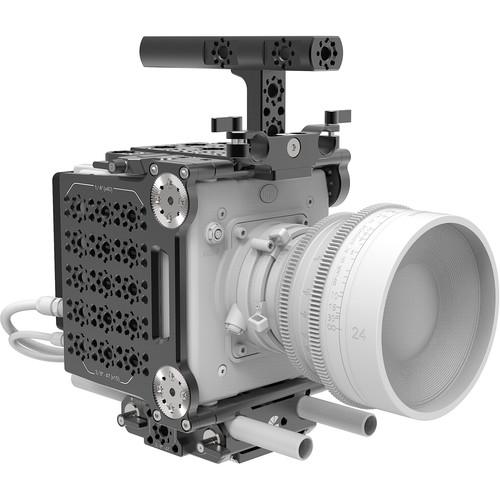

Product description Add accessories, power distribution, and mounting options to your ARRI ALEXA Mini camera with this Left Field Cage with Power Module from Bright Tangerine. This modular cage consists of Left and Right Side Cheese Plates, a Gold Mount Power Distribution Module, two Left Field ARRI Dovetail Plates, a Top Handle, and a Universal 15mm LWS Bracket.

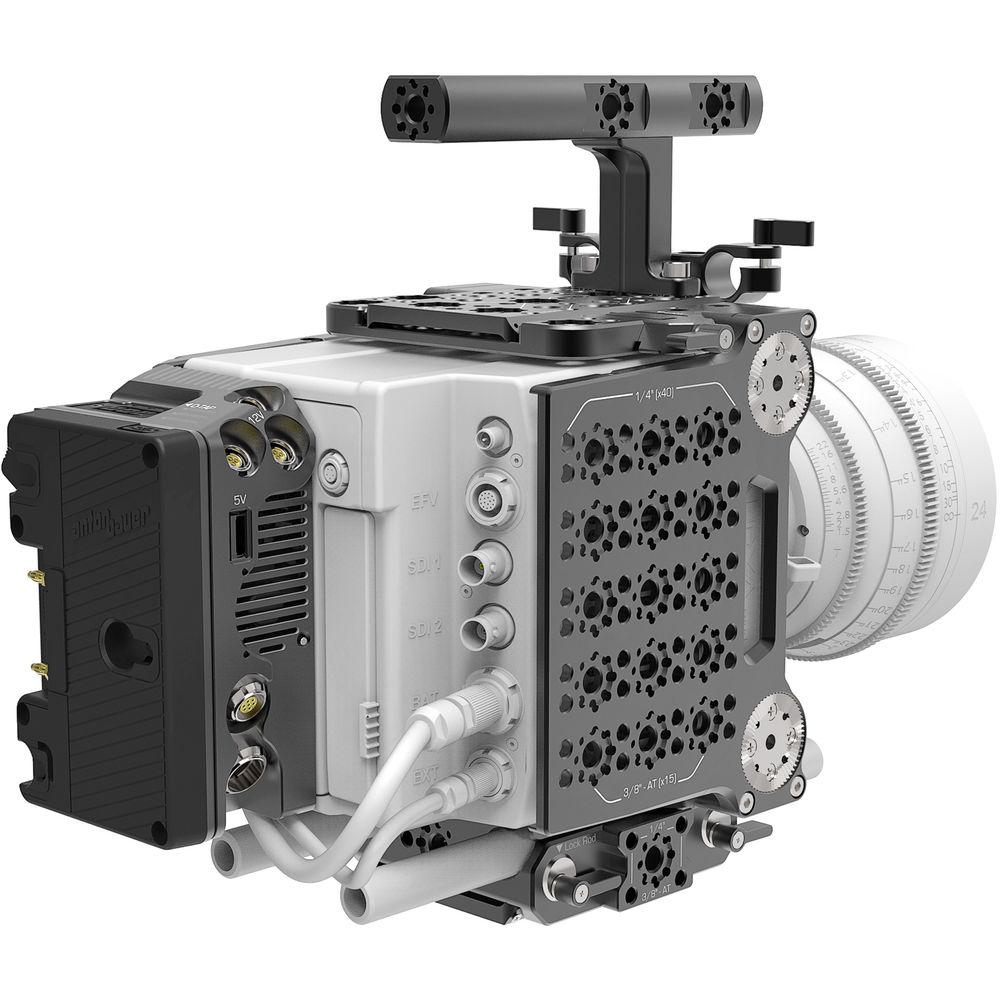

The left and right side cheese plates attach to the sides of the camera and provide multiple 1/4"-20 threads and 3/8"-16 threads with anti-twist mounts, as well as two rosette mounts on each plate. The power distribution module accepts a 12 to 24V Gold mount battery and provides multiple outputs such as three D-Tap, three 2-pin LEMO, one USB Type-A, one 3-pin Fischer, and one RJ45. It also features one 8-pin 24 VDC LEMO input.
The two dovetail plates provide multiple 1/4"-20 and 3/8"-16 accessory threads on the top and bottom, and the top plate provides a mounting point for the included top handle. The top handle also provides multiple 1/4"-20 and 3/8"-16 accessory threads. The 15mm LWS bracket allows you to mount separately available 15mm rods for mounting onto shoulder rigs or adding additional accessories. - Left Field ARRI-Style Dovetail Plate The 4" Left Field ARRI-Style Dovetail Plate from Bright Tangerine is an ARRI-standard dovetail with multiple accessory mounts. When used with a separately available Left Field 15mm LWS Baseplate, the Dovetail Plate functions as a quick release plate.This cheese plate can mount onto the top or bottom of your camera and incorporates multiple 1/4"-20, 3/8"-16, and ARRI anti-twist accessory mounts. The two removable safety screws can also be used to fix the plate onto your camera.
- Features
-
- Functions as a quick release plate when used with an optional Left Field 15mm LWS Baseplate
- Multiple 1/4"-20, 3/8"-16, and ARRI anti-twist accessory mounts
- ARRI-standard dovetail
- Removable safety screws
UPC: 755899009381 - Top Handle with 1/4"-20 Mounting Screws This aluminum Top Handle from Bright Tangerine attaches to most camera cages with 1/4"-20 screws. The universal-style handle can be rotated 180° for your preferred fit, and its cheese design features numerous 1/4"-20 and 3/8"-16 threaded holes for mounting accessories. The Top Handle supports the ARRI HEB-1, HEB-2, and HEB-3 handle extension block systems to further extend the handle on your gear. UPC: 755899009152
- Sliding Top Plate Core for ARRI ALEXA Mini Mount this low-profile ARRI standard dovetail Sliding Top Plate Core from Bright Tangerine onto the top of your ARRI ALEXA camera to provide multiple mounting options. Numerous 1/4"-20 and 3/8"-16 mounting threads provide options for attaching accessories like a mounting arm.
The top plate features mounting threads for the Bright Tangerine Left- and Right-Side Cheese Plates, a Power Distribution Module, or for the ARRI MSB-1 side brackets. You can also attach the separately available Left Field 15mm LWS Bracket if you require 15mm LWS rod support. Four screws are provided to attach the plate to the ALEXA Mini. UPC: 755899009053 - Sliding Baseplate Core for ARRI ALEXA Mini Mount this aluminum Sliding Baseplate Core from Bright Tangerine onto the ARRI ALEXA Mini to add a 15mm LWS baseplate to your rig. The plate can be used with the 15mm LWS Quick Release to mount your camera rig onto 15mm rods.
The baseplate's dovetail clamp works with ARRI-standard dovetail mounts, and can work with quick release dovetail plates to make mounting onto and unmounting from tripods and shoulder rigs easy. The plate's sliding ability helps with counterbalance adjustments when using a shoulder rig or top handle. The two 15mm rod ports are tightened with locking levers and can fit separately available standard 15mm LWS rods. UPC: 755899009060 - ARRI ALEXA Mini Right Side Cheese Plate
- ALEXA Mini Left Side Cheese Plate (DoP Side)
In the Box Bundle Items ARRI ALEXA Mini Right Side Cheese Plate bcubsafvdesxazvfatxz ALEXA Mini Left Side Cheese Plate (DoP Side) 2 x Left Field ARRI-Style Dovetail Plate Top Handle with 1/4"-20 Mounting Screws bcubsafvdesxazvfatxz - 2 x 1/4"-20 Mounting Screw
Sliding Top Plate Core for ARRI ALEXA Mini Sliding Baseplate Core for ARRI ALEXA Mini
Also Includes - Gold Mount Power Distribution Module
- Left Field Universal 15mm LWS Bracket
- 15mm LWS Quick Release for ALEXA Mini
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bright Tangerine Left Field Cage with Power Module for ARRI ALEXA Mini in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ARRI ALEXA Mini Right Side Cheese Plate
| | | Box Dimensions (LxWxH) | 7.65 x 5.6 x 1.2" | - Left Field ARRI-Style Dovetail Plate
| Mount Types | Multiple:
1/4"-20
3/8"-16:
ARRI accessory mounts | | Dimensions | 3.9 x 2.6 x 0.3" / 10 x 6.7 x 0.8 cm | | Weight | 2.6 oz / 75 g | | | | Box Dimensions (LxWxH) | 7.2 x 6.85 x 0.25" | - Top Handle with 1/4"-20 Mounting Screws
| Material of Construction | Aluminum | | Mounting Holes | 1/4"-20 and 3/8"-16 | | Dimensions | 5.9 x 2 x 3.1" / 15 x 5 x 7.8 cm | | Weight | 8.5 oz / 240 g | | | | Box Dimensions (LxWxH) | 7.95 x 3.75 x 1.9" | - Sliding Top Plate Core for ARRI ALEXA Mini
| Compatibility | ARRI ALEXA Mini
ARRI MSB-1 Side Brackets
ALEXA Mini Power Distribution Module | | Mounting Threads | 1/4"-20, 3/8"-16 ARRI Accessory Mounts | | Dimensions | 5.5 x 4.6 x 0.9" / 13.8 x 11.6 x 2.2 cm | | Weight | 6.1 oz / 174 g | | | | Box Dimensions (LxWxH) | 7.2 x 5.4 x 1.7" | - Sliding Baseplate Core for ARRI ALEXA Mini
| Material of Construction | Aluminum | | Compatibility | ARRI ALEXA Mini | | Mounting Threads | 1/4"-20 & ARRI Accessory Mounts | | Rod Clamp Type | 15 mm LWS | | Dimensions | 4.8 x 3.9 x 1.3" / 12.1 x 10 x 3.4 cm | | Weight | 12.7 oz / 360 g | | | | Box Dimensions (LxWxH) | 7.0 x 5.4 x 1.85" | - ALEXA Mini Left Side Cheese Plate (DoP Side)
