User Manual for Bright Tangerine Left Field Top and Bottom Sliding Plates for ARRI ALEXA Mini Click to enlarge the picture
Contents of the user manual for the Bright Tangerine Left Field Top and
- Product category: Camcorder Supports & Rigs Bright Tangerine
- Brand: Bright Tangerine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bright Tangerine Camcorder Supports & Rigs
 |
User manual for the Bright Tangerine Left Field Top and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bright Tangerine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bright Tangerine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bright Tangerine product will considerably shorten its lifespan!
|

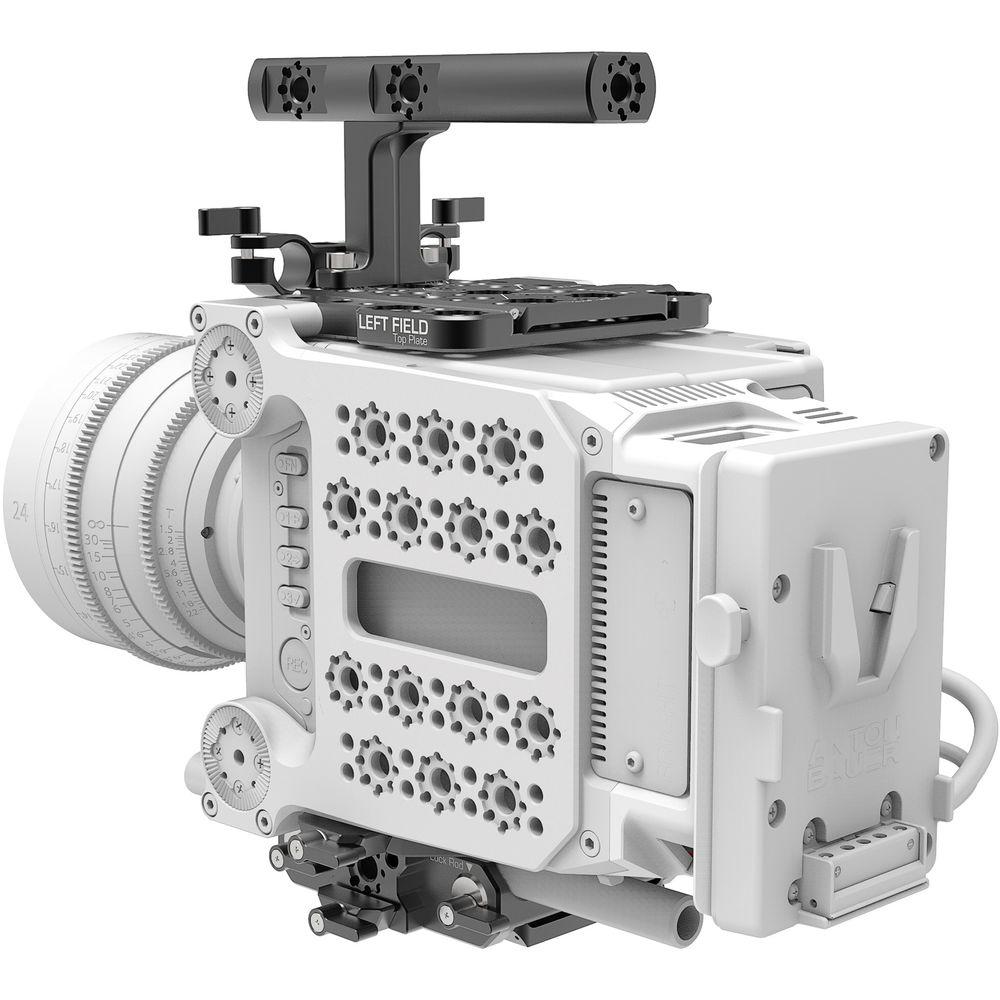

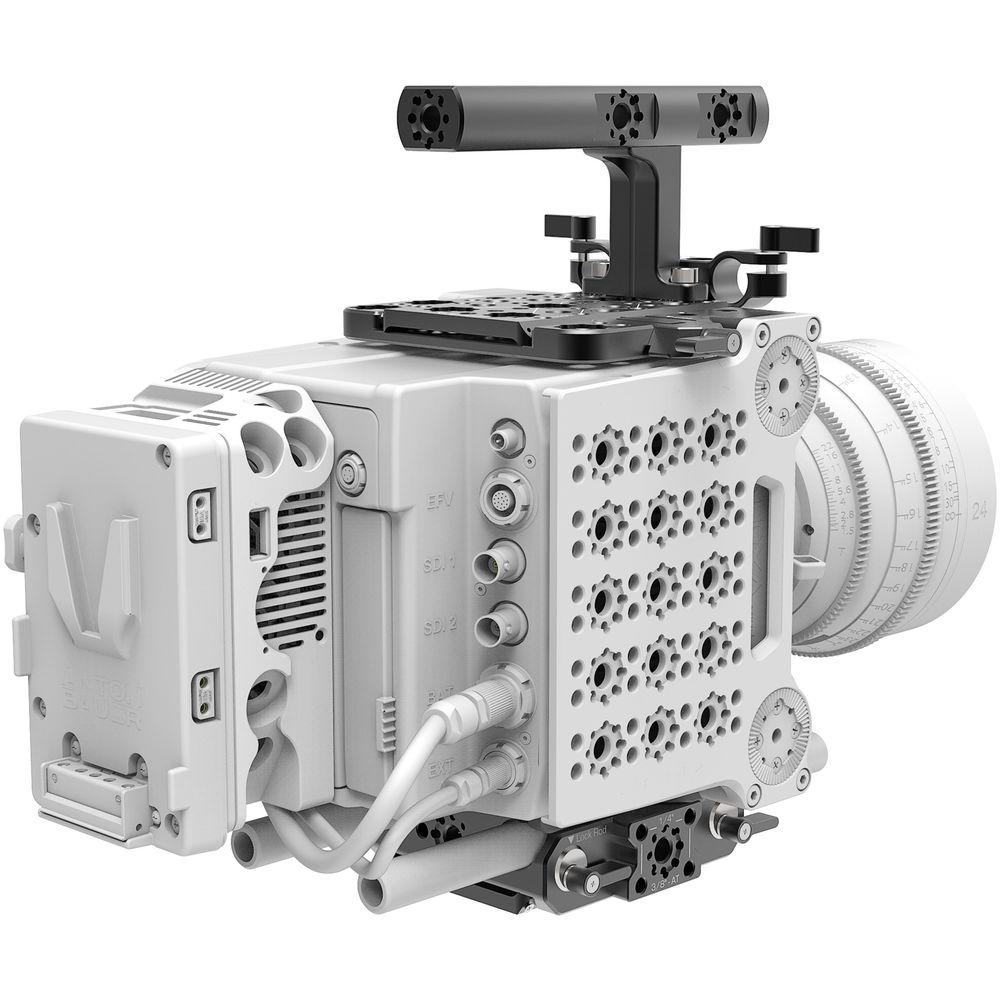

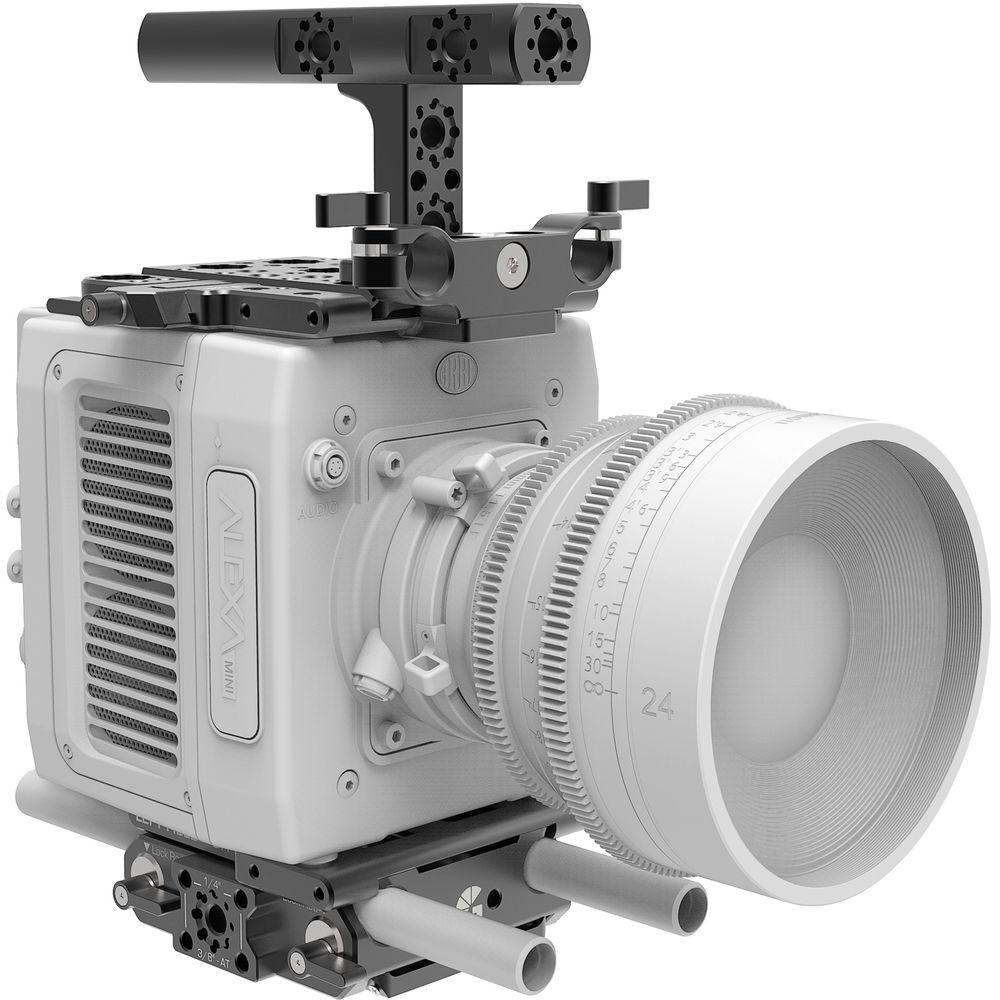

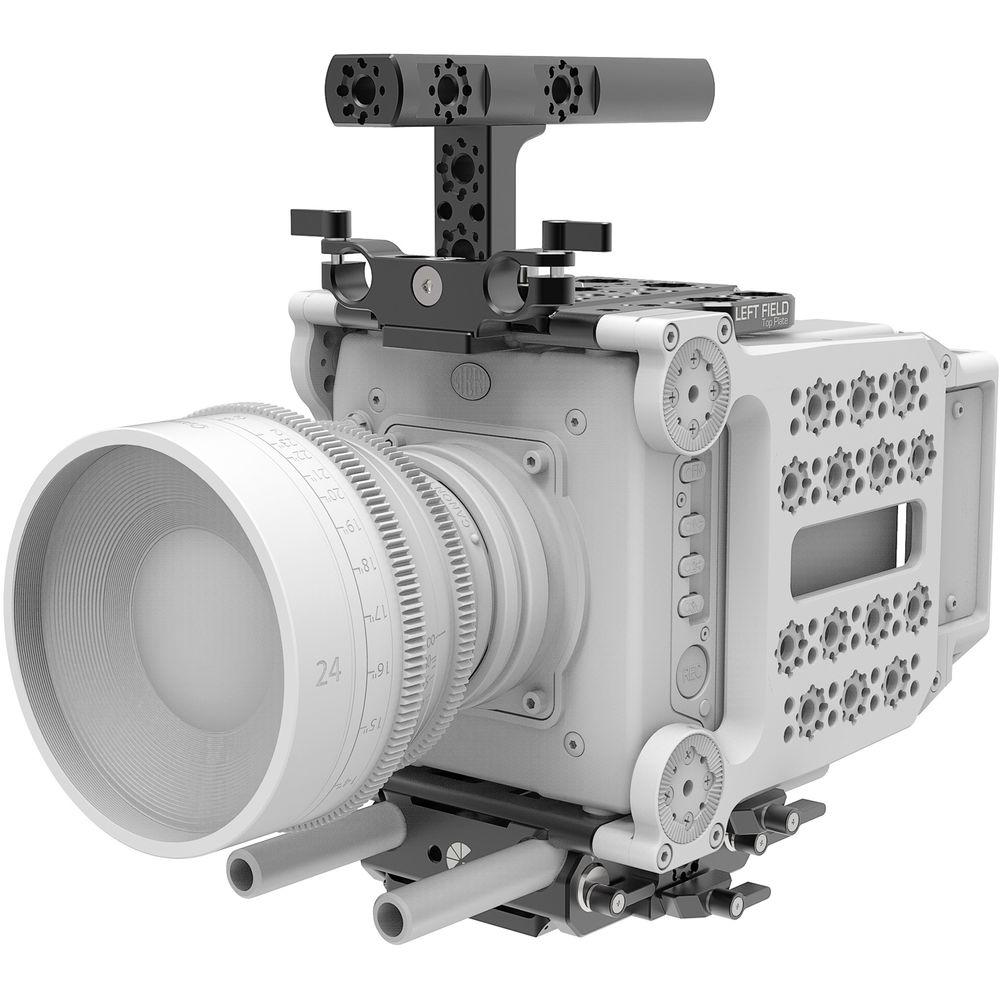

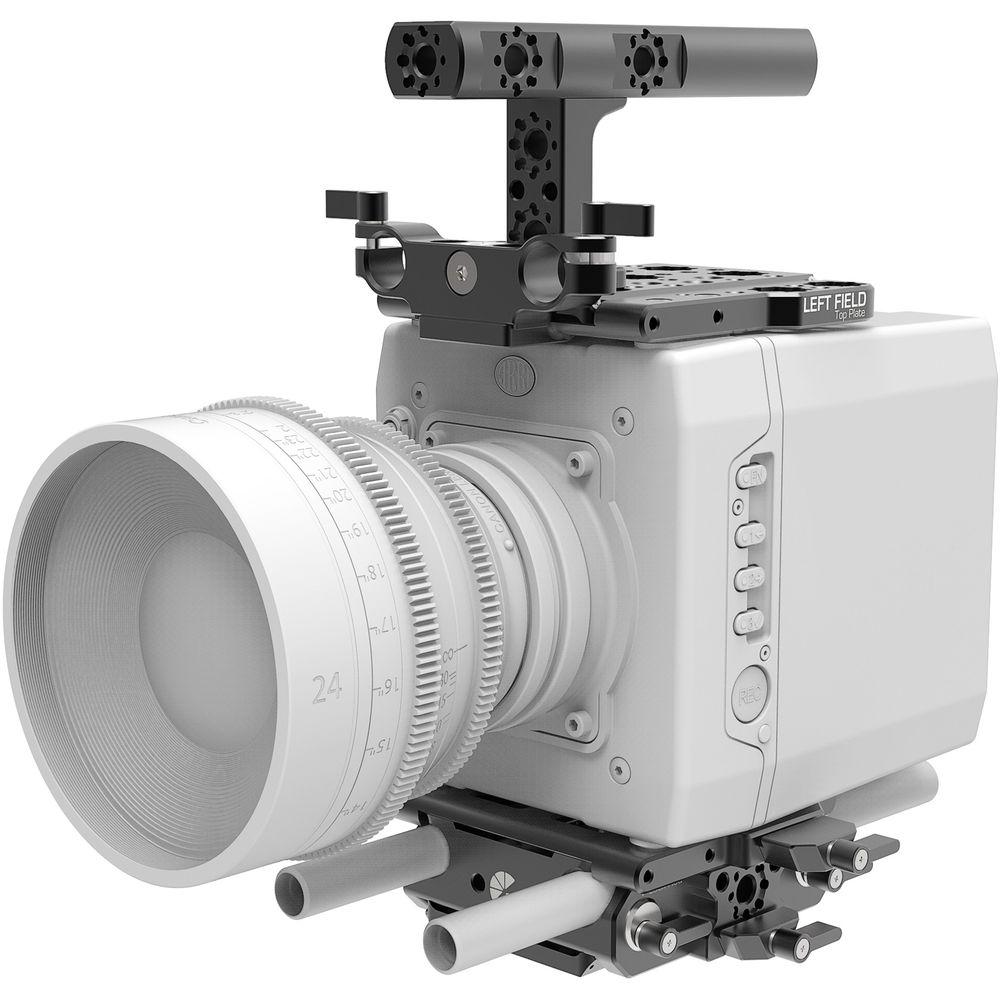

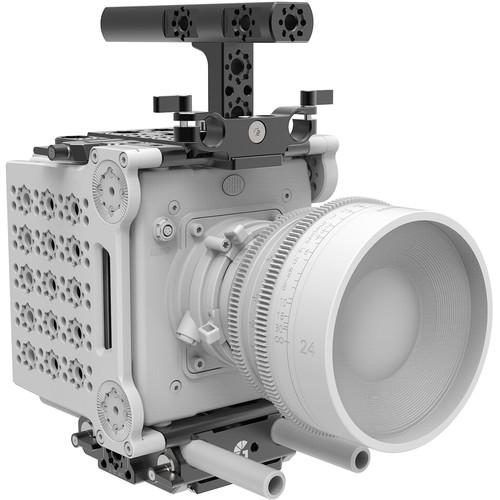

Product description Add numerous mounting options to your ARRI ALEXA Mini camera with this set of Left Field Top and Bottom Sliding Plates from Bright Tangerine. This modular set consists of Sliding Baseplate and Top Plate Cores, a 15mm LWS Quick Release, two Left Field ARRI Dovetail Plates, a Top Handle, and a Universal 15mm LWS Bracket.
The sliding core plates attach to the top and bottom of the camera and are compatible with the ARRI dovetail standard clamp. Their sliding capability allows you to adjust for optimal counterbalance. The 15mm LWS quick release mounts onto the baseplate and is compatible with ARRI MSB-1 side brackets and the ALEXA Mini Master System.
The two dovetail plates provide multiple 1/4"-20 and 3/8"-16 accessory threads to the top and bottom of the camera, and the plate on top provides a mounting point for the included top handle. The top handle also provides multiple 1/4"-20 and 3/8"-16 accessory threads and it is compatible with ARRI's HEB handle extension system. The 15mm LWS bracket allows you to mount separately available 15mm rods for mounting onto shoulder rigs or adding additional accessories. - Sliding Baseplate Core for ARRI ALEXA Mini Mount this aluminum Sliding Baseplate Core from Bright Tangerine onto the ARRI ALEXA Mini to add a 15mm LWS baseplate to your rig. The plate can be used with the 15mm LWS Quick Release to mount your camera rig onto 15mm rods.
The baseplate's dovetail clamp works with ARRI-standard dovetail mounts, and can work with quick release dovetail plates to make mounting onto and unmounting from tripods and shoulder rigs easy. The plate's sliding ability helps with counterbalance adjustments when using a shoulder rig or top handle. The two 15mm rod ports are tightened with locking levers and can fit separately available standard 15mm LWS rods. UPC: 755899009060 - Sliding Top Plate Core for ARRI ALEXA Mini Mount this low-profile ARRI standard dovetail Sliding Top Plate Core from Bright Tangerine onto the top of your ARRI ALEXA camera to provide multiple mounting options. Numerous 1/4"-20 and 3/8"-16 mounting threads provide options for attaching accessories like a mounting arm.
The top plate features mounting threads for the Bright Tangerine Left- and Right-Side Cheese Plates, a Power Distribution Module, or for the ARRI MSB-1 side brackets. You can also attach the separately available Left Field 15mm LWS Bracket if you require 15mm LWS rod support. Four screws are provided to attach the plate to the ALEXA Mini. UPC: 755899009053 - Top Handle with 1/4"-20 Mounting Screws This aluminum Top Handle from Bright Tangerine attaches to most camera cages with 1/4"-20 screws. The universal-style handle can be rotated 180° for your preferred fit, and its cheese design features numerous 1/4"-20 and 3/8"-16 threaded holes for mounting accessories. The Top Handle supports the ARRI HEB-1, HEB-2, and HEB-3 handle extension block systems to further extend the handle on your gear. UPC: 755899009152
- Left Field ARRI-Style Dovetail Plate The 4" Left Field ARRI-Style Dovetail Plate from Bright Tangerine is an ARRI-standard dovetail with multiple accessory mounts. When used with a separately available Left Field 15mm LWS Baseplate, the Dovetail Plate functions as a quick release plate.This cheese plate can mount onto the top or bottom of your camera and incorporates multiple 1/4"-20, 3/8"-16, and ARRI anti-twist accessory mounts. The two removable safety screws can also be used to fix the plate onto your camera.
- Features
-
- Functions as a quick release plate when used with an optional Left Field 15mm LWS Baseplate
- Multiple 1/4"-20, 3/8"-16, and ARRI anti-twist accessory mounts
- ARRI-standard dovetail
- Removable safety screws
UPC: 755899009381 In the Box Bundle Items Sliding Baseplate Core for ARRI ALEXA Mini xttadxtstbsbzzvvaszuxxbtrwaad Sliding Top Plate Core for ARRI ALEXA Mini Top Handle with 1/4"-20 Mounting Screws - 2 x 1/4"-20 Mounting Screw
2 x Left Field ARRI-Style Dovetail Plate
Also Includes - Universal 15mm LWS Bracket
- 15mm LWS Quick Release
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bright Tangerine Left Field Top and Bottom Sliding Plates for ARRI ALEXA Mini in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sliding Baseplate Core for ARRI ALEXA Mini
| Material of Construction | Aluminum | | Compatibility | ARRI ALEXA Mini | | Mounting Threads | 1/4"-20 & ARRI Accessory Mounts | | Rod Clamp Type | 15 mm LWS | | Dimensions | 4.8 x 3.9 x 1.3" / 12.1 x 10 x 3.4 cm | | Weight | 12.7 oz / 360 g | | | | Box Dimensions (LxWxH) | 7.0 x 5.4 x 1.85" | - Sliding Top Plate Core for ARRI ALEXA Mini
| Compatibility | ARRI ALEXA Mini
ARRI MSB-1 Side Brackets
ALEXA Mini Power Distribution Module | | Mounting Threads | 1/4"-20, 3/8"-16 ARRI Accessory Mounts | | Dimensions | 5.5 x 4.6 x 0.9" / 13.8 x 11.6 x 2.2 cm | | Weight | 6.1 oz / 174 g | | | | Box Dimensions (LxWxH) | 7.2 x 5.4 x 1.7" | - Top Handle with 1/4"-20 Mounting Screws
| Material of Construction | Aluminum | | Mounting Holes | 1/4"-20 and 3/8"-16 | | Dimensions | 5.9 x 2 x 3.1" / 15 x 5 x 7.8 cm | | Weight | 8.5 oz / 240 g | | | | Box Dimensions (LxWxH) | 7.95 x 3.75 x 1.9" | - Left Field ARRI-Style Dovetail Plate
| Mount Types | Multiple:
1/4"-20
3/8"-16:
ARRI accessory mounts | | Dimensions | 3.9 x 2.6 x 0.3" / 10 x 6.7 x 0.8 cm | | Weight | 2.6 oz / 75 g | | | | Box Dimensions (LxWxH) | 7.2 x 6.85 x 0.25" |
