User Manual for Bright Tangerine Left Field Top Plate Kit for RED DSMC2 Cameras Click to enlarge the picture
Contents of the user manual for the Bright Tangerine Left Field Top Plate
- Product category: Misc. Components Bright Tangerine
- Brand: Bright Tangerine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bright Tangerine Misc. Components
 |
User manual for the Bright Tangerine Left Field Top Plate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bright Tangerine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bright Tangerine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bright Tangerine product will considerably shorten its lifespan!
|

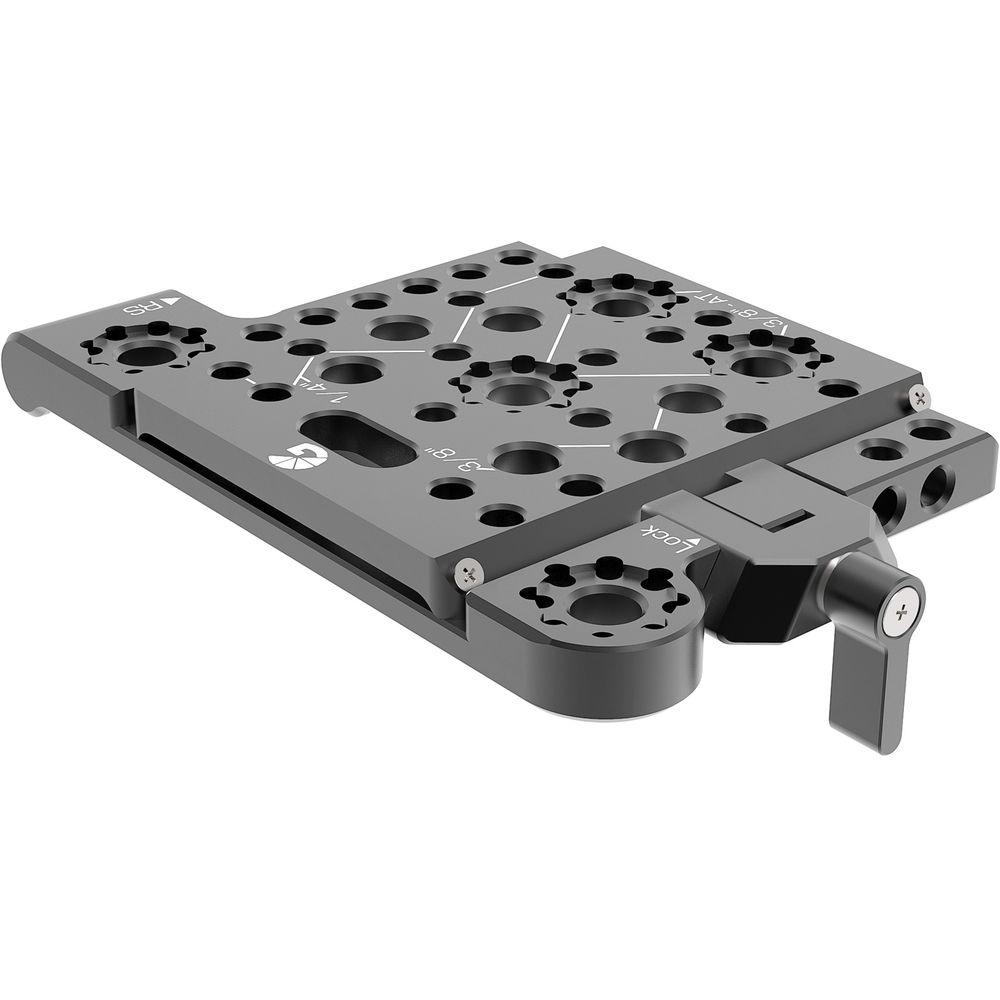

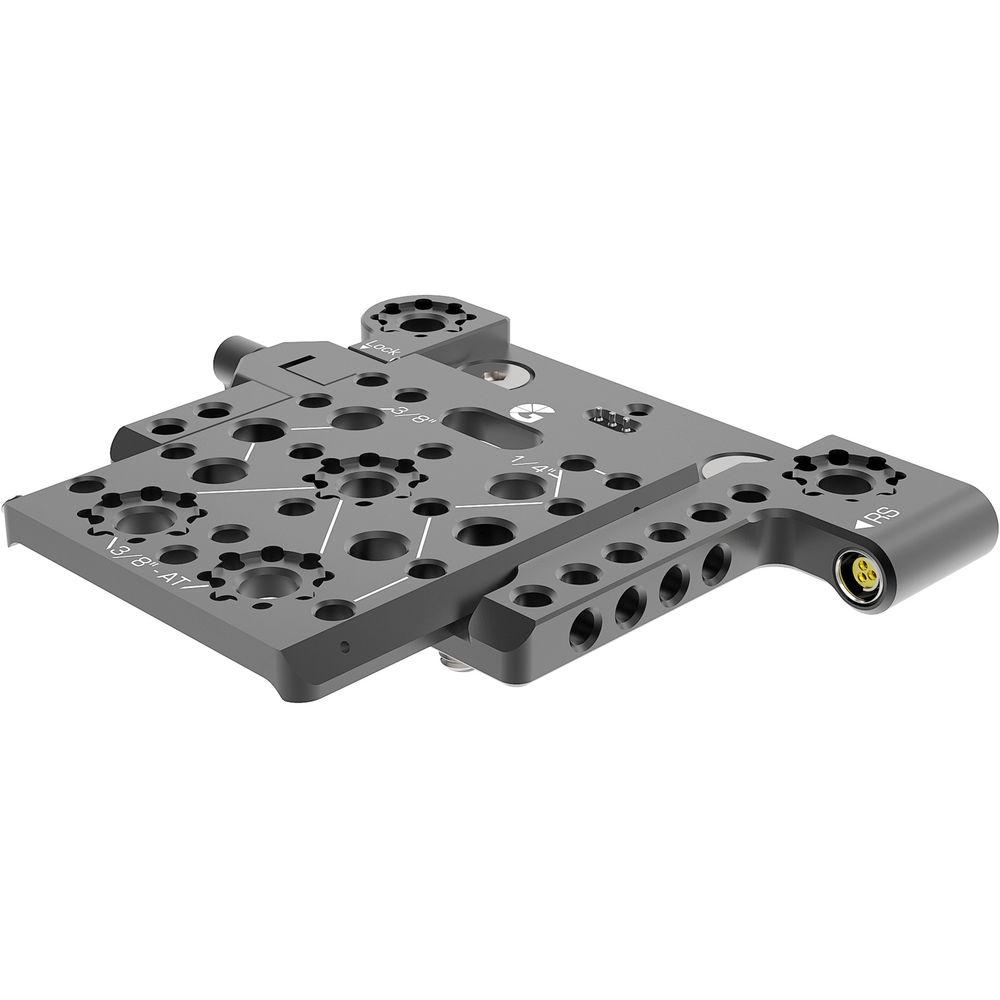

Product description Connect this low-profile, aluminum Left Field Top Plate Kit from Bright Tangerine to your RED DSMC2 camera. The kit includes a Top Plate Core and a Dovetail Plate.
The top plate core features multiple 1/4"-20 accessory threads, and two 3/8"-16 threaded ARRI accessory holes prevent twisting when mounted on the camera. Its quick release design secures the dovetail plate with a locking lever. The side accessory threads can be used to attach additional side plates to form a cage. The cheese-style dovetail plate features multiple 1/4"-20 and 3/8"-16 threaded holes and can be used as a quick release for a top handle or accessory. Two safety screws prevent the plate from sliding out of its mount.
Both the top plate core and dovetail plate are compatible with the DSMC2 Top Handle which provides run/stop capability. The top plate core has a 3-pin Fischer connector to pass the run/stop signal through, and the dovetail plate retains access to the connectors. UPC: 755899010387 In the Box Bright Tangerine Left Field Top Plate Kit for RED DSMC2 Cameras Dovetail Plate for RED DSMC2 Cameras Top Plate Core for RED DSMC2 4 x Screw Allen Wrench Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bright Tangerine Left Field Top Plate Kit for RED DSMC2 Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBright Tangerine B4002.0003 Specs | Compatibility | RED DSMC2 Cameras | | Material of Construction | Aluminum | | Mounting Threads | 1/4"-20
3/8"-16 ARRI Accessory Threads | | Connector | 3-Pin Fischer (Run/Stop Pass-Through) | | Dimensions | Not Supplied by Manufacturer | | Weight | Not Supplied by Manufacturer |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
