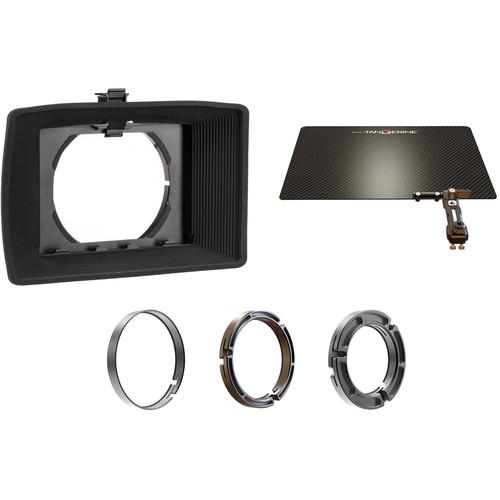

User Manual for Bright Tangerine MISFIT ATOM 2-Stage Matte Box Kit with Three Clamp-On Rings Click to enlarge the picture
Contents of the user manual for the Bright Tangerine MISFIT ATOM 2-Stage Matte
- Product category: Matte Boxes & Sunshades Bright Tangerine
- Brand: Bright Tangerine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bright Tangerine Matte Boxes & Sunshades
|
User manual for the Bright Tangerine MISFIT ATOM 2-Stage Matte contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bright Tangerine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bright Tangerine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bright Tangerine product will considerably shorten its lifespan!
|
Product description The MISFIT ATOM 2-Stage Clamp-On Matte Box Kit from Bright Tangerine combines the MISFIT ATOM matte box with 110, 95, and 80mm clamp-on rings, and a carbon fiber top flag. This basic kit enables you to use the 114mm clamp-on MISFIT ATOM on a variety of popular cine-style lenses. Compatible lenses include, but are not limited to, select Angenieux, ARRI/ZEISS, Canon, Cooke, Fujinon, Rokinon, Schneider, Sigma, Sony, Tokina, Veydra, and ZEISS models. - Bright Tangerine Misfit Atom 4 x 5.65"/4 x 4" Ultra Lightweight 2-Stage Clip-On Matte Box The Misfit Atom 4 x 5.65" / 4 x 4" Ultra Lightweight 2-Stage Clip-On Matte Box from Bright Tangerine is a small, lightweight yet strong, clamp-on matte box for lenses with an outer diameter of up to 114mm. It holds up to two 4 x 4" or 4 x 5.65" filters without using filter trays, and provides a wide field of view suitable for many wide-angle lenses even with two filters mounted.
The removable flexible hood is built to hold its shape over time, even in temperature extremes. The matte box with hood weighs in at under 7 ounces, only 3.5 ounces without the hood. This makes the matte box suitable for use with gimbals and Steadicams, and the removable hood makes the matte box an excellent choice for aerial shooting. - Made of aluminum, stainless steel, and an elasto polymer, the Misfit Atom is designed to be extremely strong and lightweight. It clamps on lenses with an outer diameter of 114mm, or smaller if you use step up adapter rings, not included. To prevent the matte box from rotating while you focus or zoom, be certain to use lenses with an internal focus design.
- You can securely insert up to two 4 x 4", 4 x 5.65", or a combination of those filters directly into the matte box without using a filter tray. A spring-loaded clamp at the top of the matte box secures the filters so they will not fall out unexpectedly.
- The Misfit Atom supports shooting with wide-angle lenses such as the Cooke 14mm and RED Pro Zooms at 5K
UPC: 755899002092 - Bright Tangerine Carbon Fiber Top Flag for Misfit Atom Matte Box Designed specifically to attach to your Misfit Atom matte box, the Bright Tangerine Carbon Fiber Top Flag can be used when you are using your rubber hood with your matte box or not. The top flag attaches to the built-in Aux Port of your Misfit Atom matte box and features over an inch of forward/back adjustment. This adjustment compensates for the depth of the matte box hood.
The top flag articulates 180°, which allows you to fold it down flat to cover the matte box/hood, or fold the flag straight up and completely out of the way. A locking lever governs the articulation, allowing you to set and lock the flag into the position that you choose. Included with the flag is the mounting hardware, so you can easily add this accessory to your matte box. - Lightweight at only 3.4 oz.
- Articulating hinge with locking lever allows you to precisely set the flag on the edge of your frame.
- The extendable/retractable arm adjusts approximately 1.2", allowing you fold the flag straight down and cover your Misfit Atom matte box with or without its hood.
UPC: 755899002115 - Bright Tangerine 114 to 110mm Clamp-On Ring for Misfit Matte Box This is a 114 to 110mm Bright Tangerine Clamp-On Ring for Bright Tangerine Misfit matte box, it allows you to clamp your matte box to the front of your lens with a 110mm front outer diameter. The ring features a split design allowing for gentle compression that holds your matte box securely on your lens. This allows you to mount your matte box on your lens without needing to use support rods.
- The ring features Z-cuts, which allow it to compress and grip the lens securely, so your matte box does not fall off. The Z-cuts also prevent light from behind the lens from reflecting of any filter and degrading your image.
UPC: 755899002313 - Bright Tangerine 114 to 95mm Clamp-On Ring for Misfit Matte Box This is a 114 to 95mm Bright Tangerine Clamp-On Ring for Bright Tangerine Misfit matte box, it allows you to clamp your matte box to the front of your lens with a 95mm front outer diameter. The ring features a split design allowing for gentle compression that holds your matte box securely on your lens. This allows you to mount your matte box on your lens without needing to use support rods.
- The ring features Z-cuts, which allow it to compress and grip the lens securely, so your matte box does not fall off. The Z-cuts also prevent light from behind the lens from reflecting of any filter and degrading your image.
UPC: 755899002344 - Bright Tangerine 114 to 80mm Clamp-On Ring for Misfit Matte Box This is a 114 to 80mm Bright Tangerine Clamp-On Ring for Bright Tangerine Misfit matte box, it allows you to clamp your matte box to the front of your lens with an 80mm front outer diameter. The ring features a split design allowing for gentle compression that holds your matte box securely on your lens. This allows you to mount your matte box on your lens without needing to use support rods.
- The ring features Z-cuts, which allow it to compress and grip the lens securely, so your matte box does not fall off. The Z-cuts also prevent light from behind the lens from reflecting of any filter and degrading your image.
UPC: 755899002368 In the Box - Misfit Atom 4 x 5.65"/4 x 4" Ultra Lightweight 2-Stage Clip-On Matte Box ezcqftqvywvyervaxarvfsrxqqzfdzdrtzb
- Detachable Lens Shade
- 114mm Clamp Attachment
- Limited 2-Year Warranty, Extendable to 5 Years with Product Registration
- Carbon Fiber Top Flag for Misfit Atom Matte Box
- 114 to 110mm Clamp-On Ring for Misfit Matte Box
- 114 to 95mm Clamp-On Ring for Misfit Matte Box
- 114 to 80mm Clamp-On Ring for Misfit Matte Box
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bright Tangerine MISFIT ATOM 2-Stage Matte Box Kit with Three Clamp-On Rings in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Bright Tangerine Misfit Atom 4 x 5.65"/4 x 4" Ultra Lightweight 2-Stage Clip-On Matte Box
| Materials | Aluminum, Elasto Polymer, Stainless Steel | | Mounting | Clamp-On | | Lens Diameter | Max: 114mm | | Filter Type | 4 x 4"
4 x 5.65" | | Total Filter Stages | 2 | | Weight | Without Filters: 6.9 oz / 195 g
Without Filters or Lens Hood: 3.5 oz / 98 g | | | | Box Dimensions (LxWxH) | 11.8 x 7.9 x 2.15" | - Bright Tangerine Carbon Fiber Top Flag for Misfit Atom Matte Box
| Material of Construction | Carbon fiber
Hard anodized aluminum
Stainless steel | | Adjustment | Forward/Back: 1.2" / 3.0 cm
Angle Up/Down: 180° | | Dimensions | 8.9 x 6.0 x 1.3" / 225 x 163 x 33 mm | | Weight | 3.4 oz / 96 g | | | | Box Dimensions (LxWxH) | 12.3 x 9.55 x 1.2" | - Bright Tangerine 114 to 110mm Clamp-On Ring for Misfit Matte Box
| Material of Construction | Delrin | | Dimensions | Ø 4.5 x 0.6" / Ø 114.0 x 14.0 mm | | Weight | 0.5 oz / 14 g | | | | Box Dimensions (LxWxH) | 7.4 x 5.85 x 1.05" | - Bright Tangerine 114 to 95mm Clamp-On Ring for Misfit Matte Box
| Material of Construction | Delrin | | Dimensions | Ø 4.5 x 0.6" / Ø 114.0 x 14.0 mm | | Weight | 1.6 oz / 44 g | | | | Box Dimensions (LxWxH) | 5.3 x 4.5 x 0.5" | - Bright Tangerine 114 to 80mm Clamp-On Ring for Misfit Matte Box
| Material of Construction | Delrin | | Dimensions | Ø 4.5 x 0.6" / Ø 114.0 x 14.0 mm | | Weight | 2.0 oz / 58 g | | | | Box Dimensions (LxWxH) | 6.7 x 4.45 x 1.25" |
