Bright Tangerine Misfit Atom Matte Box

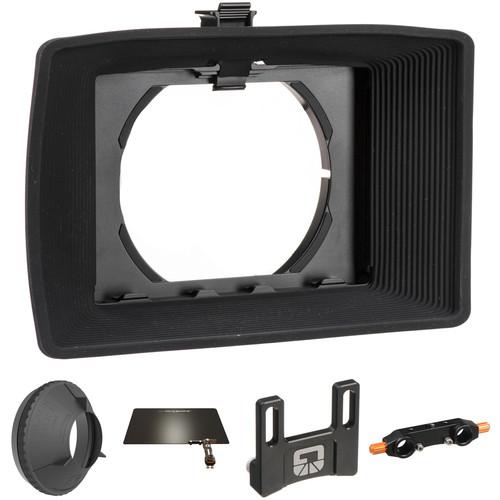

User Manual for Bright Tangerine Misfit Atom Matte Box with Top Flag, Donut & 15mm Rod Mount Accessories Kit

• Product category: Matte Boxes & Sunshades Bright Tangerine
• Brand: Bright Tangerine
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Bright Tangerine Matte Boxes & Sunshades

Product description

• Bright Tangerine Misfit Atom 4 x 5.65"/4 x 4" Ultra Lightweight 2-Stage Clip-On Matte Box
  • MISFIT
  The Misfit Atom 4 x 5.65" / 4 x 4" Ultra Lightweight 2-Stage Clip-On Matte Box from Bright Tangerine is a small, lightweight yet strong, clamp-on matte box for lenses with an outer diameter of up to 114mm. It holds up to two 4 x 4" or 4 x 5.65" filters without using filter trays, and provides a wide field of view suitable for many wide-angle lenses even with two filters mounted.

  The removable flexible hood is built to hold its shape over time, even in temperature extremes. The matte box with hood weighs in at under 7 ounces, only 3.5 ounces without the hood. This makes the matte box suitable for use with gimbals and Steadicams, and the removable hood makes the matte box an excellent choice for aerial shooting.
  • Made of aluminum, stainless steel, and an elasto polymer, the Misfit Atom is designed to be extremely strong and lightweight. It clamps on lenses with an outer diameter of 114mm, or smaller if you use step up adapter rings, not included. To prevent the matte box from rotating while you focus or zoom, be certain to use lenses with an internal focus design.
  • You can securely insert up to two 4 x 4", 4 x 5.65", or a combination of those filters directly into the matte box without using a filter tray. A spring-loaded clamp at the top of the matte box secures the filters so they will not fall out unexpectedly.
  • The Misfit Atom supports shooting with wide-angle lenses such as the Cooke 14mm and RED Pro Zooms at 5K
  UPC: 755899002092
• Bright Tangerine 114mm Black Hole Mini Rubber Donut (Conical Shape)
  • MISFIT
  The conical-shaped 114mm Black Hole Mini Rubber Donut from Bright Tangerine is designed for use with lenses that travel up to 2", with a front diameter from 58 to 114mm.
  Compatibility
  • Lenses that travel up to 2", and lenses with a diameter of 58 to 114mm
  UPC: 755899007936
• Bright Tangerine Carbon Fiber Top Flag for Misfit Atom Matte Box
  • MISFIT
  Designed specifically to attach to your Misfit Atom matte box, the Bright Tangerine Carbon Fiber Top Flag can be used when you are using your rubber hood with your matte box or not. The top flag attaches to the built-in Aux Port of your Misfit Atom matte box and features over an inch of forward/back adjustment. This adjustment compensates for the depth of the matte box hood.

  The top flag articulates 180°, which allows you to fold it down flat to cover the matte box/hood, or fold the flag straight up and completely out of the way. A locking lever governs the articulation, allowing you to set and lock the flag into the position that you choose. Included with the flag is the mounting hardware, so you can easily add this accessory to your matte box.
  • Lightweight at only 3.4 oz.
  • Articulating hinge with locking lever allows you to precisely set the flag on the edge of your frame.
  • The extendable/retractable arm adjusts approximately 1.2", allowing you fold the flag straight down and cover your Misfit Atom matte box with or without its hood.
  UPC: 755899002115
• Bright Tangerine Lightweight Rod Bracket Type 4 for Misfit Clamp Lens Attachment and 15 LWS Rods
  • MISFIT
  The Bright Tangerine 15mm Lightweight Rod Bracket Type 4 allows you to convert your Misfit matte box from a clip-on or swing away type to a rod mounted matte box. This provides you with a simplified rod mounted solution for your Misfit matte box. To complete the conversion you will also need a Bright Tangerine 15mm Lightweight Rod Bracket Type 3, which is not included.
  • Compatible with Clamp Lens Attachment of Misfit matte box ranging from 114mm to 80mm
  • Easily switch your Misfit matte box to a rod mount matte box from clip-on or swing away mode
  • Built from precision cut and hard anodized aluminum and stainless steel
  UPC: 755899002047
• Bright Tangerine 15mm LWS Rod Bracket
  • MISFIT
  The Bright Tangerine 15mm LWS Rod Bracket can be used for multiple purposes within different setups of Bright Tangerine gear. In some cases additional accessories are required.

  On its own, the 15mm LWS Rod Bracket allows you to attach Bright Tangerine Misfit 143mm Clamp-On matte boxes and Viv and Viv 5" matte boxes to 15 LWS rods (MFR #s B1230.0016, B1230.0017, B1210.1010, B1210.1011, B1210.0010, B1210.0011, B1210.1010, B1210.1011, B1210.0012, B1210.0013).

  If you incorporate the optional 15mm LWS Bracket Adapter (MFR # B1230.1005), the Rod Bracket can be used to secure Misfit 114mm Clamp-On and Misfit Atom matte boxes to 15mm LWS rods (MFR #s B1230.0014, B1230.0015, B1230.1007, B1230.0011, B1230.0012, B1230.0013).

  The 15mm LWS Rod Bracket is also a required accessory when using the Strummer 19mm and Strummer 15mm Studio Brackets (MFR # B1200.1017 and B1200.1018).
  Key Features
  • • Convert Misfit, Misfit Atom, and Viv/Viv 5" matte boxes from clip-on or swing-away mount to rod-mount (additional accessories required in some cases)
    • Also compatible with 15mm and 19mm Strummer Studio Brackets
  UPC: 755899001675

• Misfit Atom 4 x 5.65"/4 x 4" Ultra Lightweight 2-Stage Clip-On Matte Box crfvcsrrqxzcvxqwzswxexzzaawcra
• Detachable Lens Shade
• 114mm Clamp Attachment
• Limited 2-Year Warranty, Extendable to 5 Years with Product Registration

• 114mm Black Hole Mini Rubber Donut (Conical Shape)

• Carbon Fiber Top Flag for Misfit Atom Matte Box

• Lightweight Rod Bracket Type 4 for Misfit Clamp Lens Attachment and 15 LWS Rods

• 15mm LWS Rod Bracket

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Bright Tangerine Misfit Atom 4 x 5.65"/4 x 4" Ultra Lightweight 2-Stage Clip-On Matte Box

  Materials	Aluminum, Elasto Polymer, Stainless Steel
  Mounting	Clamp-On
  Lens Diameter	Max: 114mm
  Filter Type	4 x 4" 4 x 5.65"
  Total Filter Stages	2
  Weight	Without Filters: 6.9 oz / 195 g Without Filters or Lens Hood: 3.5 oz / 98 g

  Box Dimensions (LxWxH)	11.8 x 7.9 x 2.15"

• Bright Tangerine 114mm Black Hole Mini Rubber Donut (Conical Shape)

  Material	Rubber
  Diameter	4.5" (114 mm)
  Weight	Not specified by the manufacturer

  Box Dimensions (LxWxH)	5.1 x 4.5 x 1.0"

• Bright Tangerine Carbon Fiber Top Flag for Misfit Atom Matte Box

  Material of Construction	Carbon fiber Hard anodized aluminum Stainless steel
  Adjustment	Forward/Back: 1.2" / 3.0 cm Angle Up/Down: 180°
  Dimensions	8.9 x 6.0 x 1.3" / 225 x 163 x 33 mm
  Weight	3.4 oz / 96 g

  Box Dimensions (LxWxH)	12.3 x 9.55 x 1.2"

• Bright Tangerine Lightweight Rod Bracket Type 4 for Misfit Clamp Lens Attachment and 15 LWS Rods

  Compatibility	114 to 80 mm
  Dimensions	1.5 x 1.5 x 0.6" / 39.0 x 38.0 x 15.0 mm
  Weight	0.6 oz / 16.0 g

  Box Dimensions (LxWxH)	4.6 x 1.9 x 0.85"

• Bright Tangerine 15mm LWS Rod Bracket

  Material of Construction	Hard-anodized aluminum
  Dimensions	4.8 x 0.9 x 0.8" (12.3 x 2.2 x 2 cm)
  Weight	2.1 oz (60 g)

  Box Dimensions (LxWxH)	6.3 x 2.1 x 1.35"
