Bright Tangerine Misfit Matte Box Multi

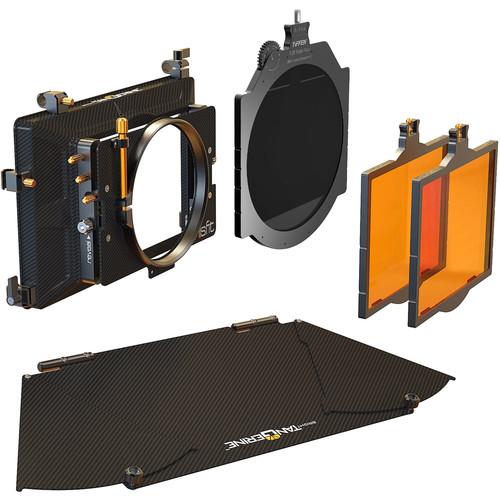

User Manual for Bright Tangerine Misfit Matte Box Multi Rota Tray & Filter Promo Kit 1

• Product category: Matte Boxes & Sunshades Bright Tangerine
• Brand: Bright Tangerine
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Bright Tangerine Matte Boxes & Sunshades

Product description

• Misfit Matte Box Core This is the core foundation of the Bright Tangerine Misfit Matte Box. It features the core frame, carbon fiber shade, and a two-stage/three-stage adjustable filter stage assembly. Ultra compact and lightweight, this 4 x 5.65" matte box can go from accepting two filters to accepting three filters in a few seconds, without adding a third stage.

  It is compatible with Bright tangerine's 114 and 143mm lens-clamp rings, and it will cover lenses as wide as a 14mm Cooke S4 and RED Pro Zoom at 5K. The Misfit also supports an optional rod-mount swing-away bracket and arm assembly for more efficient lens swaps (swing away assembly not included.)
  Reveal Stage
  • Built into the two-stage filter tray is a reveal stage that expands to allow you to insert a third filter tray: no need to mount an additional filter stage.
  Top and Side Flag Mounts
  • The Misfit incorporates built-in top and side flag mounts for available, but not included, top and side flags. The top mount also incorporates a mounting slot for the glide rail accessory (not included.)
  UPC: 755899001989
• 4x5.65" Horizontal Filter Tray for Misfit This is a 4x5.65" horizontal Bright Tangerine Filter Tray for the Bright Tangerine Misfit matte box. The Misfit matte box, not included, can accept 4x5.65" filter trays. This filter tray allows you to use a 4x5.65" filter. UPC: 755899001996
• 114mm Clamp Lens Attachment for Misfit Matte Box This Bright Tangerine 114mm Clamp Lens Attachment mounts on your Misfit matte box and allows you to clamp it onto a lens with a 114mm outer diameter. The clamp is made from a combination of Carbon Fiber, hard anodized aluminum, and stainless steel. It also allows you to switch your Misfit matte box from a 2 filter stage to a 3 filter stage quickly by loosening two thrumbscrews.

  You will need to use this setup with lenses that do not have a rotating front. UPC: 755899002122
• Multi Rota Tray Variable Neutral Density Kit The Tiffen Multi Rota Tray Variable Neutral Density Kit is a single geared rotating tray that allows the use and rotation of a 138mm Circular Polarizer filter and a 4x5.65" Circular Polarizer simultaneously. The tray is designed for use with matte boxes that lack a rotating filter stage, or for instances where a secondary rotating filter stage is required in a non-rotating stage. It can be used with just the included geared 138mm Circular Polarizer, or paired with the included 4x5.65" Circular Polarizer to function as a variable neutral density filter or to produce warm/cool effects, depending on the direction the tray and 4x5.65" filter are facing..

  The Multi Rota Tray fits into matte boxes which conform to the ARRI R2 tray size standard and its geared adjustment provides precise either by control by hand or a 0.8 MOD (32 pitch) gear wheel on a follow focus. It comes packaged in a rugged, compartmentalized storage case for protection and easy transport of the tray and included filters.
  Key Features
  • • Accommodates one geared 138mm Circular Polarizer and one fixed 4x5.65" Circular Polarizer (filters included)
    • 6mm ARRI R2 standard 4x5.65" tray for use with matte boxes
    • Extra 4x5.65" Circular Polarizer included
    • Three Filter Effect Combinations: Polarizer, neutral density (up to 6-stops, depending on focal length), or warm/cool FX
    • Geared adjustment for precision control by hand or standard 0.8 MOD (32 pitch) gear wheel
    • Quick-release 4x5.65" filter attachment/removal
    • Tray engravings provide easy positioning
    • Protective case included
  UPC: 884613028787

• Top Flag with Dual Articulating Side Wing for Viv, Viv 5" and Misfit

• Limited 2-Year Warranty, Extendable to 5 Years with Product Registration

• Limited 5-Year Warranty

• Limited 2-Year Warranty, Extendable to 5 with Product Registration

• Multi Rota Tray with 138mm Circular Polarizer

• 4 x 5.65" Circular Polarizer Filter for Tiffen Multi Rota Tray

• Storage Case

• Limited 10-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Misfit Matte Box Core

  Diameter	143 mm max using optional clamp-on attachments
  Supported Filter Trays	4 x 4", 4 x 5.65"
  Material	Carbon fiber, hard anodized aluminum
  Dimensions	9.4 x 6.9 x 2.3" / 240.0 x 175.0 x 58.0 mm
  Weight	7.2 oz / 203.0 g

  Box Dimensions (LxWxH)	10.1 x 6.3 x 5.1"

• 4x5.65" Horizontal Filter Tray for Misfit

  Material

  Hard anodized aluminium

  Box Dimensions (LxWxH)	7.0 x 6.0 x 0.75"

• 114mm Clamp Lens Attachment for Misfit Matte Box

  Material of Construction	Anodized aluminum Carbon fiber Stainless steel
  Clamp Size	114mm
  Dimensions	7.6 x 5.7 x 1.0" / 192.0 x 144.0 x 26.0 mm
  Weight	3.7 oz / 105.0 g

  Box Dimensions (LxWxH)	7.75 x 5.7 x 1.0"

• Multi Rota Tray Variable Neutral Density Kit

  Tray Size	4 x 5.65"
  Thickness	0.24" (6 mm), ARRI R2 standard

  Box Dimensions (LxWxH)	10.7 x 8.6 x 4.5"

• Top Flag with Dual Articulating Side Wing for Viv, Viv 5" and Misfit
