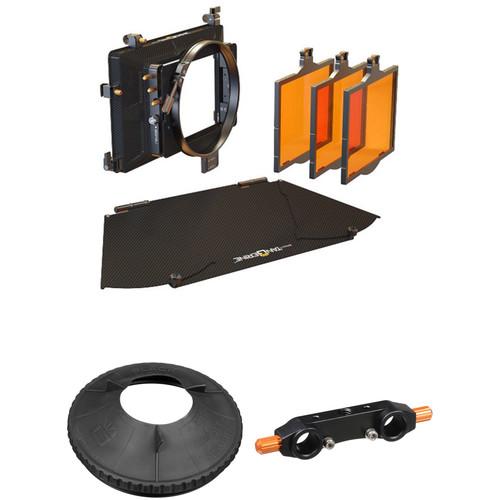

User Manual for Bright Tangerine Misfit Matte Box with 143mm Black Hole Donut Kit Click to enlarge the picture
Contents of the user manual for the Bright Tangerine Misfit Matte Box with
- Product category: Matte Boxes & Sunshades Bright Tangerine
- Brand: Bright Tangerine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bright Tangerine Matte Boxes & Sunshades
|
User manual for the Bright Tangerine Misfit Matte Box with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bright Tangerine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bright Tangerine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bright Tangerine product will considerably shorten its lifespan!
|
Product description This Kit features the Bright Tangerine Misfit Matte Box with a 143mm clamp lens attachment and a 143mm Black Hole Donut. The donut is made of elasto polymer material and creates a light seal for any lens with a front diameter between 62 to 143mm. It can also hold a 138mm round filter in the front. The Misfit matte box is made of carbon fiber and supports up to three filters. - Bright Tangerine Misfit Matte Box Kit 4
- Bright Tangerine Misfit Matte Box Overview
Bridging the gap between compact clip-on sunshades and multi-staged matte boxes, Bright Tangerine's Misfit Matte Box Kit is versatile while remaining lightweight. This kit is based on the carbon fiber Misfit core, which can hold two 4x5.65" filters and, with the twist of a knob, can be expanded to hold three filters. For holding filters, three trays are included, and they mount in the Misfit's fixed stages. Also included is a carbon fiber top flag for blocking any reflections. Once you're ready to mount the matte box to your lens, use the 143mm clamp to secure it to the front and you're ready to shoot. See below for more information on the individual items included in this kit. UPC: 755899002863 - Bright Tangerine 143mm Black Hole Donut for Viv, Viv 5", Misfit, and Strummer DNA
- Bright Tangerine Misfit Matte Box Overview
Bright Tangerine's 143mm Black Hole Donut works with lenses with a front outer diameter between 62 and 143mm. It is compatible with Bright Tangerine Viv, Viv 5", Misfit, and Strummer DNA matte boxes as well as select ARRI matte boxes. The black elasto polymer stretches to fit on your lens, and features a conical shape that allows for two inches of lens travel.
The Black Hole Donut is fitted with a 138mm filter ring and threaded retaining ring. This allows you to mount your 138mm filters into the front of the donut, which is then attached to the front of your matte box. - The Black Hole Donut expands to fit lenses with diameters between 62 and 143mm.
- With two inches of travel, you can use this lens donut with lenses that change size as you change focus.
UPC: 755899001347 - Bright Tangerine 15mm LWS Rod Bracket
- Bright Tangerine Misfit Matte Box Overview
The Bright Tangerine 15mm LWS Rod Bracket can be used for multiple purposes within different setups of Bright Tangerine gear. In some cases additional accessories are required.
On its own, the 15mm LWS Rod Bracket allows you to attach Bright Tangerine Misfit 143mm Clamp-On matte boxes and Viv and Viv 5" matte boxes to 15 LWS rods (MFR #s B1230.0016, B1230.0017, B1210.1010, B1210.1011, B1210.0010, B1210.0011, B1210.1010, B1210.1011, B1210.0012, B1210.0013).
If you incorporate the optional 15mm LWS Bracket Adapter (MFR # B1230.1005), the Rod Bracket can be used to secure Misfit 114mm Clamp-On and Misfit Atom matte boxes to 15mm LWS rods (MFR #s B1230.0014, B1230.0015, B1230.1007, B1230.0011, B1230.0012, B1230.0013).
The 15mm LWS Rod Bracket is also a required accessory when using the Strummer 19mm and Strummer 15mm Studio Brackets (MFR # B1200.1017 and B1200.1018). - Key Features
-
- Convert Misfit, Misfit Atom, and Viv/Viv 5" matte boxes from clip-on or swing-away mount to rod-mount (additional accessories required in some cases)
- Also compatible with 15mm and 19mm Strummer Studio Brackets
UPC: 755899001675 In the Box - Misfit Matte Box Kit 4 aevcsyftsc
- Misfit Matte Box Core
- Top Flag for Viv, Viv 5", or Misfit Matte Boxes
- 3 x 4x5.65" Horizontal Filter Tray for Misfit
- 143mm Clamp Lens Attachment for Misfit Matte Box
- 143mm Black Hole Donut for Viv, Viv 5", Misfit, and Strummer DNA
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bright Tangerine Misfit Matte Box with 143mm Black Hole Donut Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Bright Tangerine Misfit Matte Box Core
| Diameter | 143 mm max using optional clamp-on attachments | | Supported Filter Trays | 4 x 4", 4 x 5.65" | | Material | Carbon fiber, hard anodized aluminum | | Dimensions | 9.4 x 6.9 x 2.3" / 240.0 x 175.0 x 58.0 mm | | Weight | 7.2 oz / 203.0 g | | | | Box Dimensions (LxWxH) | 10.1 x 6.3 x 5.1" | - Bright Tangerine Top Flag for Viv, Viv 5", or Misfit Matte Boxes
| Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 11.1 x 6.3 x 0.2" | - Bright Tangerine 4x5.65" Horizontal Filter Tray for Misfit
| Material | Hard anodized aluminium | | | | Box Dimensions (LxWxH) | 7.0 x 6.0 x 0.75" | - Bright Tangerine 143mm Clamp Lens Attachment for Misfit Matte Box
| Material of Construction | Anodized aluminum
Carbon fiber
Stainless steel | | Clamp Size | 143mm | | Dimensions | 7.6 x 6.9 x 1.1" / 192.0 x 175.0 x 28.0 mm | | Weight | 4.4 oz / 125.0 g | | | | Box Dimensions (LxWxH) | 7.6 x 6.6 x 0.9" | - Bright Tangerine 143mm Black Hole Donut for Viv, Viv 5", Misfit, and Strummer DNA
| Material of Construction | Elasto polymer
Anodized aluminum
Silicon nitride
Delrin | | Lens Diameter | 62 to 143 mm | | Filter Attachment | 138 mm | | Dimensions | 6.3 x 1.0" / 160.0 x 25.0 mm | | Weight | 3.6 oz / 103.0 g | | | | Box Dimensions (LxWxH) | 6.55 x 6.1 x 1.3" | - Bright Tangerine 15mm LWS Rod Bracket
| Material of Construction | Hard-anodized aluminum | | Dimensions | 4.8 x 0.9 x 0.8" (12.3 x 2.2 x 2 cm) | | Weight | 2.1 oz (60 g) | | | | Box Dimensions (LxWxH) | 6.3 x 2.1 x 1.35" |
