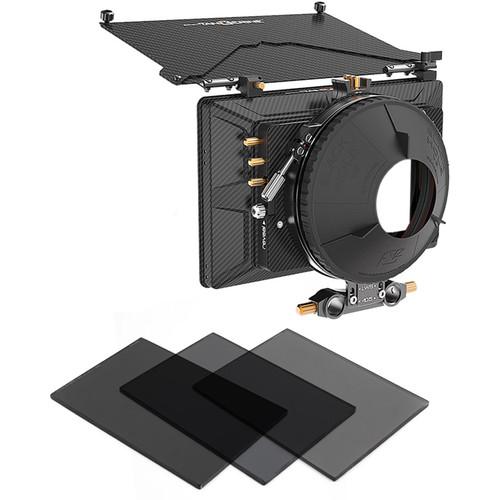

Bright Tangerine Misfit NATural ND Bundle

User Manual for Bright Tangerine Misfit NATural ND Bundle 4

• Product category: Matte Boxes & Sunshades Bright Tangerine
• Brand: Bright Tangerine
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Bright Tangerine Matte Boxes & Sunshades

Product description

• Misfit Matte Box Kit 4 Bridging the gap between compact clip-on sunshades and multi-staged matte boxes, Bright Tangerine's Misfit Matte Box Kit is versatile while remaining lightweight. This kit is based on the carbon fiber Misfit core, which can hold two 4x5.65" filters and, with the twist of a knob, can be expanded to hold three filters. For holding filters, three trays are included, and they mount in the Misfit's fixed stages. Also included is a carbon fiber top flag for blocking any reflections. Once you're ready to mount the matte box to your lens, use the 143mm clamp to secure it to the front and you're ready to shoot. See below for more information on the individual items included in this kit. UPC: 755899002863
• 143mm Black Hole Donut for Viv, Viv 5", Misfit, and Strummer DNA Bright Tangerine's 143mm Black Hole Donut works with lenses with a front outer diameter between 62 and 143mm. It is compatible with Bright Tangerine Viv, Viv 5", Misfit, and Strummer DNA matte boxes as well as select ARRI matte boxes. The black elasto polymer stretches to fit on your lens, and features a conical shape that allows for two inches of lens travel.

  The Black Hole Donut is fitted with a 138mm filter ring and threaded retaining ring. This allows you to mount your 138mm filters into the front of the donut, which is then attached to the front of your matte box.
  • The Black Hole Donut expands to fit lenses with diameters between 62 and 143mm.
  • With two inches of travel, you can use this lens donut with lenses that change size as you change focus.
  UPC: 755899001347
• 15mm LWS Rod Bracket The Bright Tangerine 15mm LWS Rod Bracket can be used for multiple purposes within different setups of Bright Tangerine gear. In some cases additional accessories are required.

  On its own, the 15mm LWS Rod Bracket allows you to attach Bright Tangerine Misfit 143mm Clamp-On matte boxes and Viv and Viv 5" matte boxes to 15 LWS rods (MFR #s B1230.0016, B1230.0017, B1210.1010, B1210.1011, B1210.0010, B1210.0011, B1210.1010, B1210.1011, B1210.0012, B1210.0013).

  If you incorporate the optional 15mm LWS Bracket Adapter (MFR # B1230.1005), the Rod Bracket can be used to secure Misfit 114mm Clamp-On and Misfit Atom matte boxes to 15mm LWS rods (MFR #s B1230.0014, B1230.0015, B1230.1007, B1230.0011, B1230.0012, B1230.0013).

  The 15mm LWS Rod Bracket is also a required accessory when using the Strummer 19mm and Strummer 15mm Studio Brackets (MFR # B1200.1017 and B1200.1018).
  Key Features
  • • Convert Misfit, Misfit Atom, and Viv/Viv 5" matte boxes from clip-on or swing-away mount to rod-mount (additional accessories required in some cases)
    • Also compatible with 15mm and 19mm Strummer Studio Brackets
  UPC: 755899001675
• 4 x 5.65" Water White Glass NATural IRND 1.5 Filter (5-Stop) The Tiffen 4 x 5.65" Water White Glass NATural IRND 1.5 Filter is a neutral density filter with a 32x filter factor that provides a 5-stop exposure reduction. Its 1.5 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By increasing your aperture or slowing your exposure time, you are able to control depth of field and convey movement more easily. Neutral density filters are intended to not affect the coloration of the image and are ideal for pairing with other filters.The design of this filter has been optimized for use with digital sensors and to promote nearly flat attenuation of visible and infrared light. Due to imaging sensors' greater susceptibility to infrared light, compared to traditional film, color casts can occur when photographing darker subjects that require increased exposure times.

  This Tiffen 4 x 5.65" Water White Glass NATural IRND 1.5 Filter is constructed from Water White glass for increased clarity as well as color fidelity. It is made using ColorCore technology, a process that involves laminating the filter substrate between two pieces of optical glass and grinding flat to a tolerance of 1/10,000th of an inch. It measures 4mm thick.
  • 4 x 5.65" neutral density filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 5-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
  • Filter does not affect coloration of the image and is ideal for use with other filters.
  • Constructed from Water White glass for increased optical clarity.
  • Noncoated.
  • Padded pouch included for storage and transport.
  UPC: 884613033828
• 4 x 5.65" Water White Glass NATural IRND 1.8 Filter (6-Stop) The Tiffen 4 x 5.65" Water White Glass NATural IRND 1.8 Filter is a neutral density filter with a 64x filter factor that provides a 6-stop exposure reduction. Its 1.8 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By increasing your aperture or slowing your exposure time, you are able to control depth of field and convey movement more easily. Neutral density filters are intended to not affect the coloration of the image and are ideal for pairing with other filters.The design of this filter has been optimized for use with digital sensors and to promote nearly flat attenuation of visible and infrared light. Due to imaging sensors' greater susceptibility to infrared light, compared to traditional film, color casts can occur when photographing darker subjects that require increased exposure times.

  This Tiffen 4 x 5.65" Water White Glass NATural IRND 1.8 Filter is constructed from Water White glass for increased clarity as well as color fidelity. It is made using ColorCore technology, a process that involves laminating the filter substrate between two pieces of optical glass and grinding flat to a tolerance of 1/10,000th of an inch. It measures 4mm thick.
  • 4 x 5.65" neutral density filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 6-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
  • Filter does not affect coloration of the image and is ideal for use with other filters.
  • Constructed from Water White glass for increased optical clarity.
  • Noncoated.
  • Padded pouch included for storage and transport.
  UPC: 884613034023
• 4 x 5.65" Water White Glass NATural IRND 2.1 Filter (7-Stop) The Tiffen 4 x 5.65" Water White Glass NATural IRND 2.1 Filter is a neutral density filter with a 128x filter factor that provides a 7-stop exposure reduction. Its 2.1 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By increasing your aperture or slowing your exposure time, you are able to control depth of field and convey movement more easily. Neutral density filters are intended to not affect the coloration of the image and are ideal for pairing with other filters.The design of this filter has been optimized for use with digital sensors and to promote nearly flat attenuation of visible and infrared light. Due to imaging sensors' greater susceptibility to infrared light, compared to traditional film, color casts can occur when photographing darker subjects that require increased exposure times.

  This Tiffen 4 x 5.65" Water White Glass NATural IRND 2.1 Filter is constructed from Water White glass for increased clarity as well as color fidelity. It is made using ColorCore technology, a process that involves laminating the filter substrate between two pieces of optical glass and grinding flat to a tolerance of 1/10,000th of an inch. It measures 4mm thick.
  • 4 x 5.65" neutral density filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 7-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
  • Filter does not affect coloration of the image and is ideal for use with other filters.
  • Constructed from Water White glass for increased optical clarity.
  • Noncoated.
  • Padded pouch included for storage and transport.
  UPC: 884613034030

• Misfit Matte Box Core

• Top Flag for Viv, Viv 5", or Misfit Matte Boxes

3 x
• 4x5.65" Horizontal Filter Tray for Misfit

• 143mm Clamp Lens Attachment for Misfit Matte Box

• Limited 2-Year Warranty, Extendable to 5 Years with Product Registration

• Limited 5-Year Warranty

• Filter Pouch

• Limited 10-Year Warranty

• Filter Pouch

• Limited 10-Year Warranty

• Filter Pouch

• Limited 10-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Misfit Matte Box Kit 4

  Box Dimensions (LxWxH)	12.1 x 8.4 x 2.9"

• 143mm Black Hole Donut for Viv, Viv 5", Misfit, and Strummer DNA

  Material of Construction	Elasto polymer Anodized aluminum Silicon nitride Delrin
  Lens Diameter	62 to 143 mm
  Filter Attachment	138 mm
  Dimensions	6.3 x 1.0" / 160.0 x 25.0 mm
  Weight	3.6 oz / 103.0 g

  Box Dimensions (LxWxH)	6.55 x 6.1 x 1.3"

• 15mm LWS Rod Bracket

  Material of Construction	Hard-anodized aluminum
  Dimensions	4.8 x 0.9 x 0.8" (12.3 x 2.2 x 2 cm)
  Weight	2.1 oz (60 g)

  Box Dimensions (LxWxH)	6.3 x 2.1 x 1.35"

• 4 x 5.65" Water White Glass NATural IRND 1.5 Filter (5-Stop)

  Filter Type	Solid ND Combination
  Combination Type	IR Attenuation
  Density	1.5 (5 Stops)
  Rectangular Size	4 x 5.65" / 101.6 x 143.5 mm
  Filter Thickness	0.16" / 4 mm
  Filter Material	Glass
  Coatings	None

  Box Dimensions (LxWxH)	6.4 x 5.1 x 1.1"

• 4 x 5.65" Water White Glass NATural IRND 1.8 Filter (6-Stop)

  Filter Type	Solid ND Combination
  Combination Type	IR Attenuation
  Density	1.8 (6 Stops)
  Rectangular Size	4 x 5.65" / 101.6 x 143.5 mm
  Filter Thickness	0.16" / 4 mm
  Filter Material	Glass
  Coatings	None

  Box Dimensions (LxWxH)	6.4 x 5.1 x 1.1"

• 4 x 5.65" Water White Glass NATural IRND 2.1 Filter (7-Stop)

  Filter Type	Solid ND Combination
  Combination Type	IR Attenuation
  Density	2.1 (7 Stops)
  Rectangular Size	4 x 5.65" / 101.6 x 143.5 mm
  Filter Thickness	0.16" / 4 mm
  Filter Material	Glass
  Coatings	None

  Box Dimensions (LxWxH)	6.4 x 5.2 x 1.0"
