Bright Tangerine Misfit VND Matte Box

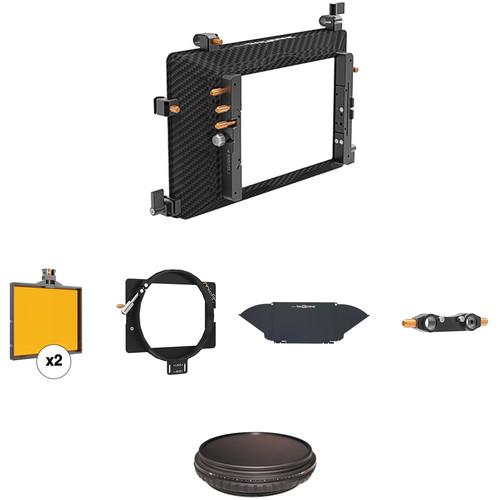

User Manual for Bright Tangerine Misfit VND Matte Box Kit

• Product category: Matte Boxes & Sunshades Bright Tangerine
• Brand: Bright Tangerine
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Bright Tangerine Matte Boxes & Sunshades

Product description

• Misfit Matte Box Core This is the core foundation of the Bright Tangerine Misfit Matte Box. It features the core frame, carbon fiber shade, and a two-stage/three-stage adjustable filter stage assembly. Ultra compact and lightweight, this 4 x 5.65" matte box can go from accepting two filters to accepting three filters in a few seconds, without adding a third stage.

  It is compatible with Bright tangerine's 114 and 143mm lens-clamp rings, and it will cover lenses as wide as a 14mm Cooke S4 and RED Pro Zoom at 5K. The Misfit also supports an optional rod-mount swing-away bracket and arm assembly for more efficient lens swaps (swing away assembly not included.)
  Reveal Stage
  • Built into the two-stage filter tray is a reveal stage that expands to allow you to insert a third filter tray: no need to mount an additional filter stage.
  Top and Side Flag Mounts
  • The Misfit incorporates built-in top and side flag mounts for available, but not included, top and side flags. The top mount also incorporates a mounting slot for the glide rail accessory (not included.)
  UPC: 755899001989
• 4x5.65" Horizontal Filter Tray for Misfit This is a 4x5.65" horizontal Bright Tangerine Filter Tray for the Bright Tangerine Misfit matte box. The Misfit matte box, not included, can accept 4x5.65" filter trays. This filter tray allows you to use a 4x5.65" filter. UPC: 755899001996
• Top Flag for Viv, Viv 5", or Misfit Matte Boxes Add extra flare control to your matte box with this Bright Tangerine Top Flag. The carbon fiber design is lightweight and matches the aesthetic of Bright Tangerine matte boxes. Use the integrated quick release attachment system for mounting on your Viv, Viv 5", or Misfit matte box. Integrated variable side wings expand from the sides of the top flag for additional light blocking. Knurled knobs allow you to set the exact position of the side wing and lock it in place. The top flag can also be used as a bottom flag for controlling glare from below your camera. UPC: 755899002733
• 138mm Variable ND in Matte Box-Mountable Rubber Donut for 143mm Openings Tiffen's 138mm Variable ND in Matte Box-Mountable Rubber Donut for 143mm Openings provides approximately six stops of variable neutral density control without taking up any filter tray space. The variable ND is incorporated within a rubber donut that fits into a wide variety of matte boxes with a 143mm rear opening. It features a minimum of two and a maximum of eight stops of light attenuation.

  The variable ND has no impact on the field of view that a standard donut that accepts a 138mm filter has, so there is no change to your workflow or shooting style. It features evenly spaced index marks from two to eight stops, but these are not calibrated marks and do not indicate amount of attenuation. A 114mm threaded rear ring accepts ARRI R2 compatible threaded reduction rings. The rubber donut is compatible with matte boxes from ARRI, Tilta, Movcam, Vocas, and Bright Tangerine.
  • Up to six stops of VND (Variable Neutral Density), with a minimum of two stops going up to eight stops (ND .6 to ND 2.4)
  • Fits directly into select rod-mounted matte boxes with a 143mm rear port
  • Rubber donut is supplied with a 114mm light prevention ring, which accepts ARRI R2 compatible threaded reduction rings
  • The outside of the ring features non-calibrated indexed markings for minimum and maximum settings
  Compatibility
  • ARRI
    MMB-1
    MB-14
    MB-18
    MB-19
    MB-25

    Bright Tangerine
    Strummer DNA
    VIV
    VIV5
    Misfit

    Movcam
    MM_1
    MM-2

    Tilta
    MB-T04

    Vocas
    MB455
  UPC: 884613028800

• Limited 2-Year Warranty, Extendable to 5 Years with Product Registration

• Limited 5-Year Warranty

• Limited 2-Year Warranty, Extendable to 5-Years with Product Registration

• 114mm Light Prevention Threaded Rear Ring

• Limited 10-Year Warranty

Also Includes

• 15mm LWS Rod Mount

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Misfit Matte Box Core

  Diameter	143 mm max using optional clamp-on attachments
  Supported Filter Trays	4 x 4", 4 x 5.65"
  Material	Carbon fiber, hard anodized aluminum
  Dimensions	9.4 x 6.9 x 2.3" / 240.0 x 175.0 x 58.0 mm
  Weight	7.2 oz / 203.0 g

  Box Dimensions (LxWxH)	10.1 x 6.3 x 5.1"

• 4x5.65" Horizontal Filter Tray for Misfit

  Material

  Hard anodized aluminium

  Box Dimensions (LxWxH)	7.0 x 6.0 x 0.75"

• Top Flag for Viv, Viv 5", or Misfit Matte Boxes

  Dimensions	Not specified by manufacturer
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	11.1 x 6.3 x 0.2"

• 138mm Variable ND in Matte Box-Mountable Rubber Donut for 143mm Openings

  Filter Size	138 mm
  Dimensions (W x Depth)	6.13 x 1.38" / 15.57 x 3.5 cm
  Weight	0.7 lb / 0.31 kg

  Box Dimensions (LxWxH)	10.6 x 8.4 x 4.3"
