Product description

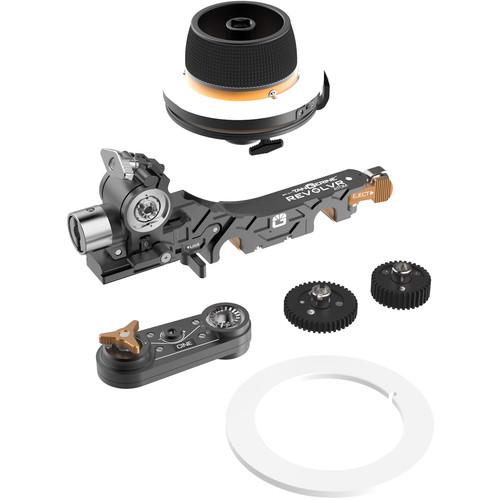

• Revolvr Atom 15mm Lightweight Core Bridge The Bright Tangerine Revolvr Atom 15mm Lightweight Core Bridge is the very heart of a precision-made, smoothly operating follow focus unit. It requires the addition of a swing arm, focus drive gear, and follow focus handwheel or crank to create a functional follow focus unit. The Revolvr Atom 15mm Lightweight Core Bridge is a small unit that accepts a single handwheel. It is suitable for use during handheld operation or in tight spaces where space is at a premium.

  The core accepts both Bright Tangerine swing arms, and features a gearbox that provides a backlash-free experience with virtually no play. The snap-on clamps mount the Lightweight Core Bridge on 15mm LWS support rods. Custom rod adapters by Bright Tangerine allow you to mount the core on 15 or 19mm studio rods (rod adapters not included).
  • Snap-on rod clamps with built-in safety
  • Works with Bright Tangerine Revolvr Swing Arm Cine or Revolvr Atom Swing Arm
  • Compatible with Revolvr and Revolvr Atom handwheels, the Revolvr 3" Handwheel Extension, and the 4D Speed Crank, as well as the Bright Tangerine 270° focus whip
  UPC: 755899003075
• Revolvr Focus Handwheel Designed to work seamlessly with your Bright Tangerine Revolvr or Revolvr Atom focus unit, the Revolvr Focus Handwheel provides a raised gripping surface for a secure grip. Featuring a ribbed surface with a built-in keyway depression that allows you to find your place on the handwheel without having to take your eyes off the action. You can mount the handwheel on either side of you focus unit, so you can pull focus from either side of the lens just by switching it to the other side.

  The handwheel also includes a removable Delrin marking disc, and it features an industry-standard accessory socket for optional whips and cranks. With an optional pack of two removable soft/hard stops, you can mount and adjust the position of either stop on the handwheel. Each stop features an index line, so you can set multiple focus points on your handwheel. Pressing the plunger activates the hard stops, which can be set to provide limits to lens rotation when working with endlessly rotating lenses. With the plunger released, the hard stops become soft stops, allowing you to use your fingers to stop the rotation of your focus wheel.
  Handwheel Surface
  • With a ribbed surface the handwheel is comfortable to grip and use. The built-in keyway provides a physical index point that you can use to line up your marks and pull focus by touch.
  Removable Marking Disc
  • • The disc is interchangeable and can be used on any industry-standard handwheel.
    • The detent will prevent the disc from rotating on a handwheel with a matching locating pin. This guarantees your marks remain accurate.
    • You can pre-mark discs to match specific lenses for rapid lens changes and focus resets; additional discs must be purchased separately.
  Optional Soft/Hard Stops
  • You can purchase a pack of two removable soft/hard stop add-ons.
    • The stops feature an inscribed white index mark for lining up the marks on your disc.
    • Using soft stops allows you to set your focus positions, and then you can grasp your focus handwheel with your fingers on the edge of the disc, allowing you to pull focus while looking at the subject and not the lens, as your fingers will feel the stops. This is a popular technique, as it allows the focus puller to have a sense of where the ends of their pull is, without having to look away from the action to check the lens or handwheel. Because it is a soft stop, the focus puller can also go beyond the stop simply by moving their fingers away.
    • Engaging the hard stop functionality allows you to set limits for rotation of your lens. This can be useful when pulling focus on lenses that rotate endlessly.
  Optional Torch Holster
  • You can mount the Bright Tangerine Torch holster on the handwheel (holster not included). This allows you to mount a select flashlight to your handwheel for working in dim and dark conditions.
• Revolvr Atom Marking Disc Bright Tangerine's Revolvr Atom Marking Disc fits on industry-standard focus mini handwheels and features a detent that can prevent the marking disc from spinning on its own. The surface of the disc is smooth, which allows it to work with dry- and wet-erase markers. It is made from Delrin for a favorable balance between durability and weight.
  • The disc is interchangeable and can be used on industry-standard focus mini handwheels.
  • The detent will prevent the disc from rotating on a handwheel with matching locating pin. This guarantees your marks remain accurate.
  • You can pre-mark discs to match specific lenses for rapid lens changes and focus resets; additional discs must be purchased separately.
  • Please note that marking discs are not cross compatible between the Revolvr and Revolvr Atom handwheels.
  UPC: 755899003129
• Revolvr Gear 0.8 35 Tooth with 10mm Face The Revolvr Gear 0.8 35 Tooth with 10mm Face from Bright Tangerine features a 0.8 Mod, which allows it to interface with lenses that feature a cine-style geared focus, zoom, or iris ring. It works with either of the swing away arms for the Revolvr or Revolvr Atom follow focus units.

  The gear features 35 teeth and a small diameter yet wide profile suitable for use with primes and zoom lenses. The 10mm width (or thickness) makes it especially suitable for use with lenses that experience some focus travel. In addition, the width allows you some flexibility in placing your follow focus.
  • The 0.8 Mod interfaces with the lens gears of cine-style lenses.
  • Made of Delrin for a strong, durable contact surface with your lens's gear, and stainless steel where it attaches to the follow focus' drive. This gear is strong and durable.
  UPC: 755899003020
• Revolvr Gear 0.8 43 Tooth with 6mm Face The Revolvr Gear 0.8 43 Tooth with 6mm Face from Bright Tangerine features a 0.8 Mod, which allows it to interface with lenses that feature a cine-style geared focus, zoom, or iris ring. It works with either of the swing away arms for the Revolvr or Revolvr Atom follow focus units.

  The gear features 43 teeth and a small diameter yet wide profile suitable for use with primes and zoom lenses. The 6mm width (or thickness) makes it especially suitable for use with lenses that experience some focus travel. In addition, the width allows you some flexibility in placing your follow focus.
  • The 0.8 Mod interfaces with the lens gears of cine-style lenses.
  • Made of Delrin for a strong, durable contact surface with your lens's gear, and stainless steel where it attaches to the follow focus' drive. This gear is strong and durable.
  UPC: 755899003037
• Revolvr Swing Arm Cine for Revolvr Lightweight Core and Revolvr Atom Core Bridge (1:1.842 Ratio) This Revolvr Swing Arm Cine for Revolvr Lightweight Core and Revolvr Atom Core Bridge from Bright Tangerine features a 1:1.842 gear ratio and is designed to work with the Revolvr Lightweight or Revolvr Atom Core Bridge (not included). The Swing Arm transfers the focus movements from the handwheel mounted on your core bridge to the drive gear that interfaces with your lens. The swing arm mounts to your core bridge with a single screw, and pivots to adjust for the diameter of your lens.

  You can mount the Swing Arm on either side of your core bridge's drive transmission to match the position of your lens's focus gear. Designed specifically for the Revolvr and Revolvr Atom core, the Swing Arm accepts Bright Tangerine drive gears and the reversing gear. It features a tension adjustment roller to eliminate backlash.
  • 1:1.842 gear ratio
  • Made from anodized aluminum and stainless steel
  • The custom rubber drive belt and built-in tension adjustment roller is designed to eliminate backlash
  • Drive gears can be mounted on either side of the Swing Arm
  UPC: 755899002924

• Limited 2-Year Warranty, Extendable to 5-Year with Product Registration

• Revolvr Marking Disc

• Limited 2-Year Warranty, Extendable to 5 Years with Product Registration

• Limited 2-Year Warranty, Extendable to 5-Years with Product Registration

• Limited 2-Year Warranty, Extendable to 5-Year with Product Registration

• Limited 2-Year Warranty, Extendable to 5-Year with Product Registration

• Limited 2-Year Warranty, Extendable to 5-Years with Product Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Revolvr Atom 15mm Lightweight Core Bridge

  Material of Construction

  Titanium, anodized aluminum, and stainless steel

  Box Dimensions (LxWxH)	16.0 x 12.0 x 2.5"

• Revolvr Focus Handwheel

  Material of Construction	Titanium, anodized aluminum, stainless steel, rubber, and Delrin
  Compatibility	Revolvr and Revolvr Atom core bridges Industry-standard cranks and whips Bright Tangerine 4D speed crank

  Box Dimensions (LxWxH)	4.0 x 3.5 x 3.2"

• Revolvr Atom Marking Disc

  Material of Construction	Delrin
  Finish	Smooth for use with dry erase and wet erase markers
  Compatibility	Industry-Standard Mini Handwheels
  Dimensions	Outer Diameter: 3.2" / 81.9 mm Inner Diameter: 2.3" / 58.0 mm Thickness: 0.2" / 4.0 mm

  Box Dimensions (LxWxH)	3.0 x 3.0 x 1.0"

• Revolvr Gear 0.8 35 Tooth with 10mm Face

  Material of Construction	Delrin and stainless steel
  MOD	0.8
  Number of Teeth	35
  Face Width	0.4" / 10 mm

  Box Dimensions (LxWxH)	1.5 x 1.4 x 0.1"

• Revolvr Gear 0.8 43 Tooth with 6mm Face

  Material of Construction	Delrin and stainless steel
  MOD	0.8
  Number of Teeth	43
  Face Width	0.2" / 6 mm

  Box Dimensions (LxWxH)	2.8 x 2.0 x 0.85"

• Revolvr Swing Arm Cine for Revolvr Lightweight Core and Revolvr Atom Core Bridge (1:1.842 Ratio)

  Material of Construction	Anodized aluminum, stainless steel
  Compatibility	Industry standard drive gears Bright Tangerine 0.8 mod 10-tooth reverse gear

  Box Dimensions (LxWxH)	2.7 x 1.2 x 0.9"
