User Manual for Bright Tangerine Revolvr Atom Focus Handwheel Click to enlarge the picture
Contents of the user manual for the Bright Tangerine Revolvr Atom Focus Handwheel
- Product category: Follow Focus Accessories Bright Tangerine
- Brand: Bright Tangerine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bright Tangerine Follow Focus Accessories
 |
User manual for the Bright Tangerine Revolvr Atom Focus Handwheel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bright Tangerine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bright Tangerine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bright Tangerine product will considerably shorten its lifespan!
|

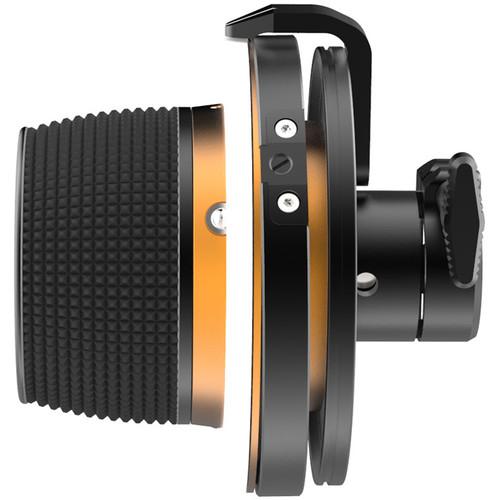

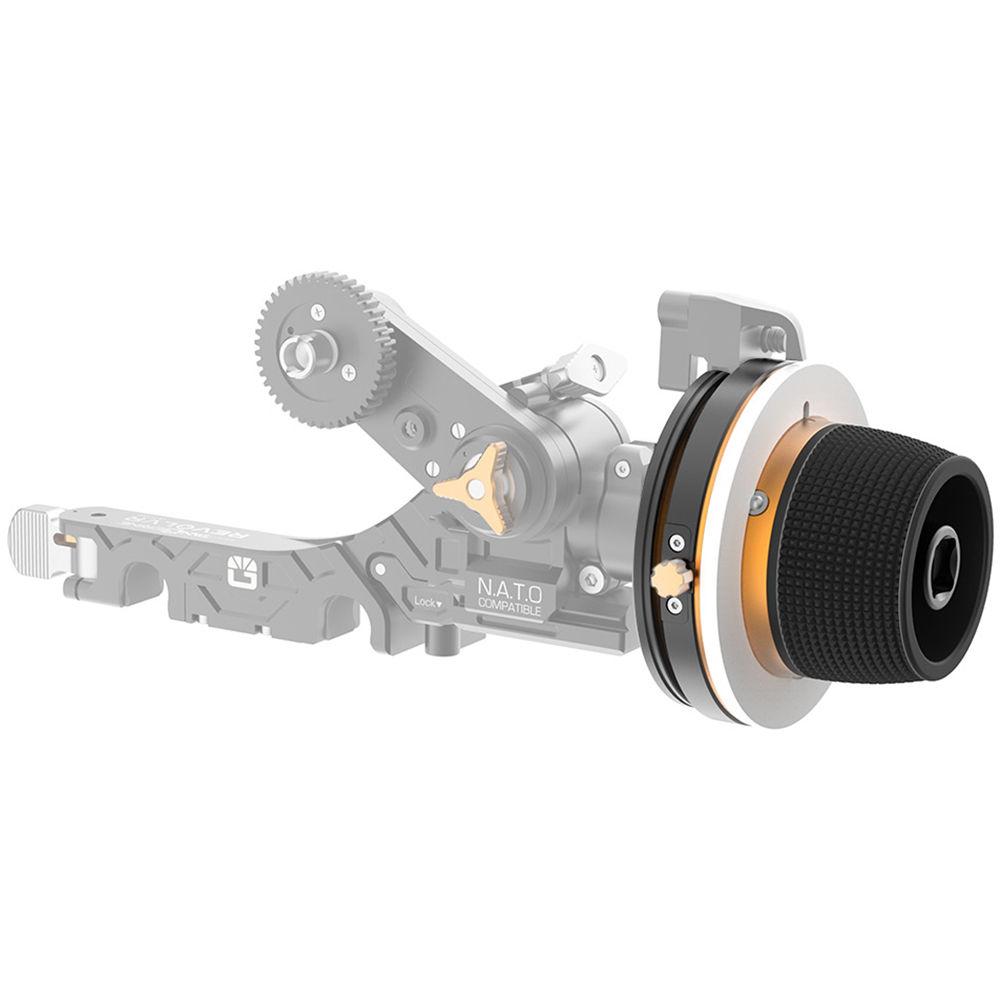

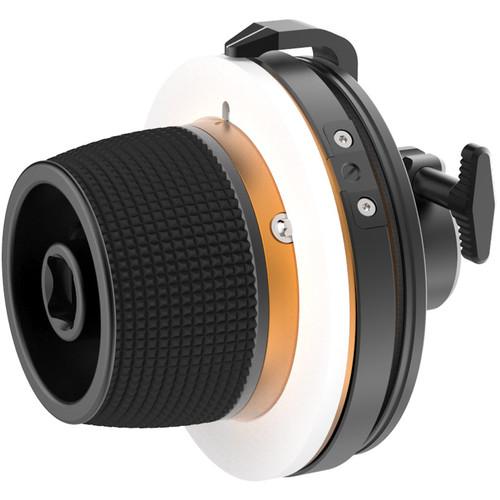

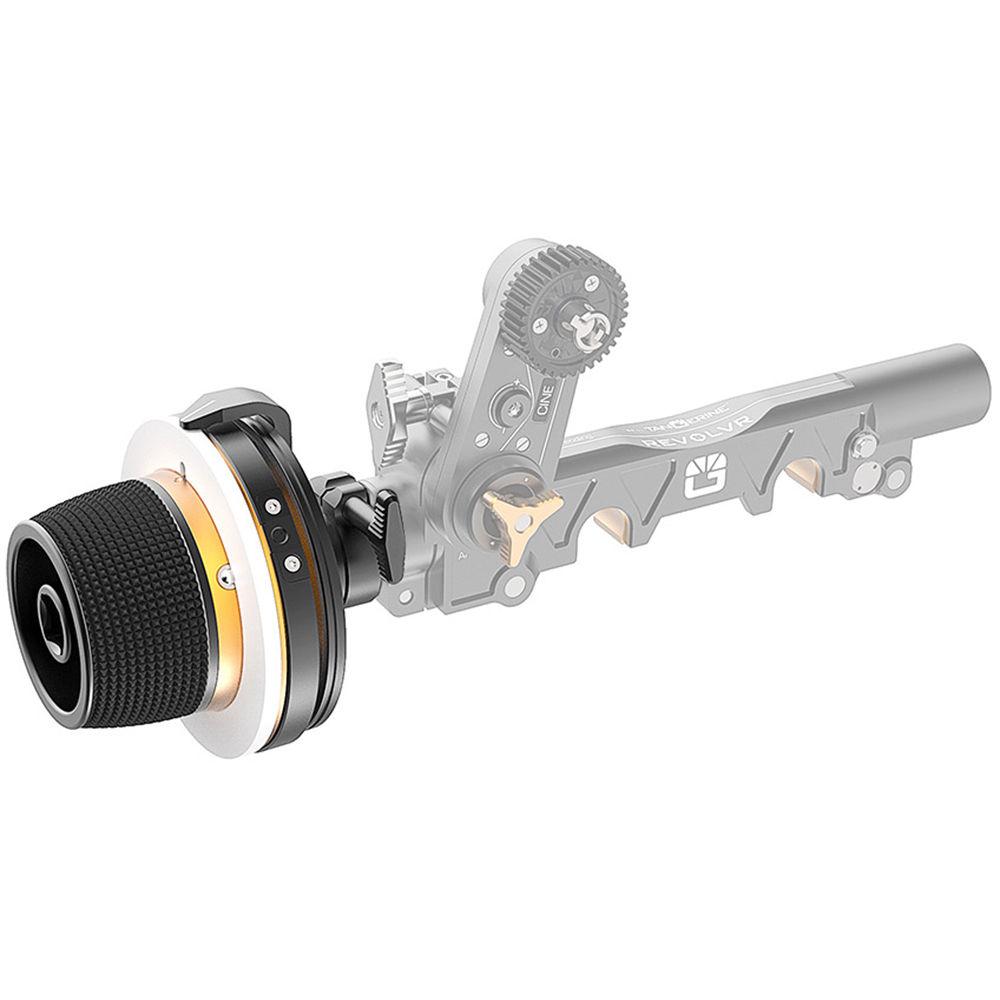

Product description Designed to work seamlessly with your Bright Tangerine Revolvr or Revolvr Atom focus unit, the Revolvr Atom Focus Handwheel provides a raised gripping surface for a secure grip. Featuring a ribbed surface for extra grip, the Atom handwheel is a small or mini version of the standard handwheel for a minimum footprint. You can mount the handwheel on either side of you focus unit, so you can pull focus from either side of the lens just by switching it to the other side.
The handwheel also includes a removable Delrin marking disc, and it features an industry-standard accessory socket for optional whips and cranks. With an optional pack of two removable soft/hard stops, you can mount and adjust the position of either stop on the handwheel. Each stop features an index line, so you can set multiple focus points on your handwheel. Pressing the plunger activates the hard stops, which can be set to provide limits to lens rotation when working with endlessly rotating lenses. With the plunger released, the hard stops become soft stops, allowing you to use your fingers to stop the rotation of your focus wheel. - Handwheel Surface
- With a ribbed surface the handwheel is comfortable to grip and use.
- Removable Marking Disc
-
- The disc is interchangeable and can be used on any industry-standard mini handwheel.
- The detent will prevent the disc from rotating on a handwheel with a matching locating pin. This guarantees your marks remain accurate.
- You can pre-mark discs to match specific lenses for rapid lens changes and focus resets; additional discs must be purchased separately.
- Optional Soft/Hard Stops
- You can purchase a pack of two removable soft/hard stop add-ons.
- The stops feature an inscribed white index mark for lining up the marks on your disc.
- Using soft stops allows you to set your focus positions, and then you can grasp your focus handwheel with your fingers on the edge of the disc, allowing you to pull focus while looking at the subject and not the lens, as your fingers will feel the stops. This is a popular technique, as it allows the focus puller to have a sense of where the ends of their pull is, without having to look away from the action to check the lens or handwheel. Because it is a soft stop, the focus puller can also go beyond the stop simply by moving their fingers away.
- Engaging the hard stop functionality allows you to set limits for rotation of your lens. This can be useful when pulling focus on lenses that rotate endlessly.
UPC: 755899003099 In the Box Bright Tangerine Revolvr Atom Focus Handwheel Revolvr Atom Marking Disc Limited 2-Year Warranty, Extendable to 5 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Bright Tangerine Revolvr Atom Focus Handwheel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBright Tangerine B2010.1003 Specs | Material of Construction | Titanium, anodized aluminum, stainless steel, rubber, and Delrin | | Compatibility | Revolvr and Revolvr Atom core bridges
Industry-standard cranks and whips
Bright Tangerine 4D speed crank | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 7.9 x 5.5 x 4.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
