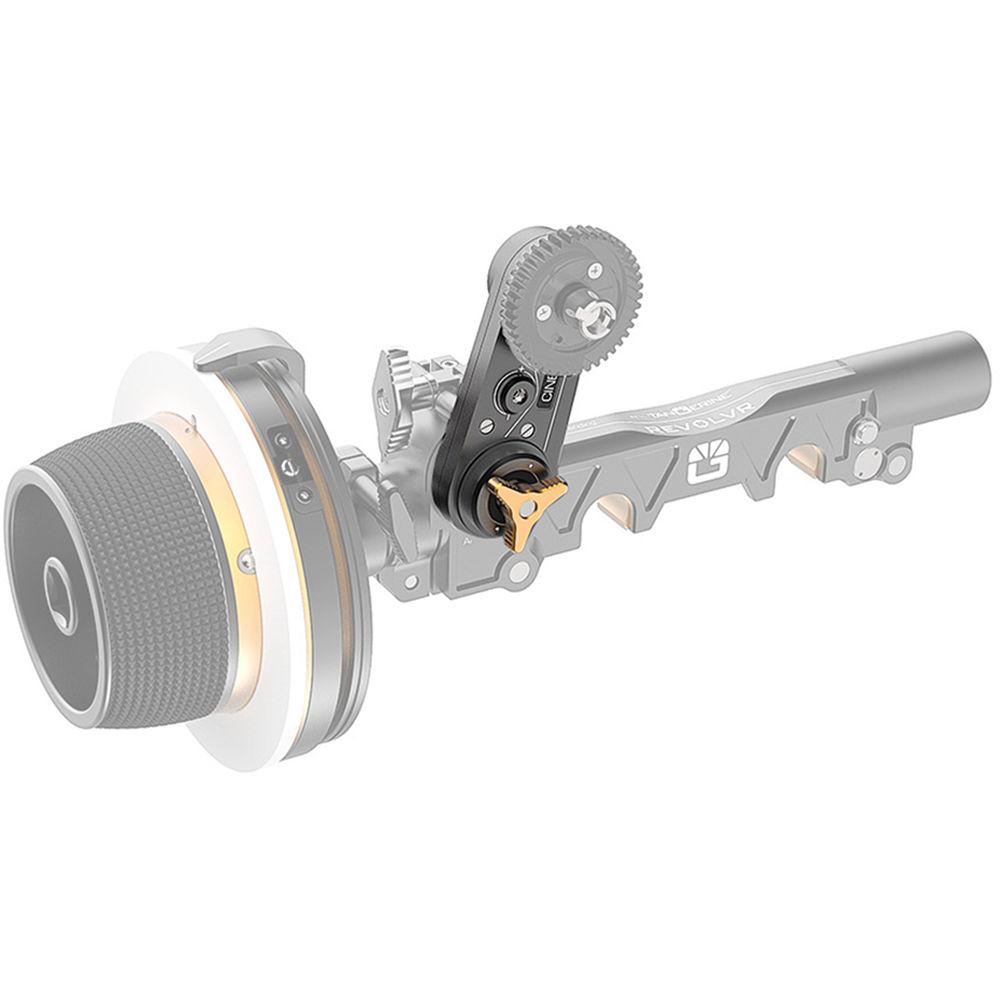

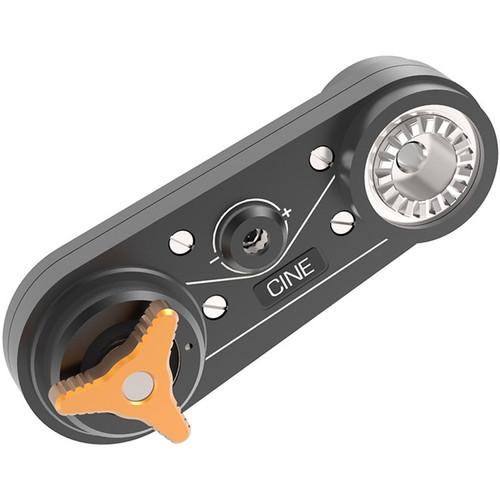

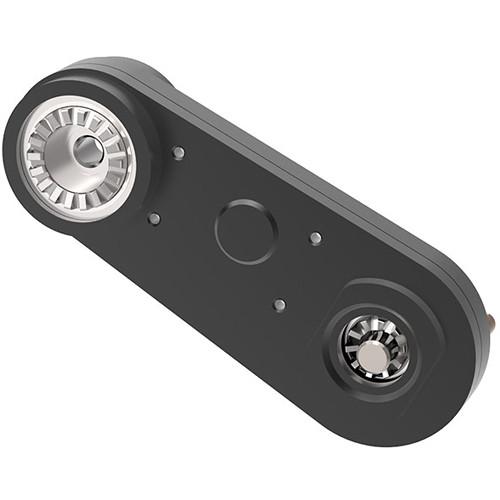

Product description This Revolvr Swing Arm Cine for Revolvr Lightweight Core and Revolvr Atom Core Bridge from Bright Tangerine features a 1:1.842 gear ratio and is designed to work with the Revolvr Lightweight or Revolvr Atom Core Bridge (not included). The Swing Arm transfers the focus movements from the handwheel mounted on your core bridge to the drive gear that interfaces with your lens. The swing arm mounts to your core bridge with a single screw, and pivots to adjust for the diameter of your lens.
You can mount the Swing Arm on either side of your core bridge's drive transmission to match the position of your lens's focus gear. Designed specifically for the Revolvr and Revolvr Atom core, the Swing Arm accepts Bright Tangerine drive gears and the reversing gear. It features a tension adjustment roller to eliminate backlash. - Made from anodized aluminum and stainless steel
- The custom rubber drive belt and built-in tension adjustment roller is designed to eliminate backlash
- Drive gears can be mounted on either side of the Swing Arm
UPC: 755899002924 In the Box Bright Tangerine Revolvr Swing Arm Cine for Revolvr Lightweight Core and Revolvr Atom Core Bridge (1:1.842 Ratio) Limited 2-Year Warranty, Extendable to 5-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Bright Tangerine Revolvr Swing Arm Cine for Revolvr Lightweight Core and Revolvr Atom Core Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBright Tangerine B2000.1013 Specs | Material of Construction | Anodized aluminum, stainless steel | | Compatibility | Industry standard drive gears
Bright Tangerine 0.8 mod 10-tooth reverse gear | | | | Package Weight | 0.165 lb | | Box Dimensions (LxWxH) | 2.7 x 1.2 x 0.9" |
