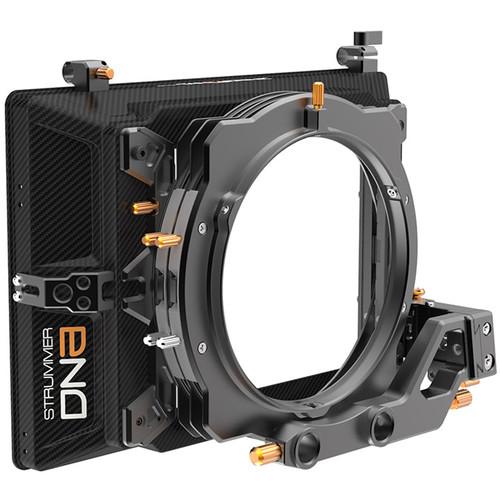

User Manual for Bright Tangerine Strummer DNA Matte Box Kit 2 Click to enlarge the picture
Contents of the user manual for the Bright Tangerine Strummer DNA Matte Box
- Product category: Matte Boxes & Sunshades Bright Tangerine
- Brand: Bright Tangerine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bright Tangerine Matte Boxes & Sunshades
|
User manual for the Bright Tangerine Strummer DNA Matte Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bright Tangerine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bright Tangerine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bright Tangerine product will considerably shorten its lifespan!
|
Product description The Strummer DNA from Bright Tangerine is a reconfigurable matte box that allows you to switch out one filter stage assembly (cassette) for another one with stages of a different size. Whereas traditionally filter stage assemblies are fixed within the matte box, Strummer DNA allows you to swap one out for another in just moments, in effect allowing you to use one matte box to perform the job of multiple ones. When you need 6" filters, you can simply swap in a 6 x 6" cassette. Strummer DNA offers a 143mm diameter when using 5.65" stages, and 165mm diameter when using 6.6" stages. It'll support 14mm Cooke lenses in 3 PV stages, and will cover a 12mm Master Prime with a 6" stage.
The stages in the cassettes are individually stacked up one on top of another, and you can attach additional, single-stage expansion packs to the stack. At the click of a button, the individual stages are easily separated. One of the benefits of this is that the stages become very easy to clean since each one can be handled separately, whereas normally filter stages are more difficult to clean when they get clogged up. All the stages are rotatable 360° (with the exception of certain cassettes).
This Strummer DNA Kit 2 includes a core frame with a carbon fiber shade, 5.65" 2-stage cassette, 5.65" single-stage expansion pack, swing away slide bracket and 15mm LWS arm for swing away functionality, top flag mounts, and side 3/8" mounts.
Strummer DNA side flags, sold separately, feature dual variable blades that can be tucked in between top and bottom flags, also sold separately, so that the top and bottom flags can be closed beyond the traditional 90°. Strummer DNA also supports an optional A.R.F. tilt block that enables backward/forward tilt up to 15° to prevent filter reflections. - Strummer DNA Core & Shade
- Strummer DNA
- Bright Tangerine Strummer DNA Matte Box Overview
- Exploring the Strummer DNA Mattebox with The Camera House
This is the core of the Bright Tangerine Strummer DNA studio matte box. It consists of a core frame and carbon fiber shade, top flag mounts, side 3/8" mounts, and a swing away slide bracket. The swing away slide bracket is meant to be attached to a Bright Tangerine support arm, sold separately, to enable swing away functionality. Support arms are available in 19mm studio, 15mm studio, and 15mm LWS versions.
Strummer DNA is a reconfigurable matte box that allows you to switch out one filter stage assembly (cassette) for another one with stages of a different size. Whereas traditionally filter stage assemblies are fixed within the matte box, Strummer DNA allows you to swap one out for another in just moments, in effect allowing you to use one matte box to perform the job of multiple ones. When you need 6" filters, you can simply swap in a 6 x 6" cassette. Strummer DNA offers a 143mm diameter when using 5.65" stages, and 165mm diameter when using 6.6" stages. It'll support 14mm Cooke lenses in 3 PV stages, and will cover a 12mm Master Prime with a 6" stage.
The stages in the cassettes are individually stacked up one on top of another, and you can attach additional, single-stage expansion packs to the stack. At the click of a button, the individual stages are easily separated. One of the benefits of this is that the stages become very easy to clean since each one can be handled separately, whereas normally filter stages are more difficult to clean when they get clogged up. All the stages are rotatable 360° (with the exception of certain cassettes).
Strummer DNA side flags feature dual variable blades that can be tucked in between top and bottom flags so that the top and bottom flags can be closed beyond the traditional 90°. Strummer DNA also supports an optional A.R.F. tilt block that enables backward/forward tilt up to 15° to prevent filter reflections. - Strummer DNA 5.65" 2-Stage Cassette This is a 5.65" Bright Tangerine 2-Stage Cassette for the Bright Tangerine Strummer DNA matte box. Filter trays are not included. UPC: 755899001095
- Strummer DNA 5.65" Single Stage Expansion Pack This is a 5.65" Bright Tangerine Single Stage Expansion Pack for the Bright Tangerine Strummer DNA matte box. Trays are not included. UPC: 755899001088
- 15mm LWS Swing Away Arm for Strummer DNA This Bright Tangerine 15mm LWS Arm is designed to be attached to the Bright Tangerine Swing Away Slide Bracket to enable swing away functionality on the Strummer DNA matte box.
In the Box Bundle Items Strummer DNA Core & Shade sdxfywffrvsezucevu Strummer DNA 5.65" 2-Stage Cassette Strummer DNA 5.65" Single Stage Expansion Pack 15mm LWS Swing Away Arm for Strummer DNA Table of Contents
|
Upload User Manual
Have you got an user manual for the Bright Tangerine Strummer DNA Matte Box Kit 2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Strummer DNA Core & Shade
| Diameter | 165 mm (6.6" cassette); 143 mm (5.65" cassette) | | Material | Carbon fiber and hard anodized aluminum | | Dimensions | 3-Stage Configuration: 10.9 x 7.6 x 3.4" (27.7 x 19.4 x 8.6 cm) | | Weight | 5.65" 2-Stage Configuration: 2.2 lb (1 kg) (inc. filter trays)
5.65" 3-Stage Configuration: 2.6 lb (1.2 kg) (inc. filter trays)
6.6" 2-Stage Configuration: 2.5 lb (1.15 kg) (inc. filter trays)
6.6" 3-Stage Configuration: 3 lb (1.35 kg) (inc. filter trays) | | | | Box Dimensions (LxWxH) | 10.9 x 8.1 x 2.4" | - Strummer DNA 5.65" 2-Stage Cassette
| | | Box Dimensions (LxWxH) | 8.8 x 6.3 x 1.3" | - Strummer DNA 5.65" Single Stage Expansion Pack
| | | Box Dimensions (LxWxH) | 7.7 x 7.2 x 0.5" | - 15mm LWS Swing Away Arm for Strummer DNA
| Material | Hard anodized aluminium | | | | Box Dimensions (LxWxH) | 6.8 x 0.9 x 0.4" |
