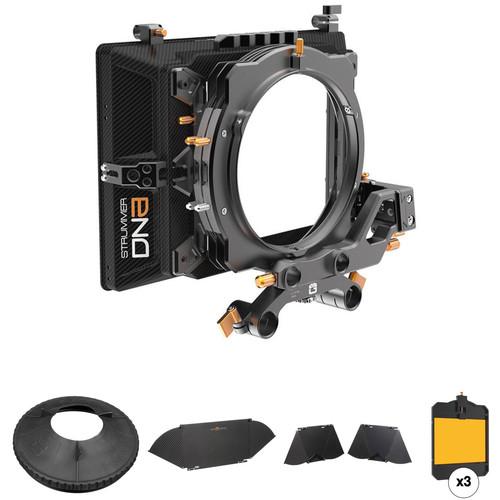

User Manual for Bright Tangerine Strummer DNA Matte Box Kit 4 with Flags, Donut & Horizontal Filter Tray Click to enlarge the picture
Contents of the user manual for the Bright Tangerine Strummer DNA Matte Box
- Product category: Matte Boxes & Sunshades Bright Tangerine
- Brand: Bright Tangerine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bright Tangerine Matte Boxes & Sunshades
|
User manual for the Bright Tangerine Strummer DNA Matte Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bright Tangerine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bright Tangerine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bright Tangerine product will considerably shorten its lifespan!
|
Product description This Bright Tangerine Strummer DNA Matte Box Kit 4 with Flags, Donut, and Horizontal Filter Tray is a B&H kit that has been assembled to provide you with a complete rod-mounted swing-away matte box kit that can mount on either 15 or 19mm rods. The Strummer DNA matte box includes the two-stage cassette, a single-stage expander, and three filter trays so you won't have empty stages. For controlling flare and veiling glare, the kit includes a top flag, often referred to as an eyebrow, and two side flags. The Black Hole Donut provides light leak protection when using lenses with an outer diameter between 62 and 143mm. - Bright Tangerine Strummer DNA Matte Box Kit 4 The Strummer DNA from Bright Tangerine is a reconfigurable matte box that allows you to switch out one filter stage assembly (cassette) for another one with stages of a different size. Whereas traditionally filter stage assemblies are fixed within the matte box, Strummer DNA allows you to swap one out for another in just moments, in effect allowing you to use one matte box to perform the job of multiple ones. When you need 6" filters, you can simply swap in a 6 x 6" cassette. Strummer DNA offers a 143mm diameter when using 5.65" stages, and 165mm diameter when using 6.6" stages. It'll support 14mm Cooke lenses in 3 PV stages, and will cover a 12mm Master Prime with a 6" stage.
The stages in the cassettes are individually stacked up one on top of another, and you can attach additional, single-stage expansion packs to the stack. At the click of a button, the individual stages are easily separated. One of the benefits of this is that the stages become very easy to clean since each one can be handled separately, whereas normally filter stages are more difficult to clean when they get clogged up. All the stages are rotatable 360° (with the exception of certain cassettes).
This Strummer DNA Kit 4 includes a core frame with a carbon fiber shade, 5.65" 2-stage cassette, 5.65" single-stage expansion pack, swing away slide bracket and 15mm LWS arm for swing away functionality, 19mm studio rod bridge bracket, flag bracket with mounting threads, top flag mounts, and side 3/8" mounts.
Strummer DNA side flags, sold separately, feature dual variable blades that can be tucked in between top and bottom flags, also sold separately, so that the top and bottom flags can be closed beyond the traditional 90°. Strummer DNA also supports an optional A.R.F. tilt block that enables backward/forward tilt up to 15° to prevent filter reflections. UPC: 755899001033 - Bright Tangerine 143mm Black Hole Donut for Viv, Viv 5", Misfit, and Strummer DNA Bright Tangerine's 143mm Black Hole Donut works with lenses with a front outer diameter between 62 and 143mm. It is compatible with Bright Tangerine Viv, Viv 5", Misfit, and Strummer DNA matte boxes as well as select ARRI matte boxes. The black elasto polymer stretches to fit on your lens, and features a conical shape that allows for two inches of lens travel.
The Black Hole Donut is fitted with a 138mm filter ring and threaded retaining ring. This allows you to mount your 138mm filters into the front of the donut, which is then attached to the front of your matte box. - The Black Hole Donut expands to fit lenses with diameters between 62 and 143mm.
- With two inches of travel, you can use this lens donut with lenses that change size as you change focus.
UPC: 755899001347 - Bright Tangerine Top Flag for Strummer DNA Matte Box Add extra flare control to your matte box with this Bright Tangerine Top Flag. The carbon fiber design is lightweight and matches the aesthetic of Bright Tangerine matte boxes. Use the integrated quick release attachment system for mounting on your Strummer DNA matte box. Integrated variable side wings expand from the sides of the top flag for additional light blocking. Knurled knobs allow you to set the exact position of the side wing and lock it in place. The top flag can also be used as a bottom flag for controlling glare from below your camera. UPC: 755899001149
- Bright Tangerine Side Flags with Dual Variable Wings for Strummer DNA This is a pair of carbon fiber Bright Tangerine Side Flags for the Bright Tangerine Strummer DNA matte box. Each flag features dual variable side wings and flag mounts. UPC: 755899001156
- 3 x Bright Tangerine 4x5.65" Horizontal Filter Tray for Strummer DNA This is a 4x5.65" horizontal Bright Tangerine Filter Tray for the Bright Tangerine Strummer DNA matte box. The Strummer DNA matte box, not included, can accept 6x6" and 4x5.65" filter trays with optional filter cassettes. This filter tray allows you to use a 4x5.6" filter, and it features solid baffles to block the light from sneaking around the filter. UPC: 755899001262
In the Box - Strummer DNA Matte Box Kit 4 rucdyefdxcyeeauadxffseuydxxtsbv
- Strummer DNA Core & Shade
- Strummer DNA 5.65" 2-Stage Cassette
- Strummer DNA 5.65" Single Stage Expansion Pack
- French Flag Bracket with Mounting Threads for Strummer DNA
- Strummer 19mm Studio Bracket
- 15mm LWS Swing Away Arm for Strummer DNA
- 143mm Black Hole Donut for Viv, Viv 5", Misfit, and Strummer DNA
- Top Flag for Strummer DNA Matte Box
- Side Flags with Dual Variable Wings for Strummer DNA
- 3 x 4x5.65" Horizontal Filter Tray for Strummer DNA
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bright Tangerine Strummer DNA Matte Box Kit 4 with Flags, Donut & Horizontal Filter Tray in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Bright Tangerine Strummer DNA Core & Shade
| Diameter | 165 mm (6.6" cassette); 143 mm (5.65" cassette) | | Material | Carbon fiber and hard anodized aluminum | | Dimensions | 3-Stage Configuration: 10.9 x 7.6 x 3.4" (27.7 x 19.4 x 8.6 cm) | | Weight | 5.65" 2-Stage Configuration: 2.2 lb (1 kg) (inc. filter trays)
5.65" 3-Stage Configuration: 2.6 lb (1.2 kg) (inc. filter trays)
6.6" 2-Stage Configuration: 2.5 lb (1.15 kg) (inc. filter trays)
6.6" 3-Stage Configuration: 3 lb (1.35 kg) (inc. filter trays) | | | | Box Dimensions (LxWxH) | 10.9 x 8.1 x 2.4" | - Bright Tangerine Strummer DNA 5.65" 2-Stage Cassette
| | | Box Dimensions (LxWxH) | 8.8 x 6.3 x 1.3" | - Bright Tangerine Strummer DNA 5.65" Single Stage Expansion Pack
| | | Box Dimensions (LxWxH) | 7.7 x 7.2 x 0.5" | - Bright Tangerine French Flag Bracket with Mounting Threads for Strummer DNA
| Material | Hard anodized aluminum | | Threaded Mounting Hole | Five 3/8"-16
Four 1/4"-20 | | Dimensions | 3.6 x 0.7 x 0.6" / 92.0 x 17.0 x 16.0 mm | | Weight | 0.7 oz / 21.0 g | | | | Box Dimensions (LxWxH) | 4.0 x 1.0 x 0.2" | - Bright Tangerine Strummer 19mm Studio Bracket
| Material | Hard anodized aluminum | | | | Box Dimensions (LxWxH) | 6.6 x 4.15 x 2.7" | - Bright Tangerine 15mm LWS Swing Away Arm for Strummer DNA
| Material | Hard anodized aluminium | | | | Box Dimensions (LxWxH) | 6.8 x 0.9 x 0.4" | - Bright Tangerine 143mm Black Hole Donut for Viv, Viv 5", Misfit, and Strummer DNA
| Material of Construction | Elasto polymer
Anodized aluminum
Silicon nitride
Delrin | | Lens Diameter | 62 to 143 mm | | Filter Attachment | 138 mm | | Dimensions | 6.3 x 1.0" / 160.0 x 25.0 mm | | Weight | 3.6 oz / 103.0 g | | | | Box Dimensions (LxWxH) | 6.55 x 6.1 x 1.3" | - Bright Tangerine Top Flag for Strummer DNA Matte Box
| Dimensions | 11.9 x 6.57 x 0.67" / 301 x 167 x 17.1 mm | | Weight | 5.4 oz / 154 g | | | | Box Dimensions (LxWxH) | 14.05 x 8.85 x 0.9" | - Bright Tangerine Side Flags with Dual Variable Wings for Strummer DNA
| Material | Carbon fiber blades fixed to alloy axles | | | | Box Dimensions (LxWxH) | 8.6 x 7.3 x 1.5" | - 3 x Bright Tangerine 4x5.65" Horizontal Filter Tray for Strummer DNA
| Material | Hard anodized aluminium | | | | Box Dimensions (LxWxH) | 7.6 x 5.7 x 0.8" |
