Product description

• Strummer DNA Core & Shade
  • Strummer DNA
  • Bright Tangerine Strummer DNA Matte Box Overview
  • Exploring the Strummer DNA Mattebox with The Camera House

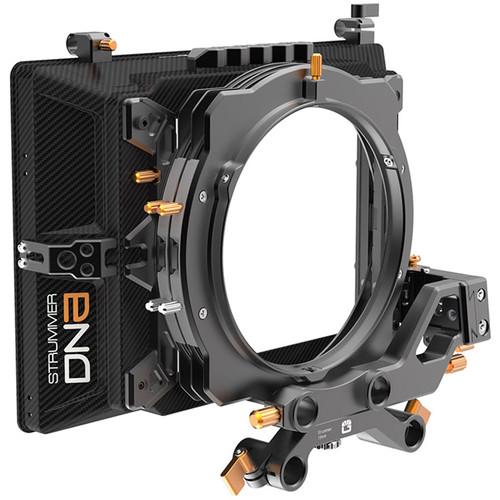

  This is the core of the Bright Tangerine Strummer DNA studio matte box. It consists of a core frame and carbon fiber shade, top flag mounts, side 3/8" mounts, and a swing away slide bracket. The swing away slide bracket is meant to be attached to a Bright Tangerine support arm, sold separately, to enable swing away functionality. Support arms are available in 19mm studio, 15mm studio, and 15mm LWS versions.

  Strummer DNA is a reconfigurable matte box that allows you to switch out one filter stage assembly (cassette) for another one with stages of a different size. Whereas traditionally filter stage assemblies are fixed within the matte box, Strummer DNA allows you to swap one out for another in just moments, in effect allowing you to use one matte box to perform the job of multiple ones. When you need 6" filters, you can simply swap in a 6 x 6" cassette. Strummer DNA offers a 143mm diameter when using 5.65" stages, and 165mm diameter when using 6.6" stages. It'll support 14mm Cooke lenses in 3 PV stages, and will cover a 12mm Master Prime with a 6" stage.

  The stages in the cassettes are individually stacked up one on top of another, and you can attach additional, single-stage expansion packs to the stack. At the click of a button, the individual stages are easily separated. One of the benefits of this is that the stages become very easy to clean since each one can be handled separately, whereas normally filter stages are more difficult to clean when they get clogged up. All the stages are rotatable 360° (with the exception of certain cassettes).

  Strummer DNA side flags feature dual variable blades that can be tucked in between top and bottom flags so that the top and bottom flags can be closed beyond the traditional 90°. Strummer DNA also supports an optional A.R.F. tilt block that enables backward/forward tilt up to 15° to prevent filter reflections.
• Strummer DNA 5.65" 2-Stage Cassette This is a 5.65" Bright Tangerine 2-Stage Cassette for the Bright Tangerine Strummer DNA matte box. Filter trays are not included. UPC: 755899001095
• Strummer DNA 5.65" Single Stage Expansion Pack This is a 5.65" Bright Tangerine Single Stage Expansion Pack for the Bright Tangerine Strummer DNA matte box. Trays are not included. UPC: 755899001088
• French Flag Bracket with Mounting Threads for Strummer DNA Machined from a solid piece of hard anodized billet aluminum, this Bright Tangerine French Flag Bracket is for the Bright Tangerine Strummer DNA matte box. It features five 3/8"-16 and four 1/4"-20 accessory mounting threads. The threaded holes are drilled 12mm deep, and the bracket mounts to your matte box with two black stainless steel screws.
  Billet Aluminum Construction
  • Billet aluminum is extremely dense and lacks internal voids that are found in cast aluminum. This allows the bracket to be able to withstand the stress and torque of supporting accessories that arc out over your matte box.
  • You can attach french flags as well as LED lights, laser pointers, lens accessories, and additional french flag brackets.
  UPC: 755899001170
• 15mm LWS Swing Away Arm for Strummer DNA This Bright Tangerine 15mm LWS Arm is designed to be attached to the Bright Tangerine Swing Away Slide Bracket to enable swing away functionality on the Strummer DNA matte box.
• Strummer 15mm Studio Bracket The 15mm Strummer Studio Bracket from Bright Tangerine allows you to rod mount the Strummer DNA Matte Box on a 15mm Studio setup. UPC: 755899001231

• Limited 5-Year Warranty

• Limited 5-Year Warranty

• Limited 5-Year Warranty

• Limited 5-Year Warranty

• Limited 5-Year Warranty

• Limited 5-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Strummer DNA Core & Shade

  Diameter	165 mm (6.6" cassette); 143 mm (5.65" cassette)
  Material	Carbon fiber and hard anodized aluminum
  Dimensions	3-Stage Configuration: 10.9 x 7.6 x 3.4" (27.7 x 19.4 x 8.6 cm)
  Weight	5.65" 2-Stage Configuration: 2.2 lb (1 kg) (inc. filter trays) 5.65" 3-Stage Configuration: 2.6 lb (1.2 kg) (inc. filter trays) 6.6" 2-Stage Configuration: 2.5 lb (1.15 kg) (inc. filter trays) 6.6" 3-Stage Configuration: 3 lb (1.35 kg) (inc. filter trays)

  Box Dimensions (LxWxH)	10.9 x 8.1 x 2.4"

• Strummer DNA 5.65" 2-Stage Cassette

  Box Dimensions (LxWxH)	8.8 x 6.3 x 1.3"

• Strummer DNA 5.65" Single Stage Expansion Pack

  Box Dimensions (LxWxH)	7.7 x 7.2 x 0.5"

• French Flag Bracket with Mounting Threads for Strummer DNA

  Material	Hard anodized aluminum
  Threaded Mounting Hole	Five 3/8"-16 Four 1/4"-20
  Dimensions	3.6 x 0.7 x 0.6" / 92.0 x 17.0 x 16.0 mm
  Weight	0.7 oz / 21.0 g

  Box Dimensions (LxWxH)	4.0 x 1.0 x 0.2"

• 15mm LWS Swing Away Arm for Strummer DNA

  Material

  Hard anodized aluminium

  Box Dimensions (LxWxH)	6.8 x 0.9 x 0.4"

• Strummer 15mm Studio Bracket

  Material

  Hard anodized aluminum

  Box Dimensions (LxWxH)	7.15 x 2.2 x 1.55"
