Bright Tangerine Strummer DNA Matte Box

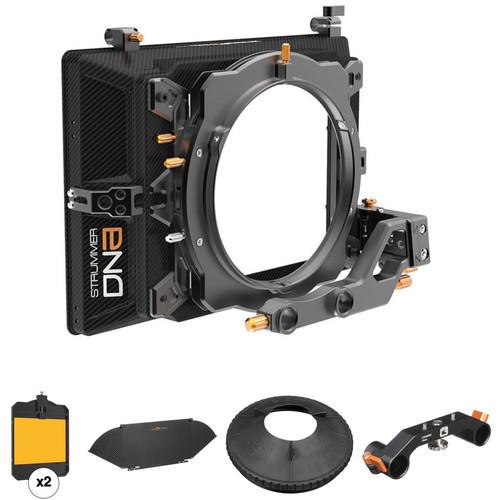

User Manual for Bright Tangerine Strummer DNA Matte Box Kit with 4 x 5.65" Filter Trays, Top Flag, 19mm Support, and Black Hole Rubber Donut

• Product category: Matte Boxes & Sunshades Bright Tangerine
• Brand: Bright Tangerine
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Bright Tangerine Matte Boxes & Sunshades

Product description

• Bright Tangerine Strummer DNA Matte Box Kit 1
  • Strummer DNA
  The Strummer DNA from Bright Tangerine is a reconfigurable matte box that allows you to switch out one filter stage assembly (cassette) for another one with stages of a different size. Whereas traditionally filter stage assemblies are fixed within the matte box, Strummer DNA allows you to swap one out for another in just moments, in effect allowing you to use one matte box to perform the job of multiple ones. When you need 6" filters, you can simply swap in a 6 x 6" cassette. Strummer DNA offers a 143mm diameter when using 5.65" stages, and 165mm diameter when using 6.6" stages. It'll support 14mm Cooke lenses in 3 PV stages, and will cover a 12mm Master Prime with a 6" stage.

  The stages in the cassettes are individually stacked up one on top of another, and you can attach additional, single-stage expansion packs to the stack. At the click of a button, the individual stages are easily separated. One of the benefits of this is that the stages become very easy to clean since each one can be handled separately, whereas normally filter stages are more difficult to clean when they get clogged up. All the stages are rotatable 360° (with the exception of certain cassettes).

  This Strummer DNA Kit 1 includes a core frame with a carbon fiber shade, 5.65" 2-stage cassette, swing away slide bracket and 15mm LWS arm for swing away functionality, top flag mounts, and side 3/8" mounts.

  Strummer DNA side flags, sold separately, feature dual variable blades that can be tucked in between top and bottom flags, also sold separately, so that the top and bottom flags can be closed beyond the traditional 90°. Strummer DNA also supports an optional A.R.F. tilt block that enables backward/forward tilt up to 15° to prevent filter reflections. UPC: 755899001002
• 2 x Bright Tangerine 4x5.65" Horizontal Filter Tray for Strummer DNA
  • Strummer DNA
  This is a 4x5.65" horizontal Bright Tangerine Filter Tray for the Bright Tangerine Strummer DNA matte box. The Strummer DNA matte box, not included, can accept 6x6" and 4x5.65" filter trays with optional filter cassettes. This filter tray allows you to use a 4x5.6" filter, and it features solid baffles to block the light from sneaking around the filter. UPC: 755899001262
• Bright Tangerine Top Flag for Strummer DNA Matte Box
  • Strummer DNA
  Add extra flare control to your matte box with this Bright Tangerine Top Flag. The carbon fiber design is lightweight and matches the aesthetic of Bright Tangerine matte boxes. Use the integrated quick release attachment system for mounting on your Strummer DNA matte box. Integrated variable side wings expand from the sides of the top flag for additional light blocking. Knurled knobs allow you to set the exact position of the side wing and lock it in place. The top flag can also be used as a bottom flag for controlling glare from below your camera. UPC: 755899001149
• Bright Tangerine 143mm Black Hole Donut for Viv, Viv 5", Misfit, and Strummer DNA
  • Strummer DNA
  Bright Tangerine's 143mm Black Hole Donut works with lenses with a front outer diameter between 62 and 143mm. It is compatible with Bright Tangerine Viv, Viv 5", Misfit, and Strummer DNA matte boxes as well as select ARRI matte boxes. The black elasto polymer stretches to fit on your lens, and features a conical shape that allows for two inches of lens travel.

  The Black Hole Donut is fitted with a 138mm filter ring and threaded retaining ring. This allows you to mount your 138mm filters into the front of the donut, which is then attached to the front of your matte box.
  • The Black Hole Donut expands to fit lenses with diameters between 62 and 143mm.
  • With two inches of travel, you can use this lens donut with lenses that change size as you change focus.
  UPC: 755899001347
• Bright Tangerine Strummer 19mm Studio Bracket
  • Strummer DNA
  The 19mm Strummer Studio Bracket from Bright Tangerine allows you to rod mount the Strummer DNA Matte Box on a 19mm Studio setup. UPC: 755899001224

• Strummer DNA Matte Box Kit 1 bxtwwvazwsdwccucetrabrqcqzrevzf
• Strummer DNA Core & Shade
• Strummer DNA 5.65" 2-Stage Cassette
• 15mm LWS Swing Away Arm for Strummer DNA

• 2 x 4x5.65" Horizontal Filter Tray for Strummer DNA

• Top Flag for Strummer DNA Matte Box

• 143mm Black Hole Donut for Viv, Viv 5", Misfit, and Strummer DNA

• Strummer 19mm Studio Bracket

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Bright Tangerine Strummer DNA Core & Shade

  Diameter	165 mm (6.6" cassette); 143 mm (5.65" cassette)
  Material	Carbon fiber and hard anodized aluminum
  Dimensions	3-Stage Configuration: 10.9 x 7.6 x 3.4" (27.7 x 19.4 x 8.6 cm)
  Weight	5.65" 2-Stage Configuration: 2.2 lb (1 kg) (inc. filter trays) 5.65" 3-Stage Configuration: 2.6 lb (1.2 kg) (inc. filter trays) 6.6" 2-Stage Configuration: 2.5 lb (1.15 kg) (inc. filter trays) 6.6" 3-Stage Configuration: 3 lb (1.35 kg) (inc. filter trays)

  Box Dimensions (LxWxH)	10.9 x 8.1 x 2.4"

• Bright Tangerine Strummer DNA 5.65" 2-Stage Cassette

  Box Dimensions (LxWxH)	8.8 x 6.3 x 1.3"

• Bright Tangerine 15mm LWS Swing Away Arm for Strummer DNA

  Material

  Hard anodized aluminium

  Box Dimensions (LxWxH)	6.8 x 0.9 x 0.4"

• 2 x Bright Tangerine 4x5.65" Horizontal Filter Tray for Strummer DNA

  Material

  Hard anodized aluminium

  Box Dimensions (LxWxH)	7.6 x 5.7 x 0.8"

• Bright Tangerine Top Flag for Strummer DNA Matte Box

  Dimensions	11.9 x 6.57 x 0.67" / 301 x 167 x 17.1 mm
  Weight	5.4 oz / 154 g

  Box Dimensions (LxWxH)	14.05 x 8.85 x 0.9"

• Bright Tangerine 143mm Black Hole Donut for Viv, Viv 5", Misfit, and Strummer DNA

  Material of Construction	Elasto polymer Anodized aluminum Silicon nitride Delrin
  Lens Diameter	62 to 143 mm
  Filter Attachment	138 mm
  Dimensions	6.3 x 1.0" / 160.0 x 25.0 mm
  Weight	3.6 oz / 103.0 g

  Box Dimensions (LxWxH)	6.55 x 6.1 x 1.3"

• Bright Tangerine Strummer 19mm Studio Bracket

  Material

  Hard anodized aluminum

  Box Dimensions (LxWxH)	6.6 x 4.15 x 2.7"
