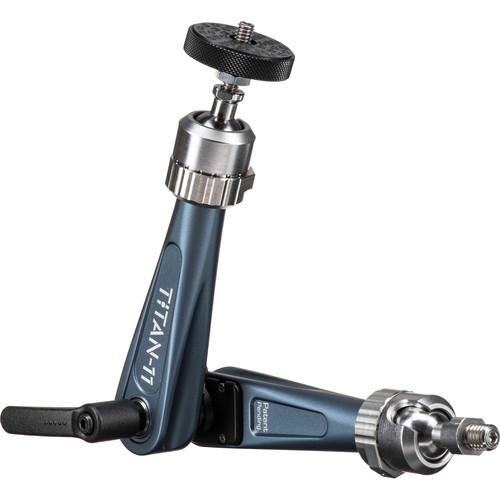

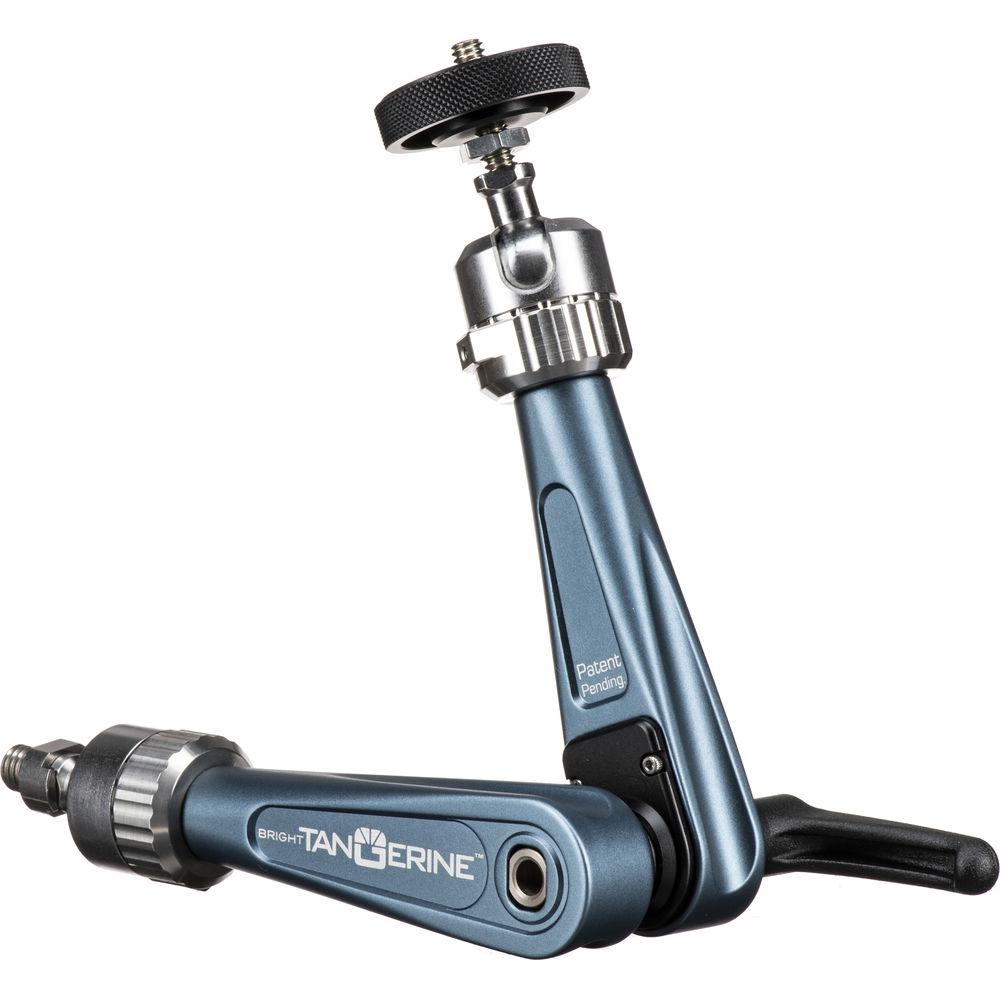

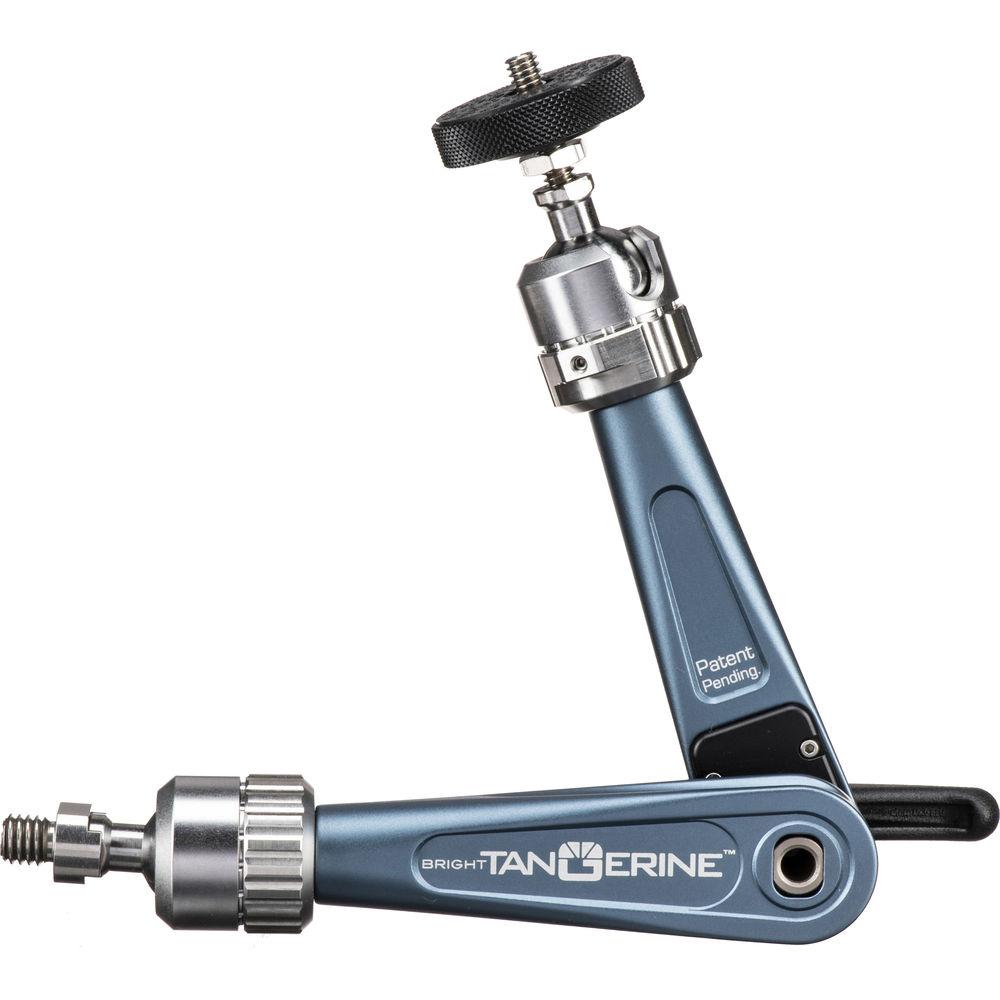

Product description This slate gray Bright Tangerine Titan Rigging Arm with 3/8"-16 to 1/4"-20 Mounting is 11" long when unfolded and supports 26 pounds. In addition to the payload, the Titan arm differs from other articulating arms in that you can adjust its position without unlocking it. This design enables you to lock the arm without overtightening it.
The arm features a spring-loaded locking lever that locks the articulation of the center pivot and the two ball joints. One ball joint has a 3/8"-16 threaded mounting stud to attach the arm to cameras or cages, while the other ball joint has a 1/4"-20 threaded mounting stud with a friction thumbwheel that prevents accessories from coming loose. - The design on the locking mechanism allows you to adjust the position of the arm without loosening the unlocking lever. Not only does this allow you to adjust the arm with only one hand, but also extends the lifetime of the arm as it can't be overtightened.
- The arm incorporates a 3/8"-16 threaded mounting stud and a 1/4"-20 threaded mounting stud, both set into ball joints providing swivel adjustment and up to 90° of lockable position adjustment. In general, the 3/8"-16 stud is used to mount the arm to your camera or cage, while the 1/4"-20 mounting stud is used to mount accessories to the arm. A thumbwheel allows you to tighten your accessory on the 1/4"-20 mounting stud.
UPC: 755899008063 In the Box Bright Tangerine Titan Rigging Arm with 3/8"-16 to 1/4"-20 (Slate Gray, 26.5 lb Payload) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bright Tangerine Titan Rigging Arm with 3 8"-16 to 1 4"-20 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBright Tangerine Titan Specs | Material | Stainless steel, aluminum | | Payload | 26.5 lb / 12 kg | | Mounting Stud | Camera/Cage: 1 x 3/8"-16
Accessory: 1 x 1/4"-20 | | Dimensions | Extended: 11.0 x 1.18 x 2.83" / 27.9 x 3.0 x 7.2 cm
Folded: 5.31 x 1.18 x 2.83" / 13.5 x 3.0 x 7.2 cm | | Weight | 1.3 lb / 580 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 6.0 x 4.1 x 1.5" |
