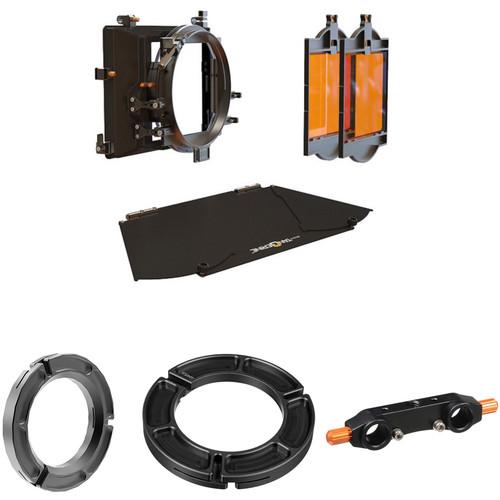

Product description The Bright Tangerine VIV 5" Broadcast Kit from B&H provides you with a two-stage clip-on matte box, with carbon fiber top flag, a 15mm LWS rod bracket, and two lens clamp-on rings. The matte box is made from carbon fiber, so it is lightweight, rigid, and durable. It features two filter stages, one fixed and one rotating, and comes with two filter trays and a carbon fiber top flag.
Included with this kit are two reducing donuts for clip-on matte boxes: a 150 to 98mm and a 150 to 95mm. Theses donuts allow you to clamp your matte box onto internal focus lenses with a 98 or 95mm outer diameter. Using a lens with a rotating front will cause the matte box to rotate as well, which is why the 15mm rod bracket is included as it allows you to mount the matte box onto a set of rods for support, instead of clamping onto the lens itself. - Bright Tangerine Viv 5" Matte Box Kit 1
- Bright Tangerine VIV Matte Box Overview
Bright Tangerine's Viv 5" Kit 1 is a two-stage 150mm clamp-on matte box solution. Constructed around the Viv core, this kit includes a carbon fiber top flag for controlling lens flare and one 5x5" filter tray, as well as one 4x5.65" filter tray, which sits in a rotatable stage. Carbon fiber construction in the shade and top flag ensures a light weight and durable build that will last through heavy use on set. See below for more information on the individual items included in this kit. UPC: 755899002818 - Bright Tangerine 150-98mm Clamp On Ring for ENG Wide Angle Lenses
- Bright Tangerine VIV Matte Box Overview
This is a 150-98mm Bright Tangerine Clamp On Ring for ENG wide angle lenses, such as the Canon 4.3mm and Fujinon 4.5mm lenses. It's compatible with the Bright Tangerine Viv and Viv 5" matte boxes. - Bright Tangerine 150-95mm Clamp On Ring for ENG Wide Angle Lenses
- Bright Tangerine VIV Matte Box Overview
This is a 150-95mm Bright Tangerine Clamp On Ring for ENG wide angle lenses, such as the Canon 4.3mm and Fujinon 4.5mm lenses. It's compatible with the Bright Tangerine Viv and Viv 5" matte boxes. UPC: 755899001897 - Bright Tangerine 15mm LWS Rod Bracket
- Bright Tangerine VIV Matte Box Overview
The Bright Tangerine 15mm LWS Rod Bracket can be used for multiple purposes within different setups of Bright Tangerine gear. In some cases additional accessories are required.
On its own, the 15mm LWS Rod Bracket allows you to attach Bright Tangerine Misfit 143mm Clamp-On matte boxes and Viv and Viv 5" matte boxes to 15 LWS rods (MFR #s B1230.0016, B1230.0017, B1210.1010, B1210.1011, B1210.0010, B1210.0011, B1210.1010, B1210.1011, B1210.0012, B1210.0013).
If you incorporate the optional 15mm LWS Bracket Adapter (MFR # B1230.1005), the Rod Bracket can be used to secure Misfit 114mm Clamp-On and Misfit Atom matte boxes to 15mm LWS rods (MFR #s B1230.0014, B1230.0015, B1230.1007, B1230.0011, B1230.0012, B1230.0013).
The 15mm LWS Rod Bracket is also a required accessory when using the Strummer 19mm and Strummer 15mm Studio Brackets (MFR # B1200.1017 and B1200.1018). - Key Features
-
- Convert Misfit, Misfit Atom, and Viv/Viv 5" matte boxes from clip-on or swing-away mount to rod-mount (additional accessories required in some cases)
- Also compatible with 15mm and 19mm Strummer Studio Brackets
UPC: 755899001675 In the Box - Viv 5" Matte Box Kit 1 rucdyefdxcyeeauadxffseuydxxtsbv
- Viv 5" Core 1
- 5x5" Filter Tray for Viv 5"
- Top Flag for Viv, Viv 5", or Misfit Matte Boxes
- 4x5.65" Filter Tray for VIV 5"
- 150-98mm Clamp On Ring for ENG Wide Angle Lenses
- 150-95mm Clamp On Ring for ENG Wide Angle Lenses
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bright Tangerine VIV 5" Broadcast Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Bright Tangerine Viv 5" Core 1
| Diameter | 150 mm max | | Material | Carbon fiber and hard anodized aluminum | | Weight | In 2-stage configuration: 1.1 lb (514 g) (inc. filter trays) | - Bright Tangerine 5x5" Filter Tray for Viv 5"
| Material | Hard anodized aluminium | | | | Box Dimensions (LxWxH) | 7.1 x 7.0 x 0.85" | - Bright Tangerine Top Flag for Viv, Viv 5", or Misfit Matte Boxes
| Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 11.1 x 6.3 x 0.2" | - Bright Tangerine 150-98mm Clamp On Ring for ENG Wide Angle Lenses
| | | Box Dimensions (LxWxH) | 5.9 x 5.9 x 1.1" | - Bright Tangerine 150-95mm Clamp On Ring for ENG Wide Angle Lenses
| | | Box Dimensions (LxWxH) | 7.9 x 6.0 x 1.7" | - Bright Tangerine 15mm LWS Rod Bracket
| Material of Construction | Hard-anodized aluminum | | Dimensions | 4.8 x 0.9 x 0.8" (12.3 x 2.2 x 2 cm) | | Weight | 2.1 oz (60 g) | | | | Box Dimensions (LxWxH) | 6.3 x 2.1 x 1.35" |
